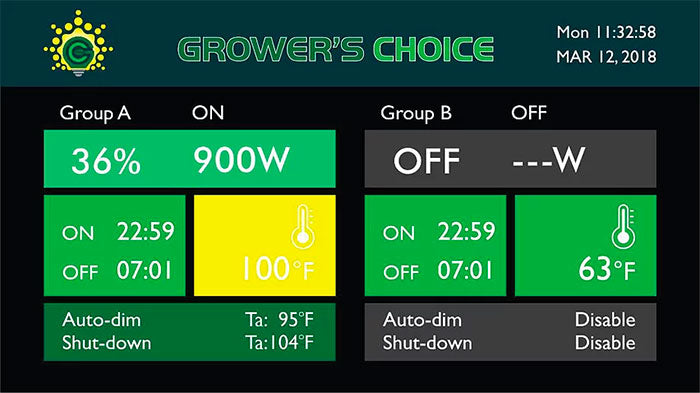

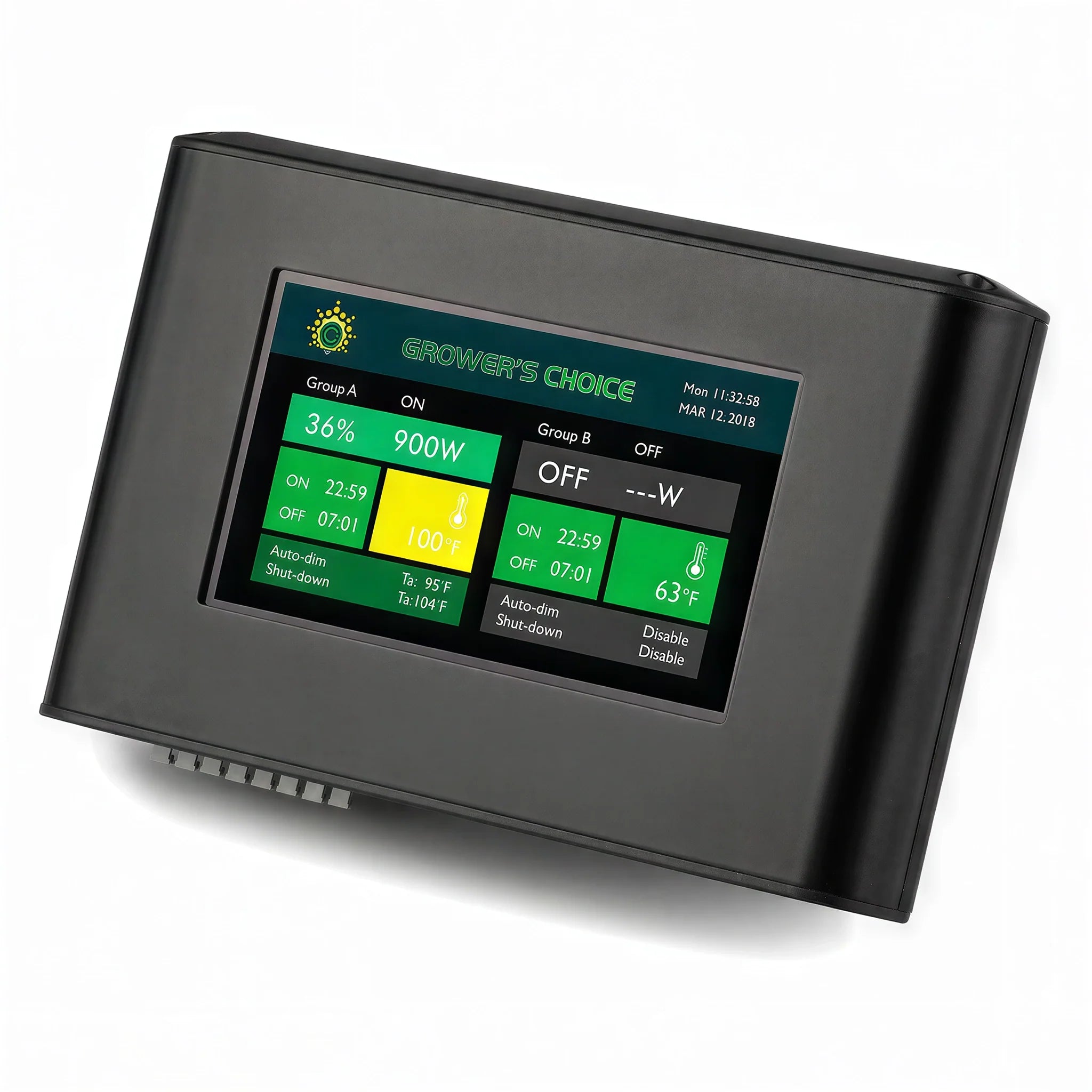

Grower’s Choice digital lighting controller enables the grower to control up to 200 fixtures. It is compatible with all GC-315 CMH, GC- 630NS CMH and GC-1000 DE fixtures. This dual-channel controller allows daisy chaining up to 100 fixtures per zone. En- abling complete control of your growing environment with timed on/off switching, sunrise/sunset, and precise temperature readings with dual thermal probes and thermal-threshold auto dim-shutdown for additional protection.
Whats Included:
-
Master Controller
-
Power Adapter (DC5/2000mA)
-
5M Temperature Sensor Cord
-
5M RJ14 Controller Wire
-
5M RJ9 Controller Wire
-
User Manual
Specs
-
Output Range: 10%~115%
-
Number of Ballast per Output: 100 Max
-
Max Cable Length per Group: 100M
-
Control Votlage Outputs: 2 Group, A/B
-
Temperature Sensor: 2 Group, A/B
-
Over Heat Protection: Yes
-
Sunrise/Sunset Period: Yes
-
Setup Ballast Type: 1000W/945W/750W/630W/600W/500W/315W
-
Alarm Port: 2 Group, NO/NC
-
ECM Port: 2 Group, A/B
-
Input Voltage: 5VDC//2000mA
-
Weight: 1.2LBS/0.5KG
-
Warranty: 3 Years
