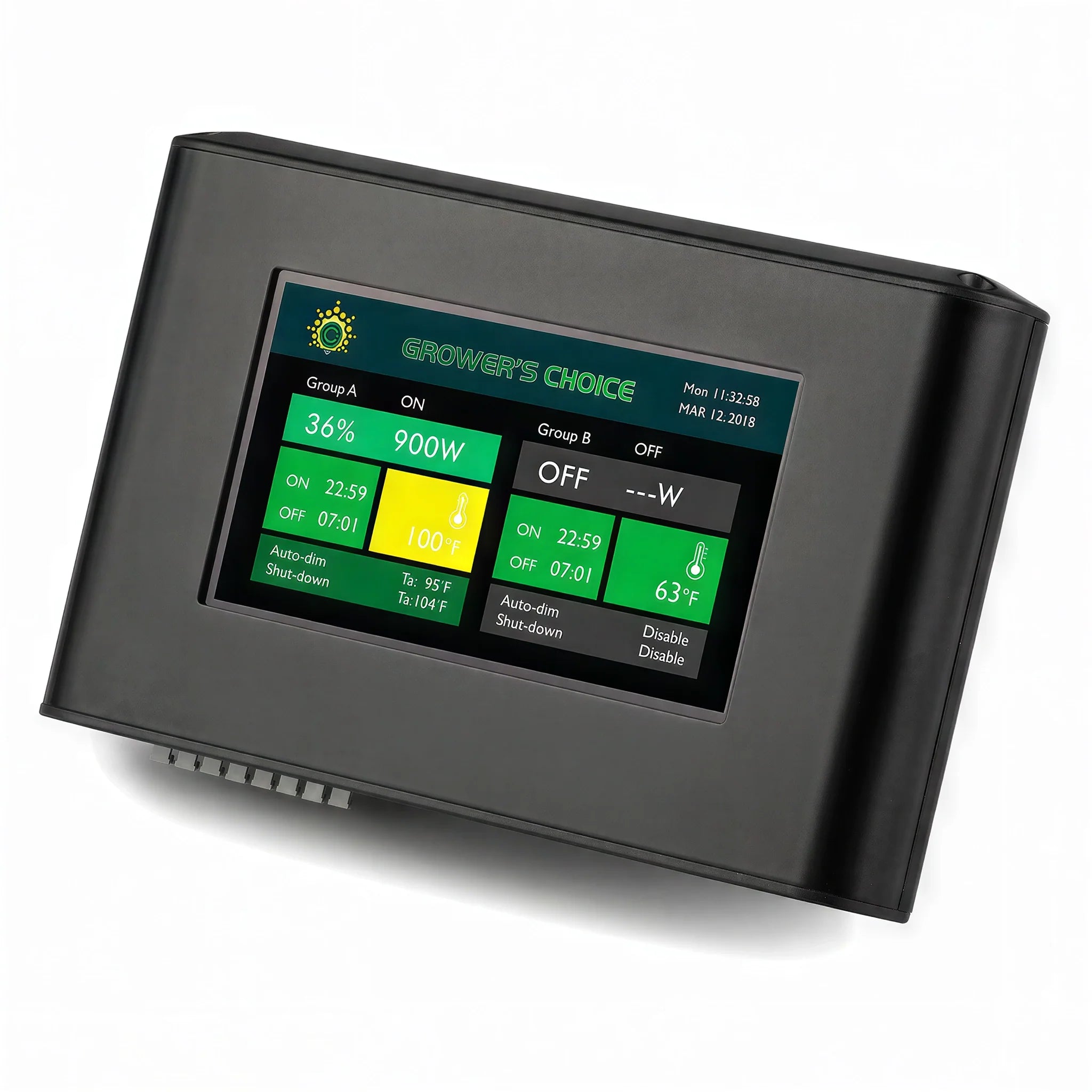

Grower's Choice Master Controller InstructionsGrower’s Choice digital lighting controller enables the grower to control up to 200 fixtures. It is compatible with all GC-315 CMH, GC- 630NS CMH and GC-1000 DE fixtures. This dual-channel controller allows daisy chaining up to 100 fixtures per zone. En- abling complete control of your growing environment with timed on/off switching, sunrise/sunset, and precise temperature readings with dual thermal probes and thermal-threshold auto dim-shutdown for additional protection.
Whats Included:
- Master Controller
- Power Adapter (DC5/2000mA)
- 5M Temperature Sensor Cord
- 5M RJ14 Controller Wire
- 5M RJ9 Controller Wire
- User Manual
Specs
- Output Range: 10%~115%
- Number of Ballast per Output: 100 Max
- Max Cable Length per Group: 100M
- Control Votlage Outputs: 2 Group, A/B
- Temperature Sensor: 2 Group, A/B
- Over Heat Protection: Yes
- Sunrise/Sunset Period: Yes
- Setup Ballast Type: 1000W/945W/750W/630W/600W/500W/315W
- Alarm Port: 2 Group, NO/NC
- ECM Port: 2 Group, A/B
- Input Voltage: 5VDC//2000mA
- Weight: 1.2LBS/0.5KG
- Warranty: 3 Years
| Brand | Growers Choice |
|---|---|
| SKU | GCLC001 |
| Weight (lb.) | 1.2000 |
| Length (in.) | |
| Prop 65 | false |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Lead Time | This product ships in 1-2 business days |
| Hazardous Material | false |
| UPC | 713440683190 |
| UL Listed | No |
| ETL Listed | No |
| Has Photocell | No |
| Voltage |
