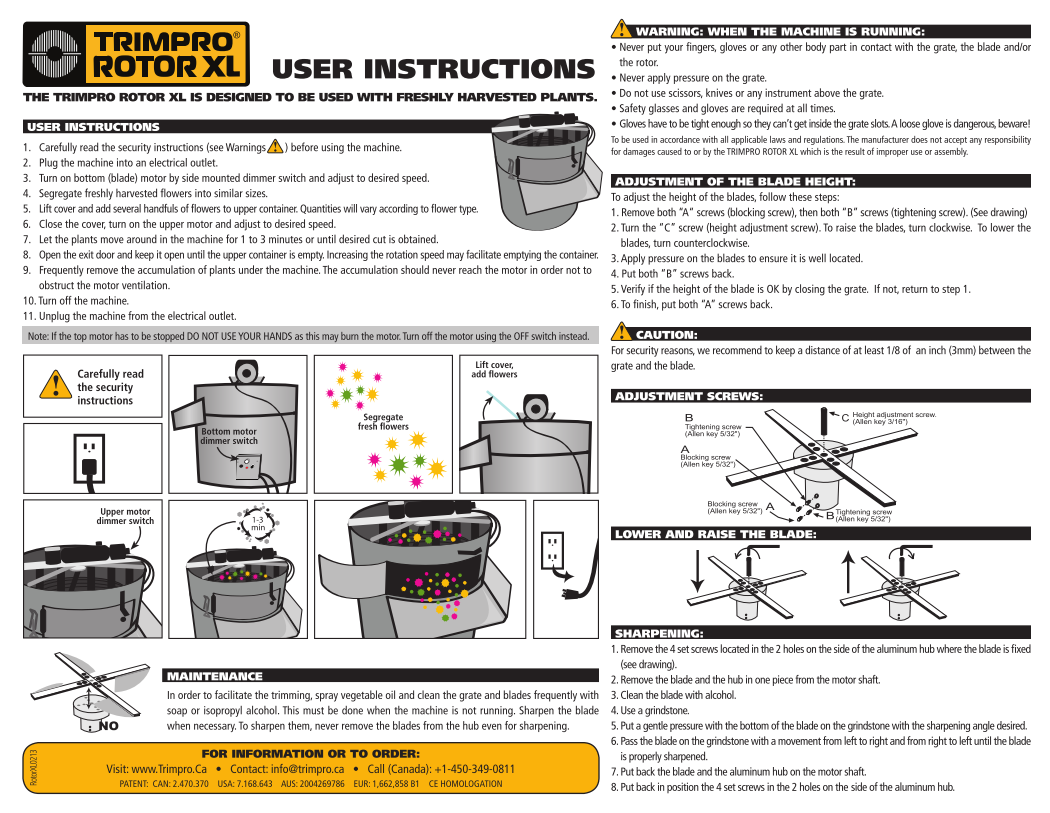

Trimpro Product Documents
*For Wet Trimming Only* - All Trimpro Trimmers are designed to be used with wet product only. If used with dry product damage may occur.

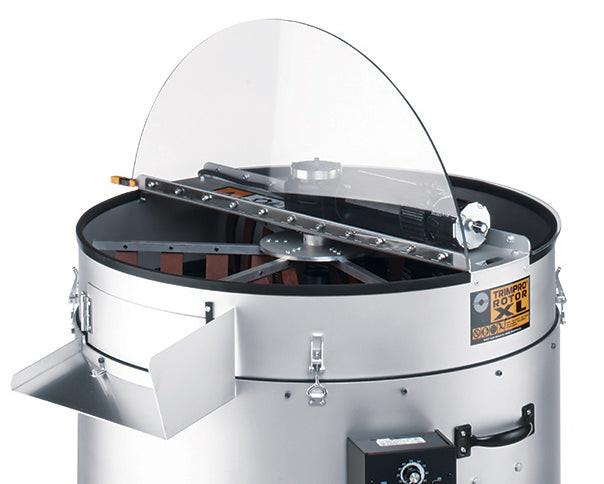

The Trimpro Rotor XL has been designed and developed at the request of customers who are looking for, yet another, gentle and efficient Trimpro quality product. Now even the largest harvests can receive Trimpro's unique gentle touch, as the new Rotor XL brings the quiet efficiency pioneered by the class-leading Rotor model to high-volume producers favoring the rack drying technique. It is an easy to use flower trimmer that can save you time and money during harvest. Featuring a high-speed and adjustable height blade, the Trimpro Rotor XL makes quick work of lots of product while maintaining a gentle and consistent cut.
The Rotor XL trimmers 6 rotating arms support 24 high-quality, stick- resistant leather fingers, designed to gently move flowers around the non-stick grate, allowing tempered steel blades below to trim leaves carefully and efficiently. These leather fingers help to tumble the flowers softly to allow the blade to cut all sides of the flower. If you would prefer to have the flowers circulated by air, take a look at the Trimpro Automatik series which utilizes a fan and vacuumm to move the flowers over the grate and blade.
Easy to Use
Control is optimized with finger and blade speeds individually variable, and adjustable height control for both the finger support arms and cutting head. The clear, hinged, drum-cover further enhances control, increasing visibility to reduce the need for second-pass processing. With secondary material falling securely into the workstations redesigned catch-bag system, touch-less extraction completes the process, with flowers exiting effortlessly through the units gate, once unlatched. As with all Trimpro machines, the blade height is adjustable to meet every preference. For trimming, separate the fresh flowers from the branches, put them into the upper container of the trimmer and let the Rotor do the rest. All of this is made easier with the available Trimpro Rotor Workstation, allowing you to work while standing and collecting the leaves in a mesh bag below.
Easy to Maintain
The blade assembly can be easily removed for sharpening to ensure you always get the cleanest cut. Cleaning the non-stick grate is a breeze. Just spray the grate and blade with isopropyl alcohal between uses to ensure a clean and sharp cut. The unit is easy to dissasemble and replacement parts are available here on hydrobuilder.com.
- Mounted machine: 28" Diameter x 52"
- Packaging: 34" x 34" x 29"
- Stand packaging: 32" x 32" x 17"
- Machine only: 145 Lbs
- Machine and packaging: 135 Lbs
- Stand only and packaging: 35 Lbs
- Frame: Aluminum
- Grate: Steel
- Grate Size:
- Trimpro Rotor (STD): Slots size 1/4"(6mm)
- Trimpro offers a full line of trimming machines of various types and sizes:
- Manual Control Trimmers:
- Trimpro Trimbox
- Trimpro Original
- Trimpro Workstation
- Trimpro Trimbox with Workstation
- Robotic Touch Trimmers:
- Trimpro Unplugged
- Trimpro Rotor
- Trimpro Rotor XL
- Trimpro Rotor with Workstation
- Trimpro Rotor Med with Workstation
- Airflow Trimmers
- Trimpro Automatik
- Trimpro Automatik XL
- General Warnings:
- Never place your fingers, gloves or any other body part in contact with the grate or the blade.
- Never apply pressure on the grate.
- Do not use scissors, knives or any instrument above the grate.
- Safety glasses and gloves are required at all time.
The gloves have to be tight enough so they don't get inside the grate slots. A loose glove is dangerous. BE AWARE!
The manufacturer does not accept any responsibility for damages caused to or by the trimmers resulting from an inadequate use or assembly. Use the trimmers in accordance with existing laws and regulations.
- Trimmer Type
- Tech Specs
Brand Trimpro SKU TPRTR-XL Weight (lb.) 135 Prop 65 No Height (in.) 29 Width (in.) 34 Length (in.) 34 Warranty Yes Lead Time Due to social distancing requirements, this item ships in 5-10 Days UL Listed No Trimmer Type Bowl Operation Motorized Feed Type Batch Feed Plant Material Wet Production Capability 20-25 lbs/hr Voltage 120 Volt
- Product Q&A
Trimpro Rotor XL Questions & Answers
How Do I clean My Trimpro Machine?
Use a plastic scraper to collect the pollen build-up. Do not use a metal scraper as it might scratch the coating on the grate and the blade. Use a cloth with rubbing alcohol to finish cleaning it.
How Do I Clean My Trimpro Bag?
Soak the bag in warm water, rub off the build up. You can also soak it in rubbing alcohol for a short amount of time, rub off the residue and simply pass it through some running water to finish cleaning it.
How Do I Adjust The Height Of My Trimpro Blade?
Blade height adjustment instructions can be found for each machine on their respective instruction sheet.
How Often Should I Sharpen My Trimpro Blade?
Trimpro blades are made of tempered steel which makes them very tough and gives them a great lifespan. It is important for the quality of your manicure to keep them sharp. It is manufacturer recommend to have them sharpened every 6 months to every year (highly depending on usage).
How Do I Sharpen My Trimpro Blade?
Sharpening the blade on Trimpro trimmers is a simple process. The most important part of the process is that you should not remove the blade from the hub to which it is attached! The tempered steel blades are balanced on the aluminum hub, allowing optimal operation of the trimmers. If the blade is separated from the hub there is no guaranty that the assembly will be balanced when you put it back into the machine. Sharpening instructions can be found for each machine on their respective instruction sheet.
How Do I Change The Amount Of Air Suction On My Trimpro Machine?
On every machine (except the Rotor) you can bend the flaps upwards to reduce their angle. This creates less air displacement, thus decreasing the amount of suction. You can bend the flaps downwards to increase their angle. This creates more air displacement thus increasing the amount of suction. *CAUTION: When bending the flaps downwards, make sure the flaps do not hit the metal wire brake line.
How Long Is The Warranty On My Trimpro Machine?
There is one year warranty for defective parts. If you are making a warranty claim, please have in hand the serial number engraved on the underside of the frame of the machine.
