To Respond To The Needs Of Larger Producers, The Trimpro Automatik XL Has A Capacity & Productivity Ratio 5 Times Greater Than Its' Baby Brother, the Trimpro Automatik

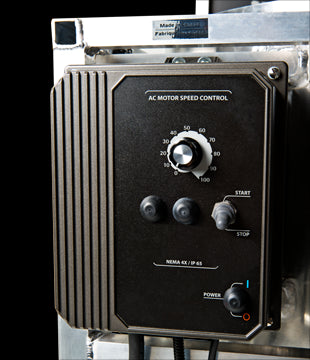

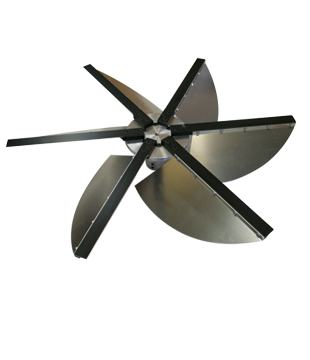

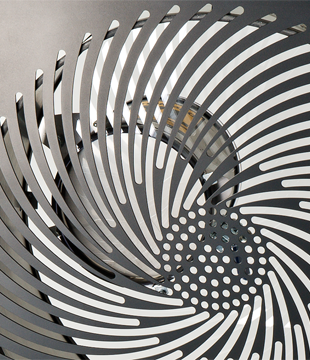

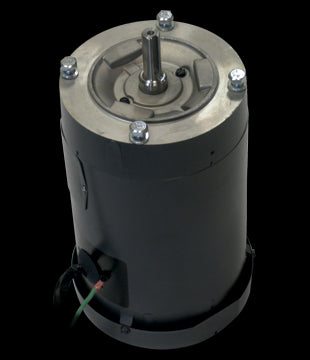

The fluted design of the grate facilitates the plants movement, and is available in the standard 7/16" grate as well as a smaller slotted 1/4" grate. When combined with the dimmer on the motor regulating the whirlwind velocity plus the height adjustable six (6) blade assembly, the operator is always in full and precise control of the Automatik XL and the finished product.
For trimming, separate the fresh flowers from the branches, put them into the upper container of the trimmer and let the Trimpro Automatik XL do the rest.
*For Wet Trimming Only* - Trimpro Automatik XL trimmers are designed to be used with wet product only. If used with dry product damage may occur. For Dry Trimming, Trimpro offers the Trimpro Drypro Dry Trimming Machine
Airflow Control
For trimming, separate the fresh flowers from the branches, put them into the upper container of the trimmer and let the Trimpro Automatik XL do the rest. The fluted design of the grate facilitates the plants movement. When combined with the dimmer on the motor regulating the whirlwind velocity plus the height adjustable six blade assembly, the operator is always in full and precise control of the XL and the finished product. The flowers will be circulated over the grate and blades automatically by the whirlwind effect of the blade fan, dispening the trimmed flowers into the chute. The leaf trimmings are dispensed separately into a mesh bag for easy disposal or processing.
Easy to Use

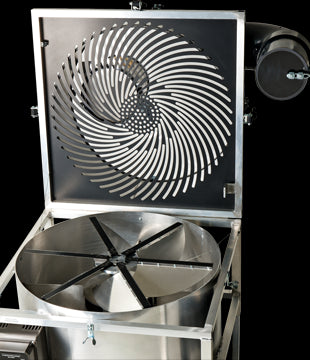

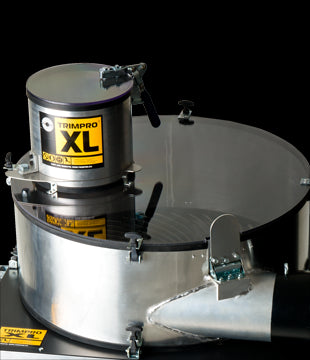

With a clear plexiglass lid and adjustable intake, the Trimpro Automatik XL is easy and safe to use. Making quick work of lots of product, the Automatik XL quickly processes flowers and buds placed into the staging box and released into the main processing chamber. View the processing as the flowers circulate over the grate and open the chute to allow the trimmed flowers to exit the unit and into a separate container.
Easy to Maintain

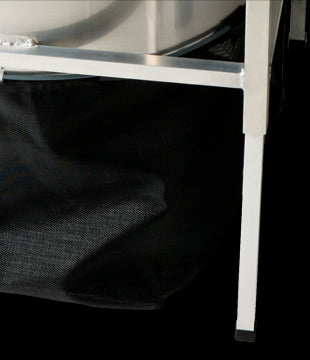

The Trimpro Automatik XL is equipped with a leaf recovery system and can be quickly disassembled for easy transportation. The blade assembly can be easily removed for sharpening to ensure you always get the cleanest cut. Cleaning the non-stick grate is a breeze. Just spray the grate and blade with isopropyl alcohal between uses to ensure a clean and sharp cut. The unit is easy to dissasemble and
replacement parts are available here on hydrobuilder.com.
Specs
-
Dimensions
- Mounted machine: 39" x 36" x 51" Height
- Packaging: 35" x 35" x 31" Height
-
Grate Sizes Available
- Large Slots: 7/16" (standard)
- Small Slots: 1/4" (special order)
-

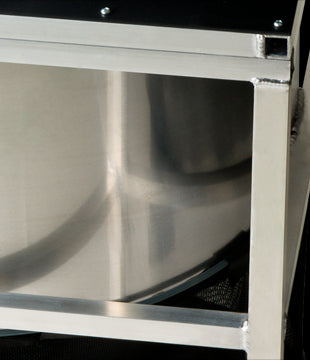

Materials

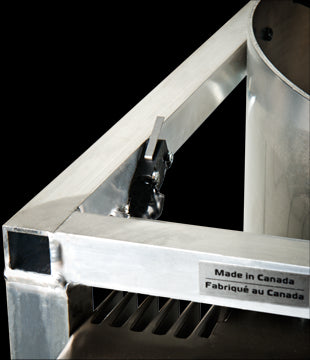

- Frame: Aluminium
- Grate: Steel
-
Weight
- Machine only: 162 Lbs
Trimpro offers a full line of trimming machines of various types and sizes:
- Trimpro Unplugged
- Trimpro Rotor
- Trimpro Rotor XL
- Trimpro Rotor with Workstation
- Trimpro Rotor Med with Workstation
- Trimpro Dyrpro Dry Trimmer
-
Manual Control Trimmers:
- Trimpro Trimbox
- Trimpro Original
- Trimpro Workstation
- Trimpro Trimbox with Workstation
- Trimpro Automatik
- Trimpro Automatik XL
-
General Warnings:
- Never place your fingers, gloves or any other body part in contact with the grate or the blade.
- Never apply pressure on the grate.
- Do not use scissors, knives or any instrument above the grate.
-
Safety glasses and gloves are required at all time.
The gloves have to be tight enough so they don't get inside the grate slots. A loose glove is dangerous. BE AWARE!
The manufacturer does not accept any responsibility for damages caused to or by the trimmers resulting from an inadequate use or assembly. Use the trimmers in accordance with existing laws and regulations.
| Brand | Trimpro |
|---|---|
| SKU | TRAXLGCA |
| Weight (lb.) | 162.0000 |
| Prop 65 | false |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 1 Year |
| Lead Time | This product ships in 2-4 Business Days |
| Hazardous Material | false |
| ETL Listed | No |
| UL Listed | No |
| Trimmer Type | Bowl |
| Operation | Motorized |
| Feed Type | Batch Feed |
| Plant Material | Wet |
| Production Capability | 20-25 lbs/hr |
| Voltage | |
| GMP Compliant | No |
Trimpro Automatik XL With 7/16" Large Grate Questions & Answers
How Do I clean My Trimpro Machine?
Use a plastic scraper to collect the pollen build-up. Do not use a metal scraper as it might scratch the coating on the grate and the blade. Use a cloth with rubbing alcohol to finish cleaning it.
How Do I Clean My Trimpro Bag?
Soak the bag in warm water, rub off the build up. You can also soak it in rubbing alcohol for a short amount of time, rub off the residue and simply pass it through some running water to finish cleaning it.

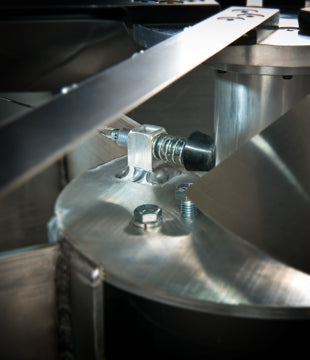

How Do I Adjust The Height Of My Trimpro Blade?
Blade height adjustment instructions can be found for each machine on their respective instruction sheet.
How Often Should I Sharpen My Trimpro Blade?
Trimpro blades are made of tempered steel which makes them very tough and gives them a great lifespan. It is important for the quality of your manicure to keep them sharp. It is manufacturer recommend to have them sharpened every 6 months to every year (highly depending on usage).
How Do I Sharpen My Trimpro Blade?

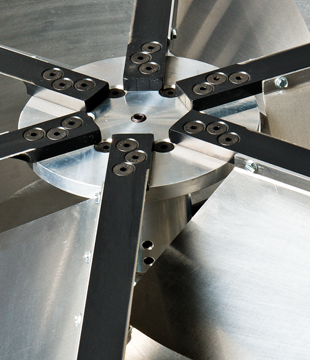

Sharpening the blade on Trimpro trimmers is a simple process. The most important part of the process is that you should not remove the blade from the hub to which it is attached! The tempered steel blades are balanced on the aluminum hub, allowing optimal operation of the trimmers. If the blade is separated from the hub there is no guaranty that the assembly will be balanced when you put it back into the machine. Sharpening instructions can be found for each machine on their respective instruction sheet.
How Do I Change The Amount Of Air Suction On My Trimpro Machine?
On every machine (except the Rotor) you can bend the flaps upwards to reduce their angle. This creates less air displacement, thus decreasing the amount of suction. You can bend the flaps downwards to increase their angle. This creates more air displacement thus increasing the amount of suction. *CAUTION: When bending the flaps downwards, make sure the flaps do not hit the metal wire brake line.
How Long Is The Warranty On My Trimpro Machine?
There is one year warranty for defective parts. If you are making a warranty claim, please have in hand the serial number engraved on the underside of the frame of the machine.
