XPOWER Product Documents

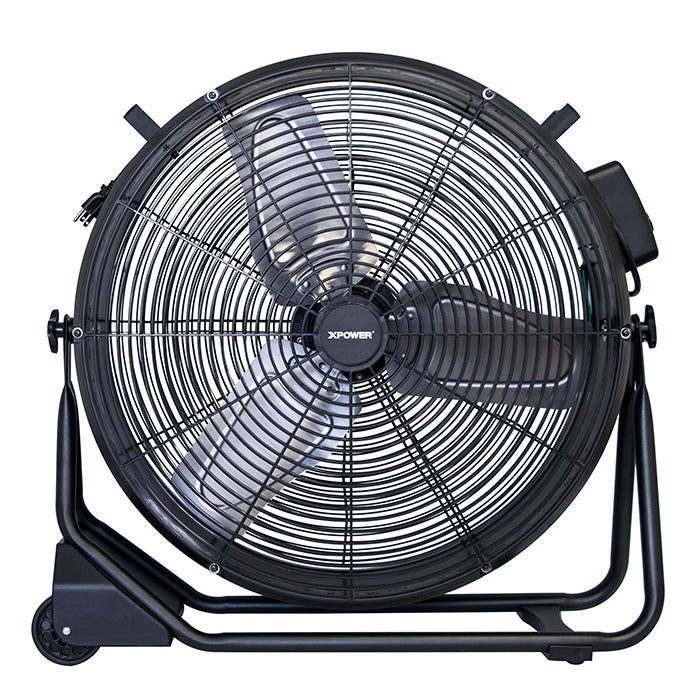

XPOWER FD-630D Drum Fan Owners Manual XPOWER FD-630D Drum Fan Product Data SheetXPOWER’s new FD-630D Drum Fan is a perfect candidate for your ventilation needs in warehouse, barn, garage, or workshop settings. The FD-630D features a 1/2 HP brushless DC motor rated at 5800 CFM while only drawing a maximum 1.8 Amps. A variable speed control allows you to set the airflow necessary for your application. A durable rack equipped with easy to roll wheels maximize portability while offering a wide range of operating positions. It is ETL/CETL safety certified and meets OSHA requirements. The FD-630D is ready for your ventilating needs no matter how large or small the task.
Features & Benefits
- 24” Industrial Drum Fan / Barrel Fan
- Powerful 1/2 HP brushless DC motor with variable speed control
- Low 1.8 Amp draw with 5,800 CFM maximum airflow capacity
- Rugged steel housing and fan blades
- Portable and easy to roll

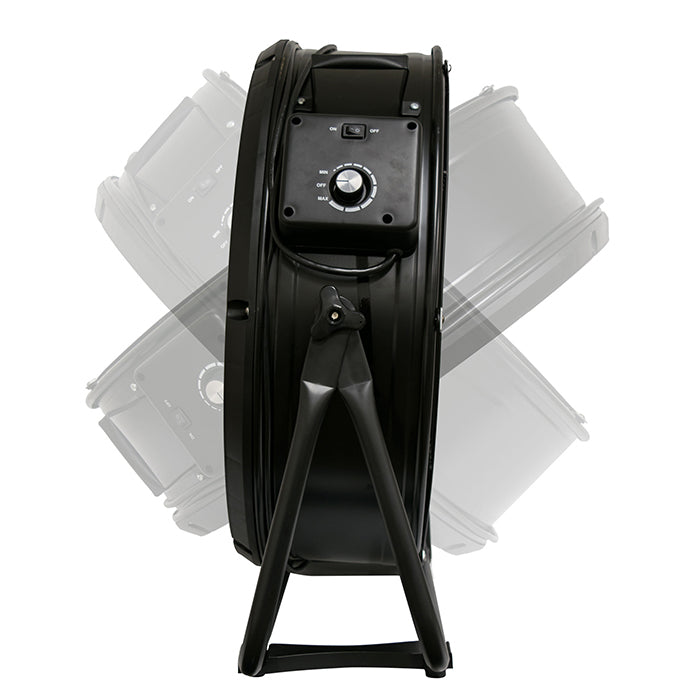

- Wide range of operating positions
- Safety certified and comes with a manufacturer’s limited 1 year warranty
Specifications
| Volts / Cycle | 115V / 60 Hz |
|---|---|
| Motor | 1/2 HP |
| Power | 1.8 A |
| Rated Airflow | 3600 CFM |
| Speeds | Variable Speed Control |
| RPM | 1200 |
| Unit Weight (lbs) | 29.3 |
| Unit Dimensions (L x W x H) | 30.1″ x 9.3″ x 29.0″ |
| Box Weight (lbs) | 34.80 |
|---|---|
| Box Dimensions (L x W x H) | 32.40″ x 11.80″ x 33.30″ |
| Operating Positions | 200° |
| Cord Length | 10 ft. |
| Housing | Metal |
| Stackable | No |
| Warranty | 1 Year Limited |
| Safety Certifications | ETL/CETL |
| Brand | XPOWER |
|---|---|
| SKU | FD-630D |
| Weight (lb.) | 34.8000 |
| Lead Time | This product ships in 2-3 business days |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 1 Year |
| Prop 65 | false |
| Hazardous Material | false |
| UPC | 848025041987 |
| Fan Type | Floor |
| Fan Size | 24" Diameter |
| Is Speed Controllable | Yes |
| Oscillation | No |
| CFM Rating | 5800 CFM |
| ETL Listed | Yes |
| UL Listed | No |
