Vivosun VSFD LED User ManualAn Impressive LED Grow Light for Supporting Plant Growth
Daisy Chain Capability accommodates more lights and effectively improves light efficiency. Six levels of light intensity and full spectrum coverage from 380-780nm cover all plant growth stages. A removable light bar solves your storage problem and provides convenience in installation.

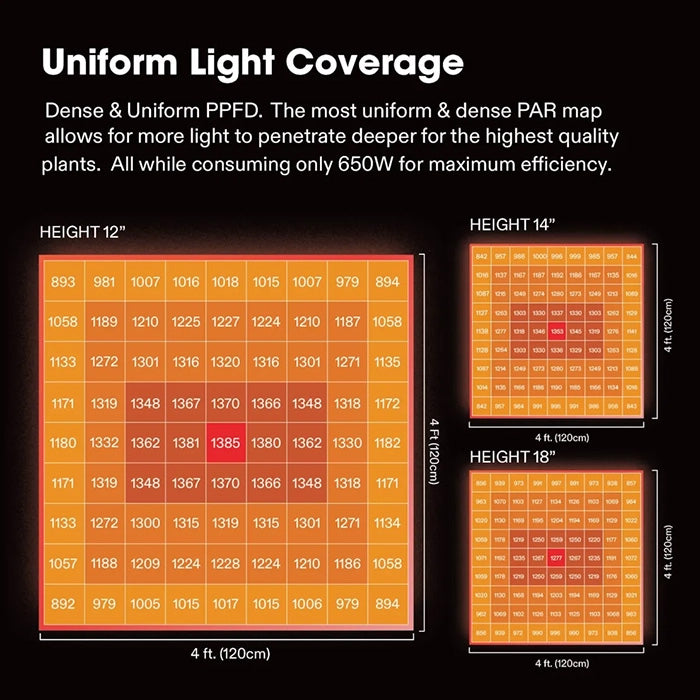

- High Efficiency and Uniformity: This grow light has a 40% higher PPFD than comparable HID lights and a higher conversion efficiency (2.8μmol/J); Uniform and dense PAR map means deeper light penetration for healthier plants all while consuming only 650W, for max efficiency
- Dimmable and Convenient: Equipped with a dimming knob or dimmable functions via controller; The retrofit features 6 levels of light intensity from 0-100% to cover the full stage of plant germination, growth, and flowering, including 0% to 25%, 50%, 75%, 100% and EXT

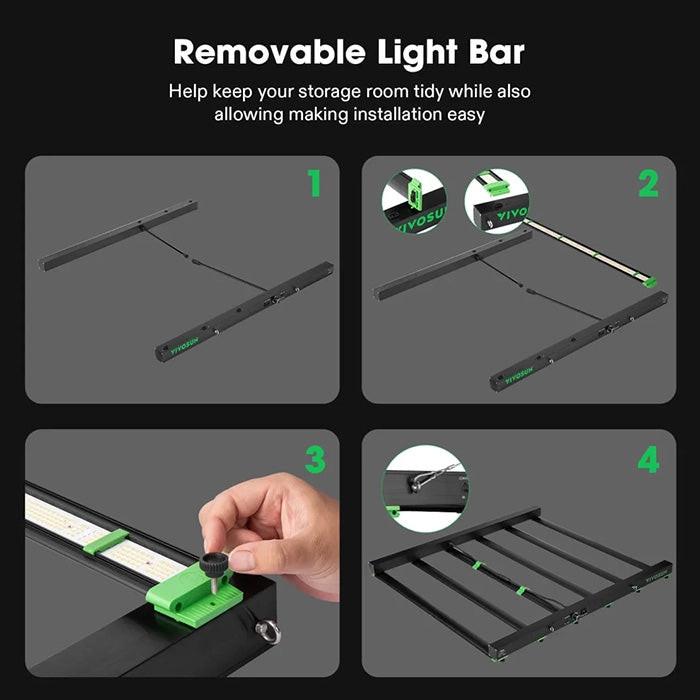

- Removable Light Bar, Built-in Driver: A removable light bar helps keep your storage room tidy while also making installation easy; a built-in driver hidden inside the light bar makes the lamp slim and easy to install
- Full Spectrum with UV/IR: Full spectrum coverage from 380-780nm, including 450nm, 660nm, 730nm, and rich photosynthetic UVA; great for all stages of plant growth; warm white light promotes flowering; blue light promotes germination, and red for greater potency
- Daisy Chain Capability & Intelligent Control: Daisy chain capability with up to 30 lights; can be used in grow tents and is compatible with the Vivosun GrowHub controller, which opens up advanced features and remote control via the Vivosun App
Optional Upgrade: GrowHub E42A Controller
The GrowHub Controller is the all-in-one platform for controlling, monitoring, and improving your indoor grow. Bring all your smart devices together onto a single controller that does it all: change airflow, air circulation, light intensity, light spectrum, and on/off periods with the touch of a button.
Unify all your smart devices through the GrowHub platform and simplify the science of growing down to a manageable level that is easy for beginners and powerful enough for experts, synthesize all equipment together or operate them individually, and stabilize your growing environment.
Program your growing equipment to automatically take you through each stage of growth, program light intensity, light spectrum, on/off periods, fan speed, and airflow volume, make changes to better suit how your plants are growing at any time.

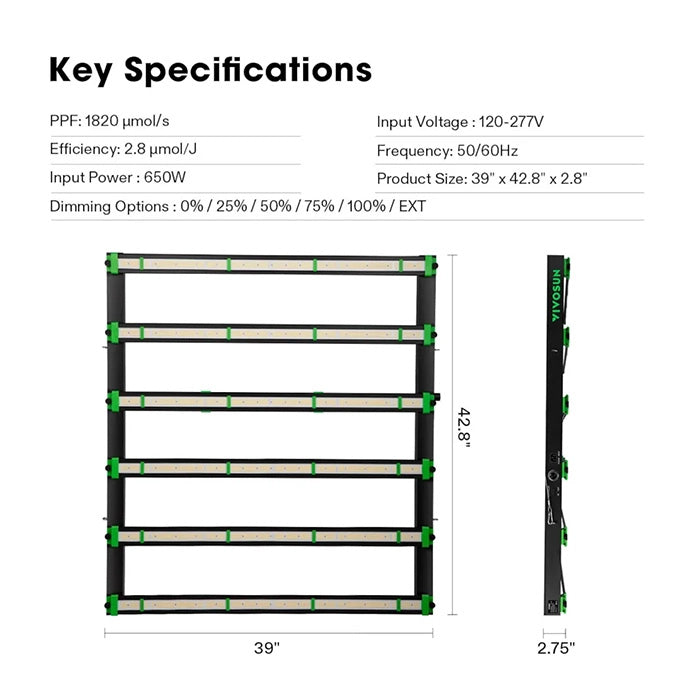

Specifications for the VSFD6500
PAR | 2.8 µmol/J |
---|---|
Lifetime | >50,000 hours |
Spectral Tuning | None |
Dimming | 25-100% |
Dimensions | 39"x42.8"x2.8" |
Input Power | 650 Watts |
---|---|
Coverage | 4 x 4 ft. |
Power Factor | >0.9 |
Certifications | FCC and IP65 |
Warranty | 5 Year |
Brand | Vivosun |
---|---|
SKU | WEB-VSFD6500 |
Weight (lb.) | 11.2600 |
Prop 65 | false |
Length (in.) | |
Width (in.) | |
Height (in.) | |
Lead Time | Ships in 1-2 business days |
Hazardous Material | false |
UPC | 20-010601-061 |
Lighting Type | LED |
LED Light Spectrum | Full Spectrum |
LED Fixture Type | Multi-Bar |
LED Features | Manual Dimming Knob, Dimmable *with Controller |
Est. Electricity Cost /mo | $28.08 |
Exact Watts | 650 Watts |
PAR Efficiency | 2.8 μmol/J |
Power Factor | > 0.9 |
Daisy Chain | Yes - Up to 4 lights |
Voltage | 120 Volts |
Frequency | 50/60 Hz |
Power Cord(s) Included | Yes - 120 Volt |
Power Cord Length | 6 ft. |
Coverage Area | Veg: 4' x 4'; Flower: 4' x 4' |
Grow Light Certifications | IP65 Rated, ETL Listed |
ETL Listed | Yes |
UL Listed | No |
