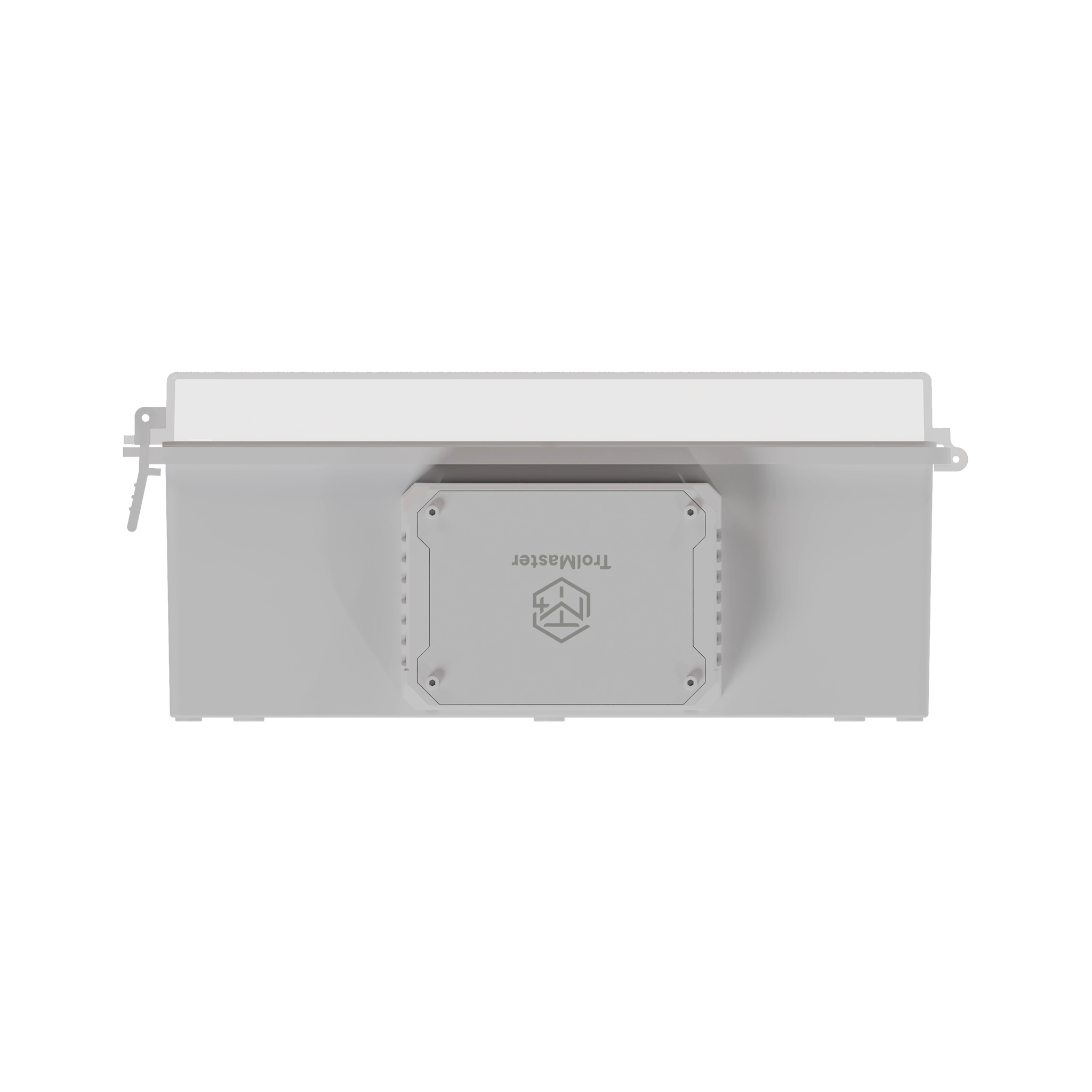

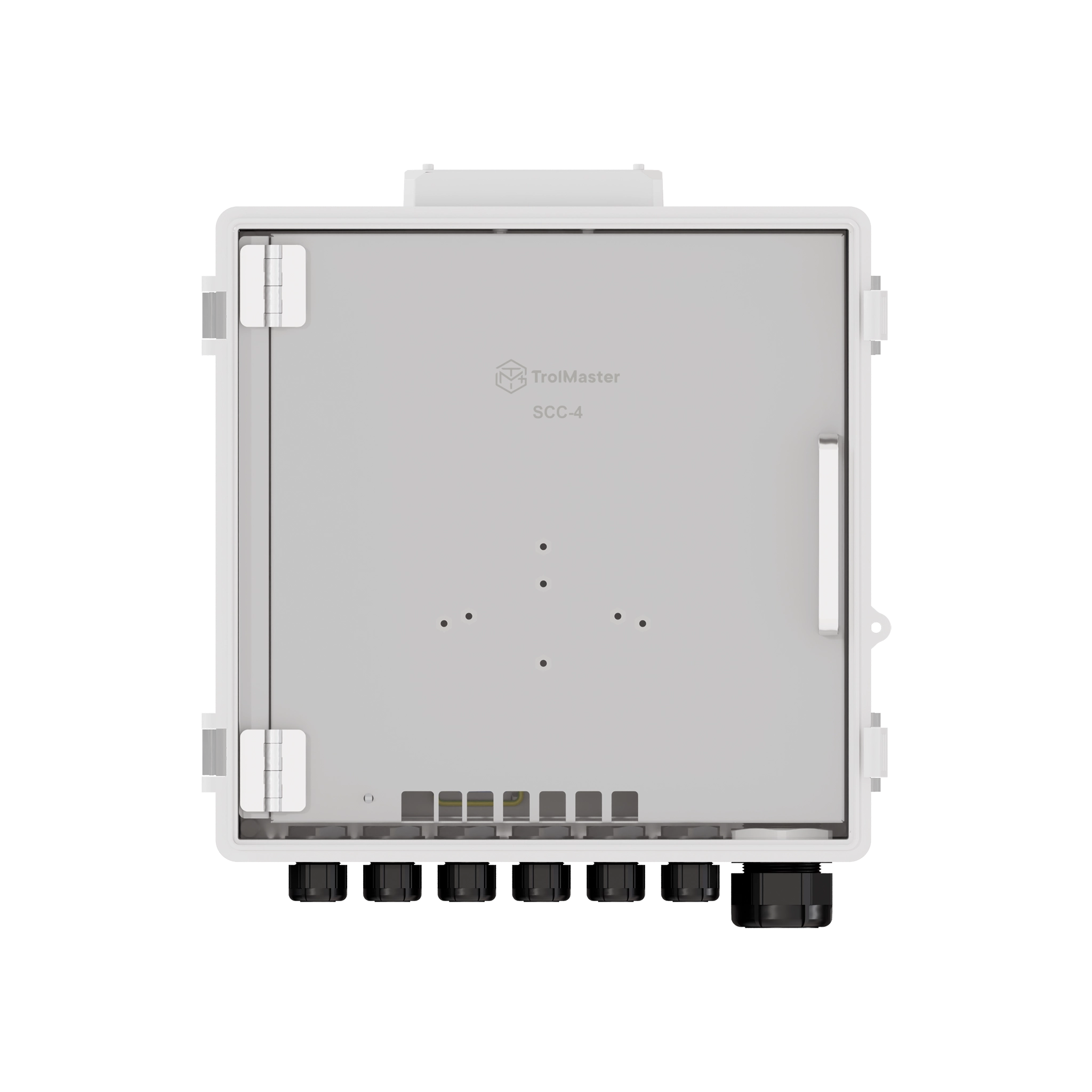

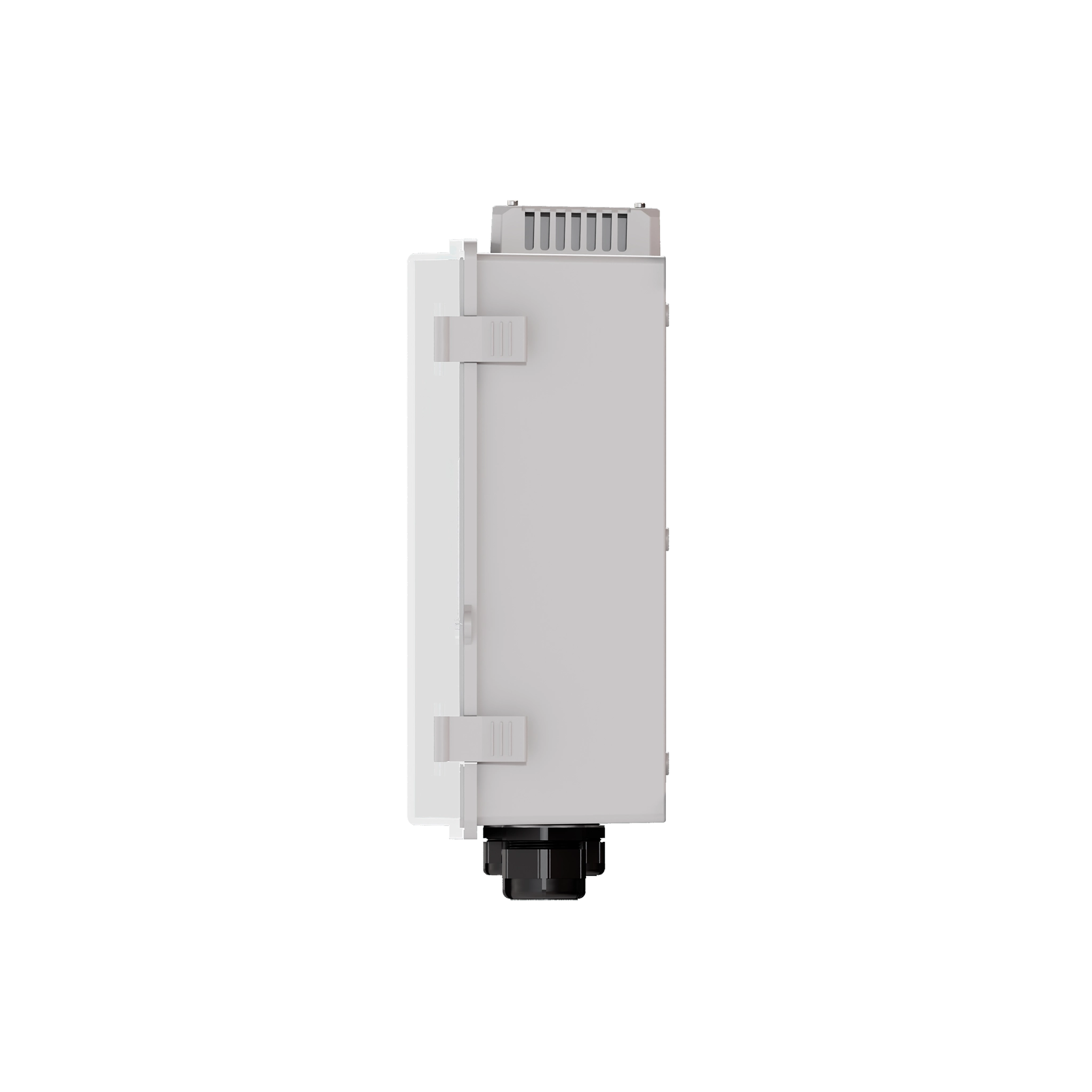

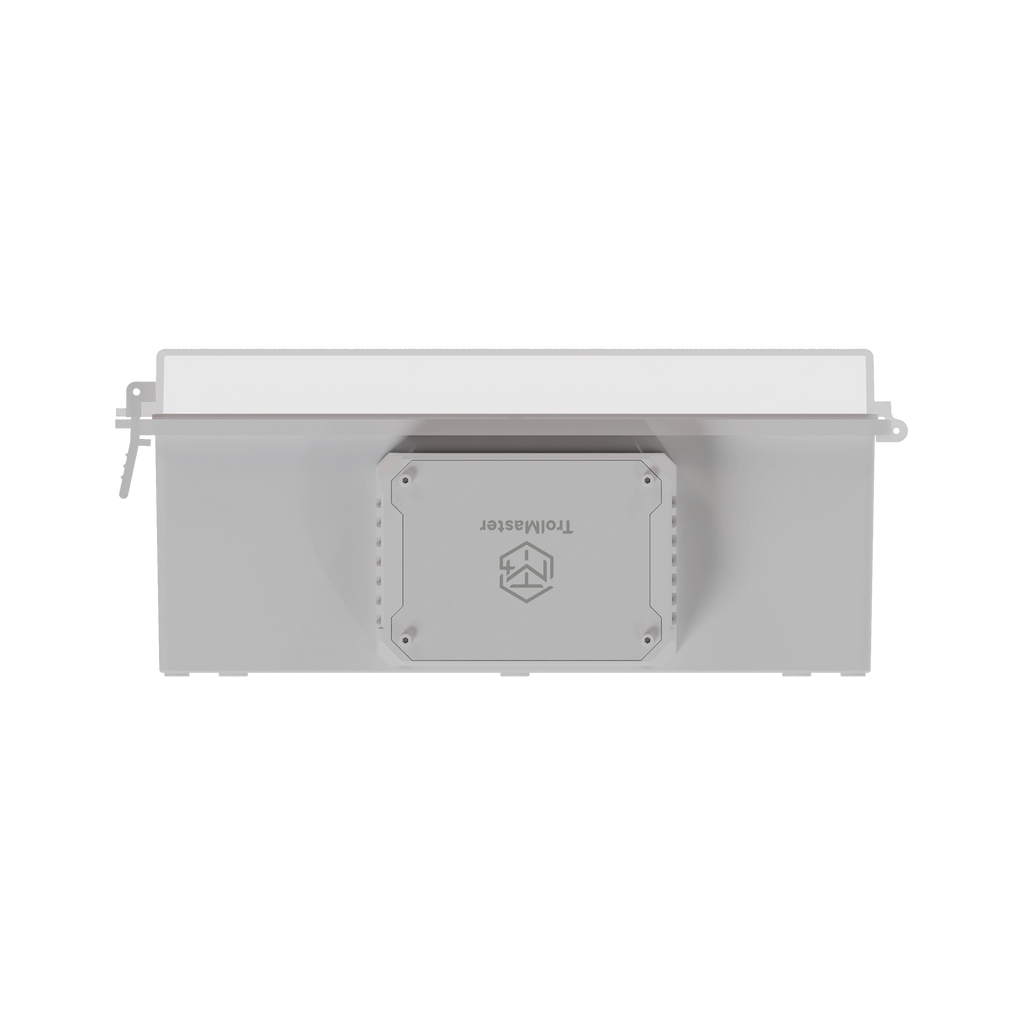

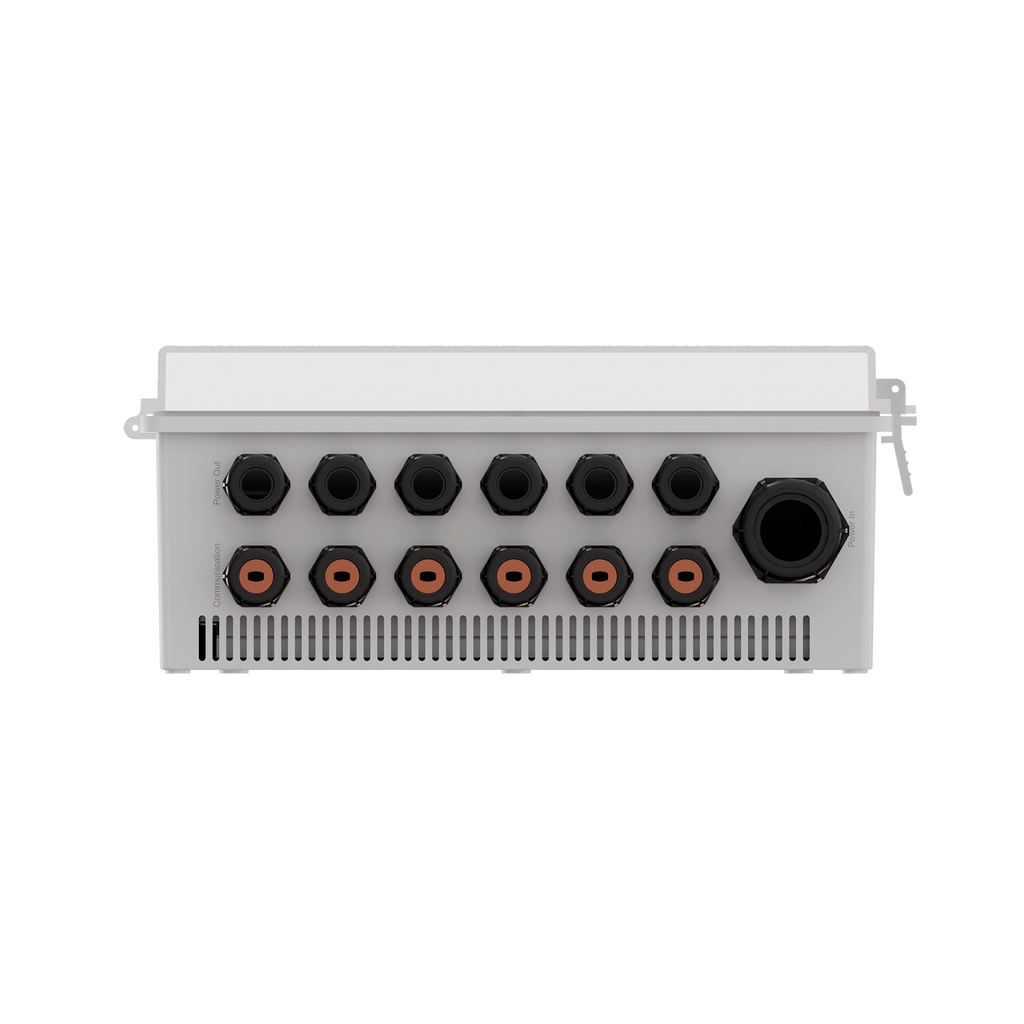

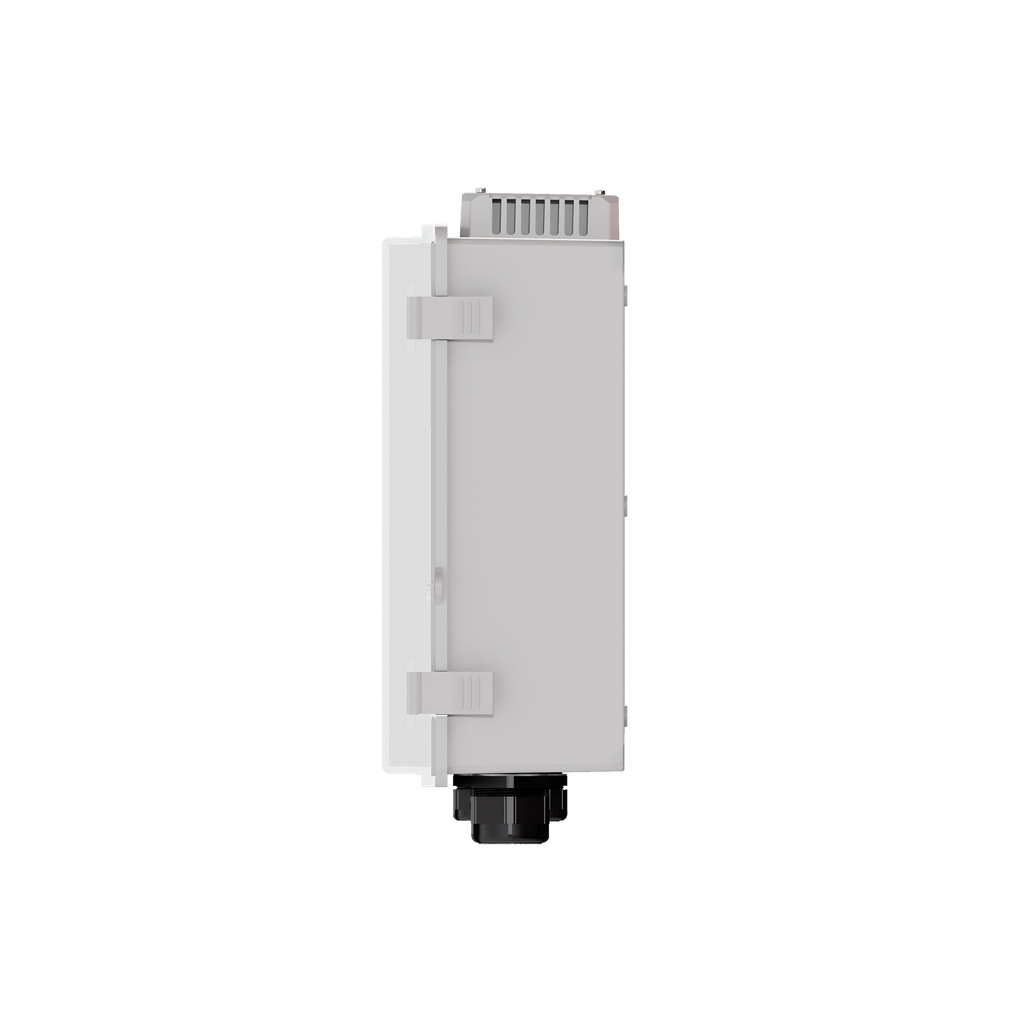

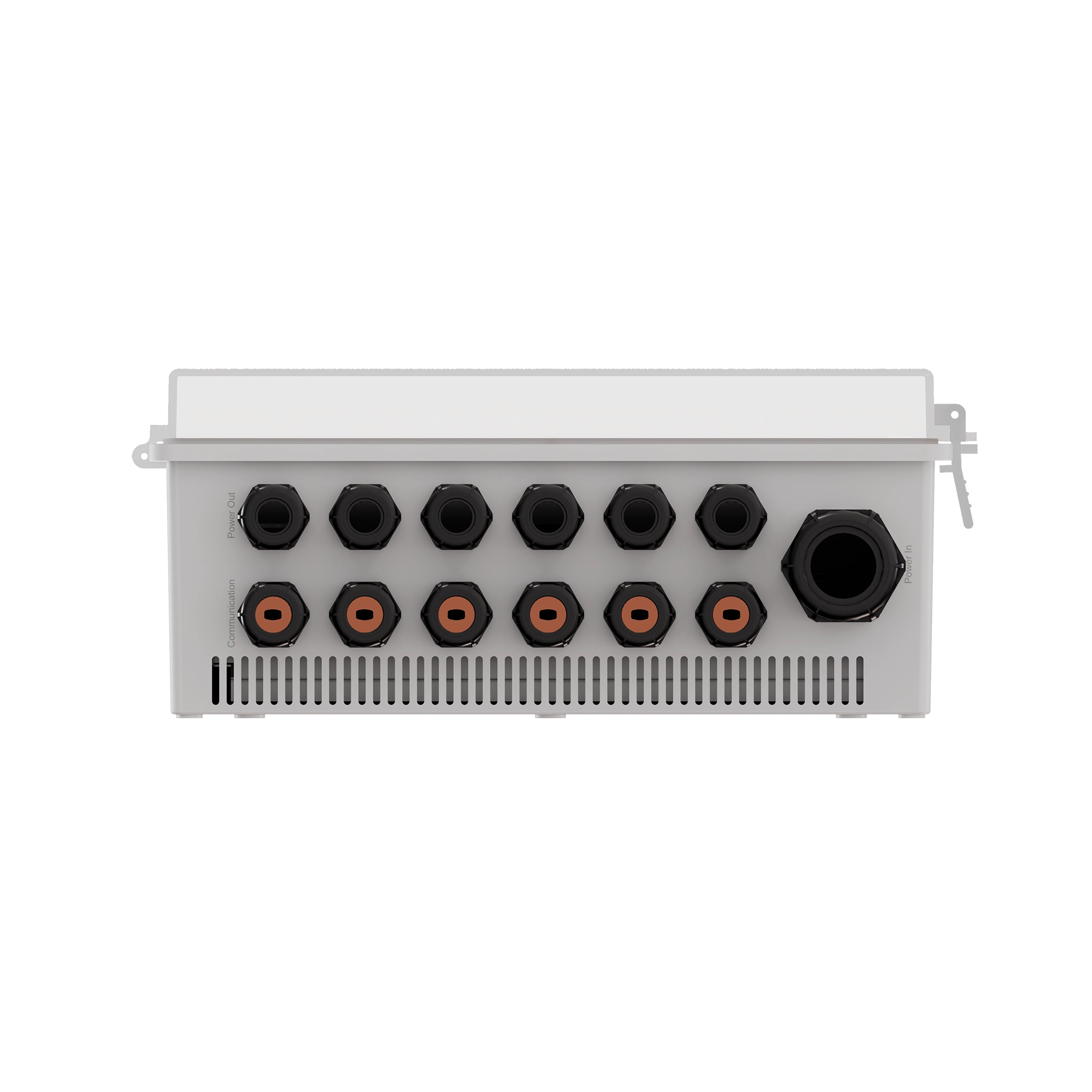

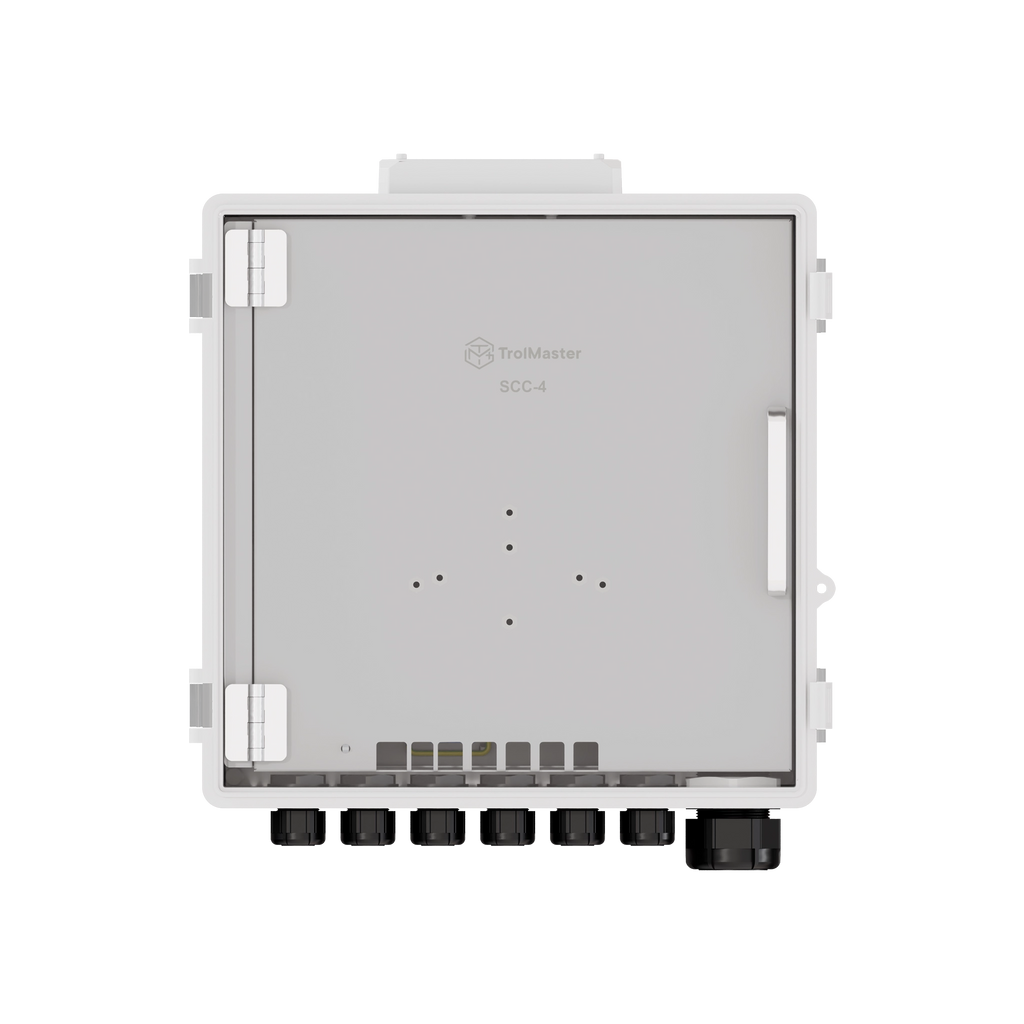

TrolMaster Mini Controller Cabinet (100-277V)

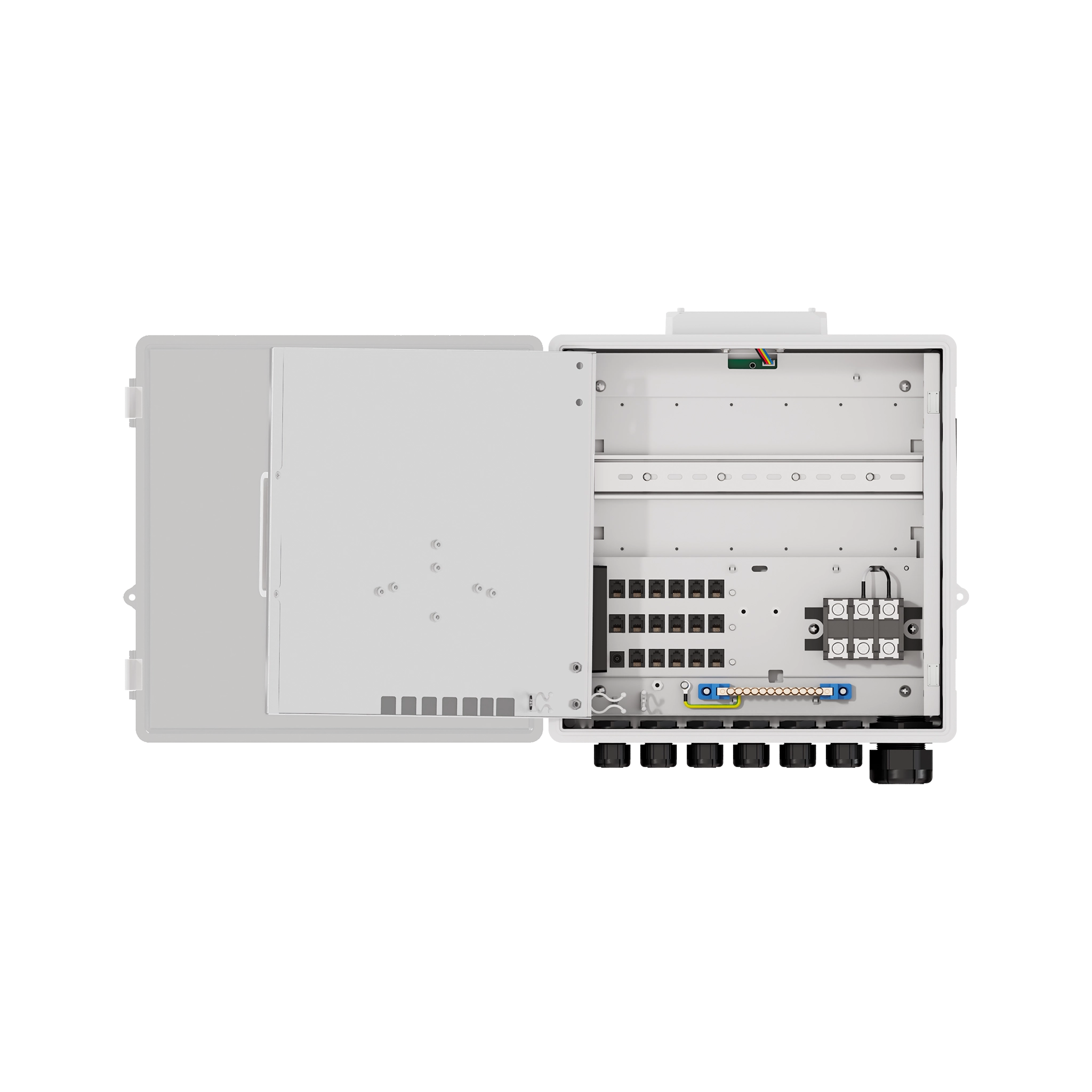

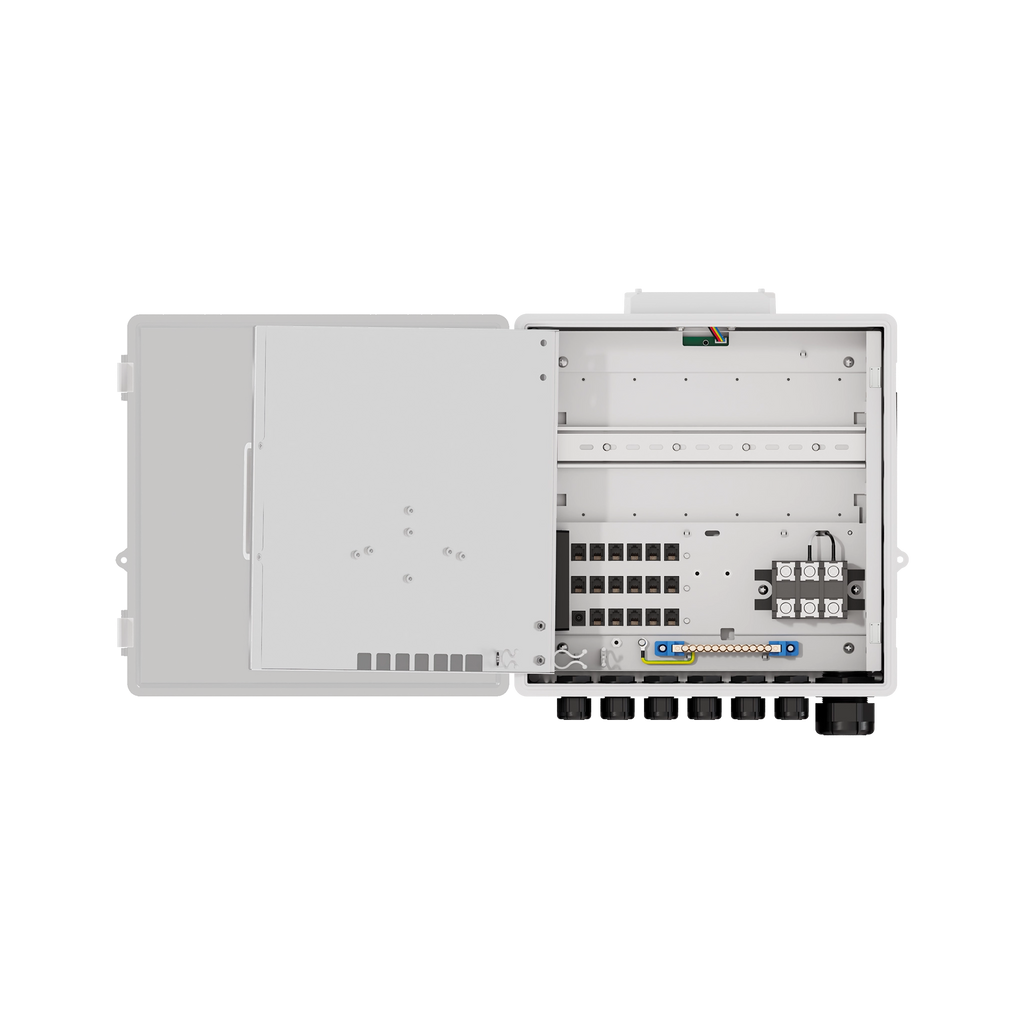

The SCC-4 Mini Controller Cabinet is a compact, all-in-one control solution designed for use with TrolMaster environmental controllers such as the GCS-1 and HCS-1. It provides a clean, organized enclosure to house the main controller and up to 6 DSR-1 Relay Device Stations, protecting your equipment while streamlining setup and maintenance.

Built for performance and convenience, the SCC-4 offers a professional installation platform, keeping your wiring and device modules neatly arranged, clean, and dry.

What's Included:

• 1x Mini Controller Cabinet
• 1x GCS-1 Power Cable
• 1x HCS-1/NFS-1/CDA-1/TCS-1 Power Cable
• 3x Mounting Back Plate
• 3x 1.6ft RJ12 Cable

Features:

• IP53 Rated Protection
• Intelligent Fan Speed Control
• Supports up to 6 DSR-1 Relay Device Stations
• Built-in RJ12 Splitter Boards
• Easy Assembly & Wiring
• Expandable Design
• Efficient Maintenance & Servicing
• Customizable & Flexible Layout
• Clean Cable Management

Specifications

• Input Voltage: 100–277 V~, 50/60 Hz
• Maximum Output Current: 60 A
• Cabinet Capacity:
• Splitter Board
  • Group #1 – 6 Ports
  • Group #2 – 6 Ports
  • Group #3 – 5 Ports
• Package Dimensions (L × W × H): 15.55 in / 395 mm × 15.55 in / 395 mm × 6.69 in / 170 mm
• Gross Weight: 9.04 lbs / 4.1 kg
• Working Environment: Temperature 32–104 °F (0–40 °C), Humidity ≤ 90 % RH
