TrolMaster Hydro-X VFD Basic Compact Driver for AC Motor Speed Control

Basic Compact Driver for AC motors speed controls

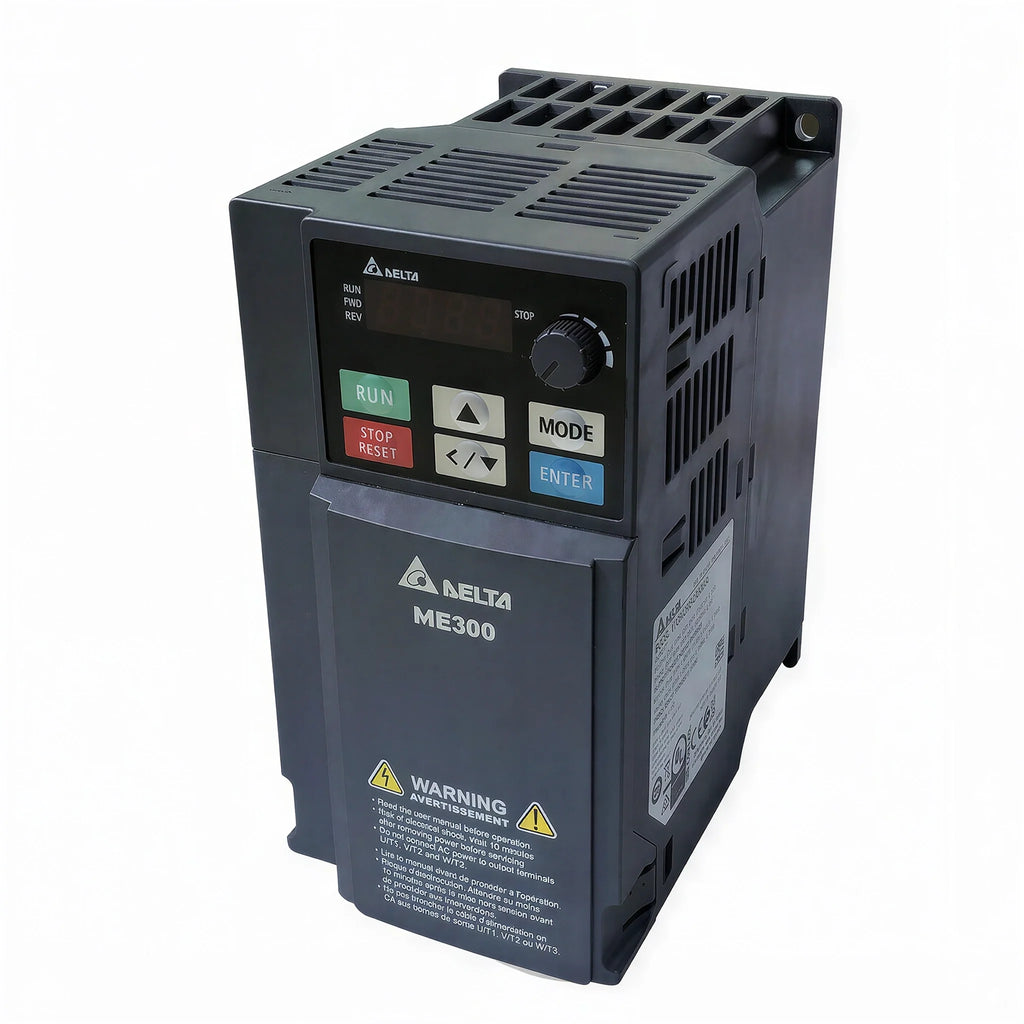

The Delta-1 is a customized made variable-frequency drive (VFD) by Delta company. It can be used in the TrolMaster Hydro-X Pro system to control the speed of AC motors (industrial fans etc.)

An RJ45 cable is included for connecting with the TrolMaster VFD-1 module.

This customized version has had all the parameters preset and ready to be operated with VFD-1 module straight out of the box.

Specifications

Input

• Normal Duty: 3PH 380-480V 50/60Hz 11.6A
• Heavy Duty: 3PH 380-480V 50/60Hz 9.9A

Output: Power ND(HD) 5HP(5HP)

• Normal Duty: 3PH 0-460V 10.5A 8.0KVA 3.7KW
• Heavy Duty: 3PH 0-460V 9A 6.9KVA 3.7KW
• Frequency Range: 0-599 Hz

IP20/UL Open-Type (rated-20°C to 50°C Ambient)

NEMA 1/UL Type1 when installed with conduit box kit (rated-20°C to 40°C Ambient)
