TrolMaster Product Documents

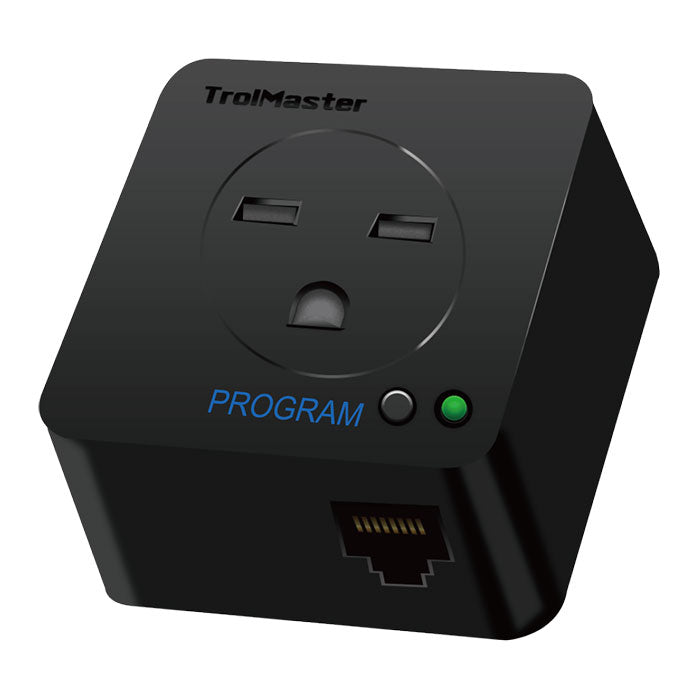

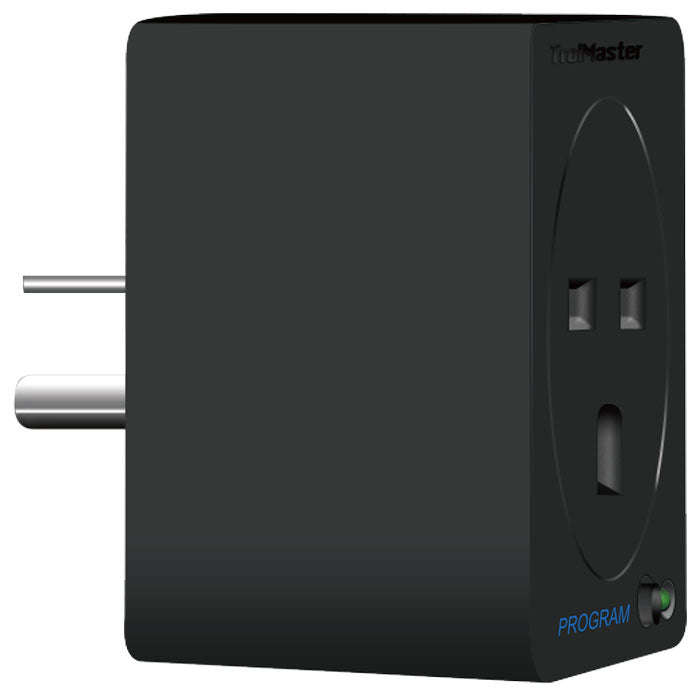

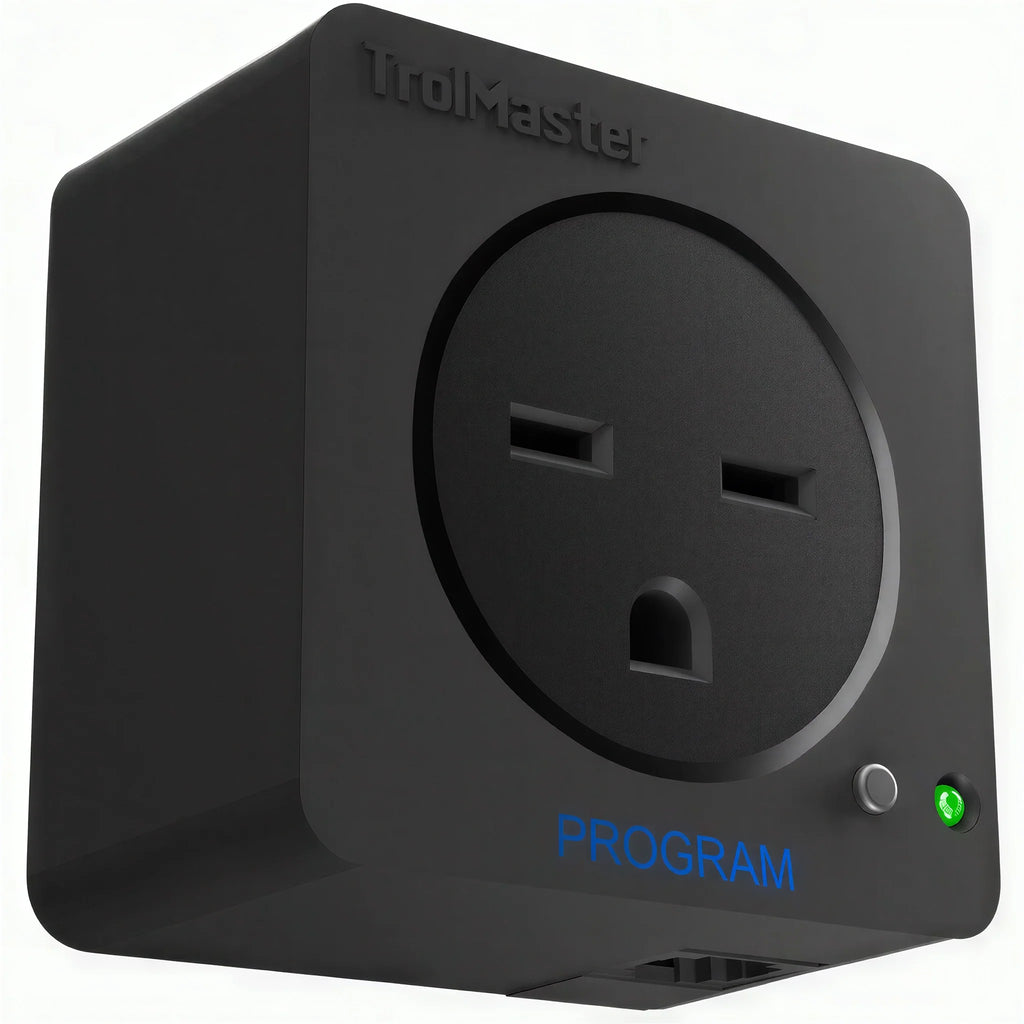

The TrolMaster DSP-2 program device module (timer module) works as a multi-function timer. The DSP-2 allows the user to easily connect any device that needs to be controlled by TIME to the Hydro-x. Any device that is 10-amps at 240 volts or less can be controlled by the DSP-2.
Features
- LED Power Indicator
- RJ12 Cable Socket
- Addressing
- Plug & Play

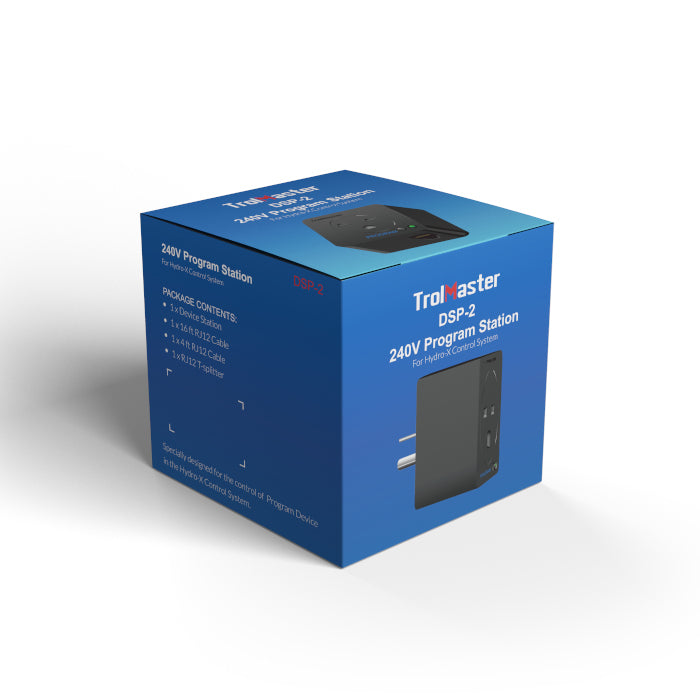

Package Contains
- (x1) Device Station
- (x1) 16 ft.RJ12 Cable
- (x1) 4 ft. RJ12 Cable
- (x1) RJ12 T-Splitter
Specifications
- Input Voltage: 100~240 VAC, 50/60Hz
- Output Current: 10 Amps
- Output Voltage: 100~240 VAC, 50/60Hz
- Working Environments: Temperature 32-122F, Humidity=90%
- Package Dimensions: 85mm(L) x 80mm(W) x 90mm(H)
- G.W. per pack: 0.34kgs
| Brand | TrolMaster |
|---|---|
| SKU | DSP-2 |
| Weight (lb.) | 2.0000 |
| Lead Time | 3-5 |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Hazardous Material | false |
| Prop 65 | false |
| ETL Listed | No |
| UL Listed | No |
| Controller Functions | Cycle Timer Control, Lighting Control |
What does the TrolMaster DSP-2 timer module do with a Hydro-X system?
The TrolMaster DSP-2 connects timed devices to a Hydro-X system and provides multi-function timer control.
Which devices can the TrolMaster DSP-2 control?
The TrolMaster DSP-2 controls devices rated at 10 amps or less and operating at 240 volts or less.
What comes with the TrolMaster DSP-2 device station?
The TrolMaster DSP-2 package includes one device station, one 16-foot RJ12 cable, one 4-foot RJ12 cable, and one RJ12 T-splitter.
How does the TrolMaster DSP-2 connect to a Hydro-X system?
The TrolMaster DSP-2 connects through an RJ12 cable socket and includes RJ12 cables and an RJ12 T-splitter for plug-and-play connection.
Can the TrolMaster DSP-2 control equipment on a 240-volt circuit?
The TrolMaster DSP-2 supports output from 100 to 240 VAC at 50/60Hz and controls loads up to 10 amps, including equipment operating at 240 volts or less.
