TrolMaster Hydro-X Thermostat Station Instructions

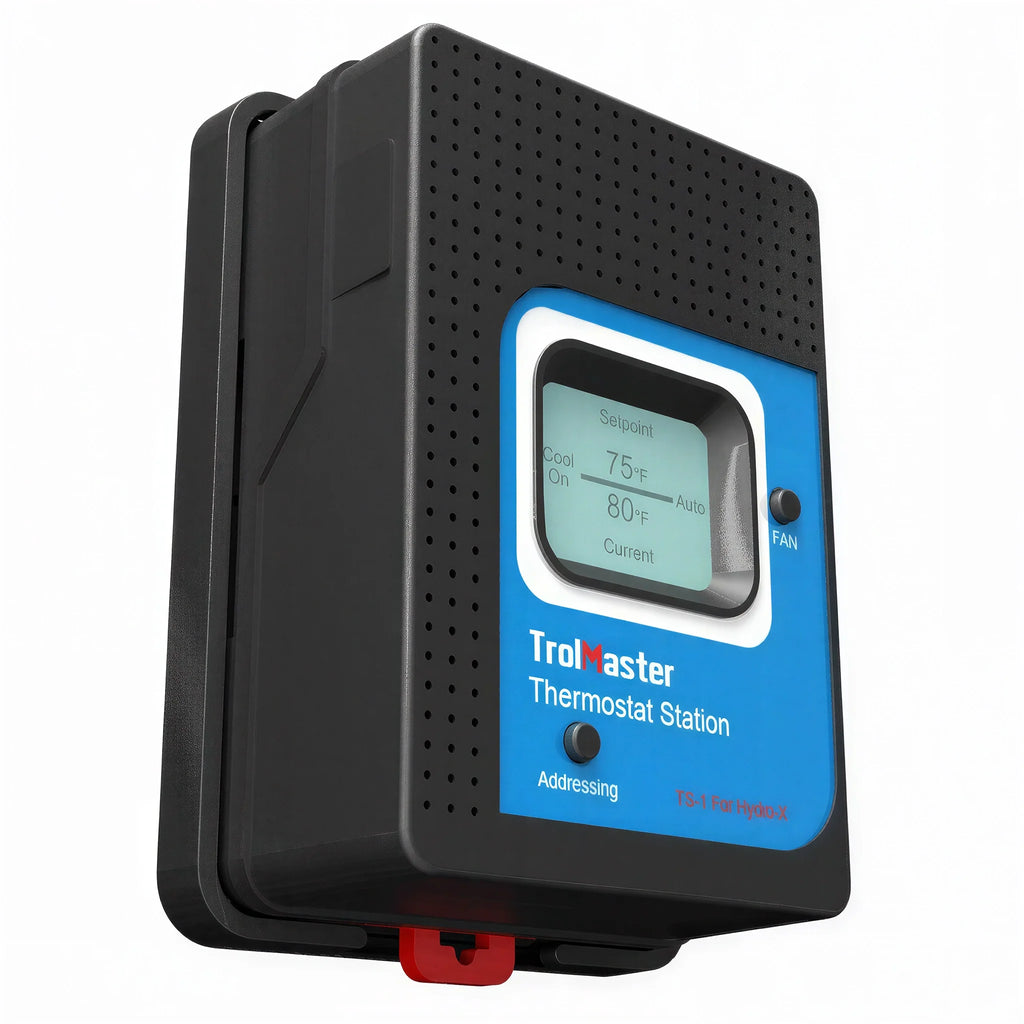

TS-1 Thermostat Station is specifically designed to replace the traditional thermostats to control Commercial AC units. It will control your AC system by Day/Night setpoint base on the photocell status.

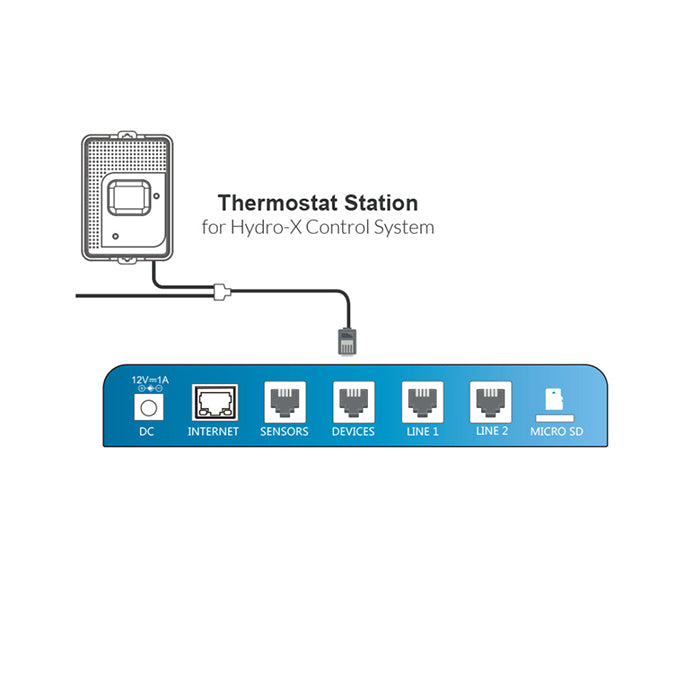

Connect the TS-1 to where your thermostat is on the wall using preexisting RWYG wires, now you can use the TS-1 in conjunction with the Hydro-X to control commercial AC units easily. Choose your desired temperature setpoints for the Day / Night mode (see Temperature Settings in Hydro-X’s instructions), the TS-1 will turn on/off Cooling Mode or Heating Mode automatically for the connected AC units based on that set point.

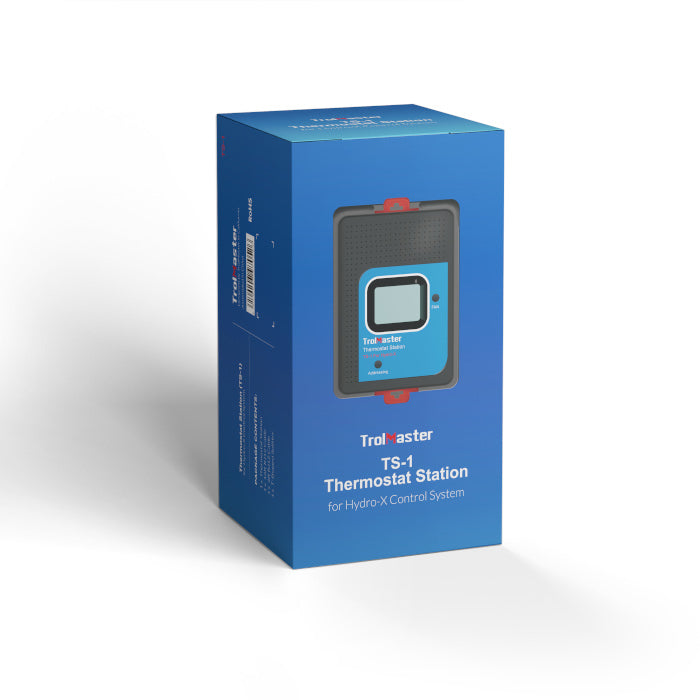

Package Contents:
- Thermostat Station (TS-1)
- 16ft RJ12 Cable
- 4ft RJ12 Cable
- RJ12 T-Splitter
Features:
- LCD Display, Easy Operation
- Seamless Connection with Hydro-X
- Micro-SD for Firmware Upgrade
- Address Assignment
- Plug & Play
Specifications:
- Output Voltage: 0~11.5V
- Maximum Current: 0.2A
- Working Environments: Temperature 32°-122°F, Humidity <90%
| Brand | TrolMaster |
|---|---|
| SKU | TS-1 |
| Weight (lb.) | 1.0000 |
| Lead Time | Ships in 2-3 Business days |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Hazardous Material | false |
| UPC | 6970207970526 |
| Prop 65 | false |
| ETL Listed | Yes |
| UL Listed | No |
| Controller Functions | Temperature Control |
| Amps | 0.2 Amps |
