TrolMaster Product Documents

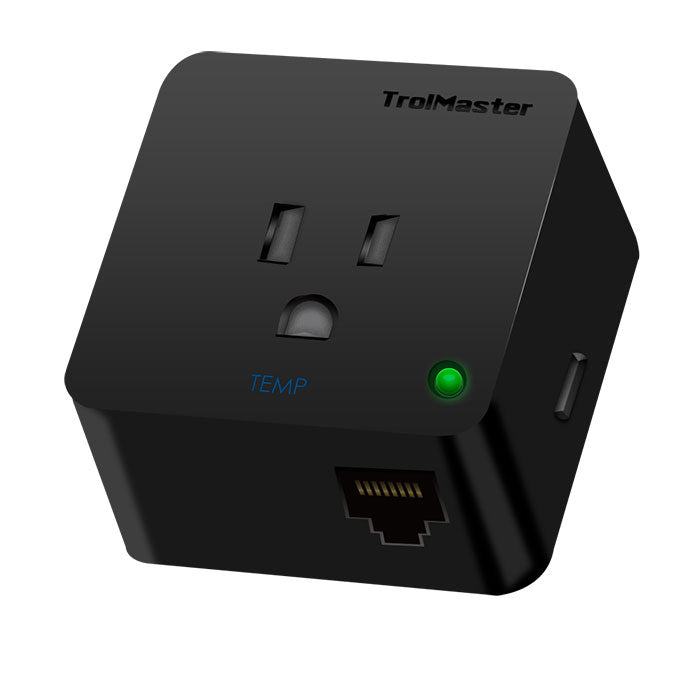

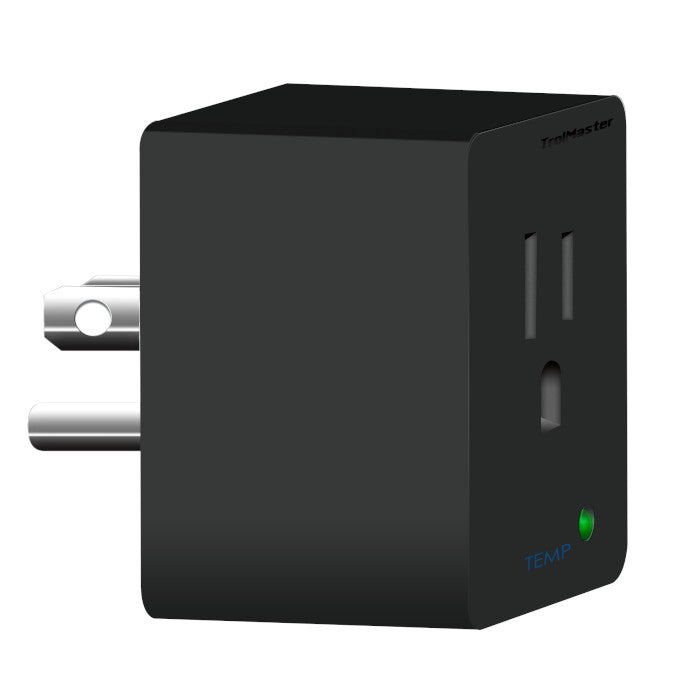

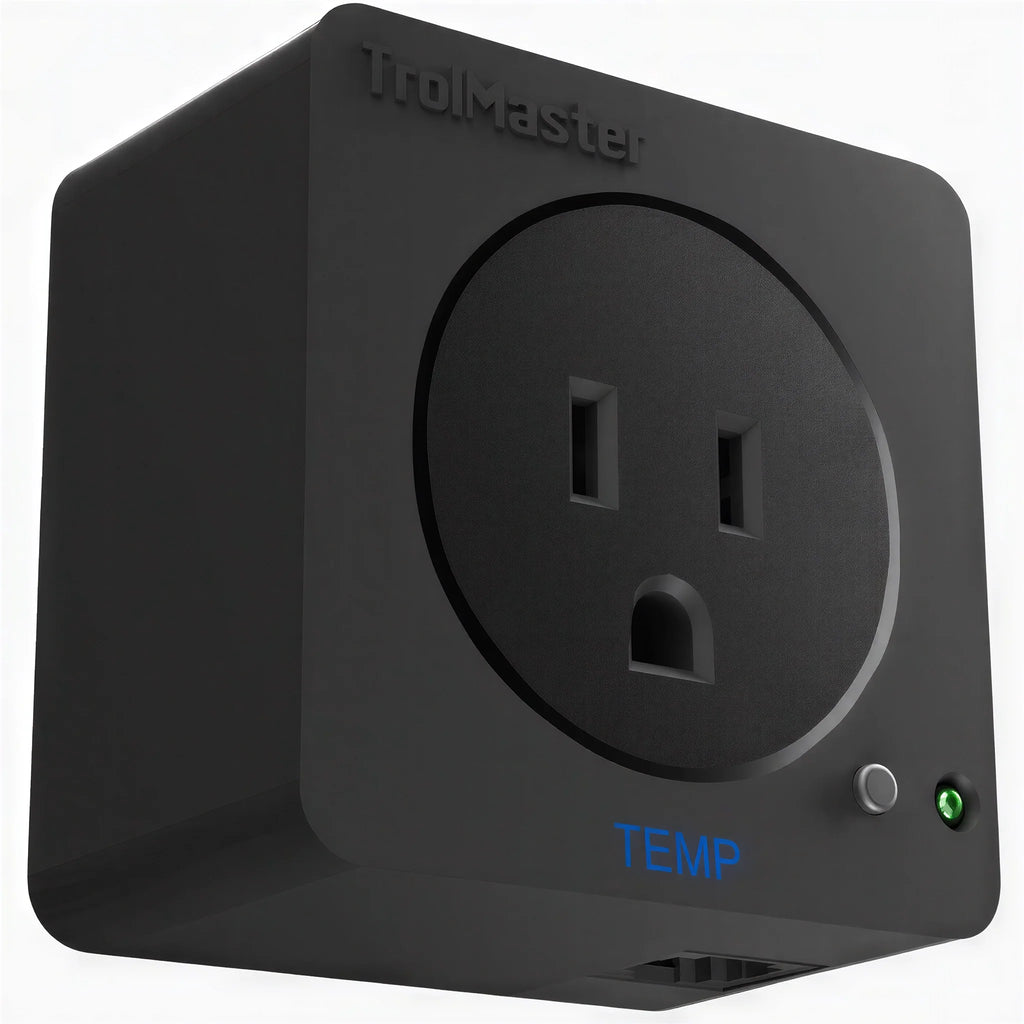

The TrolMaster DST-1 Temperature control modules allow the user to easily connect and control standard heating or cooling devices to the Hydro-x. Any heating or cooling device that is 10-amps at 120 volts or less can be controlled by the DST-1.
Features
- LED Power Indicator
- RJ12 Cable Socket
- Addressing
- Plug & Play

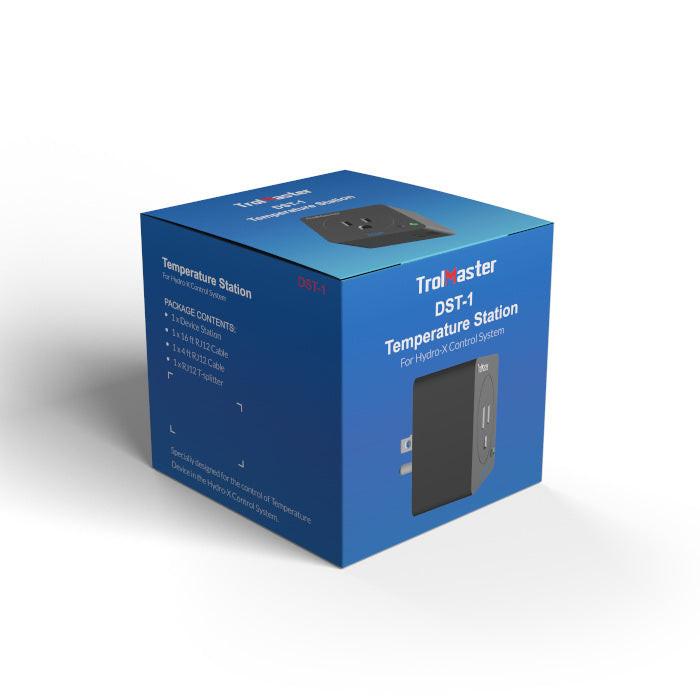

Package Contains
- (x1) Device Station
- (x1) 16 ft.RJ12 Cable
- (x1) 4 ft. RJ12 Cable
- (x1) RJ12 T-Splitter
Specifications
- Input Voltage: 100~240 VAC, 50/60Hz
- Output Current: 10 Amps
- Output Voltage: 100~240 VAC, 50/60Hz
- Working Environments: Temperature 32-122 F, Humidity = 90%
- Package Dimensions: 85mm(L) x 80mm(W) x 90mm(H)
- G.W. per pack: 0.34kgs
| Brand | TrolMaster |
|---|---|
| SKU | DST-1 |
| Weight (lb.) | 2.0000 |
| Lead Time | 2-3 |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Hazardous Material | false |
| UPC | 6970207970311 |
| Prop 65 | false |
| ETL Listed | Yes |
| UL Listed | No |
| Controller Functions | Temperature Control, Ventilation Control |
| Amps | 15 Amps |
| Voltage | |
| Frequency | 50/60Hz |
What does the TrolMaster DST-1 control?
The TrolMaster DST-1 controls standard heating or cooling devices rated at 10 amps at 120 volts or less through Hydro-X.
How does the TrolMaster DST-1 connect to Hydro-X?
The TrolMaster DST-1 connects to Hydro-X through an RJ12 cable socket and supports plug-and-play setup.
What comes with the TrolMaster DST-1?
The TrolMaster DST-1 package includes one device station, one 16-foot RJ12 cable, one 4-foot RJ12 cable, and one RJ12 T-splitter.
Where can the TrolMaster DST-1 operate?
The TrolMaster DST-1 operates in temperatures from 32 to 122 degrees Fahrenheit and environments with 90% humidity.
