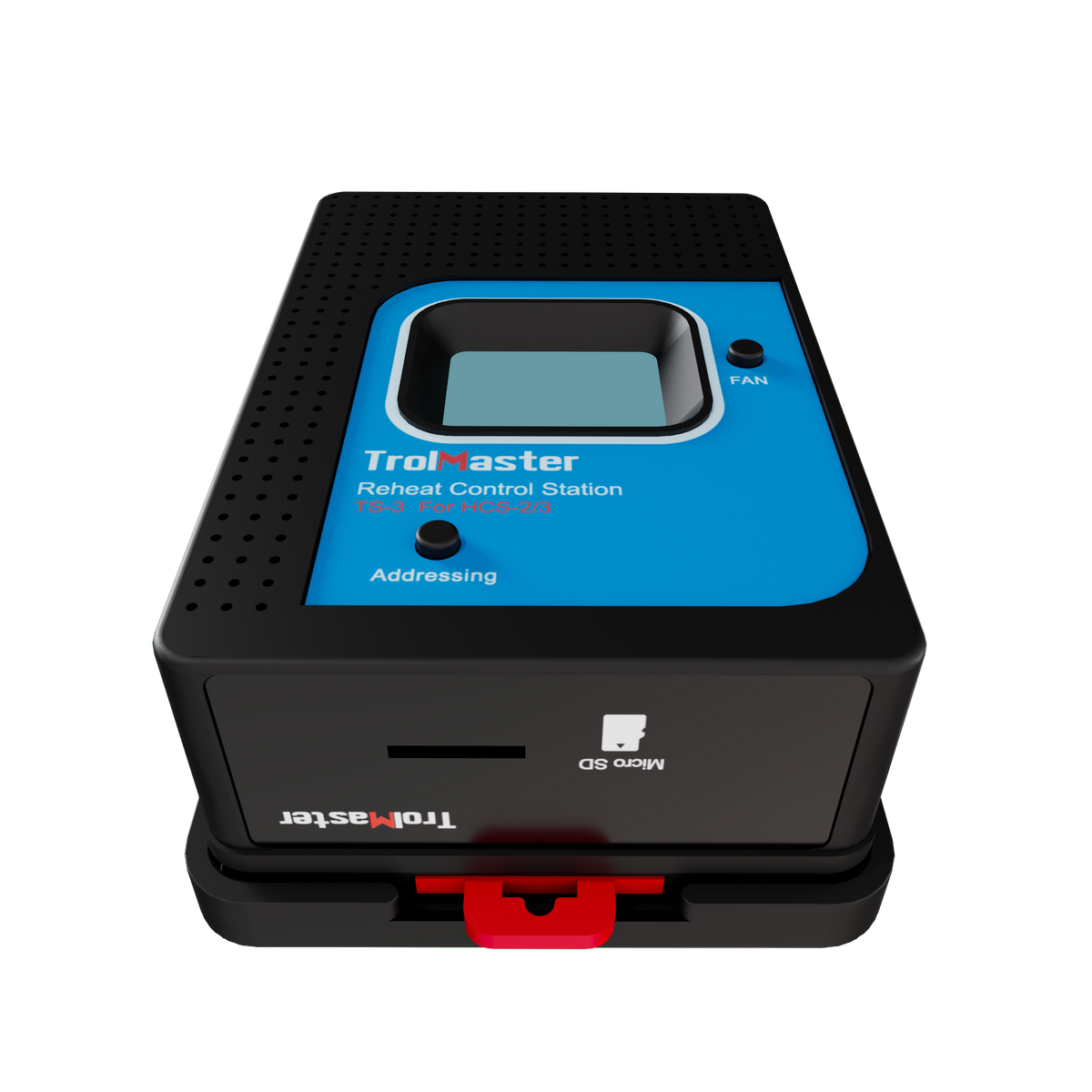

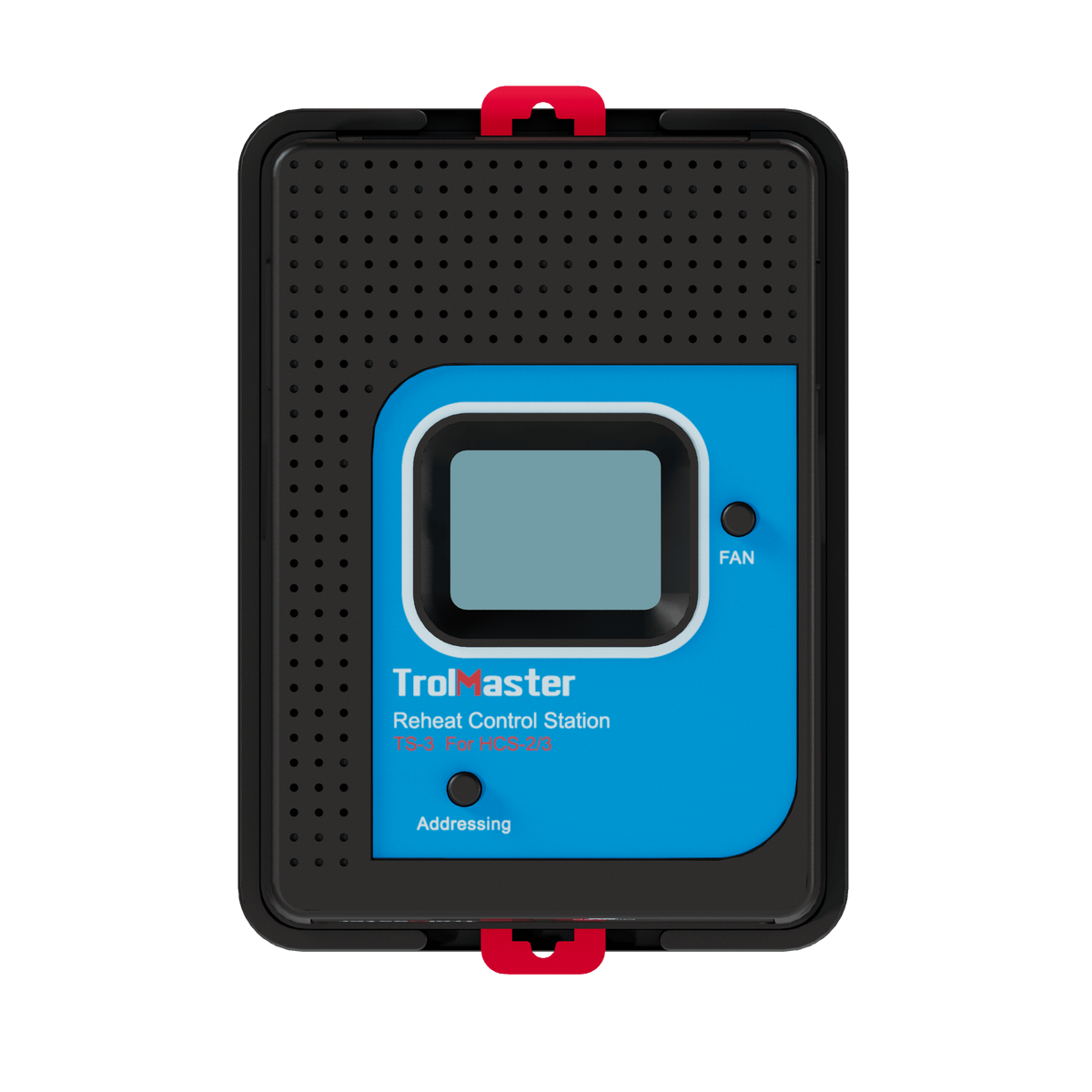

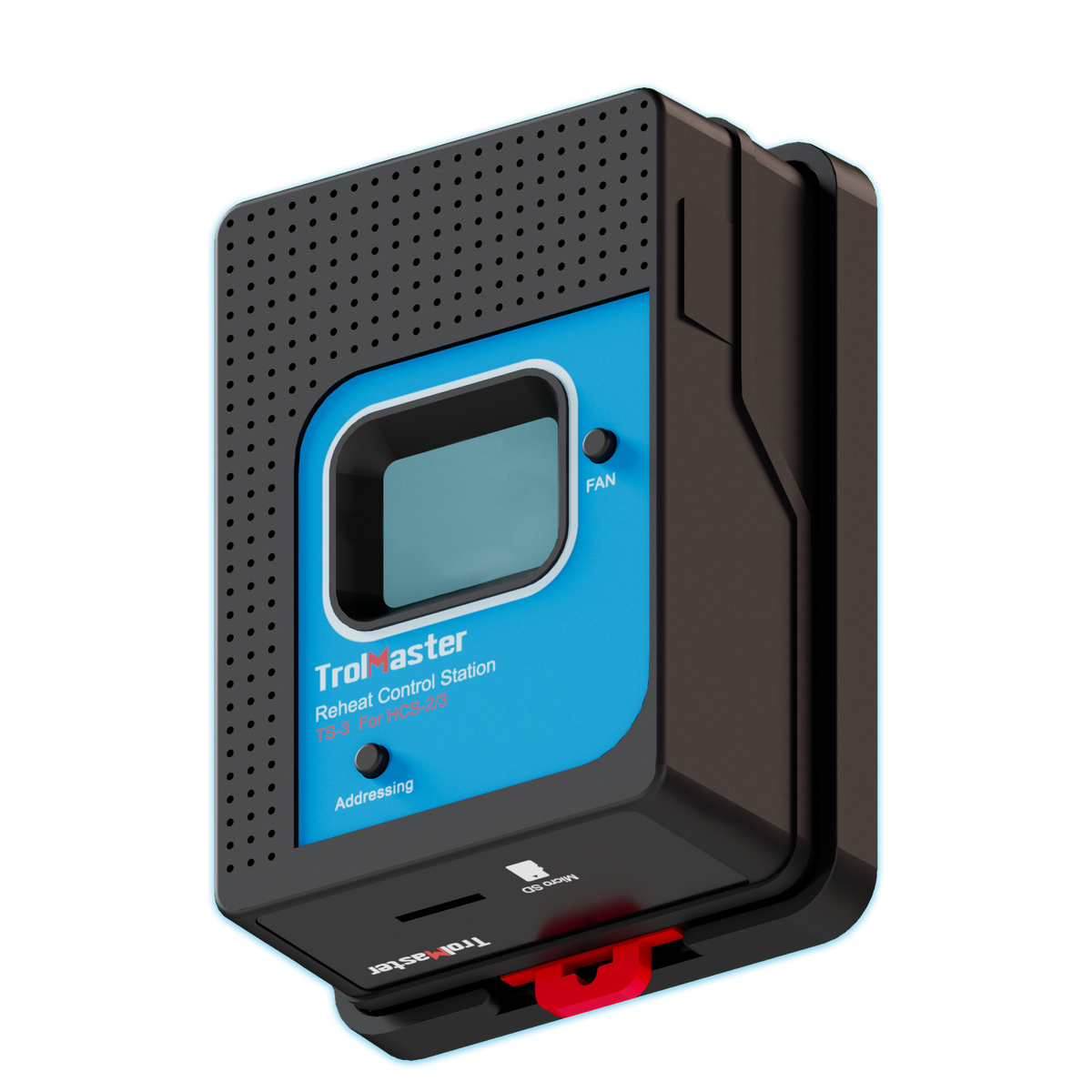

TrolMaster TS-3 Hydro-X Reheat Control Station 3

The TS-3 Thermostat Station is designed to provide “reheat” control for air conditioners that are capable of a Reheat function. Reheat is simply defined as the ability for a HVAC system to activate cooling and heating at the same time. When an HVAC is operated using reheat, a significant amThe TS-3 Thermostat Station is designed to provide “reheat” control for air conditioners that are capable of a Reheat function. Reheat is simply defined as the ability for a HVAC system to activate cooling and heating at the same time. When an HVAC is operated using reheat, a significant amount of dehumidification is possible without further reducing the temperature within the controlled space. This basically allows the users to utilize the existing refrigeration circuit of their HVAC unit, to also act as a dehumidifier.

The TS-3 is intended for use with the TrolMaster HCS-2 and HCS-3 controllers and will manage temperature control and supplemental dehumidification. It can be used with single stage HVAC systems / Heat pumps that are capable of operating in this configuration.

Features

• LCD Display, Easy Operation
• Seamless Connection with Hydro-X

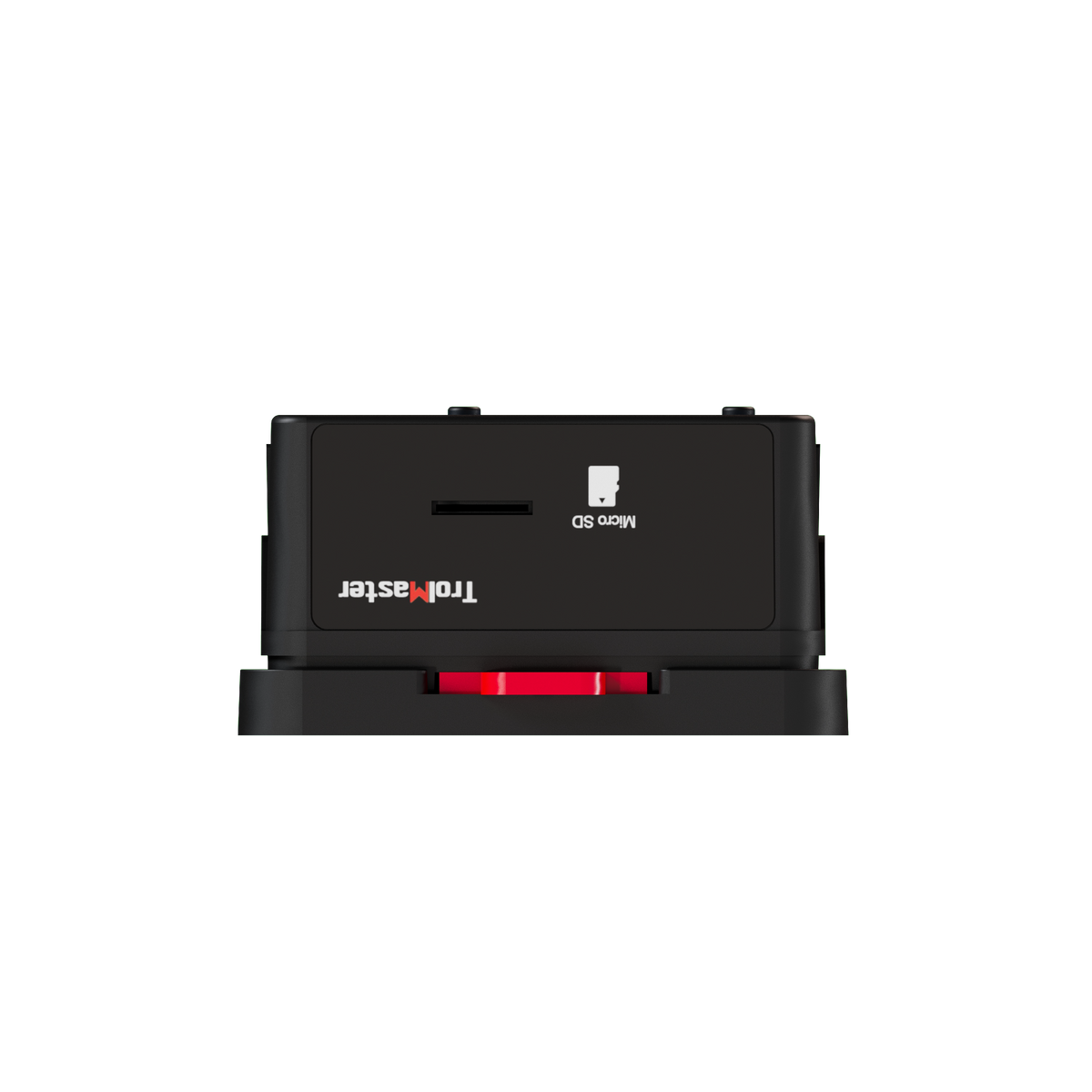

• Micro-SD for Firmware Upgrade
• Address Assignment
• Plug & Play

Specifications

• Output Voltage: 24V
• Maximum Current: 1A
• Working Environment: Temperature 32-122°F, Humidity=90%
• Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
• G.W. per pack: 0.40kgs
