Hydro-X Pro Controller with 4-in-1 Sensor (Temp / Humid / CO2/ Light ) and Cable set, Free Phone App

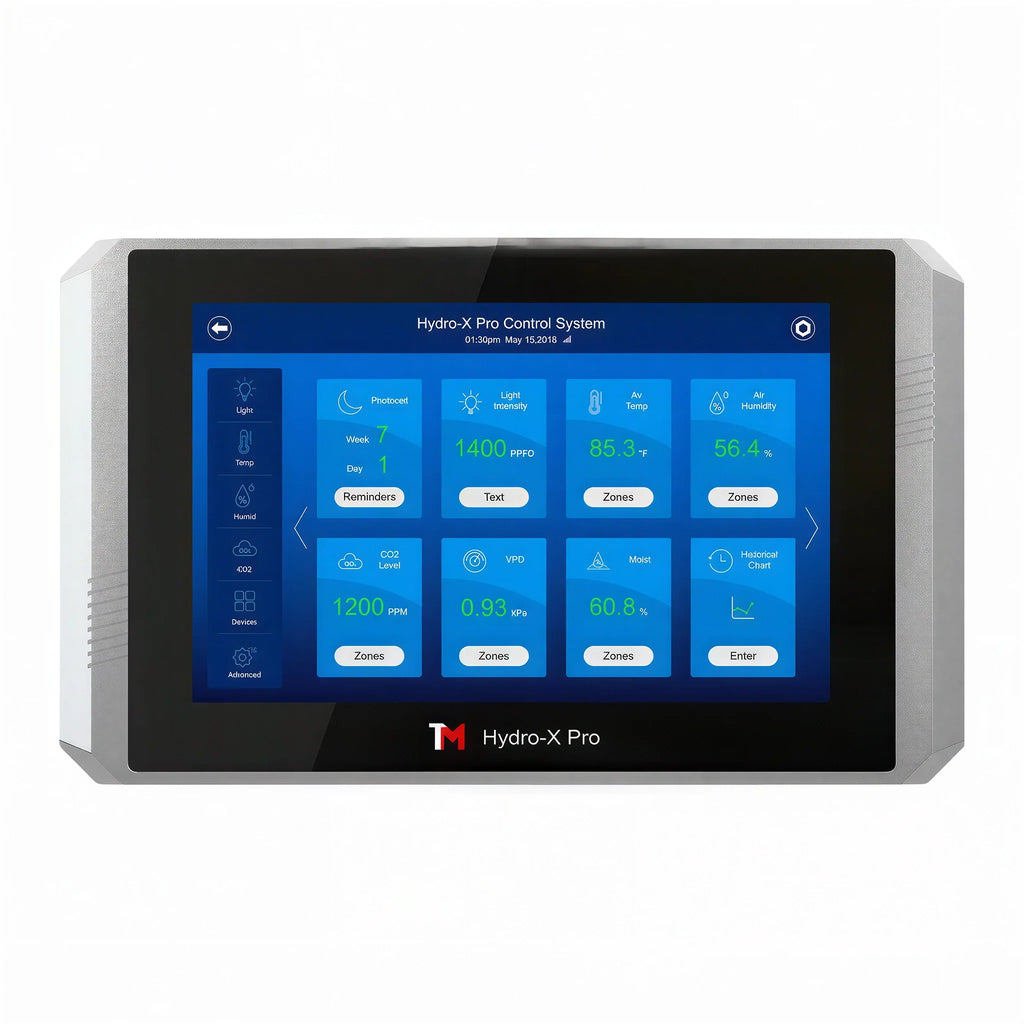

The Hydro-X Pro continues the revolution with a 10’ touch-screen and a web-based software.
Installation is simple and the system is easy to expand upon. The Hydro-X system can control most grow lights brands, HVAC systems, mini-split air conditioners, commercial dehumidifiers and humidifiers, as well as CO2 generators or regulators. With the free TrolMaster App, the user can access all of the settings and alerts on the system from anywhere at anytime.

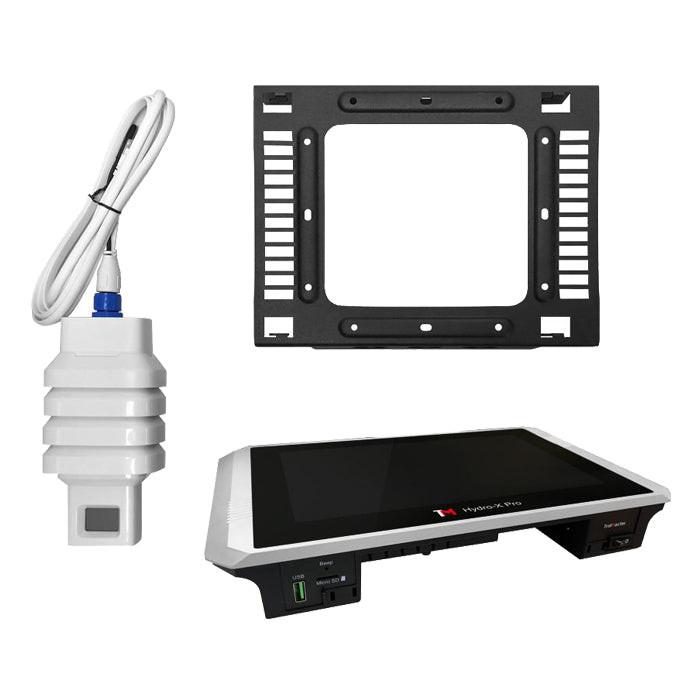

Whats Included:
Hydro-X Pro Environment Controller (x1)
4-in-1 Sensor for Temperature, Light, CO2, and Humidity (x1)
Mounting Plate
RJ12 Cable Set (x1)
Male-to-Male 16ft RJ12 Cable (x1)
Male-to-Male 4ft RJ12 Cable (x1)
RJ12 T-Splitter (x1)
Total Control
The Hydro-X Pro expands the capability of the original Hydro-X by allowing up to 50 sensors and up to 50 separate control modules to be connected to a single Hydro-X Pro. Even it is still deigned to be a single room system for reliability and ease-of-use, multiple sub-zones within the grow space can be monitored and controlled separately by linking a specific sensor (or average) to a specific control function(s). The new 4-in-1 sensor comes with a LCD screen which provide the ease of onside monitoring.
Hydro-X Pro Control System is the most intelligent and versatile environmental control system in the market.
It controls up to:
512 TrolMaster ThinkGrow Lights - 80 3rd Party Lights (40 Per Line - 40 Ballasts or 24 Drivers)
50 Temperature Devices
50 Humidity Devices
50 CO2 devices
50 Pre-program Devices
With the incredible flexibility, anyone could easily customize their own grow room system for maximum yield.
To eliminate interference in the grow environment, all of the sensors and control modules are HARD-WIRED by standard RJ12 cable and splitters, making installation as simple as plug-and-play.
Stay Connected
One of the most powerful features of the Hydro-X Pro system is the internet connectivity to connect the unit to the Amazon cloud service. TrolMaster's free smart phone APP offers monitoring and receiving push alerts anytime anywhere.
Another powerful feature of the Hydro-X Pro is the built-in calendar and calendar presets that allows the user to schedule an entire crop’s “recipe” within the Hydro-X Pro. All settings including Lighting, Temperature, Humidity, CO2, and Timers can be specified by the user as they “build” their multi-week crop schedules. Reminders can also be programmed to ensure critical tasks are not forgotten.
The TrolMaster APP will also allow for notifications with separate day/night limits to be received by the user. Onboard data acquisition and the ability to store and share setting between multiple devices, means that user-defined programs & settings can be saved and loaded into multiple Hydro-X Pro units with ease. A personalized screensaver page can be uploaded through a USB port. The same upgradeable feature like Hydro-X gives you the ability for life-time improvements.
Modular Design
This system is designed to be customizable down to the last detail. The modular design allows for all these serparate components to be configured in unique ways to help the user achieve the best environment possible.
There are 2 lighting control channels to control up to 512 lights on two separate channels. The system can also operate different lighting systems at the same time.
Almost ALL lighting systems in the market can be controlled by the system by different lighting control adaptors.
NOTE:
2 knob fixtures allowing individual control of 2 different bulbs
can NOT
be controlled by the Hydro X
Currently we have:
LMA-11 for Phantom - Lighting Adapter P
LMA-12 for Dimlux - Lighting Adapter D
LMA-13 for Sun System - Lighting Adapter S
LMA-14 for HIDs like Gavita/Nanolux/Luxx - Lighting Adapter F
LMA-14 for HIDs like Growers Choice/Illuminar/PL
LMA-14 for LEDs like Fluence/Next light/Spectrum King
LMA-15 for DLI - Lighting Adapter DLI
LMA-T for ThinkGrow - Lantern Schedule Adapter F
Using the LMA-14 Adapter (Adapter F) for multiple lights
The LMA-14 Adapter can be used for 24 Drivers (LEDs) or 40 Ballasts with either the HCS-1 or HCS-2 Hydro-X controllers. Both the Hydro-X Controllers have 2 line lights giving the ability to control double the amount of each type of light (48 LEDs and 80 Ballasts).
If you require running more than that amount of lights, you can achieve this using the
SPH-1 Splitter Hub
. The SPH-1 Splitter Hub has 8 open RJ ports allowing you to plug a separate LMA-14 into each giving you the option of controlling 8x the normal amount, 8x(24 LEDs or 40 ballasts). You can use as many SPH-1 Splitter hubs to achieve the maximum amount of lights your facility requires.
All the other controlled modules are connected to the device channel.
For temperature control we have
TS-1/TS-2
for HVAC Systems
The TS-1 (4 Wire) & TS-2 (6 Wire) thermostat stations are designed to replace a thermostat connected to a conventional cool only HVAC unit.
ARS-1
for Mini Split System
The ARS-1 mini-split air conditioner controller is a universal controller that works with most mini-split air conditioners (and some window-type AC units too), as long as the unit came with an IR / infrared remote controller.
DST-1
for Temperature-Controlled Outlets (120 Volt)
The TrolMaster DST-1 Temperature control modules allow the user to easily connect and control standard heating or cooling devices to the Hydro-x. Any heating or cooling device that is 10-amps at 120 volts or less can be controlled by the DST-1.
DST-2
for Temperature-Controlled Outlets (240 Volt)
The TrolMaster DST-2 Temperature control modules allow the user to easily connect and control standard heating or cooling devices to the Hydro-x. Any heating or cooling device that is 10-amps at 240 volts or less can be controlled by the DST-2.
For humidity control we have
HS-1
for Commercial Dehumidifiers
The HS-1 is the best way to control your dehumidifiers by eliminating the need to control the high-amperage / inrush current associated with dehumidifiers.
DSH-1/DSH-2
for Humidity-Controlled Outlets
The TrolMaster DSH-1 (120 Volt) & DSH-2 (240 Volt) Humidity control / device modules allow the user to easily connect and control standard humidifying or dehumidifying devices to the Hydro-x.
DSC-1
for CO2-Controlled Outlets
The TrolMaster DSC-1 CO2 control / device module allows user the to easily connect and control standard supplemental CO2 devices or CO2 exhaust controls to the Hydro-x. Any CO2 device that is 10-amps @ 120 volts or less can be controlled by the DSC-1.
DSP-1/DSD-1
The TrolMaster DSP-1 (120 Volt) program device module (timer module) works like a multi-function timer. The DSP-1 allows the user to easily connect any device that needs to be controlled by TIME to the Hydro-x.
The Trolmaster DSD-1 Dry-contact module provides a simple and flexible solution to who want to connect & control devices to the Hydro-X using a dry-contact or relay to activate the device.
All of these items are listed at the top under the custom options tabs or if you would like to view them individually they are all listed on our TrolMaster brand page here -
TrolMaster Hydro-X
What is the difference between the Hydro-X Controllers?
TrolMaster Hydro-X PRO Environmental Control System with 4-in-1 Sensor
TrolMaster Hydro-X PRO Environmental Control System with 4-in-1 Sensor
TrolMaster Hydro-X PRO Environmental Control System with 4-in-1 Sensor
TrolMaster Hydro-X PRO Environmental Control System with 4-in-1 Sensor
TrolMaster Hydro-X PRO Environmental Control System with 4-in-1 Sensor
TrolMaster Hydro-X PRO Environmental Control System with 4-in-1 Sensor
What can the TrolMaster Hydro-X PRO control in my grow room?
The Hydro-X PRO can control grow lights, HVAC systems, mini-split air conditioners, commercial dehumidifiers, humidifiers, and CO2 generators or regulators, making it a versatile choice for managing your grow room environment.
How easy is it to install the Hydro-X PRO system?
Installation is straightforward with the Hydro-X PRO, thanks to its plug-and-play design using standard RJ12 cables and splitters, allowing for quick setup and expansion.
Is the Hydro-X PRO compatible with my existing grow lights and HVAC systems?
The Hydro-X PRO is compatible with most grow light brands and HVAC systems, offering flexibility through various lighting control adapters and modules for seamless integration.
