TrolMaster Product Documents
Part of the Hydro-X Environment Control System

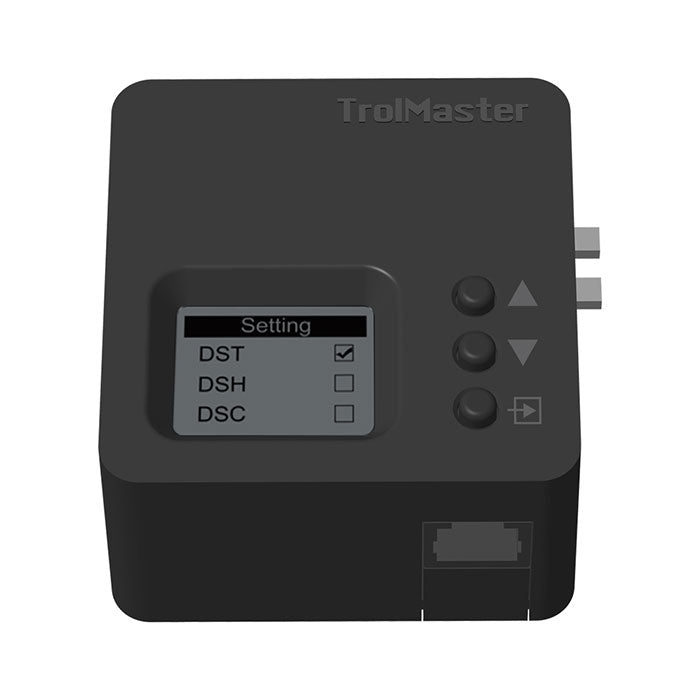

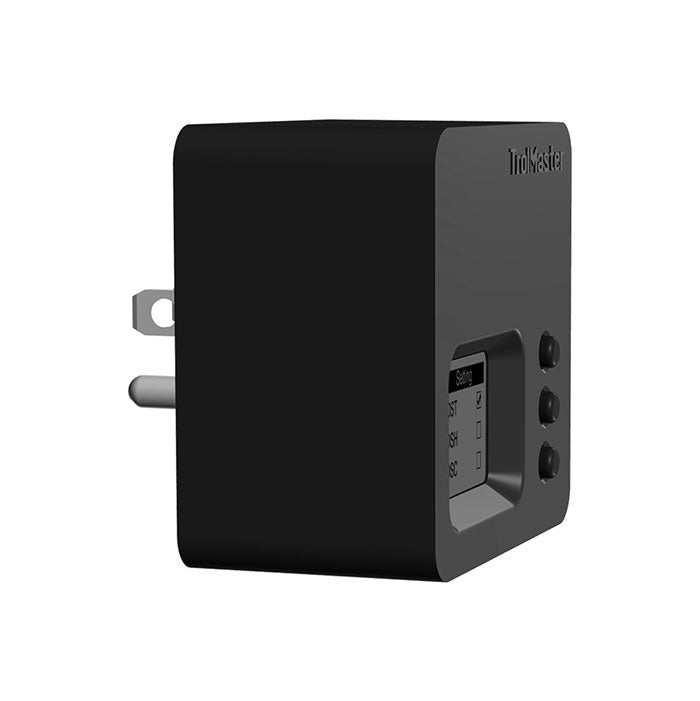

The Trolmaster DSV-1 is a low-voltage output module that can be used on the Hydro-X HCS-1 , Hydro-X Pro HCS-2 controllers. The DSV-1 can be addressed to be used as a temperature, humidity, CO2, or timer device module.
Multiple voltage outputs are selectable by the user. The DSV-1 can output either 12 or 24 VDC up to .5 amps, or 12 or 24 VAC up to 4.8VA. Once the module is configured it will activate the low-volt device wired to the DSV-1. This allows the user to directly connect low voltage devices such as solenoids, valves, audiovisual alarms, or any other device that requires 12 to 24 volt AC or DC power to operate.
- LCD Display, Easy Operation
- Seamless Connection with Hydro-X and Hydro-X Pro
- Multiple purposes assigment
- Plug & Play
Package Contents
- 1 x Low-Volt Station DSV-1
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
Specifications
- Input Voltage: 100~240VAC, 50/60Hz
- Output Voltage: DC24/AC24 0.25A -- DC12/ AC12 0.5A
- Working Environment: Temperature 32-122°F, Humidity=90%
- Packaging Dimensions: 85mm x 80mm x 90mm
| Brand | TrolMaster |
|---|---|
| SKU | DSV-1 |
| Weight (lb.) | 5.0000 |
| Lead Time | 3-5 |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Hazardous Material | false |
| UPC | 6970207971530 |
| Prop 65 | false |
| ETL Listed | No |
| UL Listed | No |
| Controller Functions | Lighting Control |
| Amps | 0.5 Amps @ 12 Volts, 0.25 Amps @ 24 Volts |
| Voltage | |
| Frequency | 50/60 Hz |
What does the TrolMaster Hydro-X Low-Volt Station DSV-1 do?
The TrolMaster Hydro-X Low-Volt Station DSV-1 activates wired low-voltage devices through the Hydro-X Environment Control System. TrolMaster Hydro-X Low-Volt Station DSV-1 supports temperature, humidity, CO2, and timer device assignments.
Which Hydro-X controllers work with the TrolMaster Hydro-X Low-Volt Station DSV-1?
The TrolMaster Hydro-X Low-Volt Station DSV-1 works with the Hydro-X HCS-1 controller and Hydro-X Pro HCS-2 controller. TrolMaster Hydro-X Low-Volt Station DSV-1 provides a seamless connection with both Hydro-X systems.
What low-voltage devices can the TrolMaster Hydro-X Low-Volt Station DSV-1 operate?
The TrolMaster Hydro-X Low-Volt Station DSV-1 can connect directly to low-voltage devices such as solenoids, valves, audiovisual alarms, and other devices requiring 12 to 24 volt AC or DC power.
What output options does the TrolMaster Hydro-X Low-Volt Station DSV-1 provide for connected devices?
The TrolMaster Hydro-X Low-Volt Station DSV-1 provides selectable 12 or 24 VDC output up to 0.5 amps, or 12 or 24 VAC output up to 4.8VA.
What comes with the TrolMaster Hydro-X Low-Volt Station DSV-1?
The TrolMaster Hydro-X Low-Volt Station DSV-1 package includes one DSV-1 low-volt station, one 16-foot RJ12 cable, one 4-foot RJ12 cable, and one RJ12 T-splitter.
