TrolMaster Hydro-X Lighting Control Adaptor S (for Sun System Control)

TrolMaster’s Hydro-x system can control most of the supplemental lighting fixtures sold today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.

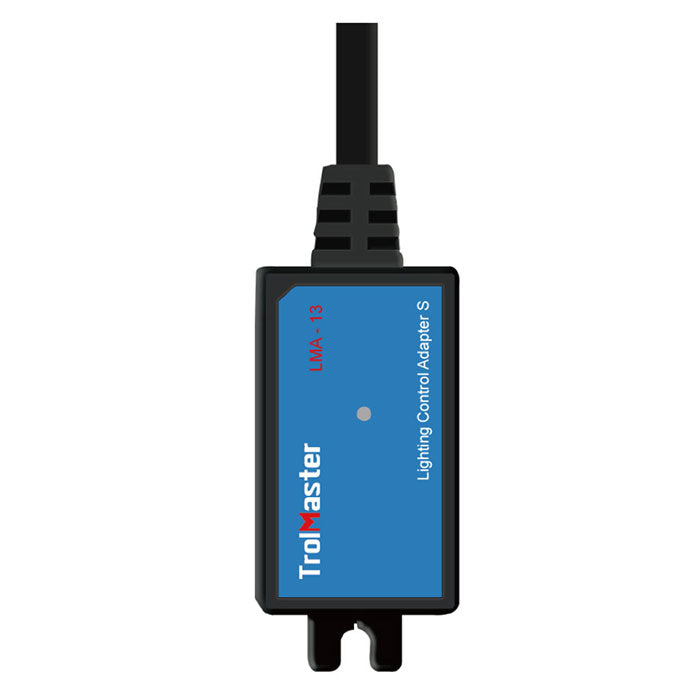

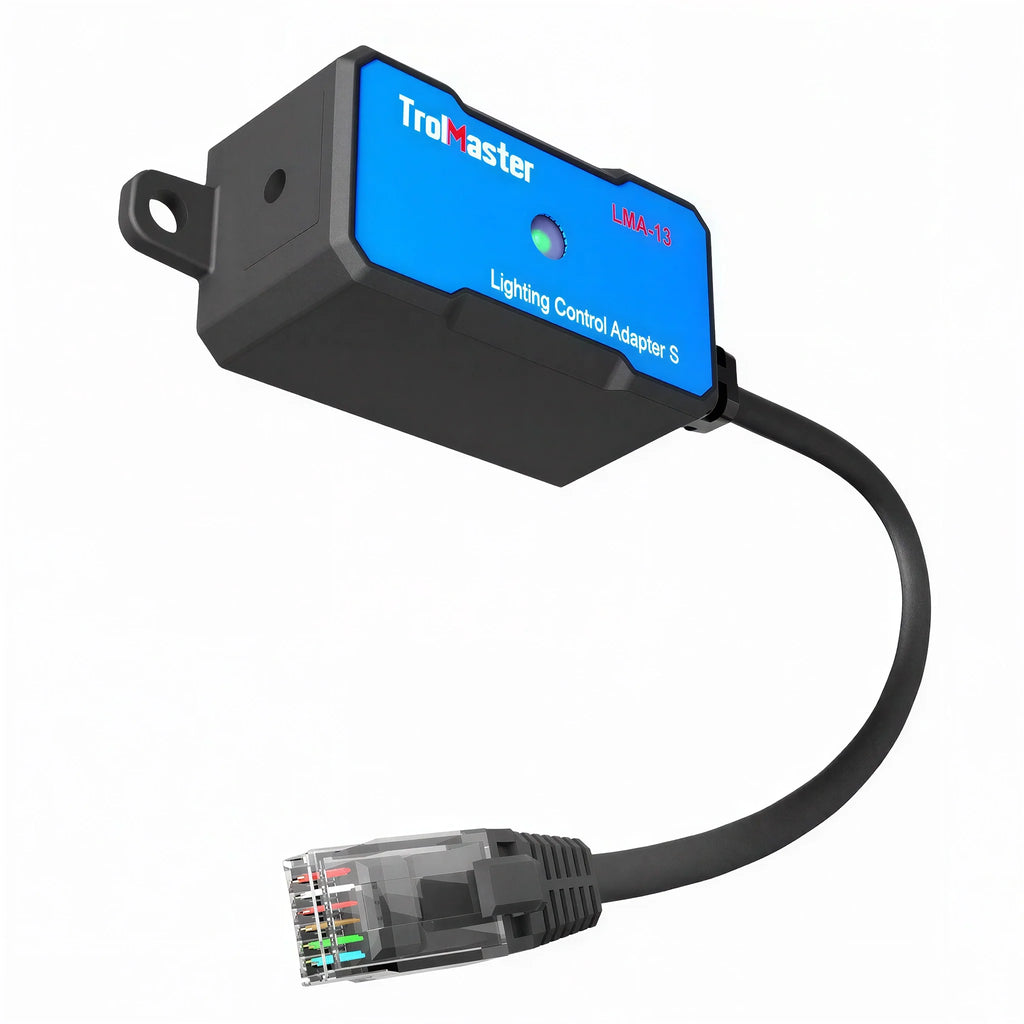

This Lighting Control Adapter S (LMA-13) is specially designed for controlling S ballast.

NOTE: 2 knob fixtures allowing individual control of 2 different bulbs can NOT be controlled by the Hydro X

Features

• LED Indicator
• Convert Digital Signal to Analog Signal
• 0.6 ft RJ12 Cable
• RJ12 Cable Socket
• Plug and Play
• For controlling Sun System brand products

Specifications

• Output Voltage: 0~11.5V
• Maximum Current: 0.2A
• Working Environments: Temperature 32-122 F, Humidity = 90%
• Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
• G.W. per weight: 0.05kgs
