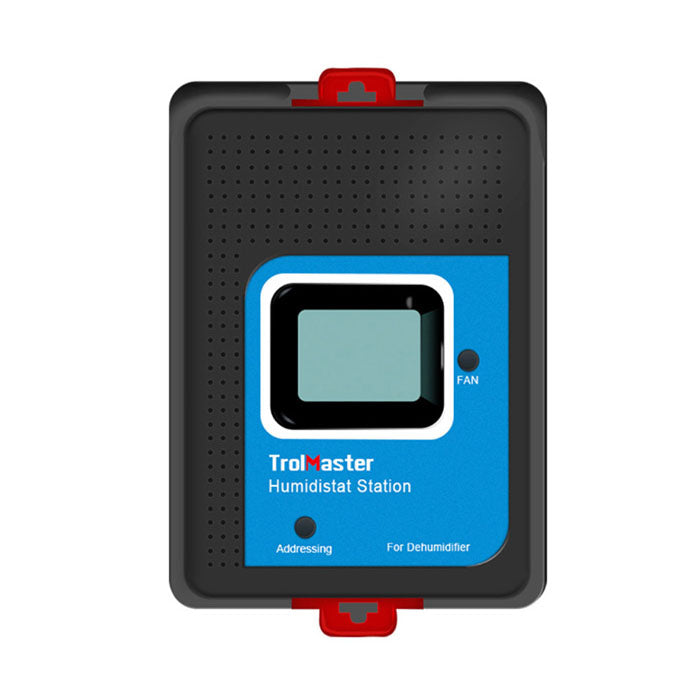

TrolMaster Hydro-X Humidistat Station ManualHS-1 Humidistat Station is specifically designed to control dehumidifier in the Hydro-X Control System. It will control your dehumidifier by Day/Night setpoint base on the photocell status.

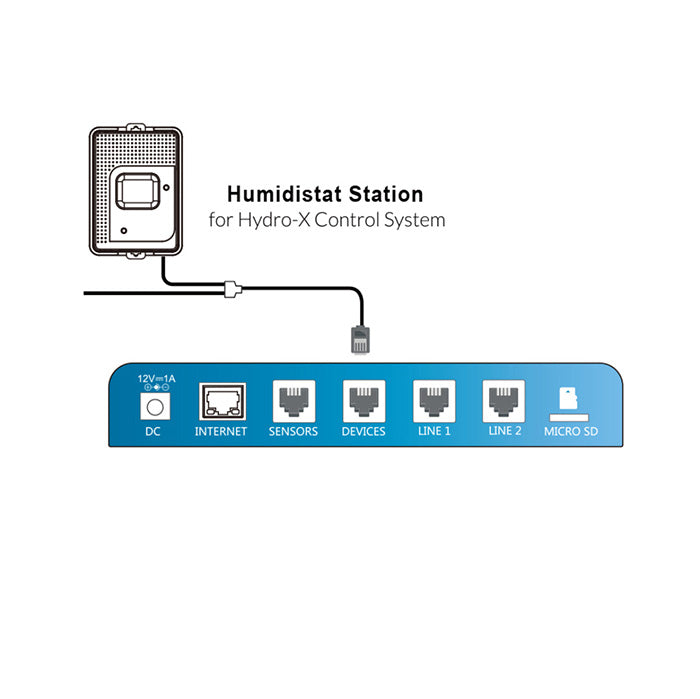

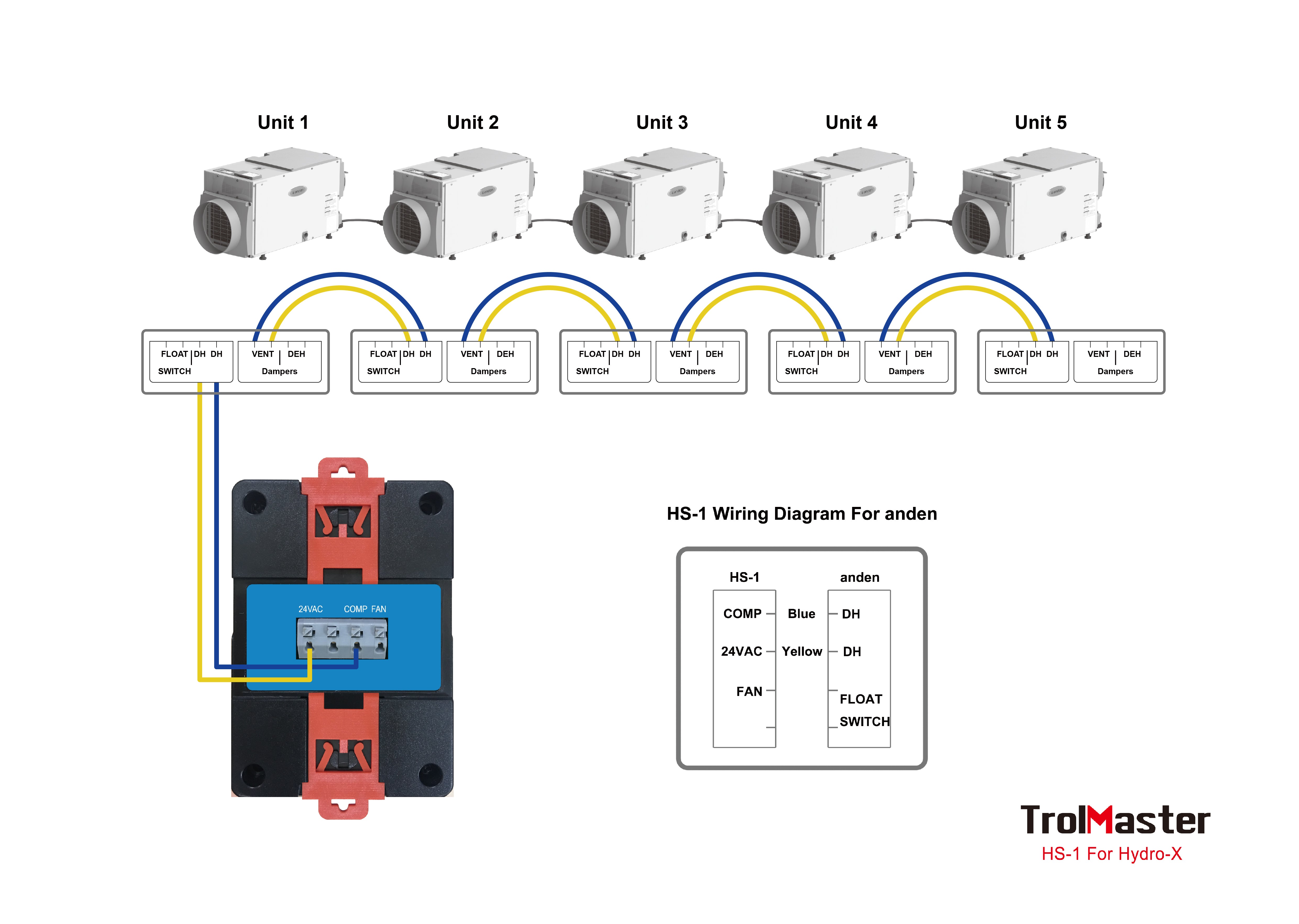

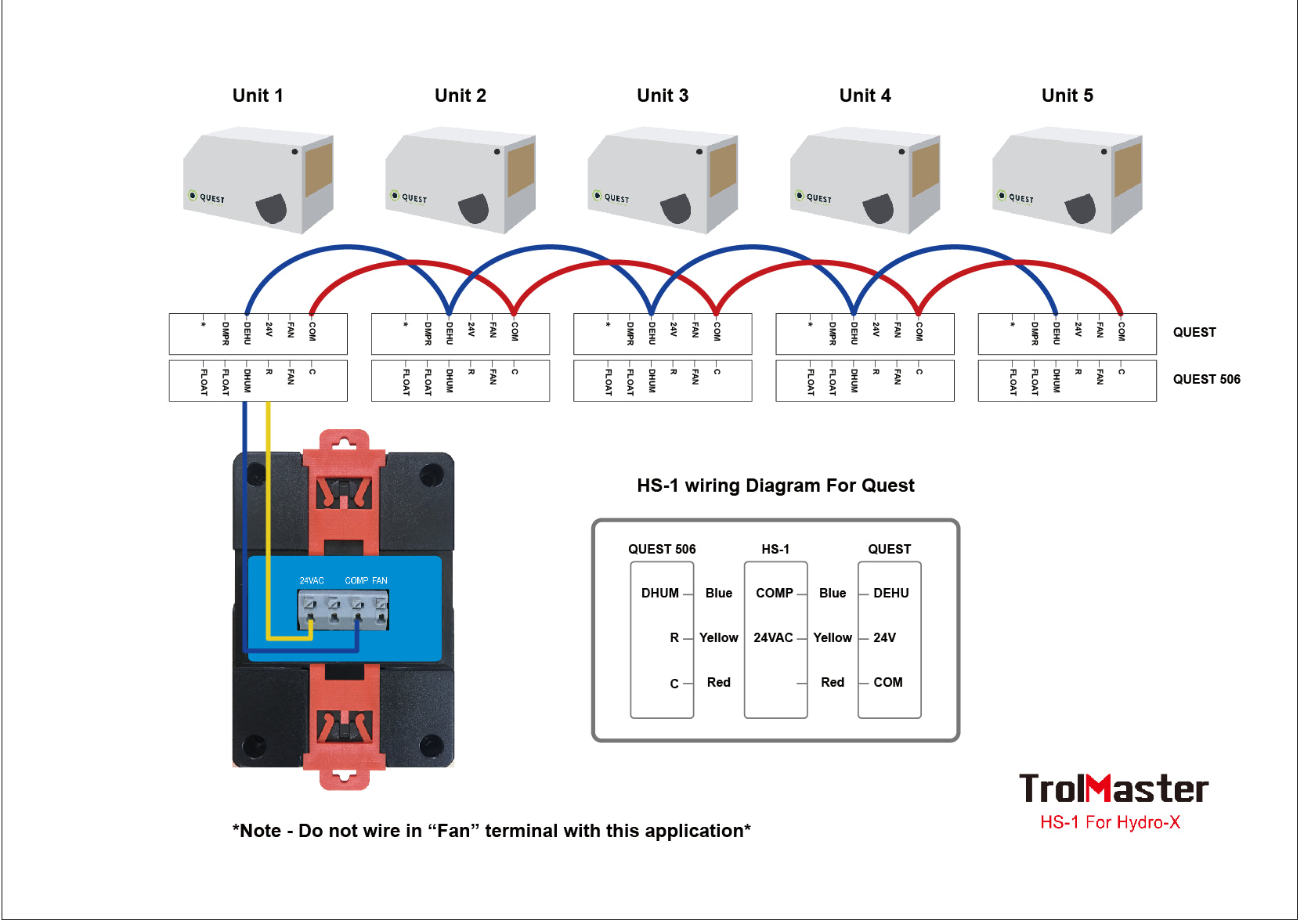

Connect the HS-1 to where your thermostat is on the wall by using the preexisting wires, now you can use the HS-1 in conjunction with the Hydro-X to control dehumidifier easily.
-
In the Box:
- 1 x Humidistat Station (HS-1)
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
-
Features:

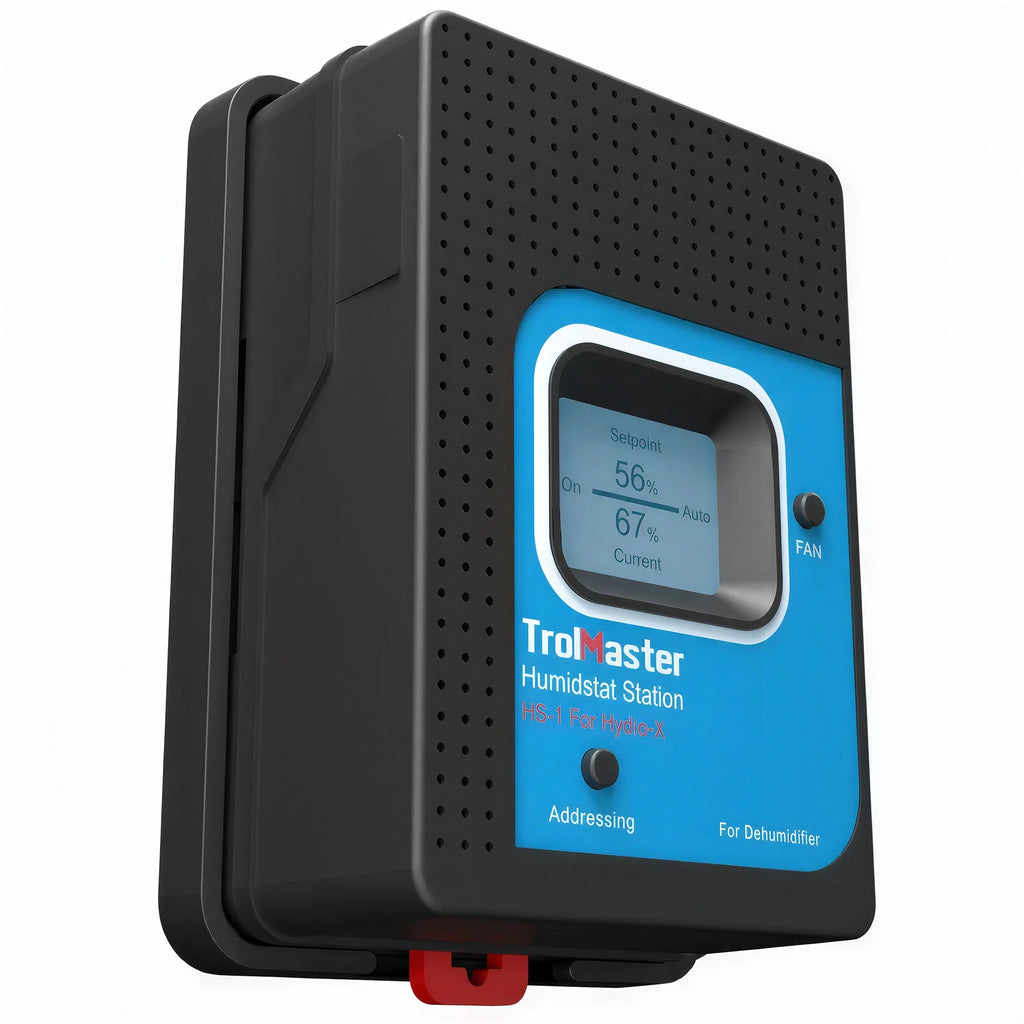

- LCD Display, Easy Operation
- Seamless Connection with Hydro-X
- Micro-SD for Firmware Upgrade
- Address Assignment
- Plug & Play
-
Specifications:
- Output Voltage: 24V
- Maximum Current: 1A
- Working Environment: Temperature 32-122°F, Humidity≤90%
- Packaging Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
| Brand | TrolMaster |
|---|---|
| SKU | HS-1 |
| Weight (lb.) | 2.0000 |
| Lead Time | Ships in 2-3 Business days |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Hazardous Material | false |
| UPC | 6970207970663 |
| Prop 65 | false |
| ETL Listed | Yes |
| UL Listed | No |
| Controller Functions | Humidity Control |
