The ECS-2 Extension Cable Set is designed to connect Hydro-X to most LED drivers with pigtail wiring. The ECS-2 comes with a 16 ft RJ12 cable, a Y-splitter, and a special 4 ft RJ12 to Female Barrel Cable. Simply connect the two wires from your LED driver to the terminal block, each of the lights being controlled is wired in a “daisy-chain” configuration back to the Hydro-X LMA adapter.
-

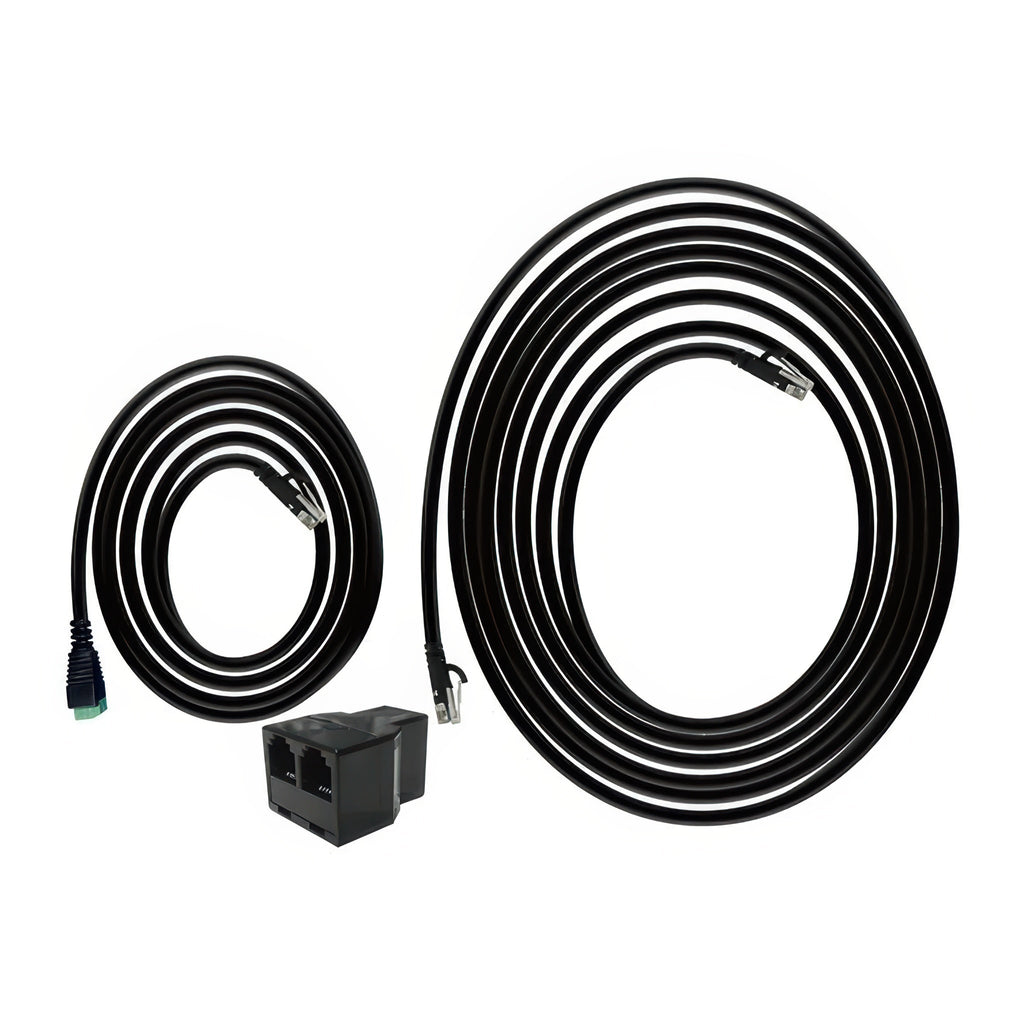

In the Box:
- 1 x 16 ft RJ12 Cable
- 1 x 4 ft RJ12 to Female Barrel Cable
- 1 x T-shaped Splitter
-
Specifications:
- Packaging Dimensions: 156mm(L) x 83mm(W) x 30mm(H)
- Approx. G.W. per pack: 0.18kgs
| Brand | TrolMaster |
|---|---|
| SKU | ECS-2 |
| Weight (lb.) | 0.4000 |
| Lead Time | Ships in 2-3 Business days |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Hazardous Material | false |
| Prop 65 | false |
| ETL Listed | Yes |
| UL Listed | No |
