TrolMaster Product Documents

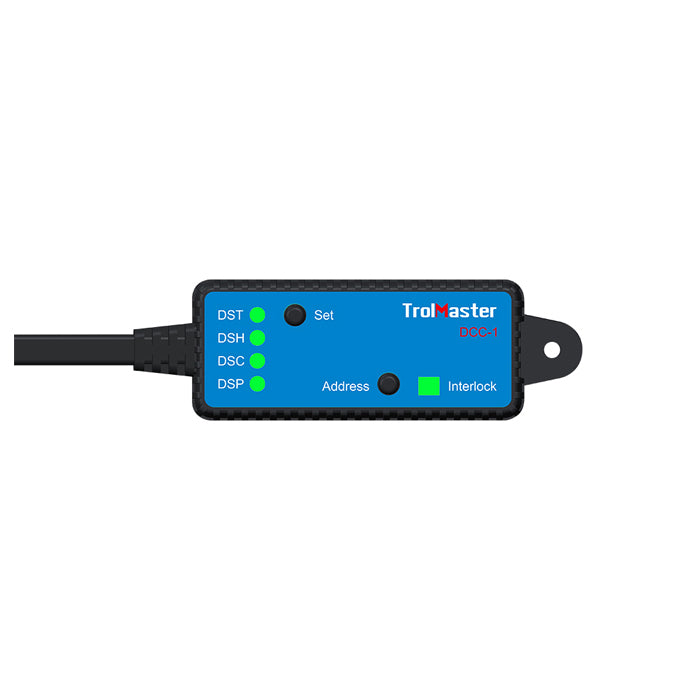

The TrolMaster DCC-1 provides a simple solution to control a single device, with more than one condition. For example, people like to turn on their exhaust fans when either temp or humidity is too high; shut off CO2 when turn on exhaust fans. There are many other examples where two conditions can be either combined or split.
The DCC-1 is designed to be used in combination with one of TrolMaster’s plug-in style module. (DSC-1, DSH-1/2, DST-1/2 and DSP-1).

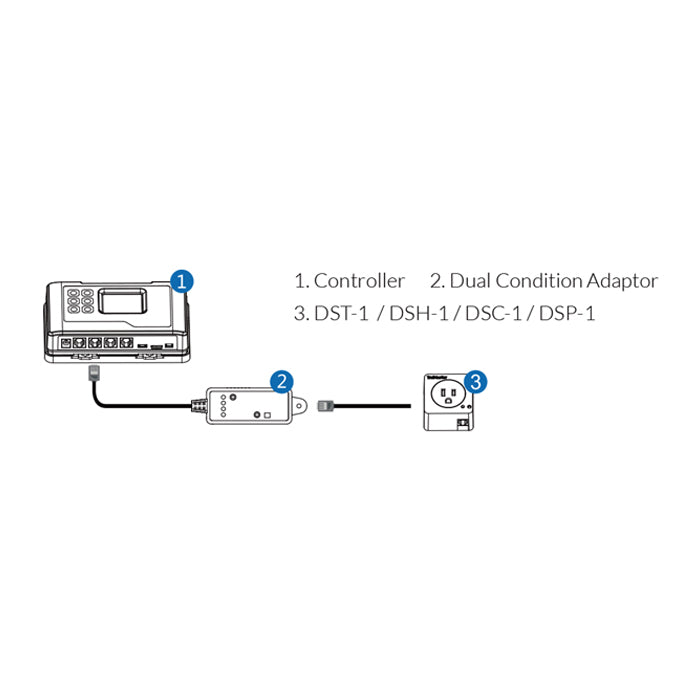

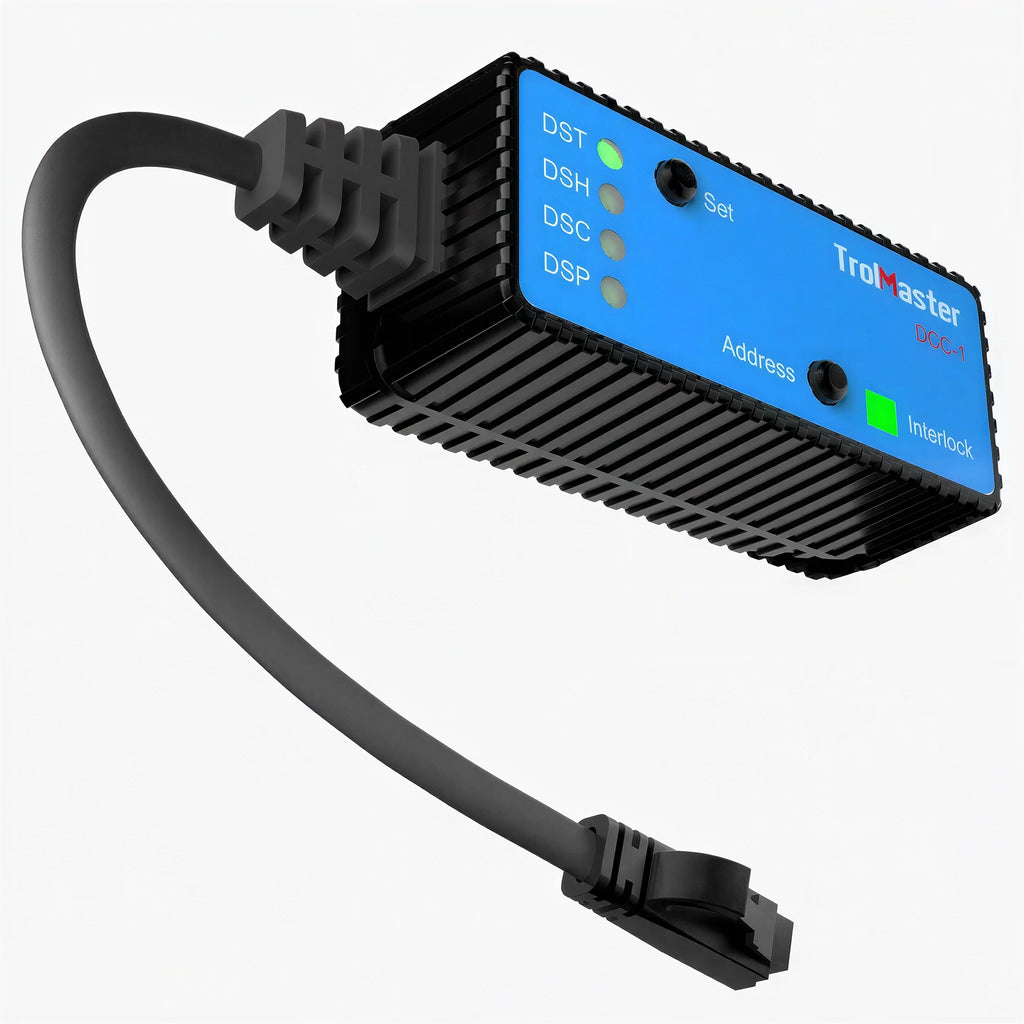

Once connected to the plug-in module using the RJ12 cable built-into the DCC-1, the DCC-1 will act in concert with that plug-in module to control whatever device is connected to the plug-in module.
The DCC-1 can also be set to work in two distinct ways using the “Interlock” function.
INTERLOCK OFF: When the DCC-1 interlock is set to be off, EITHER condition that are associated with that pair of modules that are being used together can be activated individually for the device to be activated. (modules used in “parallel”)
Examples from above for interlock OFF would be:
- Turn on an exhaust fan to reduce temp or humidity.
- Turn on an exhaust fan at night using a recycling timer OR when Humidity is too high
INTERLOCK ON: When the DCC-1 Interlock is selected to be on, BOTH conditions that are associated with that pair of modules that are being used together must be activated TOGETHER in order for the device to be activated. (modules used in “series”)
Examples from above for interlock ON would be:
- Shut off a CO2 device when an exhaust fan is running
- Shut off lights if the temperature gets too warm within the area.
| Brand | TrolMaster |
|---|---|
| SKU | DCC-1 |
| Weight (lb.) | 1.0000 |
| Lead Time | This Product Ships in 2-3 Business Days |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Hazardous Material | false |
| UPC | 6970207971318 |
| Prop 65 | false |
| ETL Listed | Yes |
| UL Listed | No |
| Controller Functions | Lighting Control |
| Amps | 10A |
| Voltage | |
| Frequency | 50/60Hz |
TrolMaster Dual Condition Adaptor for Hydro-X System
What does the TrolMaster DCC-1 Dual Condition Adaptor do?
The TrolMaster DCC-1 Dual Condition Adaptor controls a single device based on two conditions through a TrolMaster plug-in module. The TrolMaster DCC-1 supports combined or separate condition control for applications such as exhaust fans, CO2 devices, and lights.
Which TrolMaster modules are compatible with the DCC-1 Dual Condition Adaptor?
The TrolMaster DCC-1 Dual Condition Adaptor works with TrolMaster DSC-1, DSH-1, DSH-2, DST-1, DST-2, and DSP-1 plug-in modules. The TrolMaster DCC-1 is designed for use with the TrolMaster Hydro-X System.
How does the TrolMaster DCC-1 use the Interlock function?
The TrolMaster DCC-1 activates a connected device when either condition is met with Interlock off, or when both conditions are met together with Interlock on. Interlock off provides parallel module operation, while Interlock on provides series module operation.
How does the TrolMaster DCC-1 connect to a compatible plug-in module?
The TrolMaster DCC-1 connects to a compatible TrolMaster plug-in module through the built-in RJ12 cable. The TrolMaster DCC-1 then works with the plug-in module to control the connected device.
