TrolMaster Product Documents
The Water Content Sensor (WCS-1) is specifically designed to measure the water content data (percentage) of the grow media in the Aqua-X Control System.

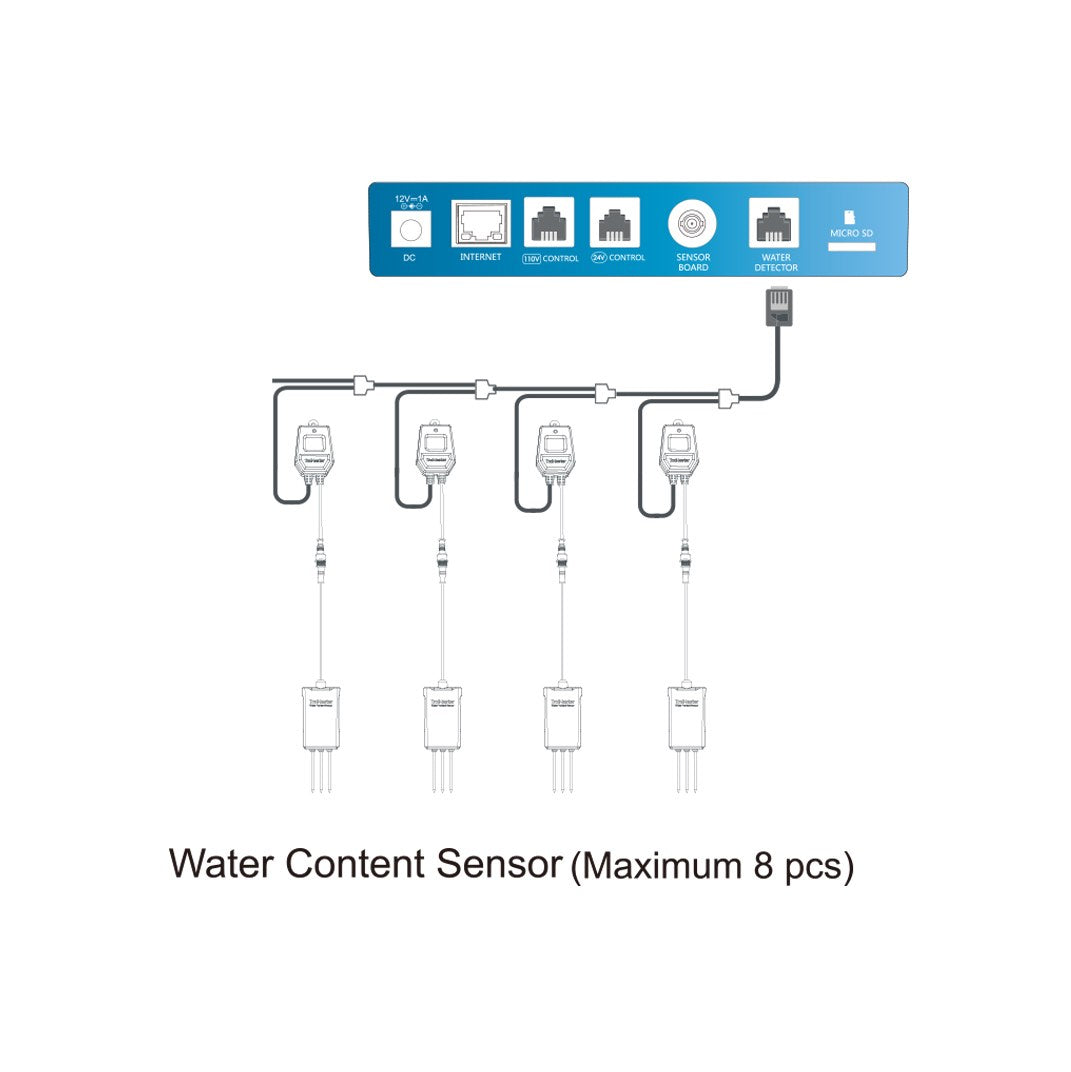

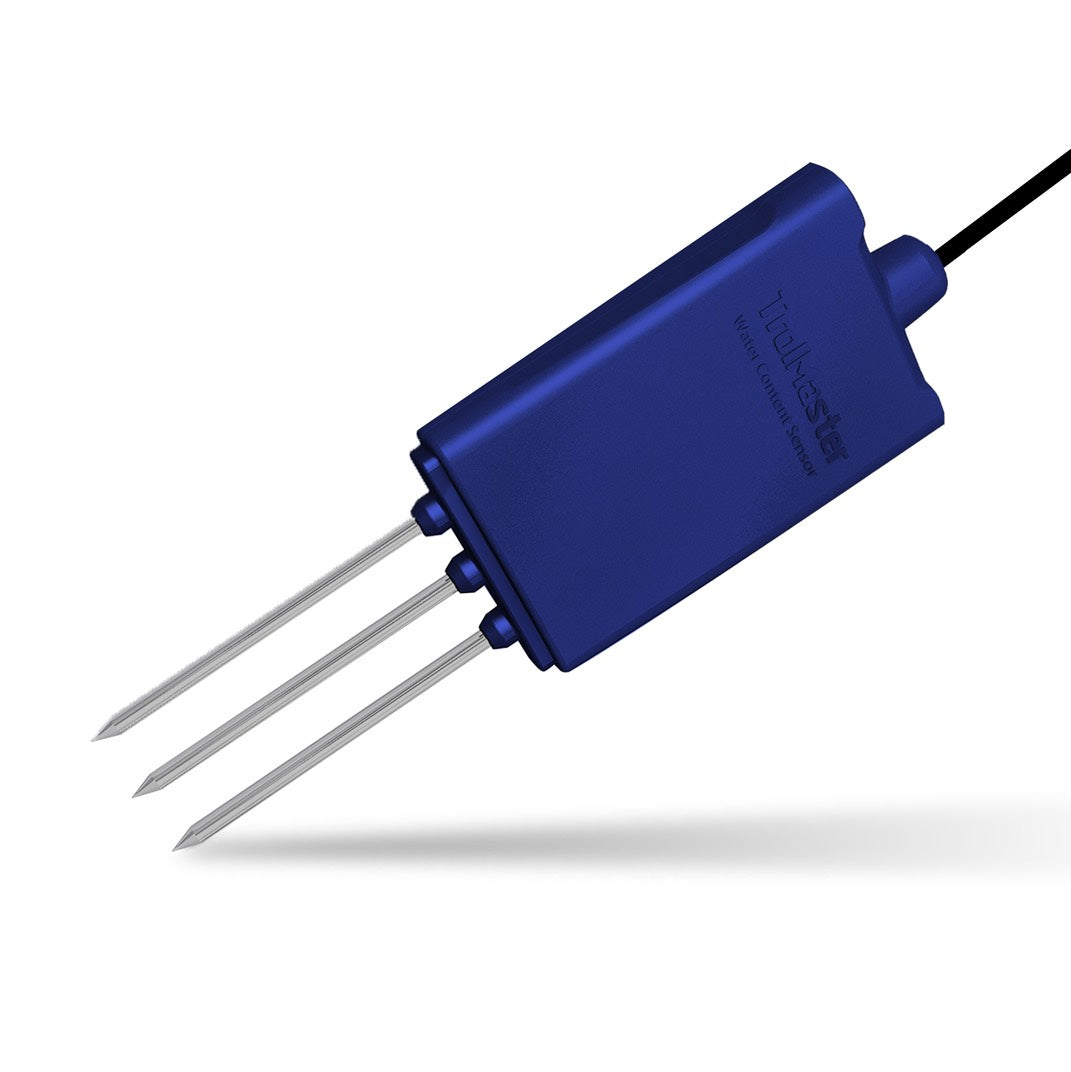

Each set of WCS-1 includes a three-prong sensor and a transfer module (Display Screen & Button). When measuring, the three prong sensor of a Water Content Sensor is inserted into the grow media such as soil or rock wool to be measured. If there are multiple Water Content Sensors (up to 8pcs) to be connected to the NFS-1 Controller, the NFS-1 screen will display the average value.
After downloading the app, you could read the water content data (percentage) and historical data (graph) on your Smartphone and receive message if the current value of the grow media exceeds your highest and lowest alarm setting range.

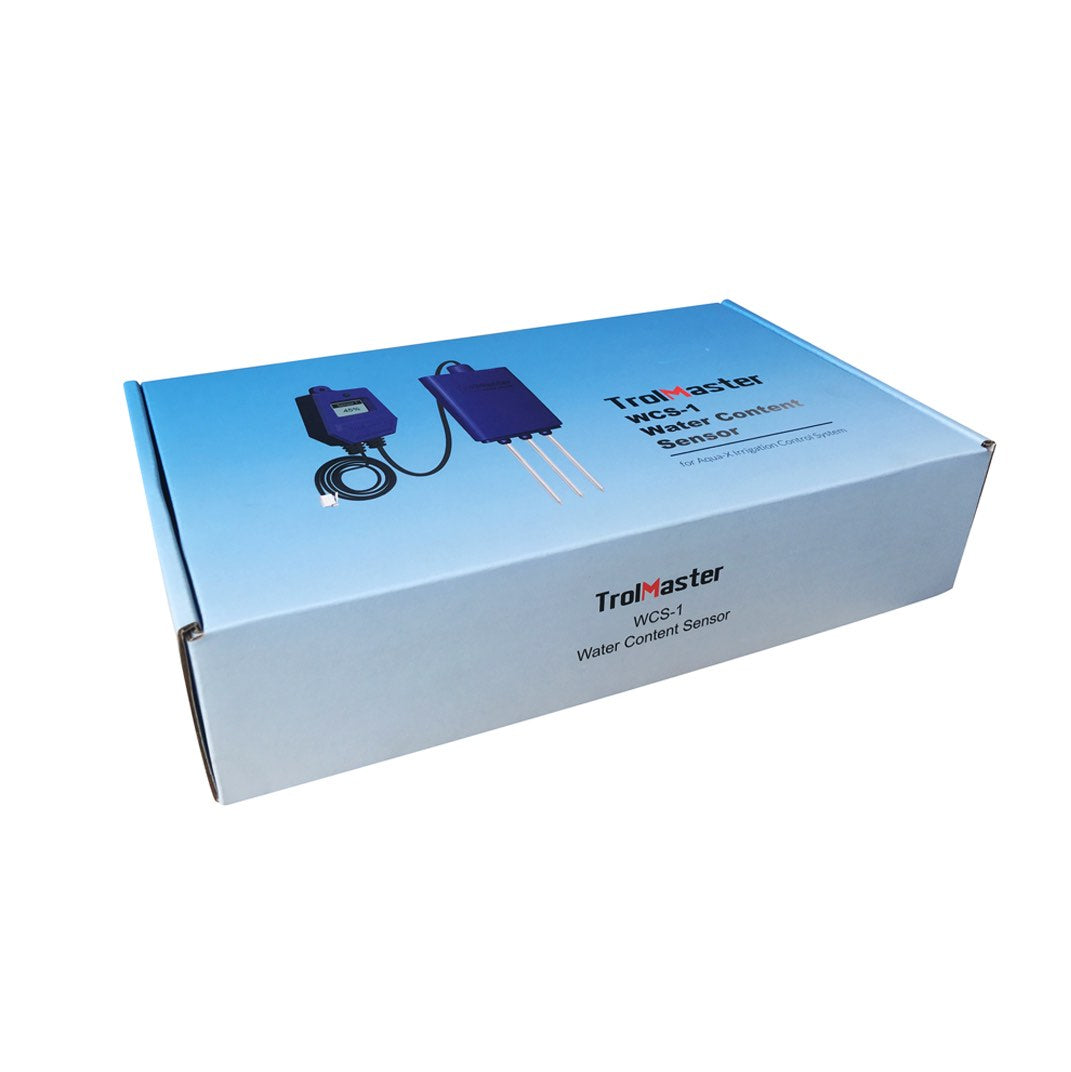

Whats Included:
- 1 x Water Content Sensor
- 1x RJ12 T-Splitter
- 1 x 16ft RJ12 Cable
Specs
- Input Voltage: 12 VDC
- Max Input Current: 0.1A
- Working Environments: Temperature 32°-122°F, Humidity <90%
- Measuring Range: 0~100%
- Packaging Dimensions: 10.75(L) x 6.5(W) x 2.45(H)
| Brand | TrolMaster |
|---|---|
| SKU | WCS-1 |
| Weight (lb.) | 3.0000 |
| Height (in.) | |
| Prop 65 | false |
| Lead Time | This Product Ships in 2-3 Business Days |
| Length (in.) | |
| Width (in.) | |
| Warranty | 1 Year |
| Hazardous Material | false |
| UPC | 6970207970861 |
| ETL Listed | Yes |
| UL Listed | No |
What does the TrolMaster Aqua-X Water Content Sensor measure?
The TrolMaster Aqua-X Water Content Sensor measures grow media water content from 0% to 100%. The three-prong sensor measures media such as soil or rock wool.
Which system works with the TrolMaster Aqua-X Water Content Sensor?
The TrolMaster Aqua-X Water Content Sensor is designed for the Aqua-X Control System and connects to the NFS-1 Controller. Up to 8 WCS-1 sensors can connect to one NFS-1 Controller, with the NFS-1 screen displaying the average water content value.
Can the TrolMaster Aqua-X Water Content Sensor show historical grow media data?
The TrolMaster Aqua-X Water Content Sensor works with the app to display water content percentage and historical data graphs on a smartphone. The app can send messages when grow media water content exceeds high or low alarm settings.
What comes with the TrolMaster Aqua-X Water Content Sensor?
The TrolMaster Aqua-X Water Content Sensor set includes one three-prong water content sensor, one RJ12 T-splitter, and one 16-foot RJ12 cable.
Where can the TrolMaster Aqua-X Water Content Sensor operate?
The TrolMaster Aqua-X Water Content Sensor operates in temperatures from 32°F to 122°F and humidity below 90%. The TrolMaster Aqua-X Water Content Sensor uses 12 VDC input voltage and has a maximum input current of 0.1A.
