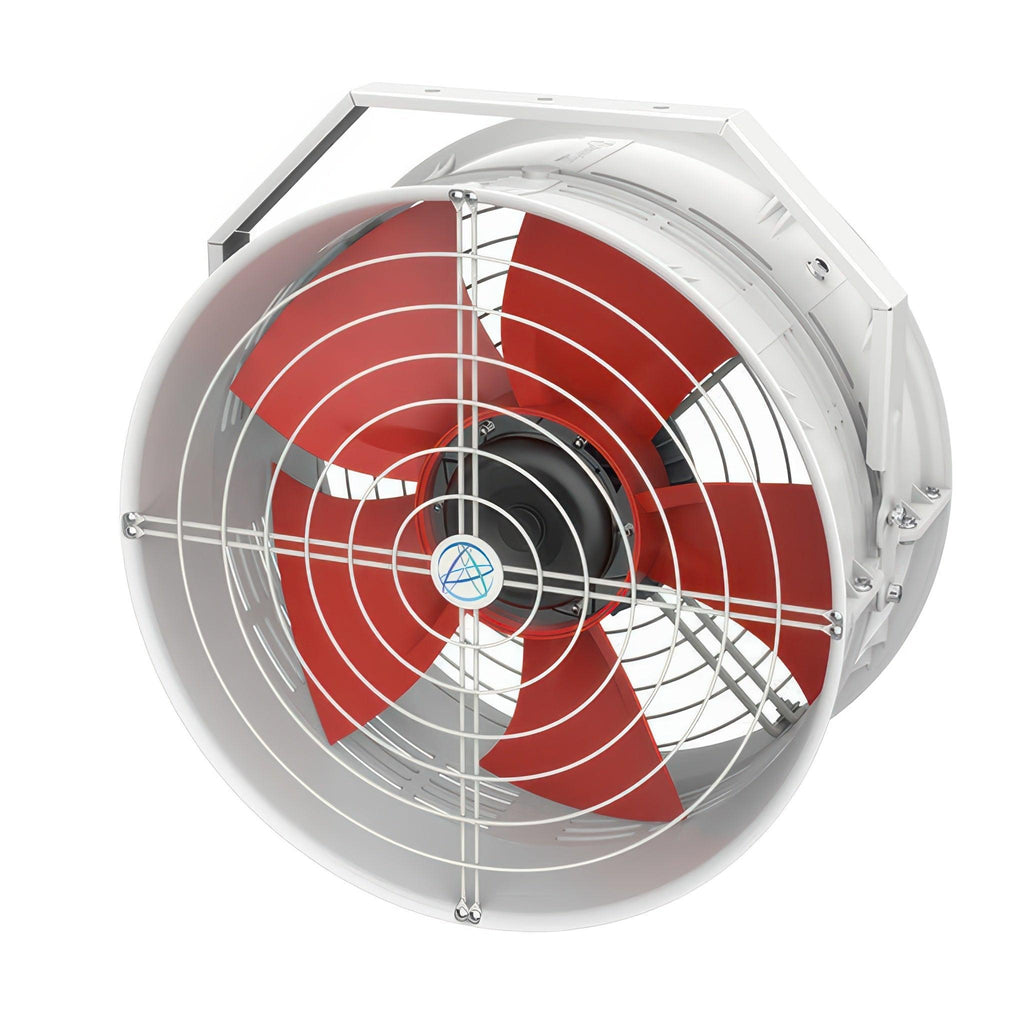

TrolMaster Aero-Fan 20-Inch Pro User Manual TrolMaster Aero-Fan 20-Inch Pro Tech-SheetThe 20-inch High Velocity Fan Pro Model is a compact and efficient fan designed to improve air circulation and ventilation in indoor spaces. With its powerful motor, it moves a significant volume of air, removing stale air, and humidity. Its versatile design allows easy installation in various duct systems, ensuring a fresh and comfortable environment.
Features:
- 20" High Velocity Fan Pro Model
- 200-277VAC Automatic Voltage Sensing
- Unparalleled Controlability Functions when paired with TrolMaster Controllers
What's Included:
- (x1) Aero-Fan Pro Drum Fan
- (x1) ECS-7 cable
Controlling Aero-Fans
Users have 2 options to connect Aero-Fan groups to the Hydro-X Pro (HCS-2) controller. Users can connect one fan group directly to the HCS-2 using TrolMaster ECS-9 cable set without using the optional Smart Fan Remote (FRC-1) manual control module. Users can also choose to connect the FRC-1 to each group of fans AND to the HCS-2 by using TrolMaster ECS-7 and ECS-9 cable sets. The FRC-1 provides a simple / manual speed control knob and digital display showing the fan's speed. When the fan speed is adjusted using the FRC-1, it will remain for 30 minutes and then resume being controlled by the HCS-2.
Whether you are using the FRC-1, or directly connecting your fans to the HCS-2 is up to you. Aero-Fan provides multiple options and settings you can select from in order to customize how those fans will be operated. Multiple groups of fans can be connected and controlled using the HCS-2 controller and multiple FRC-1s.
*ECS-7 Cable is included with the Aero-Fan
*ECS-9 Cable is included with the FRC-1 Smart Remote
Specifications
- Operating Voltage: 200-277VAC
- Rated Current: 3.0A Max
- Rated input power: 610W Max.
- No. of Blades: 5
- Max. air flow: 4980cfm
- Max. static air pressure: 150Pa
- Rotating Direction: CCW
- Operating temperature: -4~140°F
- Mean Time To Failure (MTTF): 50000H (25°C)
- IP Rating: IP54
- Dimensions: 12.20 x 22.04 x 23.38 inch
- Net Weight: 29.76lb
| Brand | TrolMaster |
|---|---|
| SKU | HE-20M |
| Weight (lb.) | 49.9600 |
| Lead Time | Ships in 1-2 weeks |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Prop 65 | false |
| Hazardous Material | false |
| UPC | 6970207972735 |
| Fan Type | Wall Mount |
| Fan Size | 20" Diameter |
| Is Speed Controllable | Yes |
| Oscillation | No |
| CFM Rating | 4980 CFM |
| Exact Watts | 610 Watts max |
| Amps | 3.0 Amps max |
| Voltage | |
| ETL Listed | No |
| UL Listed | No |
