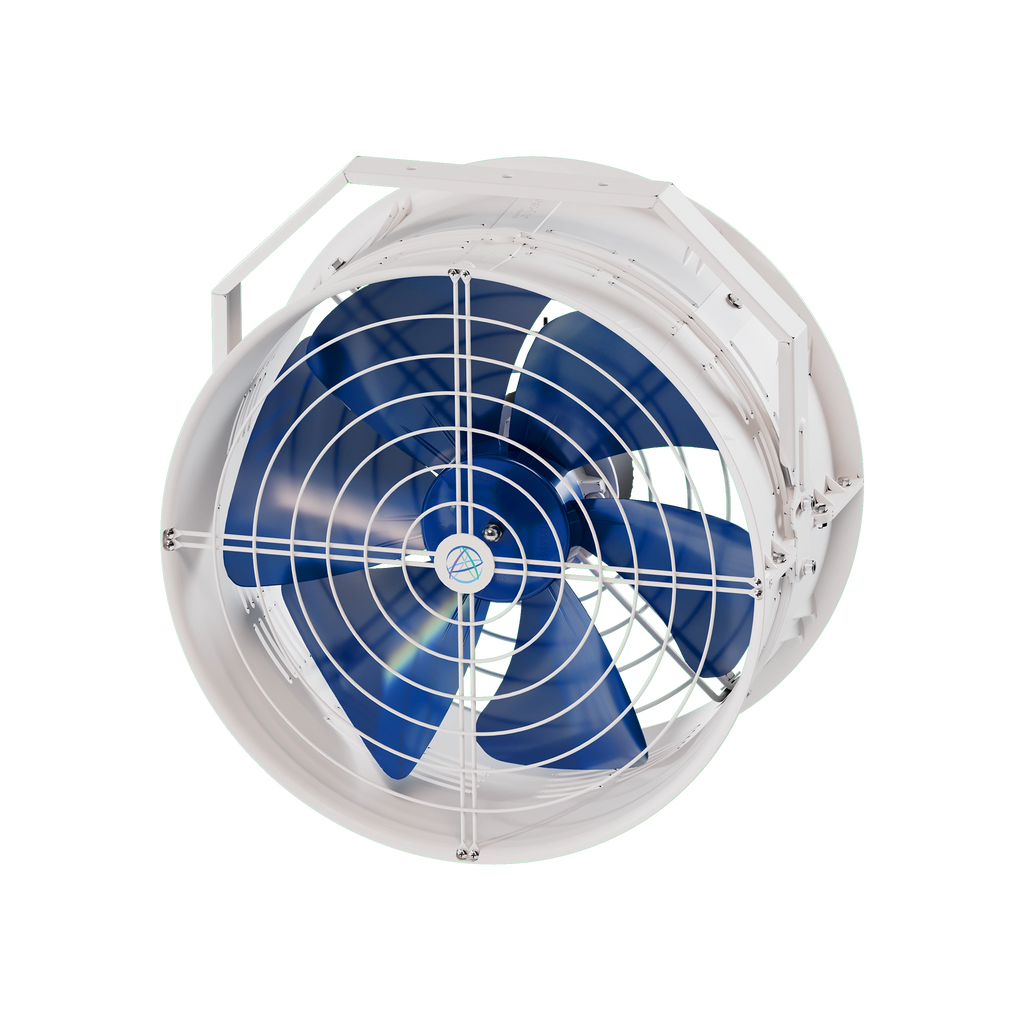

The 20 Inch High-velocity fan is a compact and efficient fan designed to improve air circulation and ventilation in indoor spaces. With its
powerful motor, it moves a significant volume of air, removing stale air and humidity. Its versatile design allows easy installation in various duct systems, ensuring a fresh and comfortable environment. Multiple fans can be connected and speed-controlled together by using our FRC-1/FRC-2 Fan Remote.
What's Included:
- 1 x HE-20 Drum Fan
- 1 x ECS-7 Cable Set
- 1 x ECS-9 Cable Set
Features
- 20" (508mm) Drum Fan
- Fan speed adjust by digital signal, work without VFD driver
- 200-277VAC Automatic Voltage Sensing
- Unparalleled Controlability Functions when paired with TrolMaster Controllers
Specifications
-
Operating Voltage: 100-277VAC, 50/60Hz
-
Rated Current: 3.0A Max
-
Rated input power: 300W Max.
-
No. of Blades: 6
-
Max. air flow: 3986cfm
-
Max. static air pressure: 110Pa
-
Failure (MTBF): 40000H (68°F)
-
IP Rating: IP66
-
Dimensions: 12.2 x 22.05 x 23.39 inch
-
Net Weight: 10.5KG/23.15lbs
