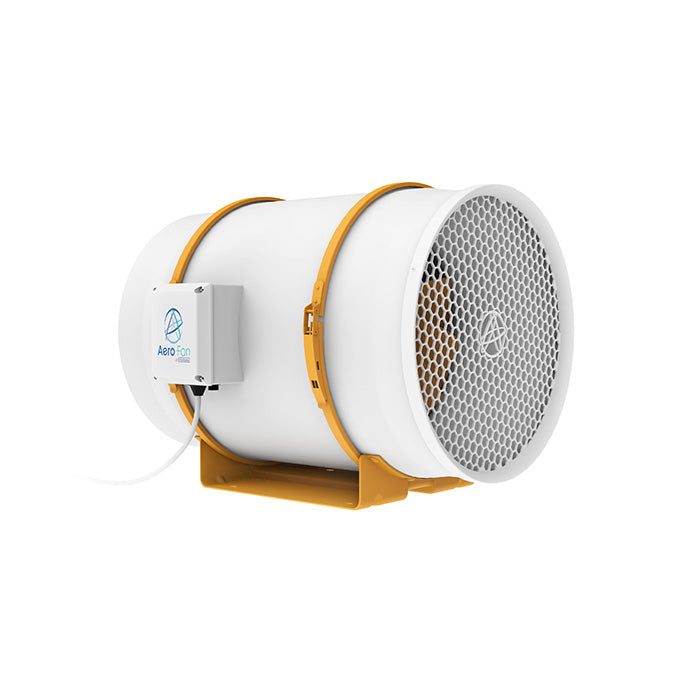

TrolMaster Aero-Fan 12-Inch Manual TrolMaster Aero-Fan 12-Inch Spec SheetThe Aero-Fan Inline Duct Ventilation Fan is a compact and efficient fan designed to improve air circulation and ventilation in indoor spaces. With its poweful motor, it moves a significant volume of air, removing stale air and humidity. Its versatile design allows for easy installation in various duct systems, ensuring a fresh and comfortable environment. Multiple fans can be connected and speed controlled by the our FRC-1 fan controller.
Features:
- 100-277VAC Automatic Voltage Sensing
- Unparalleled Controlability Functions when paired with TrolMaster Controllers
- Easily Applicable Mounting Plate Included
What's Included:
- (x1) Aero-Fan Inline Ventilation Fan
- (x1) ECS-7 cable
Controlling Aero-Fans using TrolMaster Hydro-X Pro
Users have 2 options to connect Aero-Fan groups to the Hydro-X Pro (HCS-2) controller. Users can connect one fan group directly to the HCS-2 using TrolMaster ECS-9 cable set without using the optional Smart Fan Remote (FRC-1) manual control module. Users can also choose to connect the FRC-1 to each group of fans AND to the HCS-2 by using TrolMaster ECS-7 and ECS-9 cable sets. The FRC-1 provides a simple / manual speed control knob and digital display showing the fans speed. When the fan speed is adjusted using the FRC-1, it will remain for 30 minutes and then resume being controlled by the HCS-2.
Whether you are using the FRC-1, or directly connecting your fans to the HCS-2 is up to you. Aero-Fan provides multiple options and settings you can select from in order to customize how those fans will be operated. Multiple groups of fans can be connected and controlled using the HCS-2 controller and multiple FRC-1s.
*ECS-7 Cable is included with the Aero-Fan
*ECS-9 Cable is included with the FRC-1 Smart Remote
Specifications for Aero-Fans
| Model | V-6 (6-Inch) | V-8 (8-Inch) | V-10 (10-Inch) | V-10M (10-Inch Pro) | V-12 (12-Inch) | V-12M (12-Inch Pro) |
|---|---|---|---|---|---|---|
| Oper. Voltage | 100-277VAC, 50/60Hz | |||||
| Rated Current | 1.0 A | 1.8 A | 2.7 A | 1.94 A | 2.6 A | 3.8 A |
| Rated input power | 66W | 182W | 268W | 210W | 268W | 357W |
| No. of Blades | 8 | 10 | 10 | 7 | 8 | 7 |
| Max. air flow | 360 cfm | 684 cfm | 971 cfm | 1014 cfm | 1180 cfm | 1579 cfm |
| Max. static air pressure | 459Pa | 735Pa | 956Pa | 770Pa | 779Pa | 814Pa |
| Rotating Direction | Counter Clock-Wise | |||||
| Oper. Temp | -4~140°F | |||||
| Mean Time To Failure | 50000H (25°C) | |||||
| IP Rating | IP44 | |||||
| Dimensions | 12.48" x 8.89" x 5.79" | 12.09" x 9.57" x 7.80" | 15.31" x 11.26" x 9.70" | 13.78" x 12.20" x 9.65" | 17.87" x 14.06" x 12.26" | 10.04" x 12.72" x 11.81" |
| Net Weight | 2.03KG/4.48lb | 3.1KG/6.83lb | 6.5KG/14.33lb | 4.51kg/ 9.94lb | 8.0KG/17.64lb | 6.55KG/14.44lb |
| Brand | TrolMaster |
|---|---|
| SKU | V-12 |
| Weight (lb.) | 17.6400 |
| Lead Time | Ships in 1-2 weeks |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 3 Year |
| Prop 65 | false |
| Hazardous Material | false |
| Fan Type | Inline |
| Fan Size | 12" Diameter |
| Is Speed Controllable | Yes |
| Oscillation | No |
| CFM Rating | 1180 CFM |
| Exact Watts | 268 Watts |
| Amps | 2.6 Amps |
| Frequency | 50/60 Hz |
| Voltage | 120 Volts |
| Power Cord(s) Included | Yes |
| ETL Listed | No |
| UL Listed | No |
