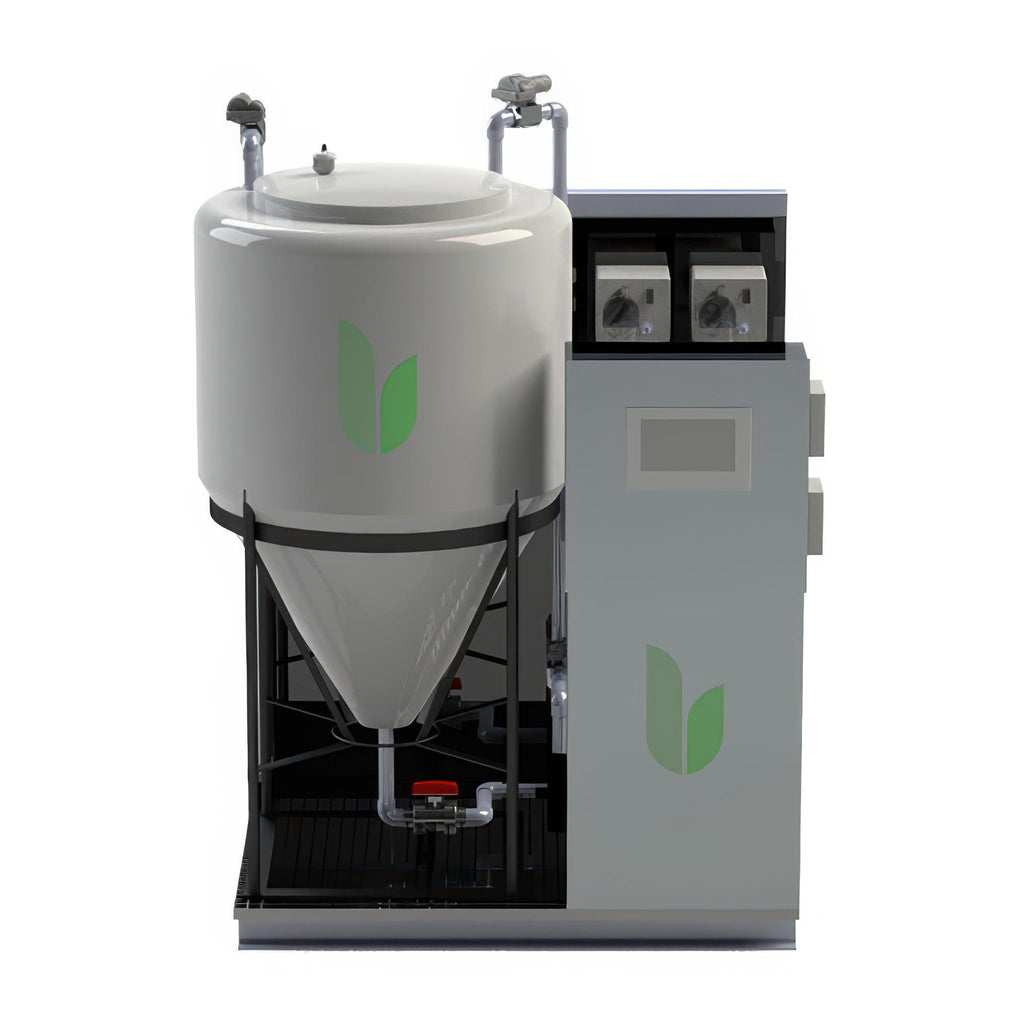

Total Grow Control Eden LT
Meet the Eden LT, the larger sibling of Eden C. Eden LT boasts a larger Nutrient Delivery Tank, additional nutrients, and 10 irrigation zones. The Eden LT is small enough to fit through a standard 60 inch doorway, extremely precise, inexpensive and intelligent. Eden LT's proprietary control system is sleek and simple. Simply plug the system in and use the intuitive touchscreen interface to create your nutrient recipe and set your water delivery. Plus, with the ability to monitor Eden LT through your phone, tablet, or computer, you can finally rest easy while you're away.
The Eden LT comes in 2 variations; a batch only version specifcally designed for batching, mixing, and distributing your nutrients, as well as a total Environmental Control version that will allow you to precisely control HVAC, dehumidifiers, CO2 injection, lighting, along with the total nutrient control you get with the batch only version.
Eden LT installs with ease fitting through standard single doors, plugs into a nearby 120V outlet, pre wired environmental sensors (Environmental Control System only,) and has standard 1 inch NPT plumbing connections.
Additional Features:
- Monitors water temperature, EC, and pH
- Feed pressure- line burst detection
- (4) 100' pre-wired environmental sensors monitoring temperature, COR, RH, and light. (Environmental Control System only)
Requirements:
- Water: 15-20 GM
- Electric: 20 amp, 120 VAC
- 1 Phase
- Cat 5 (Ethernet Cable)
Technical Specs:
- Batch system
- 100 gallon conical bottom tank
- Irrigation delivery to 10 nutrient zones
- Environmental control for up to 4 rooms (Environmental Control System only)
- 9” touchscreen user interface
- Ability to for recipes with up to 6 nutrients
- pH adjustment with acid and caustic pumps
- ½ HP irrigation delivery pump
- User notification for irrigation alerts
- Mixing loop with EC and pH verification
- 2 flow meters- incoming and outgoing
- 40 PSIG maximum supply pressure
- Plug and play
- Nutrient delivery flow up to 20 GPM
- Nutrient injection rates of 4.04 GPH
- Dimensions- 60” W x 36” D x 60” H
- Weight- 558 lbs
| Brand | Total Grow Control |
|---|---|
| SKU | TGC-EDEN-LT |
| Weight (lb.) | 640.0000 |
| Height (in.) | |
| Prop 65 | false |
| Lead Time | This product ships in 6-8 weeks |
| Length (in.) | |
| Width (in.) | |
| Warranty | 1 Year |
| Hazardous Material | false |
| UPC | 850063894012 |
| ETL Listed | No |
| UL Listed | No |
| Shipping Restrictions | AK, HI |
| Amps | 20 Amps |
| Voltage | 120 Volts |
