Total Grow Control Product Documents

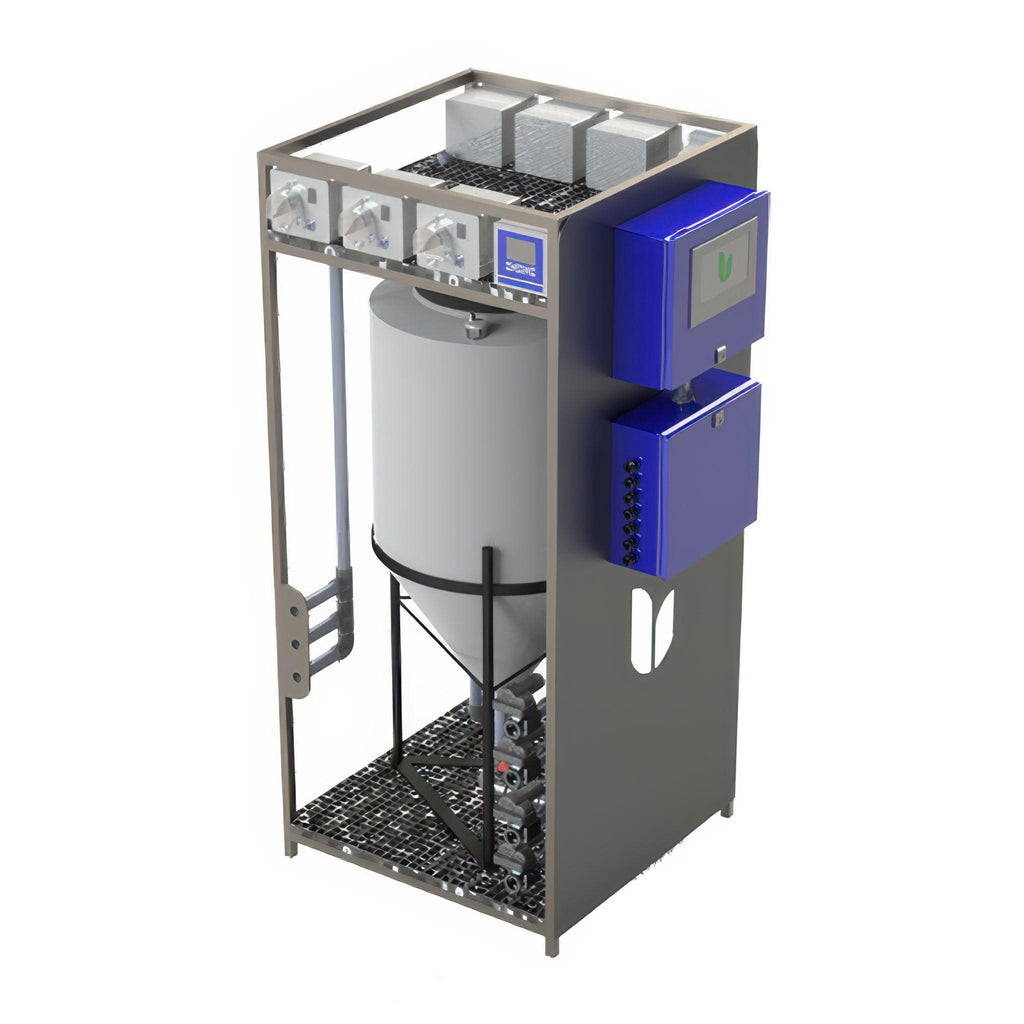

Total Grow Control Eden C
Meet Eden C, the smaller sibling of the Eden LT. This small, inexpensive nutrient delivery system is great for smaller grows, known for it's precision, intelligence, and ease of use.
The Eden C comes in 2 variations; a batch only version specifcally designed for batching, mixing, and distributing your nutrients, as well as a Total Environmental Control version that will allow you to precisely control HVAC, dehumidifiers, CO2 injection, lighting, along with the total nutrient control you get with the batch only version.
Eden C's proprietary control system is sleek and simple as it does not require complicated programming. Simply plug the system in and use the intuitive touchscreen interface to create your nutrient recipe and let Eden C begin controlling nutrient delivery to your plants. Rest easy knowing that you can monitor Eden C from your phone, tablet, or computer while you're away.
Eden C installs with ease fitting through standard single doors, pre wired environmental sensors (Total Environmental Control version only,) plugs into a nearby 120V outlet, and has standard 1 inch NPT plumbing connections.
Additional Features:
- Feed pressure- line burst detection
- Monitors water temperature, EC, and pH
- (2) 100’ pre-wired environmental sensors monitoring temperature, CO2, RH, and light (Environmental Control System only)
Requirements:
- Water: 15-20 GM
- Electric: 20 amp, 120 VAC
- 1 Phase
- Cat 5 (Ethernet Cable)
Technical Specs:
- Batch system
- 60 gallon conical bottom tank
- Irrigation delivery to 4 nutrient zones
- 9” touchscreen user interface
- Ability to for recipes with up to 4 nutrients
- pH adjustment with acid and caustic pumps
- ½ HP irrigation delivery pump
- User notification for irrigation alerts
- Mixing loop with EC and pH verification
- 2 flow meters- incoming and outgoing
- 40 PSIG maximum supply pressure
- Plug and play
- Nutrient delivery flow up to 20 GPM
- Nutrient injection rates of 4.04 GPH
- Dimensions- 32” W x 32” D x 60” H
- Weight- 428 lbs
- Environmental control for 1-2 rooms (Environmental Control System only)
| Brand | Total Grow Control |
|---|---|
| SKU | TGC-EDEN-C |
| Weight (lb.) | 496.0000 |
| Height (in.) | |
| Prop 65 | false |
| Lead Time | This product ships in 6-8 weeks |
| Length (in.) | |
| Width (in.) | |
| Warranty | 1 Year |
| Hazardous Material | false |
| UPC | 850063894005 |
| ETL Listed | No |
| UL Listed | No |
| Shipping Restrictions | AK, HI |
| Amps | 20 Amps |
| Voltage | 120 Volts |
