STM Canna Product Documents
STM Canna LaunchPad Weighing Module User GuideThe First & Only Modular, Commercial Pre-Roll Scale

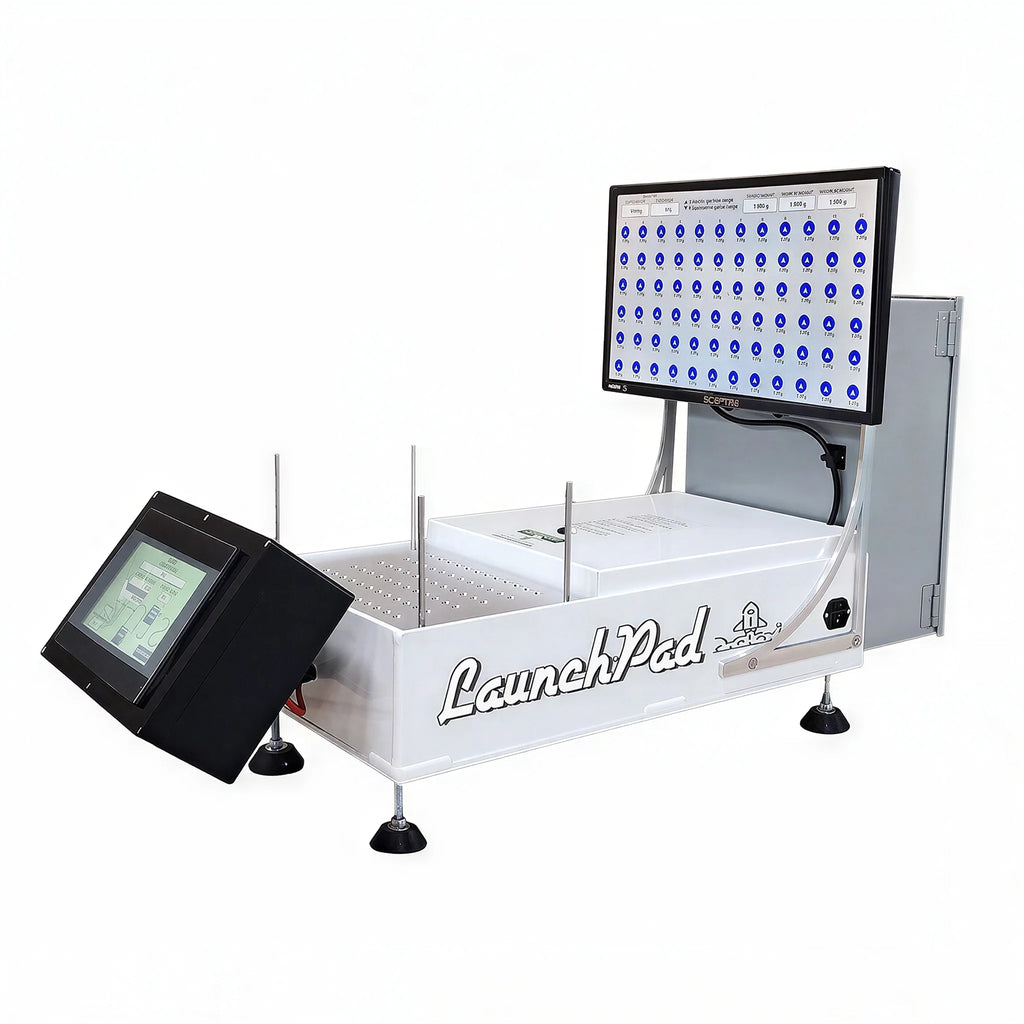

STM's LaunchPad Pre-Roll Scale can weigh up to 72 joints all at once in a matter of seconds. It can operate either independently or more effectively as an integral component of STM Canna's comprehensive pre-roll workflow system.
The LaunchPad can accurately weigh each individual joint, allowing for quick identification of joints that do not meet quality standards. Operators can customize the scale's specifications with the help of an intuitive user interface by selecting the target pre-roll weight, paper weight (for accurate pricing), and – most crucially – desired tolerance percentage.
To make the most efficient use of the available space in the facility, both the LaunchPad and its partner modules have a compact form factor. This modular system makes it possible to expand and scale up as your demands change.
- The First & Only Modular, Commercial Pre-Roll Scale
- 72 Joints Weighed Simultaneously
- Target Weight, Tare, and % Tolerance Settings
- LCD Display with Pass/Fail Color-Coding
- Ultra-Precise Weight Readings for Each Individual Joint
- Small, Compact Footprint
Customizeable Parameters
Perfect for ensuring every batch of pre-rolls produced meets your desired specs. With a simple-to-use interface, operators can define the scale's parameters by selecting the target pre-roll weight, paper weight (for proper taring) and most importantly - the desired tolerance percentage. Stay compliant with industry regulations and mitigate risk, all while significantly decreasing tedious labor hours.
Weigh Simultaneously
Even the smallest discrepancies in weight can mean the difference between profit and loss. The LaunchPad gives operators the power to identify rejects instantaneously via an easy pass/fail color-coded display and precise weight readings for each individual pre-roll. With this exceptional time-saving tool, you'll be able to make quick adjustments and eliminate one of the production's biggest bottlenecks.
Scalable Modular System
Because we know every square foot of your grow or retail shop comes at a premium, we've designed the LaunchPad and all STM modules with an ultra-small footprint so you can maximize every bit of facility space possible. Whether you're a craft cultivator or an MSO, STM's fully modular system enables you to build-as-you-go so your setup can grow right alongside your needs and allow you to scale rapidly.
Technical Specifications
| Weight & Dimensions |
Approximately 40 lbs Machine Dimensions 40" L x 24" H x 18" W |
|---|---|
| Volume Capacity |
72 Joints Each Cycle |
| Power | Standard 110V 3 Full Load Amps 5 ft. Cord Length |
| Materials | Encased in 60/61 Food-Grade Aluminum Stainless Steel Components |
| Software & Upgrades |
HD 7" Responsive Touch Control Panel with Data Logging |
| Paper Compatibility |
Compatible with 84, 98, and 109 mm cones |
| Compliance | OSHA Compliant UL-Listed Components 100% Food-Grade |
| Brand | STM Canna |
|---|---|
| SKU | STM-LPWM |
| Weight (lb.) | 250.0000 |
| Prop 65 | false |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 2 Year |
| Lead Time | This product ships in 6 weeks |
| Hazardous Material | false |
| GMP Compliant | No |
| UL Listed | No |
| ETL Listed | No |
