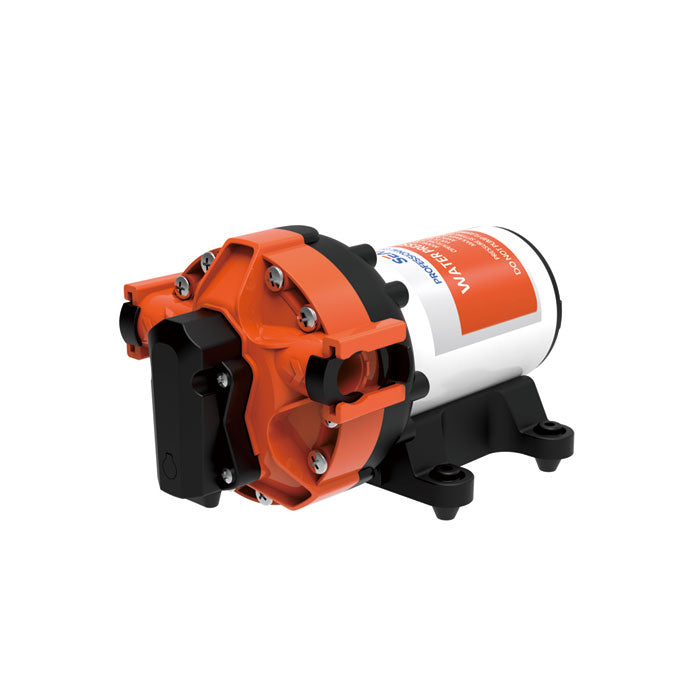

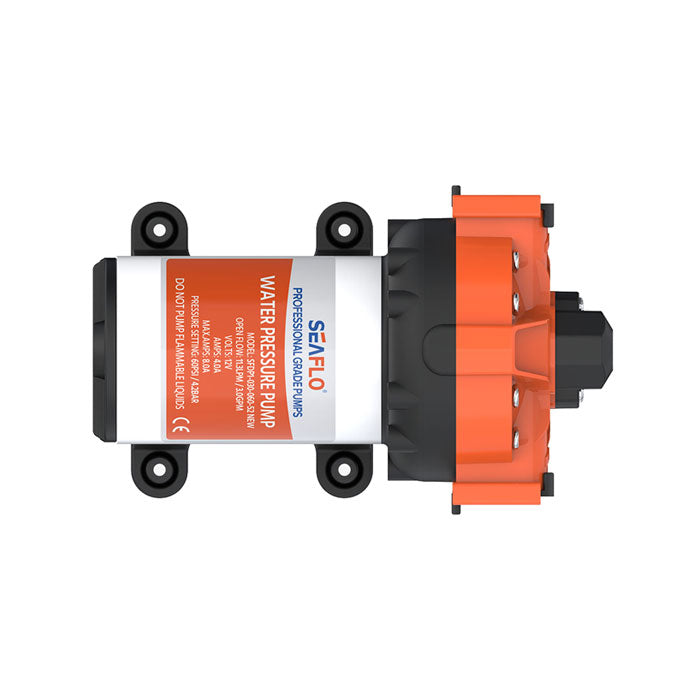

SEAFLO 56A-Series Variable Speed Smart Water Pump

SEAFLO 56A-Series variable speed pumps are offered in 5-chamber models. These pumps allow for constant pressure across multiple outlets via integrated electronic controls. Eliminates the need for pressurized tanks and pressure switches. Our 5-chamber diaphragm and bypass technology reduces cycling and reduces noise. Demand switch, control of pressure precise, stable performance, low starting pressure, and good heat dissipation that will meet your special requirements with positive predictable performance.

Features & Benefits

• Variable speed technology.
• Motor speed adjusts to water needs.
• Capable of sustained low voltage operation.
• Run dry safe, long service life.
• Strong suction, suction lift up to 1.8m.
• Quiet operation, bypass technology reduces cycling.
• 5-chamber diaphragm pump operates more stably and smoothly.
• CE, UKCA, RoHS, REACH, PAHs

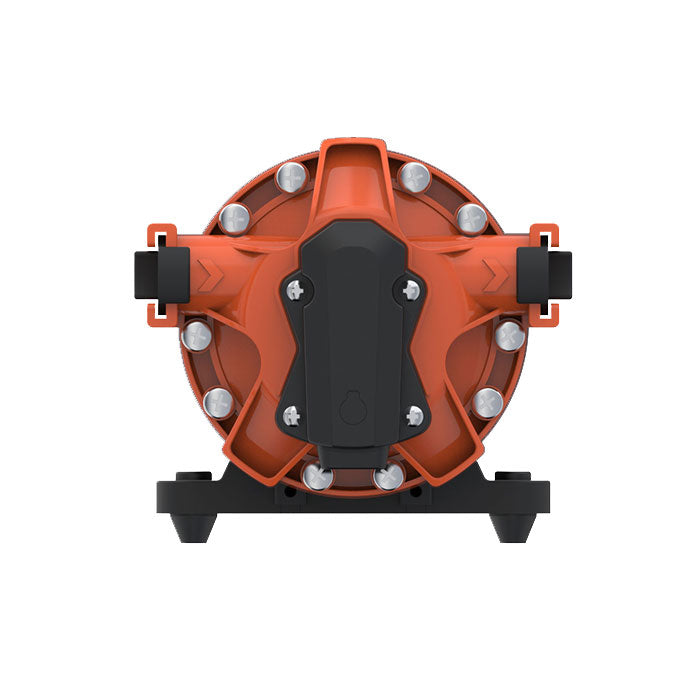

Upgraded Pump Head

The upgraded pump head has better sealing performance, and the waterproof grade reaches IPX5

Variable Speed Technology

The built-in Variable Speed technology circuit board can adjust the pressure and flow of the water pump by changing the speed of the motor. It can automatically control the operation according to the pressure signal to achieve the effect of a constant pressure water supply.

Specifications for 56A-Series

• Voltage: 12V/24V
• Max Draw: 10.0A/5.5A
• Open Flow: 5.0GPM (18.9LPM)
• Shut-off Pressure: 70 PSI / 4.8 BAR
• Priming Capabilities: 6 feet (1.8 m) suction lift
• Max Recommended Temperature: 140° F (60° C）Max.
• Material: EPDM(Valves) / Santoprene(Diaphragm)

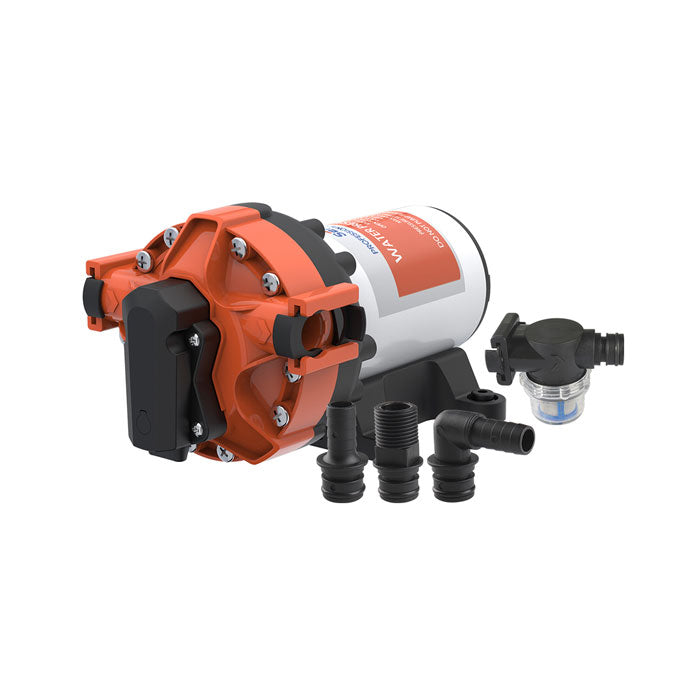

• Ports: Quick Attach
• Control Type: Variable Speed Technology
