Scynce LED Dragon Alpha 2.0 Spec Sheet Scynce LED Dragon Alpha 2.0 Light ReportThe Dragon Alpha 2.0 has improved efficiencies, a better optical delivery system and full-power spectrum tuning
The DRAGON alpha just changed the rules of the game. Never before has a grower had so much control. No matter what style or strain, the alpha can morph into exactly what’s needed and deliver every time!
A light is nothing more than a tool of the trade and should be able to be mastered and manipulated by the best growers to enhance their craft. The alpha is the choice of craftsmen who need a high-output, small-footprint indoor warehouse, high bay or greenhouse solution. Enter the DRAGON!
The alpha is the choice of craftsmen who need an all-in-one solution for high-output, small footprint, indoor warehouses, highbays or greenhouses.
Wireless Control
“Theia” (thee-uh) is our proprietary lighting control app. Available on Android and iOS, Theia puts you in control of dimming, spectrum tuning, scheduling and cloud storage for custom recipes.
Spectrum Adjustability
All of our lights come with a preset Veg or Flower spectrum while an advanced R&D mode gives you complete control to simulate sunrise/sunset or bring in more blues or reds as your photo morphological testing dictates.
Light Delivery System
Patented light delivery system utilizes custom optics which puts more light onto and down through the plant’s canopy… where it really counts.
Optics
Our patented optics allow plants to see equal intensity light from all angles (similar to natural light), resulting in a larger growing surface with more density below the canopy. Optically focused light prevents hot or burned spots & minimizes off grid collateral light loss.
Full Spectrum Adjustability
The alpha is the first light to deliver full control over a flowering spectrum without any loss of power. With up to 425 watts of any spectrum between 2700k and 6500k (warm to cool), you control what type of white light gets delivered to your plants.
The red/far-red channel provides 175 watts of energy that can be evenly split, shifted to either 660nm or 720nm or completely turned off. The alpha produces 600 watts of on-the-fly customizable plant growing photonic power.

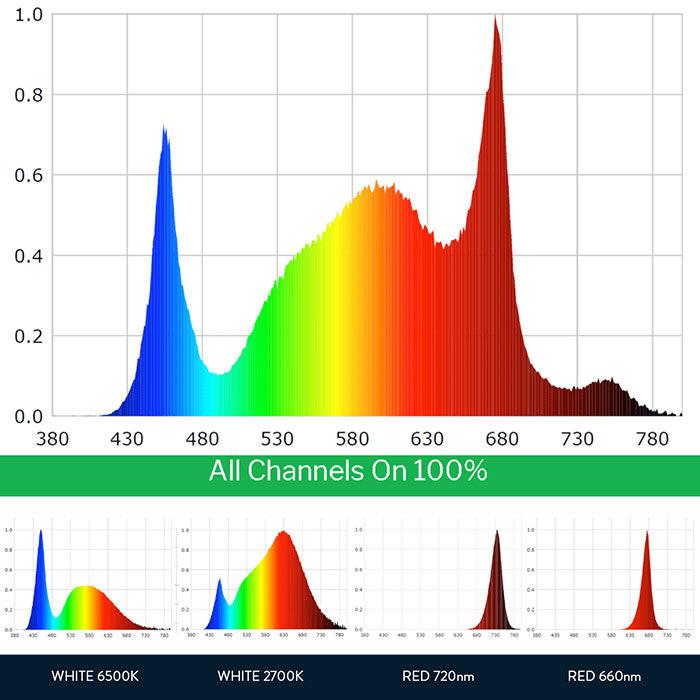

Full Spectrum - All Channels
Cool White 6500K
Warm White 2700K
Deep Red 660nm
Far Red 730nm
Optics For Deep Canopy Penetration
Not More Hot Spots
Scynce’s secondary optics were specifically designed to spread out the pin point intensity that plague most LEDs and some traditional lights. This means that the brightest point is typically on the widest part of the beam (or on “the angle”) which allows the lights to be mounted closer to the plants without the risk of burning or bleaching.
Even Intensity
Scynce’s patented optics provide even light intensity and a controlled radiation intensity preventing hot spots, burned spots, and off grid collateral light loss. With cross lighting, plants see equal intensity from all angles. This promotes intra-canopy growth, not just on the top like traditional lights.
LEDs are designed to emit light in a symmetrical 180° arc. That means the light energy is pushed out in virtually all directions at once, similar to if you were to blow up a balloon. Most LEDs, including all white LEDs, start out as Blue LED’s and then have a layer of phosphor added that converts that blue energy to broad spectrum white.
Optics cost us about 7-10% of the total energy, but it means more energy actually reaches the plants….which is all that really matters after all.
Our patented optics allow plants to see equal intensity light from all angles (similar to natural light), resulting in a larger growing surface with more density below the canopy while preventing hot spots, bleaching or burned leaves.
PAR Maps
PPFD ON THE CANOPY
*Coverage area and average PPFD assumes lights are being used in a room with an array/grid of lights or in a tent/room with reflective walls.
5’x3.5′ canopy = 1040 average PPFD @ 30″ Height = 34 watts/sf
Wireless Control
The Theia app was designed with the grower in mind. It’s quick and easy to set up with intuitive buttons that let you quickly find what matters most. Minimalistic, Intuitive and beautifully designed; the Theia app allows you to control exactly how and when light is delivered to your plants.
The Theia app gives you complete flexibility to design your own custom light recipes, save them to the cloud and deploy them as needed. Embrace your inner control freak!
- Android & iOS based app
- Group control lights via wireless mesh network.
- Intensity / Dim to Zero
- Ramp on Time (sunset/sunrise)
- Scheduling
- Full control of spectrum
- Custom recipes
Network Control Accessories
Network Control AccessoriesThe ECHO AIR provides advanced web-based access and control from anywhere in the world. It can also seamlessly link your existing environmental control system with your Scynce LED lights. With the ability to receive ethernet or 0-10v inputs, the Echo will relay the dimming or spectral control commands to the lights either wired or wirelessly. Whether you have a wired connection to a system like the TrolMaster Hydro X (using 0-10v) or you need a custom API to integrate with systems like Argus (using ModBus or BACnet), we’ve got you covered.
The THEIA TEMPO saves your bacon when you have an unforeseen power outage. With a built-in battery back up, your light recipes will be right on schedule, even if your power company can’t give you reliable service.
Echo Air
Theia Tempo
Specifications for the Scynce LED Dragon Alpha
-
Power:
650 Watts
- White: 425 Watts
- Red: 175 Watts
- Input Voltage: 120 - 277 Volts
- Amps: 120v-5.4 / 240v-2.7 / 277v-2.3 / 480v-1.35
- Power Factor/ Efficiency: > 95%
- Dimensiosn: 44.5” x 8” x 5”
- Weight: 25 lbs
- Waterproof Sealing: IP66 Rating (entire light fixture)
- Thermal Management: Active - IP67 rated fan
- Certifications/Testing: UL, FCC, RoHS, CSA
- Warranty: 5 years
- Tunability: 4 color channels with *NEW* full power spectrum tuning
- Spectrum: White (2700k and 6500k) and red (660 and 730nm)
- Secondary Optics: Linear 700 (height over canopy is 24” to 72” )
- Dimming: Wireless digital control of spectrum, recipes and scheduling
- FLUX (PPF) / Efficacy: 1,613 μmol/s / 2.47 umol/j
- PPFD: up to 1,122 µmol/m2/s over a 5’x3.5’ (34 watts/sf)
- Max Coverage Area: Flower = 5’x4’ Veg/Mother = 6’x5’
| Brand | Scynce LED |
|---|---|
| SKU | SLED-DA2.052699-220VOLT |
| Weight (lb.) | 29.2000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Years |
| Lead Time | This product ships in 3-4 weeks |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Panel |
| LED Features | Dimmable *with Controller, Adjustable Spectrum |
| Est. Electricity Cost /mo | $28.08 |
| Exact Watts | 650 Watts |
| LED Diode Type | Osram LED diodes |
| LED Driver Type | Scynce LED Brand Driver |
| PAR Efficiency | 2.48 umol/j |
| Total PPF Output | 1,613 µmol/s |
| Power Factor | >95 |
| Voltage | 240 Volts |
| Amps | 5.4 Amps @ 120 Volts, 2.7 Amps @ 240 Volts, 2.3 Amps @ 277 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - |
| Power Cord Length | 10 ft. |
| Coverage Area | Veg: 5' x 5'; Flower: 4' x 4' |
| Grow Light Certifications | IP66 Rated, UL Listed, CSA Listed |
| ETL Listed | No |
| UL Listed | Yes |
