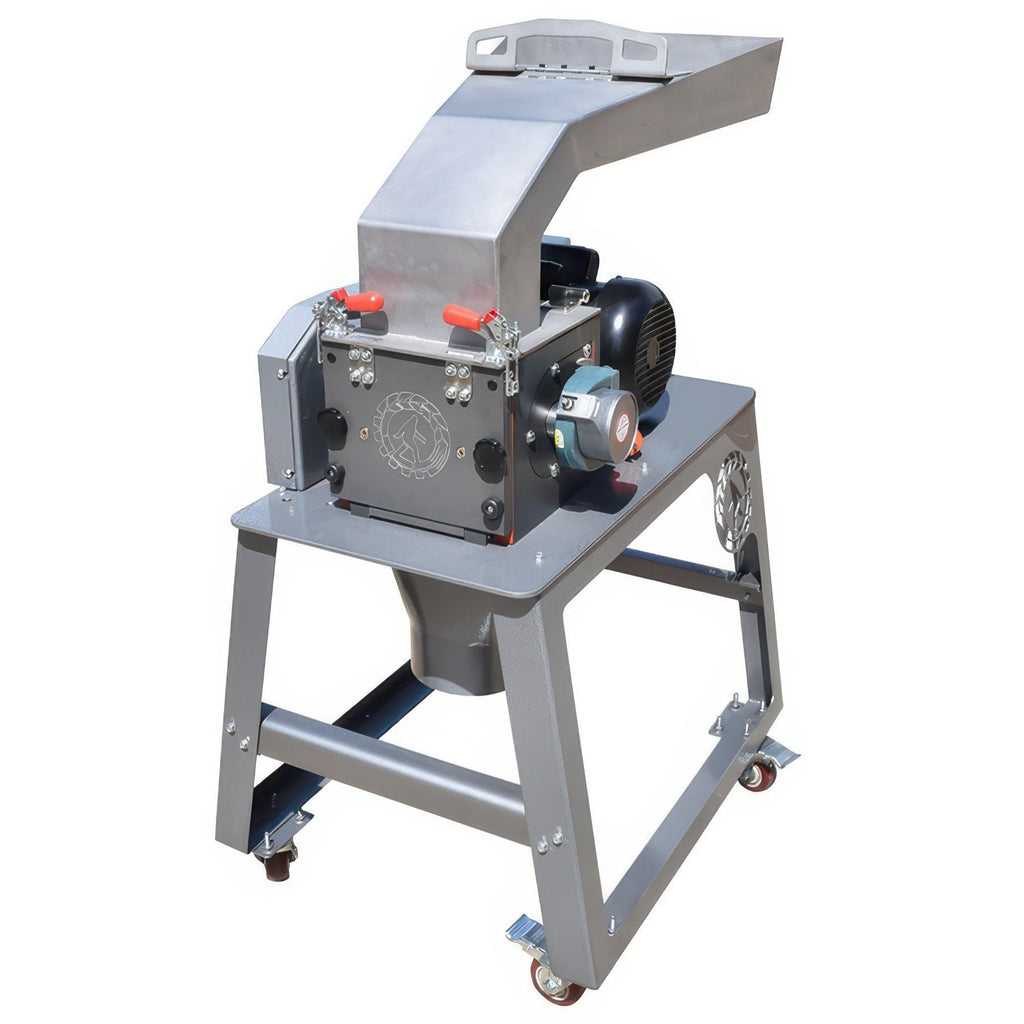

Sasquatch Flower Grinder

SKU: SCPE-010
No reviews
Sasquatch Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: This product ships in 6-8 weeks

This item ships free!

Shipment Restrictions
This item cannot be shipped to the following states: AK, HI


Price:
Sale price$22,100.00

Sasquatch Product Documents

Sasquatch Flower Grinder Owners Manual

Treat Your Best Buds With Care!

We bring our years of research and development in the grain processing industry to the plant processing world with a new line of state-of-the-art production equipment. The Flower Grinder quickly and efficiently breaks down your buds without sacrificing end-product quality.

The Sasquatch comes with 2 Stainless Steel Screens Included:

  • (x1) 5/32 Inch
  • (x1) 1/8 Inch

Others sizes are 1/4", 3/16", 3/32". All 5 sizes can be purchased separately.

The Sasquatch comes in 2 different power options:

  • 1.5 HP, 1 Phase, 110 Volts
  • 3 HP, 3 Phase, 220 Volts

Optional Upgrades: Each power option can come with different add-ons

  • Speed Control + PLC (Remote Monitoring & Data Capture)
  • CIP System (Clean In Place)

Throughput:

  • 250 - 350 lbs/hr. depending on HP option, screen size, and product moisture

Multiple features to suit all of your needs!

  • Stainless steel inlet hopper, blades and screen
  • Hard-coat anodized aluminum housing, all other surfaces powder coated
  • Interchangeable screens
  • Wide array of blade configurations depending upon the product being processed and the desired outcome
  • 1.5 or 3 HP motor available, 1 or 3 Phase specified.
  • Throughput ranges from 250-350 lbs per hour depending on horsepower, screen size, and product moisture. (Ask about vacuum assist)
  • 4" OD inlet, vertical surge hopper, dust mitigation port options

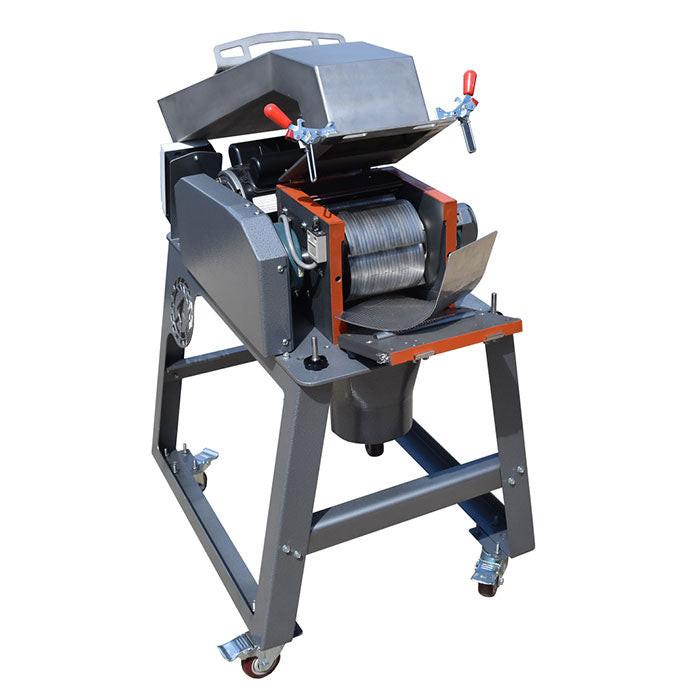

  • Easy screen and rotor access for cleaning
  • On-board start/stop with door safety switch. Options for speed control, CIP (Clean In Place), or air knives also available
  • One year standard warranty on non-wear parts (i.e. screens & blades are not covered by warranty)

Feeding & Vacuum Modulator

The grinder is equipped with a wide-mouth Feed Hopper for manual feeding, and it will perform at its optimum if product is fed into the center of the grinder at a metered rate. Start with small amounts to determine the rate at which the grinder is grinding the materials completely and satisfactorily and then adjust accordingly.

The Sasquatch Grinder performs best when a vacuum system is connected to the outlet, thus effectively sucking product through the grinder and into the discharge. The Vacuum Modulator was designed to feed the grinder with organic material in "pulsed modules" of product by building up a maximum vacuum force when the gate is closed and then rapidly opening the gate and sucking the product through the grinder


Optional Upgrade: Speed Control & PLC (Data Capture & Remote Monitoring) & CIP (Clean In Place) System

Both HP options of the Sasquatch Grinder can be outfitted with 1 or both of these optional upgrades. The Speed Control allows you to adjust the speed at which the product is processed through the grinder. It is an RPM Rheostat to vary the Speed of the chop, instead of simply ON/OFF. The PLC, It's a Programable AB that will allow for Control of Speed, Time, Etc. It will provide a history of usage and can detail throughput, mainly for large-scale operations.

CIP, Clean-in-Place. This unit is designed to connect spray and drain ports for flushing and cleaning the unit in place. Usually, this upgrade is added for the largest operations.


Brand Sasquatch
SKU SASQUATCH-GRINDER
Hazardous Material false
