Quest F10 Industrial Air Mover/Fan Spec SheetQuest F10 Air Mover - HIGHEST EFFICIENCY AIR MOVER

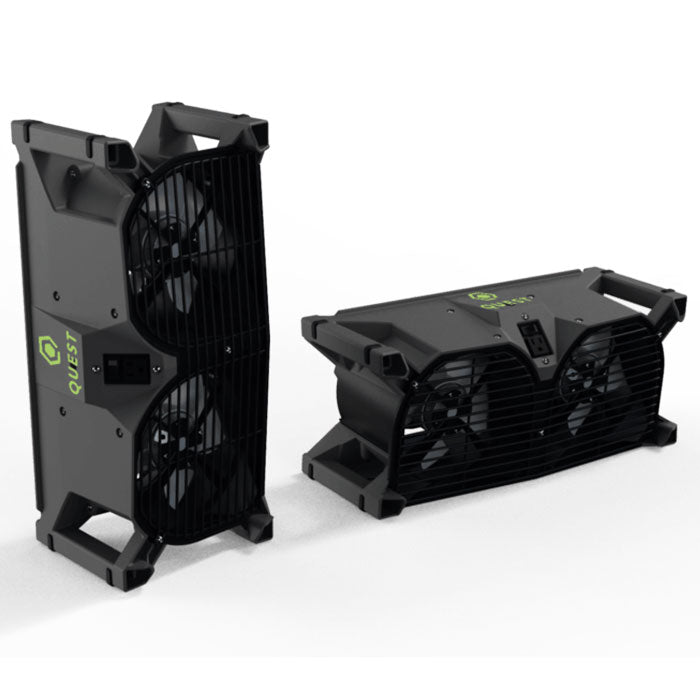

Say goodbye to stagnant, damp air that invites molds, fungus, and unwanted pests. Ensure optimal airflow and elevate your dehumidifier’s performance with the help of the NEW Quest F10 Dual-Axial Air Mover. Engineered as two fans in one, with less power draw than its predecessor. Intended for use in every unique space, the F10 Air Mover features a highly customizable design with designated mounting corners for multiple setup configurations.
You can ditch the bulky, awkward fan that crowds your valuable space. The Quest F10 boasts a sleek, compact, low-profile design that effortlessly fits into tight spaces, under a plant canopy, or between tiered shelves. Don’t be fooled by its discreet appearance – this energy-efficient air mover packs a powerful punch, circulating an impressive 1,015 cubic feet of air per minute on only 1.1 amps.
Quest F10 Air Mover Key Features
HIGH VELOCITY AIR FLOW
1,015 CFM high velocity air flow thanks to our dual axial design
DAISY-CHAINABLE
Daisy-chain and synchronize up to 10 Quest F10 fans on the same 15-amp circuit
COMPACT UNIT
For mobility and a small footprint that won’t interfere with operations
Quest F10 Air Mover Installation Options

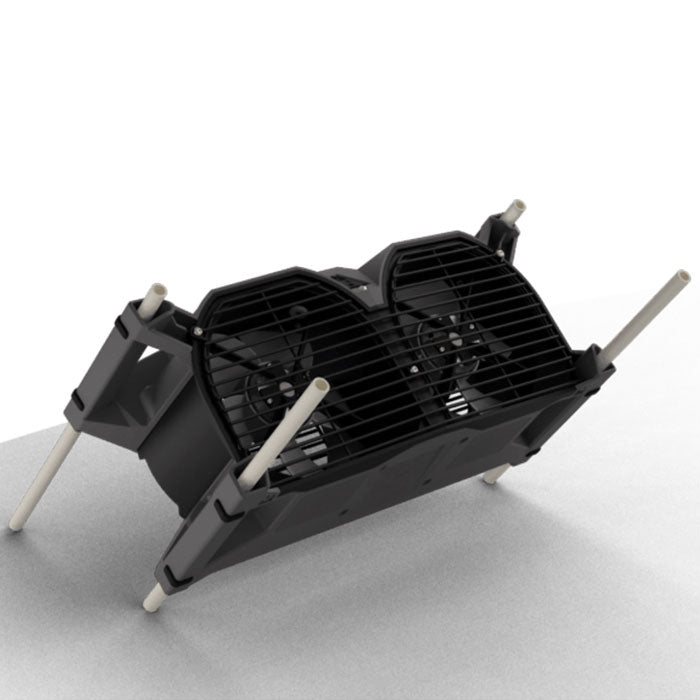

Designed with flexibility in mind, the Quest F10 air mover can be placed on either end for vertical or horizontal airflow. Place the F10 on PVC to direct your airflow at specific angles, or use other fasteners to mount it wherever you need it. Engineered for sturdy stacking, mounting, and easy installation in your environment, the F10 air mover provides the ultimate flexibility in airflow.
ANGLED AIRLFOW
VERTICAL OR HORIZONTAL AIRFLOW
UPWARD OR DOWNWARD AIRFLOW
Quest F10 Air Mover Features
- HORIZONTAL & VERTICAL STACKING - This fan easy to stack for space-saving storage
- LOW POWER USAGE - Uses only 1.1 amps of power, leaving room for more equipment on your circuit.
- CORD WRAP - Features a convenient cord wrap
- MULTIPLE CONFIGURATIONS - Customizable for airflow in any direction you need it – horizontal, vertical, or angled
- DAISY-CHAINABLE - Daisy-chain and synchronize up to 10 Quest F10 fans on the same 15-amp circuit

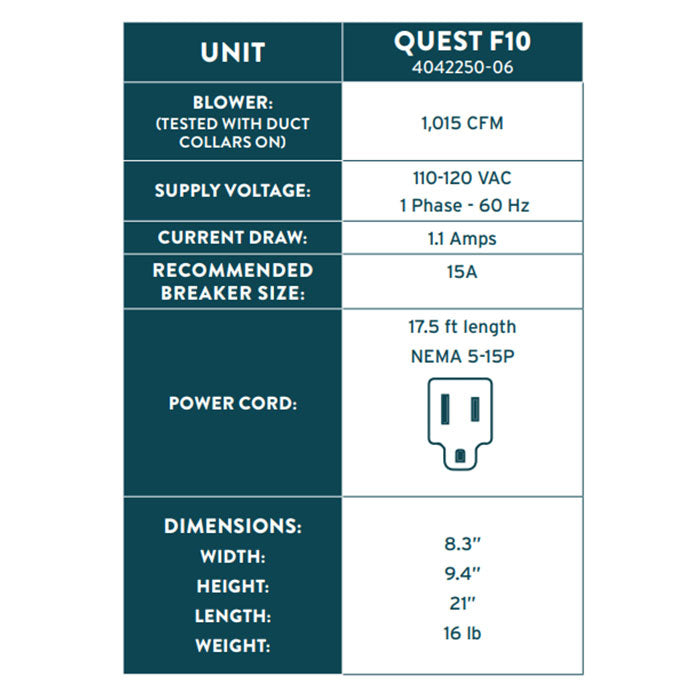

Quest F10 Air Mover Specifications
- Part Number - 4042250-06
- Unit Weight - 16 lbs
- CFM - 1,015
- Recommended Breaker Size - 10 per 15-Amp breaker
- Supply Voltage - 110-120V, 60 Hz
- Power Cord - 17.5 ft, NEMA 5-15P
- Unit Dimensions - 21″L x 8.3″W x 9.4″H
- Fans - Dual Axial
- Warranty - 1 Year
| Brand | Quest |
|---|---|
| SKU | 4042250-06 |
| Weight (lb.) | 16.0000 |
| Lead Time | This Product Ships in 2-3 Business Days |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 1 Year |
| Prop 65 | false |
| Hazardous Material | false |
| Fan Type | Blower |
| Oscillation | No |
| CFM Rating | 1,015 CFM |
| Amps | 1.1 Amps |
| Frequency | 60 Hz |
| Voltage | 120 Volts |
| Power Cord(s) Included | Yes |
| Power Cord Length | 17.5 ft |
| ETL Listed | Yes |
| UL Listed | No |
What is the Quest F10 Dual-Axial Air Mover used for?
The F10 is a dual-axial air circulation fan, used to maintain airflow across the canopy and help prevent microclimates, hot spots, or stagnant air pockets that can contribute to mold or uneven transpiration.
Does the F10 use the same filtration as Quest dehumidifiers?
The F10 uses its own filter line (see the Quest H5 HEPA and MERV-8 pre-filter options) rather than the MERV 13 filtration used on Quest dehumidifier units.
