Only the highest-grade materials and components are used in PHOTONTEK’s LED fixtures. Delivering safe, dependable light PHOTONTEK fixtures have industry leading performance. By perfectly balancing a high quality, full spectrum light with highest intensity PPFD delivered through a multi-bar, Linear design. PHOTONTEK Creates the ultimate ceiling of light for the entire plant growth cycle, making these LEDs the smartest option for a higher and faster return on investment
What's Included:
Producing a total PPF output of 1256 µmol/s and a Photon Efficacy (fixture efficiency) of 2.7 µmol/J, X 465W Pro LED creates a homogeneous light spread at close distance from the crop canopy, resulting in outstanding results when used in indoor multi-layer cultivation systems, grow rooms and tents.
When compared to regular similar wattage High-Pressure Sodium solutions the PHOTONTEK X 465W PRO LED can achieve 30-40% less HVAC capacity and increased yields of up to 30-60%.
The X 465W Pro is designed with both vegetative and flowering growth periods in mind and the LED may be dimmed, allowing you to adjust PPFD levels produced without losing efficiency

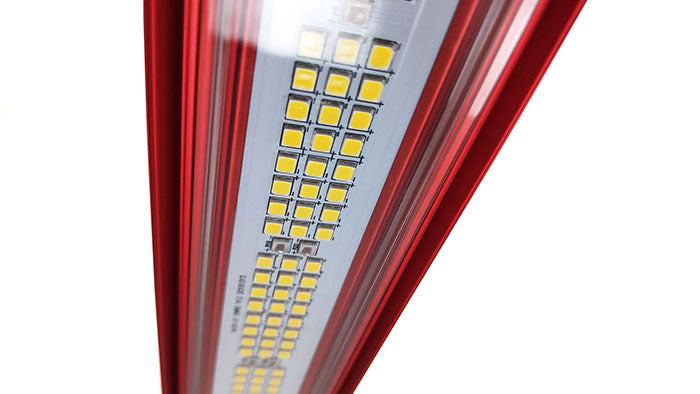

This dynamic, highly efficient and low-powered LED fixture configuration, with six 100W LED bars reduces the temperature of the LEDs increasing the output and improving light maintenance.
Choose to run anything from a single light bar to the full 5 line-ups at any intensity you need by simply adding or removing the desired amount using the fixtures’ innovative smart and easy, click-magnet design. The driver can also be detached from the fixture and used away from the fixture for your convenience.
In addition, the X 465W PRO LED fixture can be externally controlled with a PHOTONTEK Digital Lighting Controller featuring light timing, automated dimming, temperature safety control, Sunrise & Sunset Mode for up to 100 fixtures per controller.
Universal Control Systems Compatibility
P-Tek Pro LED Fixtures can be fully controlled with either the P-Tek Digital Controller or with any other Control System that utilises 0-10V output signal. Even if your Universal Controller has an RJ port interface, you can still run our LEDs by using a signal converter RJ to 0-10V control adaptor.
The PhotonTek Digital Lighting Controller is a full-control LED fixture master panel, that allows you to harness the full power of our entire LED lighting range.
Using the newest tech available, this smart-feature accessory will quickly become your best grow mate as it constantly monitors and helps to maintain your environmental temperatures, lighting schedules & intensity automation. Smart, but still incredibly user-friendly, this unit is a twin channel controller. Giving growers the ability to control individual ‘zones’, capable of operating up to 50 LED fixtures each!
Using an analogue 0-10V signal, each channel (Zone) can either control the same powered LED drivers; Zone A can control the same powered drivers as Zone B OR Zone B can be set to control different powered LED drivers. Eg: Zone A can be set to control 465W LED fixtures and Zone B set to control 600W, with the same accuracy and safety protections across your entire set-up.
| Spectrum | Full Spectrum |
|---|---|
| Efficacy | 2.7 µmol/J |
| PPF | 1256 µmol/s |
| Input Voltage | 120-277V, 50-60Hz |
| Power Consumption | 465 Watt |
| Coverage Area | 3.3' x 3.3' - 4' x 4' |
| Waterproof | IP65 |
| Lifetime | 60 000 Hrs |
|---|---|
| Light Distribution | 120° |
| Light Source | Osram and Lumileds Diodes |
| Dimmable | OFF-25%-50%-75%-100% |
| External Control | With Digital Controller |
| Weight | 24.25 Lbs |
| Dimensions | 39.29" x 35.43" x 2.92" |
| Brand | Photontek Lighting |
|---|---|
| SKU | PTEKLED019-120V |
| Weight (lb.) | 29.7600 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Year |
| Lead Time | This Product Ships in 3-5 Business Days |
| Hazardous Material | false |
| UPC | 5060560030980 |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Multi-Bar |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| Est. Electricity Cost /mo | $20.08 |
| Exact Watts | 465 Watts |
| LED Diode Type | Osram & Lumileds Diodes |
| PAR Efficiency | 2.7 µmol/J |
| Total PPF Output | 1256 µmol/s |
| Daisy Chain | Yes |
| Voltage | 120 Volts, 240 Volts, 277 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120 Volt |
| Power Cord Length | 8 Feet |
| Coverage Area | Veg: 4' x 4'; Flower: 3.3' x 3.3' |
| Grow Light Certifications | IP65 Rated, CSA Listed |
| ETL Listed | No |
| UL Listed | No |
Photontek X 465 Watt Pro LED Grow Grow Light, 120 Volt
Which growth stages and indoor growing spaces suit the Photontek X 465W Pro LED Grow Light?
The Photontek X 465W Pro LED Grow Light suits vegetative and flowering growth periods in home grows, grow tents, grow rooms, and indoor multi-layer cultivation systems. Full-spectrum light supports the entire plant growth cycle.
What growing area can the Photontek X 465W Pro LED cover?
The Photontek X 465W Pro LED covers 4 feet by 4 feet for vegetative growth and 3.3 feet by 3.3 feet for flowering growth. The fixture provides a homogeneous light spread through a multi-bar design.
What light output and efficiency does the Photontek X 465W Pro LED provide for high-intensity cultivation?
The Photontek X 465W Pro LED provides 1256 µmol/s of PPF and 2.7 µmol/J photon efficacy at 465 watts. Osram and Lumileds diodes produce optimized full-spectrum light.
How can growers adjust light intensity and external control for the Photontek X 465W Pro LED?

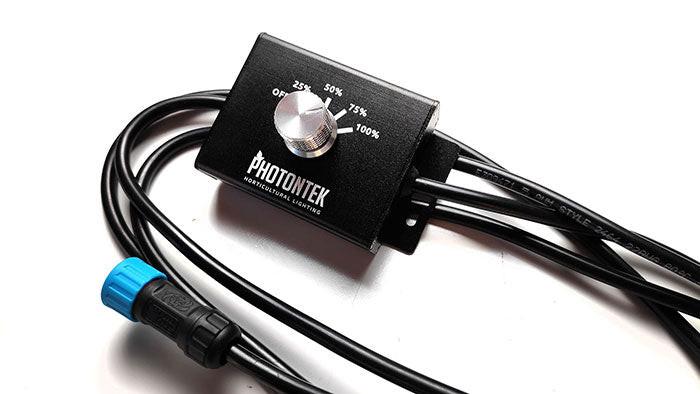

The Photontek X 465W Pro LED supports OFF, 25%, 50%, 75%, and 100% dimming. The included 0-10V light dimmer provides adjustment, while a Photontek Digital Lighting Controller or another 0-10V control system provides external control.
What electrical setup is compatible with the Photontek X 465W Pro LED Grow Light?
The Photontek X 465W Pro LED Grow Light accepts 120 to 277 volts at 50 to 60 Hz. The package includes two power cables with NEMA 5-15P plugs for 120V operation.
Can the Photontek X 465W Pro LED be used in grow tents and grow rooms?
The Photontek X 465W Pro LED is designed for grow tents, grow rooms, and indoor cultivation systems. The fixture carries an IP65 waterproof rating.
What does the Photontek X 465W Pro LED package include, and what warranty covers the fixture?
The Photontek X 465W Pro LED package includes five P-TEK 93W full-spectrum magnet LED bars, a 465W driver with connecting cables, an LED structure with connecting cables, two 120V power cables, a 0-10V light dimmer with Velcro, two metal cable hangers, and a manual. Photontek provides a 5-year warranty for the fixture.
