The most powerful and the largest rectangular footprint from the single biggest linear bar array LED Grow Light on the market. Designed for 6.5' x 5' coverage.

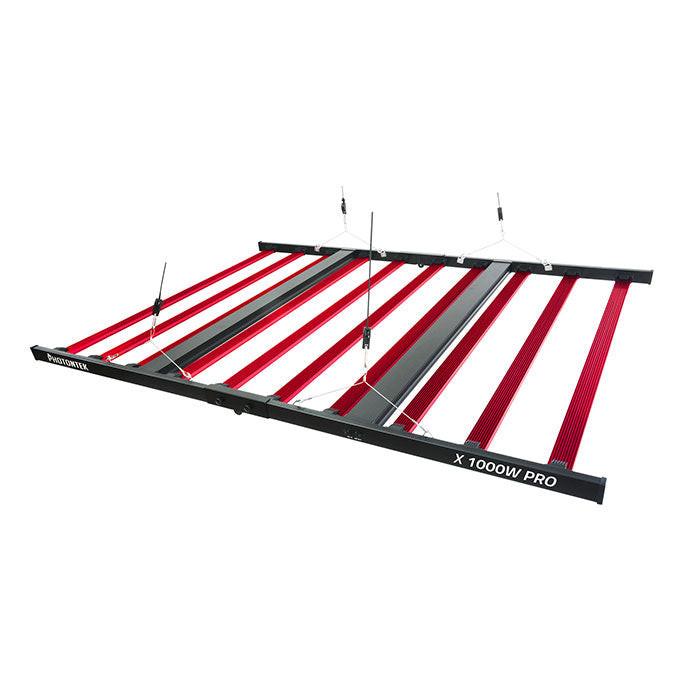

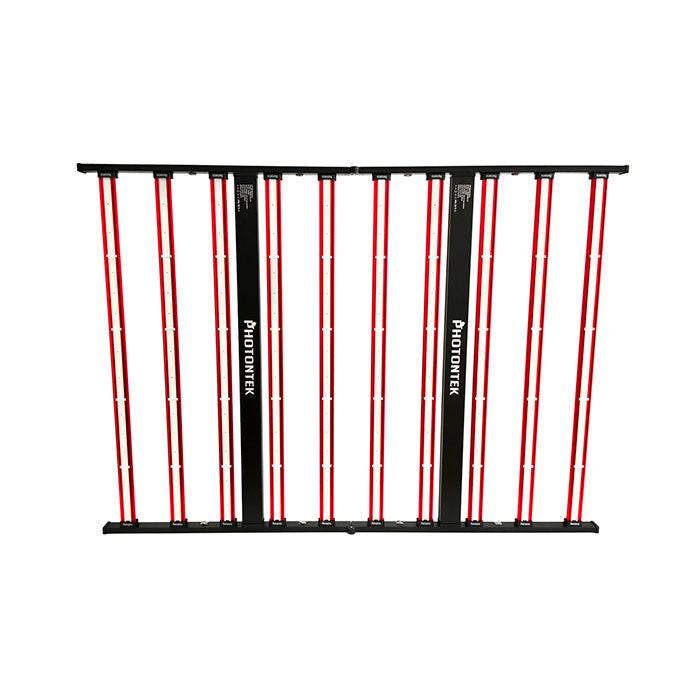

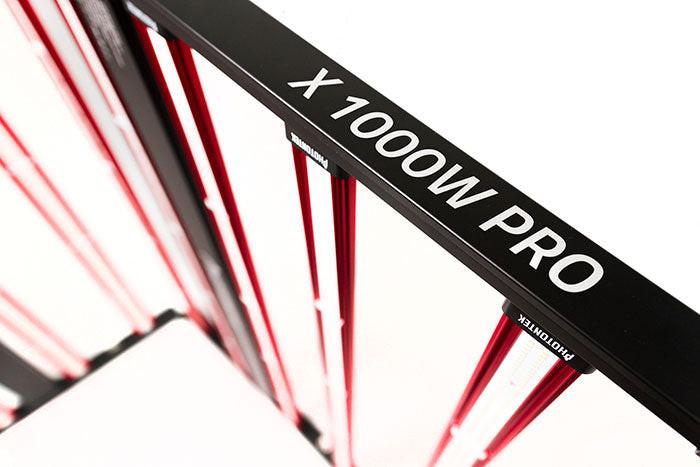

The wait is finally over, PhotonTek is happy and proud to announce the most powerful and the largest rectangular footprint from the single biggest linear bar array LED Grow Light on the market: The X 1000W Pro, designed for 6.5’x 5’ coverage.
With the perfect balance of quality and quantity, the X 1000W Pro will deliver the best light spectra on the market combined with ultra-high PPFD levels, across an outstanding wider footprint.
What comes in the box?

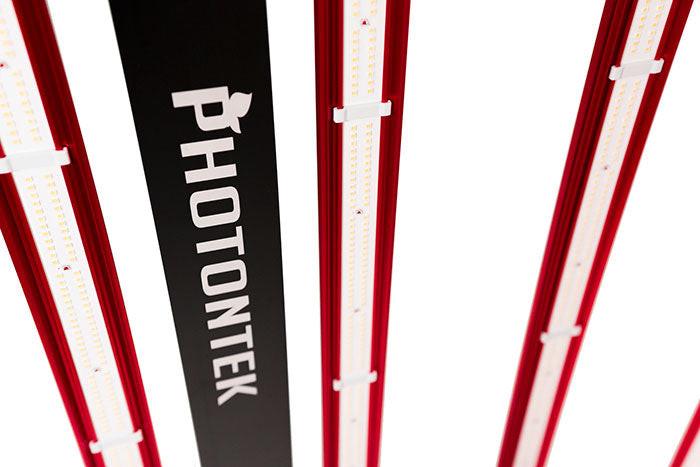

- 10 x PHOTONTEK 100W 2.9 Full-Spectrum Magnet LED Bars
- 1 x Foldable Frame Structure with 2 x 500W Pro Incorporated Drivers + Connecting cables
- 1 x Power Cable
- 1 x 0-10V Light Dimmer + Velcro
- 2 x Metal Cable Hangers
- 1 x Manual
Features & Benefits for the X 1000 PRO
Producing extremely high levels of PPF output of 2925 µmol/s and a Photon Efficacy (fixture efficiency) of 2.9 µmol/J, X 1000W Pro LED creates a homogeneous light spread at a close distance from the crop canopy, resulting in outstanding results when used in 6.5’x5’ coverage indoor grow areas.
- Highest Market Fixture Efficacy 2.9 µmol/J
- High PPF output for high intensity 2925 µmol/s

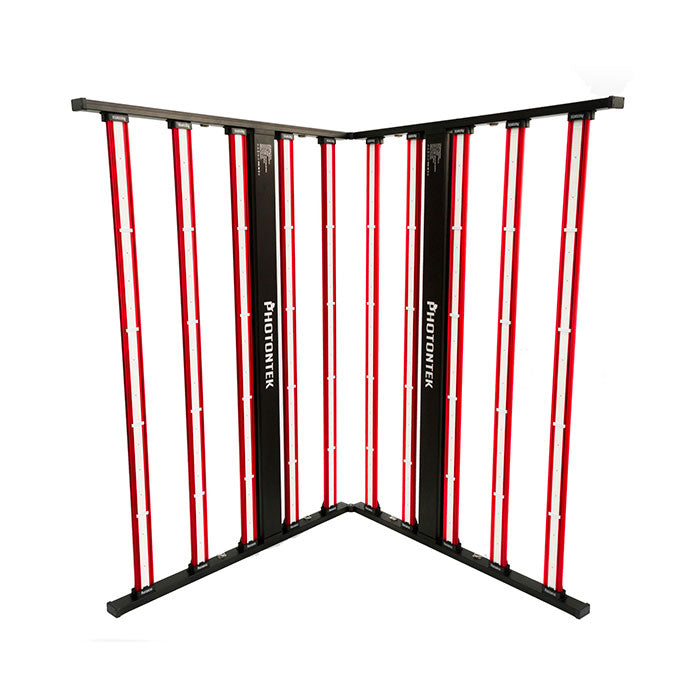

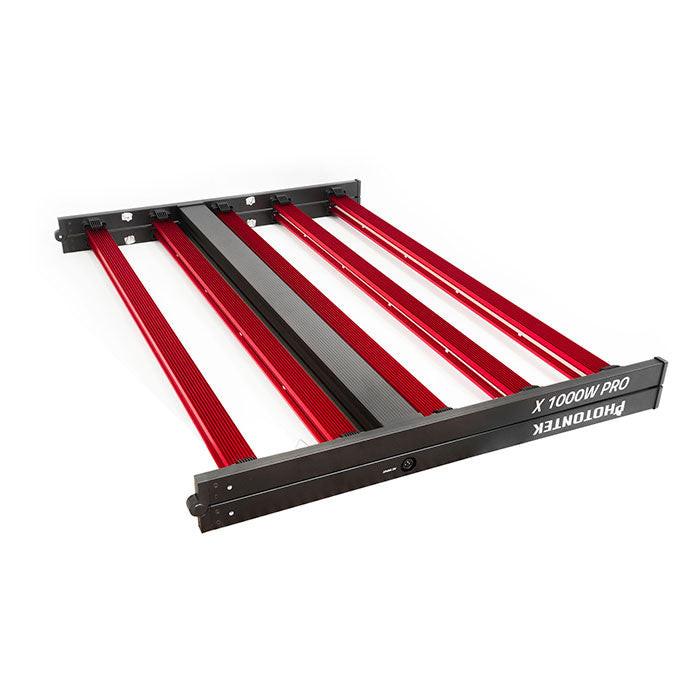

- Innovative large foldable frame designed for wider rectangular coverage
- Unique light spread and distribution in 6.5’x 5’ grow area
- Lowest $/µmol
- World Class Diodes & Drivers
- New Clear Glue Technology on the LED Bars Protection Cover
- Optimized Full-Spectrum
- Fully Dimmable
- External Control with PHOTONTEK Digital Controller

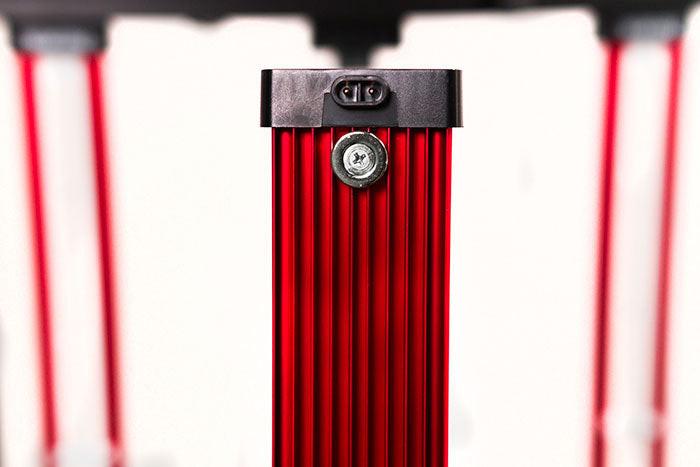

- Interchangeable Magnet LED Bars
- User Friendly & Easy Set-Up
- 5 Year Warranty
The X 1000W Pro LED is built using high-quality and durable PHOTONTEK drivers and top bin LEDs from Osram and Lumileds generating an optimized full-spectrum light source ideal for veg and flowering stages. This fixture has an innovative large foldable frame and a unique light spread and distribution. The LED may be dimmed, allowing you to adjust PPFD levels produced without losing efficiency.
Optional Upgrade: Photontek Digital Lighting Controller
The PhotonTek Digital Lighting Controller is a full-control LED fixture master panel, that allows you to harness the full power of our entire LED lighting range.
Using the newest tech available, this smart-feature accessory will quickly become your best grow mate as it constantly monitors and helps to maintain your environmental temperatures, lighting schedules & intensity automation. Smart, but still incredibly user-friendly, this unit is a twin-channel controller. Giving growers the ability to control individual ‘zones’, capable of operating up to 50 LED fixtures each!
Using an analog 0-10V signal, each channel (Zone) can either control the same powered LED drivers; Zone A can control the same powered drivers as Zone B OR Zone B can be set to control different powered LED drivers. Eg: Zone A can be set to control 465W LED fixtures and Zone B set to control 600W, with the same accuracy and safety protections across your entire set-up.
Specifications for the Photontek 1000 Watt PRO
| Efficacy | 2.9 µmol/J |
|---|---|
| PPF | 2925 µmol/s |

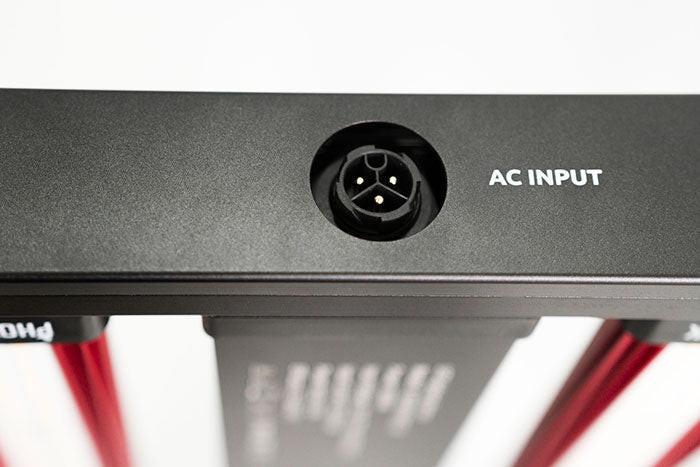

| Input Voltage | 120-277V 50/60 Hz |
| Input Power | 1005 - 1025 Watts |
| Footprint | 5' x 6.5' |
| Application | Multi-Tier, Room, Tent |
| Water & Dustproof | IP65 |
| Light Distribution | 120° |
| Diode Ratio | White: 82%; Red 18% |
|---|---|
| Dimmable | 0%-100% with 0-10V Light Dimmer |
| External Control | P-Tek Digital Controller (100 fixtures) |
| Weight | 39.68 lbs. |
| Dimensions | 66.92" x 48" x 1.9" |
| Power Factor | 0.95 |
| Warranty | 5 Year |
| Certifications | CSA, FCC, ICC, and DLC listed |
| Brand | Photontek Lighting |
|---|---|
| SKU | PTEKLED025-120V |
| Weight (lb.) | 38.5800 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Year |
| Lead Time | This product ships in 3-5 business days |
| Hazardous Material | false |
| UPC | 5060560030034 |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Multi-Bar |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| Est. Electricity Cost /mo | $43.20 |
| Exact Watts | 1000 Watts |

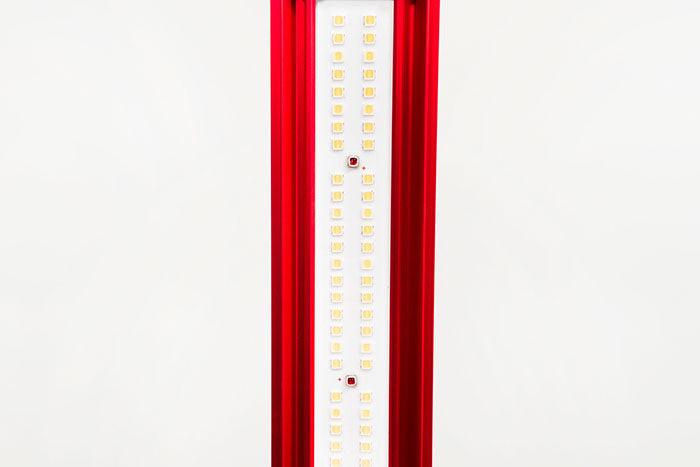

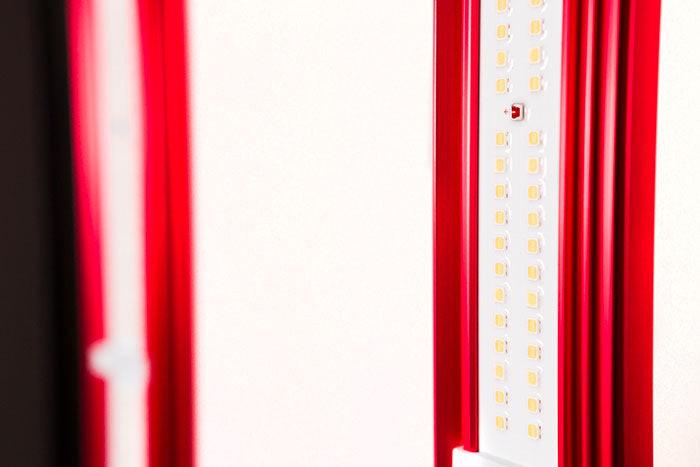

| LED Diode Type | 4000K White Diodes Lumileds 3030 HE Plus; 660nm Red Diodes Osram SQ3.24 |
| PAR Efficiency | 2.9 μmol/J |
| Total PPF Output | 2925 μmol/s |
| Power Factor | 0.95 |
| Voltage | 120 Volts |
| Amps | 9.37 Amps @ 120 Volts, 4.56 Amps @ 240 Volts, 3.99 Amps @ 277 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120 Volt |
| Power Cord Length | 8 Feet |
| Coverage Area | Veg: 5' x 6.5'; Flower: 5' x 6.5' |
| Grow Light Certifications | IP65 Rated, DLC Listed, CSA Listed |
| ETL Listed | No |
| UL Listed | No |
