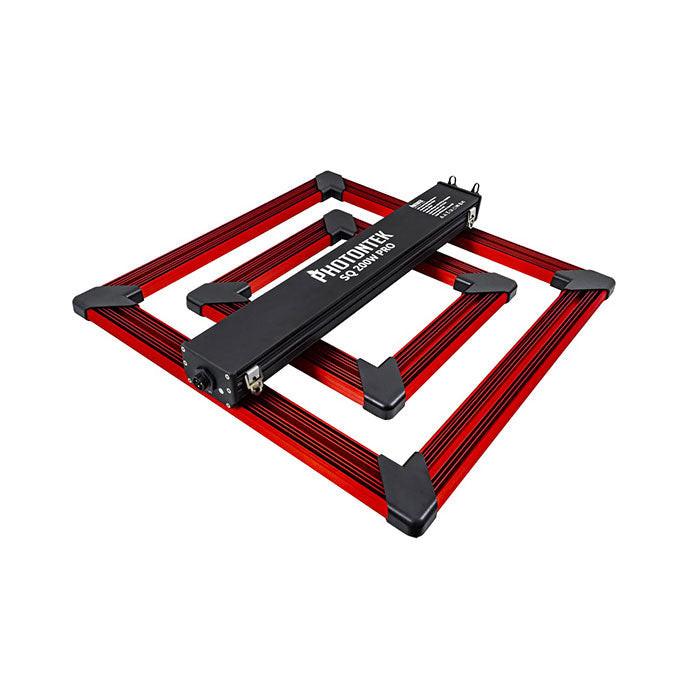

The SQ200 Watt Pro LED is the perfect compact and powerful LED Grow Light for tight spaces up to 2.6’x2.6’ coverage.
P-Tek is thrilled to announce the launch of the new SQ200W Pro Full-Spectrum LED. Designed specifically for tighter and more compact spaces, the low-wattage SQ Pro line will deliver the best light spectra on the market combined with very high PPFD levels.
With a footprint coverage up to 2.6’x2.6’ the high efficiency SQ200W Pro grow light is a perfect solution for home-grow, grow tents, grow rooms and all kinds of indoor cultivations
What's Included:
- 1 x SQ200W Pro LED Fixture with Driver
- 1 x Power Cable (120-Volt or 240-Volt)
- 1 x 0-10V Light Dimmer + Velcro
- 2 x Metal Cable Hangers
- 1 x Manual
Producing very high levels of PPF output of 508 µmol/s and a Photon Efficacy (fixture efficiency) of 2.5 µmol/J, the SQ200W Pro LED creates a homogeneous light spread at a close distance from the crop canopy, resulting in outstanding results when used in 2.6’x2.6’ coverage indoor grow areas.
Only the highest-grade materials and components are used in P-TEK’s LED fixtures. Delivering safe, dependable light P-TEK SQ Pro fixtures has industry-leading performance. By perfectly balancing high quality, full-spectrum light with highest intensity PPFD delivered through an even square shape bar design. P-TEK Creates the ultimate ceiling of light for the entire plant growth cycle, making these LEDs the smartest option for a higher and faster return on investment.
Features & Benefits
The outstanding performance of the SQ Pro line was achieved through a square shape LED bar design built with the latest generation top bin White, Red, and Far Red diodes and world-class P-Tek controllable drivers. The LED bars are covered with a thin layer of Clear Glue, resulting in higher light transmittance of 99% without light loss, IP65 rating extended lifetime of diodes, and extra corrosion resistance.
- High Fixture Efficacy 2.5 µmol/J
- High PPF output for high intensity 508 µmol/s
- Lowest $/µmol
- World Class Diodes & Drivers
- Optimized light spread and uniformity
- New Clear Glue Technology on the LED Bars Protection Cover
- Compact design ideal for up to 2.6’x2.6’ grow area
- Balanced Full-Spectrum by White, Red & Far Red diodes combination
- Fully Dimmable
- External Control with P-TEK Digital Controller
- User Friendly & Easy Set-Up
The SQ200W Pro array creates a uniform spread of light at a short distance from the crop ensuring excellent penetration of canopy without hotspots and excessive heat. The advanced heat sink and use of passive natural convection have eliminated the need for a fan, decreasing noise output and significantly improving the life span of the fixture as it has no moving parts.
Full-Spectrum
This grow light LED is designed with all grow cycles periods in mind, from propagation, to vegetative and flowering, this fixture may be dimmed, allowing you to adjust PPFD levels produced without losing efficiency.
P-Tek SQ Pro LED grow lights use a blend of white, deep red & far red LEDs to produce a highly efficient light source calibrated to provide high intensity, stable and uniform output for optimal light absorption.
More Control
In addition, the SQ200W Pro LED fixture can be externally controlled with a P-TEK Digital Lighting Controller featuring light timing, automated dimming (1% increments), temperature safety control, Sunrise & Sunset Mode for up to 100 fixtures per controller.
P-Tek Pro LED Fixtures can be fully controlled with either the P-Tek Digital Controller or with any other Control System that utilises 0-10V output signal. Even if your Universal Controller has an RJ port interface, you can still run our LEDs by using a signal converter RJ to 0-10V control adaptor.
Optional Upgrade: Photontek Digital Lighting Controller
The PhotonTek Digital Lighting Controller is a full-control LED fixture master panel, that allows you to harness the full power of our entire LED lighting range.
Using the newest tech available, this smart-feature accessory will quickly become your best grow mate as it constantly monitors and helps to maintain your environmental temperatures, lighting schedules & intensity automation. Smart, but still incredibly user-friendly, this unit is a twin channel controller. Giving growers the ability to control individual ‘zones’, capable of operating up to 50 LED fixtures each!
Using an analogue 0-10V signal, each channel (Zone) can either control the same powered LED drivers; Zone A can control the same powered drivers as Zone B OR Zone B can be set to control different powered LED drivers. Eg: Zone A can be set to control 465W LED fixtures and Zone B set to control 600W, with the same accuracy and safety protections across your entire set-up.
Speicifcations for the SQ 200
| Product Code | PTEKLED023 |
|---|---|
| Efficacy | 2.5 µmol/J |
| PPF | 508 µmol/s |
| Input Voltage | 120-277V, 50-60Hz |
| Input Power | 205W |
| Coverage Area | 2.6' x 2.6' |
| Waterproof | IP65 |
| BTUs/h | 703 |
| Lifetime | 60 000 Hrs |
|---|---|
| Light Distribution | 120° |
| Light Source | Higher Spec White, Red & Far Red Diodes |
| Dimmable | OFF-25%-50%-75%-100% |
| External Control | With Digital Controller |
| Weight | 8.82 Lbs |
| Dimensions | 20.65" x 20.65" x 2.82" |
| Spectrum | Full Spectrum |
| Brand | Photontek Lighting |
|---|---|
| SKU | PTEKLED023-120V |
| Weight (lb.) | 13.2300 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year |
| Lead Time | This product ships in 3-5 business days |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Multi-Bar |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| Est. Electricity Cost /mo | $8.64 |
| Exact Watts | 200 Watts |
| LED Diode Type | Higher Spec White, Red & Far Red Diodes |
| PAR Efficiency | 2.5 μmol/J |
| Total PPF Output | 508 μmol/s |
| Daisy Chain | Yes |
| Voltage | 120 Volts, 240 Volts, 277 Volts |
| Amps | 1.76 Amps @ 120 Volts, 0.9 Amps @ 240 Volts, 0.75 Amps @ 277 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120 Volt |
| Power Cord Length | 8 Feet |
| Coverage Area | Veg: 2.6' x 2.6'; Flower: 2.6' x 2.6' |
| Grow Light Certifications | IP65 Rated, CSA Listed |
| ETL Listed | No |
| UL Listed | No |
