Introducing PHOTOBIO TX2 – the latest innovation from PHOTOBIO, designed to revolutionize your growing experience. Our cutting-edge lighting solutions incorporate the latest technology to maximize energy efficiency and cost-effectiveness, helping growers achieve unparalleled production potential.
The TX2 Top Light raises the bar with 800 watts of power and a NEW S5 spectrum. PHOTOBIO Top Light LED Systems offer the perfect blend of advanced technology and practical functionality.
The PHOTOBIO TX2 has been designed for greenhouse and single-level applications. The thin linear profile minimizes sun interference in greenhouse applications while providing better canopy access when used indoors. The wide voltage range (208-480v) offers flexibility for commercial applications. The brand-new heatsink design allows TX2 to achieve 18% weight reduction while providing efficient thermal management to support 38% more PPF output.
PHOTOBIO LED fixtures offer unmatched uniform distribution of high PPFD (Photosynthetic Photon Flux Density) values. This translates to deep canopy penetration and even light distribution for optimized growth. Trust PHOTOBIO TX2 to elevate your cultivation success to new heights.
Features of the PHOTOBIO TX2
- 2400 umol/s Photosynthetic Photon Flux (400-700nm)
- 3.0 µmol/J Efficacy @ 277V
- Thin linear top light design minimizes sun interference in greenhouses while providing better canopy access when applied indoors
- Proprietary Origami-style aluminum heatsink
- Precisely control photon output when paired with Autopilot PX series controller (PX2 and above)

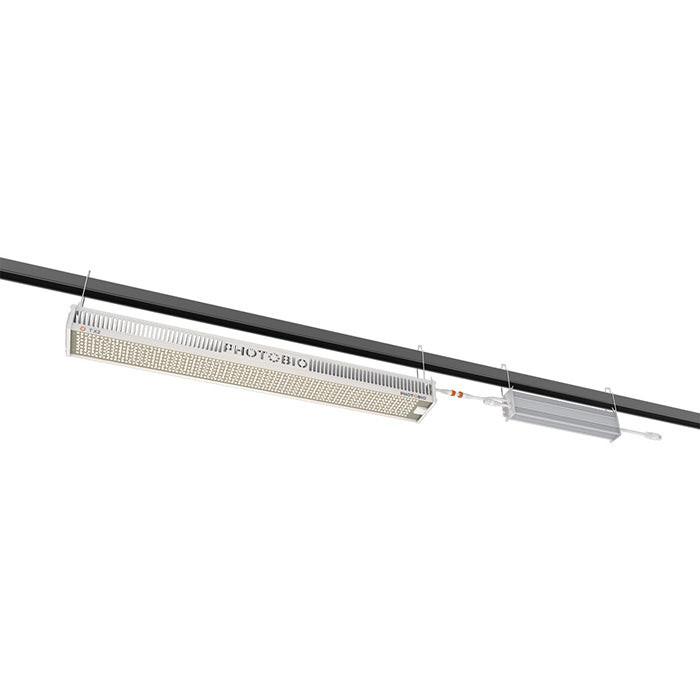

- Driver can be mounted remote
- Fully compatible with optional PHOTOBIO AC Power Distribution Tree cabling system - enables interconnection of multiple fixtures on a single power drop - reducing electrical infrastructure costs*
- Fully compatible with optional PHOTOBIO DC Communications Tree cabling system - enables interconnection of multiple fixtures on a centralized controller
TX2 Improvements Versus Previous Generation:
- NEW S5 spectrum: Balanced full spectrum with enhanced red. S5 Spectrum offers a R:B Ratio at 2.6:1 while keeping the B:G ratio at 1:1
- NEW Proprietary Origami-style Folded Fins (POFF) aluminum heatsink
- 38% increased light output
- 18% improvement for fixture efficacy
- 38% weight reduction
- Input Voltage from 208v to 480v AC with auto recognition
Everything you loved about PHOTOBIO TX is inherited to TX2:
- Best-in-class proprietary optical encapsulation process for light engine.
- Standard 0-10v dimming: compatible with all PHOTOBIO dimming interfaces and major controllers.
- ETL Listed and DLC Hort QPL Listed: eligible for energy rebates
- Heavy duty and premium quality: Efficient architecture-grade aluminum heatsink.
- IP65 Rating for dust and water protection
- 5-year Warranty backed by the Hydrofarm team.
NEW S5 spectrum
Provides a highly efficient full spectrum with an enhanced red-to-blue ratio to drive photosynthesis and improve efficacy. Light energy between 500-599nm, previously thought wasted, penetrates deeper into the plant canopy promoting photomorphogenic responses.
High Color rendering "white" light aids to rapidly identify potential threats to your crop and provides superior working conditions and safety for personnel. Ideal for both flowering and vegetative production.
Specifications for the TX2
| Voltage | 200/480 Volts |
|---|---|
| Power | 800 Watts |
| Spectrum | S5 Full Spectrum |
| PAR | 3.0 µmol/J |
| PPF | 2400 µmol/s |
| Warranty | 5 Years |
| Frequency | 50/60 Hz |
|---|---|

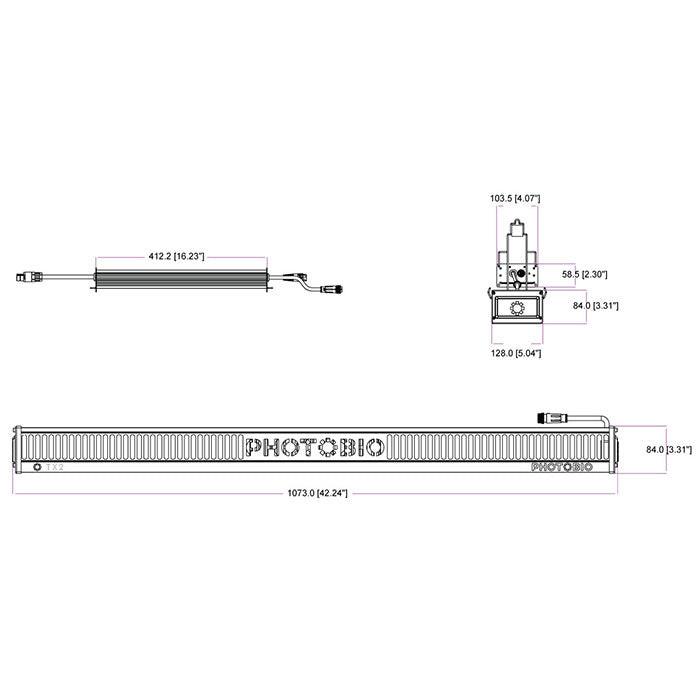

| Dimensions | 42.2" x 5" x 3.3" |
| Weight | 23.5 lb / 10.7 kg |
| Dimmable | 0-10 VDC |
| Certifications | IP65, ETL, DLC, CSA, UL |
| Power Cord Length | 10 ft. |
| Brand | PHOTOBIO |
|---|---|
| SKU | PTBZ1000580S54 |
| Weight (lb.) | 25.7000 |
| Prop 65 | true |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 5 Year |
| Lead Time | This product ships in 1-2 business days |
| Hazardous Material | false |
| UPC | 638104029889 |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Panel |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| Est. Electricity Cost /mo | $34.56 |
| Exact Watts | 800 Watts |
| PAR Efficiency | 3.0 µmol/J |
| Total PPF Output | 2400 µmol/s |
| Power Factor | 0.96 |
| Daisy Chain | Yes |
| Voltage | 277 Volts |
| Amps | 3.33 Amps @ 240 Volts, 2.89 Amps @ 277 Volts, 1.67 Amps @ 480 Votls |
| Frequency | 50/60 Hz |

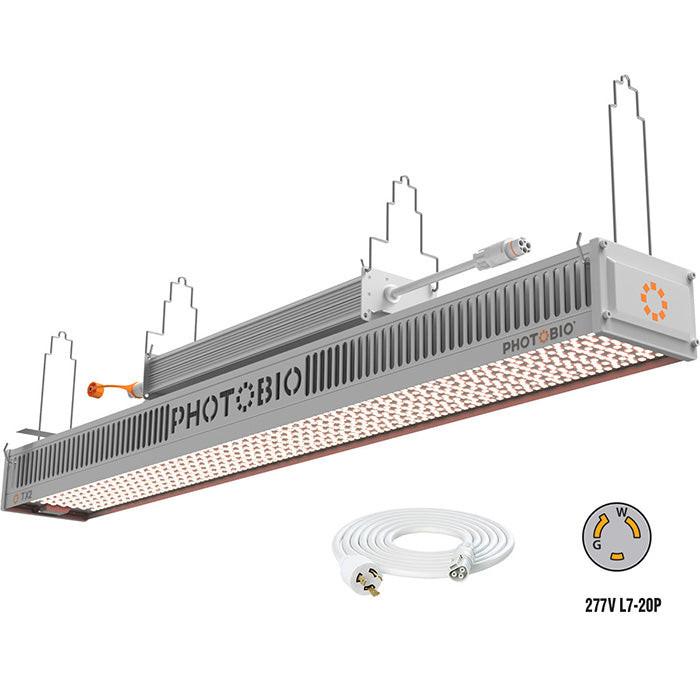

| Power Cord(s) Included | Yes - 277 L7-20P |
| Power Cord Length | 10 ft. |
| Coverage Area | Veg: 4' x 2'; Flower: 4' x 2' |
| Grow Light Certifications | IP65 Rated, DLC Listed, ETL Listed, UL Listed, CSA Listed |
| ETL Listed | Yes |
| UL Listed | Yes |
