Philips Product Documents

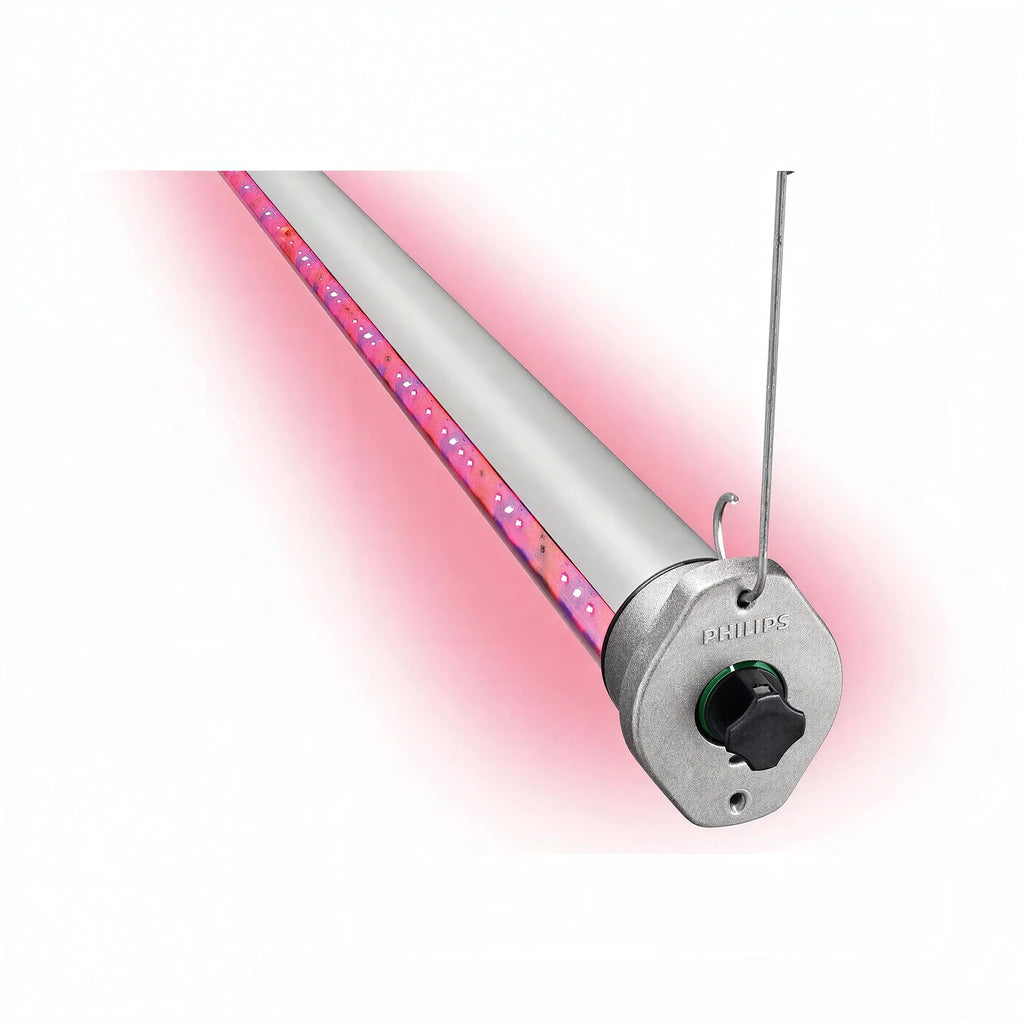

Philips 92 Watt Green Power Interlighting 3.1 Spec SheetPlug and play system reduces installation costs
The interlighting system comes with an easy plug and play connector and just a few cables and accessories. Connect up to 64* interlighting modules with just one power connection, and save time, materials needed and installation costs, and bring the total cost of project installation down significantly. The complete system can easily be lifted with one meter at a time, because of the flexible cable connection which again will save time and hassle. With the sidewards light distribution pattern, the leaves can optimally transform the light into growing more yield. The shape of the GreenPower LED interlighting module is designed to minimize maintenance.
Philips 92 Watt Green Power Interlighting 3.1 Specs
| Voltage Input | 200-400 Volt |
|---|---|
| Power Consumption | 92 Watt |
| Light Output | 300 µmol/s |
| Efficiency | 3.3 μmol/J |
| Amperage | 0.44-0.26A |
| Ambient Operting Temp | 40-104° F |
|---|---|
| Total Harmonic Distortion | <10% |
| Power factor | > 0.90 |
| Ingress Protection | IP66, UL/CSA Approved |
| Rated Average Lifetime | 36,000 Hours |
| Brand | Philips |
|---|---|
| SKU | 9290-021-00154 |
| Weight (lb.) | 4.9000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Lead Time | 5-7 |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Veg Spectrum |
| LED Fixture Type | Under/Inner Canopy, Bar/Strip |
| Exact Watts | 92 Watts |
| PAR Efficiency | 3.3 umol/J |
| Total PPF Output | 300 umol/s |
| Power Factor | >90% |
| Daisy Chain | Up to 64 |
| Voltage | 208 Volts, 220 Volts, 230 Volts, 240 Volts, 264 Volts, 265 Volts, 277 Volts, 347 Volts, 400 Volts |
| Amps | .44A @208V, .38A @ 240 Volt, .33A @277V, .26A @ 347V |
| Frequency | 50/60 Hz |
| Grow Light Certifications | IP66 Rated |
| ETL Listed | No |
| UL Listed | Yes |
What is the Philips Green Power Interlighting 3.1 designed for?
The Philips Green Power Interlighting 3.1 is designed for interlighting plants with sideward light distribution. The interlighting module helps leaves transform light into increased yield.
How does the Philips Green Power Interlighting 3.1 simplify installation?
The Philips Green Power Interlighting 3.1 uses a plug and play connector with a few cables and accessories, reducing installation time, materials, and costs.
How many Philips Green Power Interlighting 3.1 modules can connect to one power connection?
The Philips Green Power Interlighting 3.1 system can connect up to 64 interlighting modules through one power connection.
What light output and power consumption does the Philips Green Power Interlighting 3.1 provide?
The Philips Green Power Interlighting 3.1 consumes 92 watts and produces 300 µmol/s of light output. Philips Green Power Interlighting 3.1 efficiency is 3.3 µmol/J.
How does the Philips Green Power Interlighting 3.1 support system movement and maintenance?
The Philips Green Power Interlighting 3.1 uses flexible cable connections that allow the complete system to be lifted one meter at a time. The module shape also minimizes maintenance.
