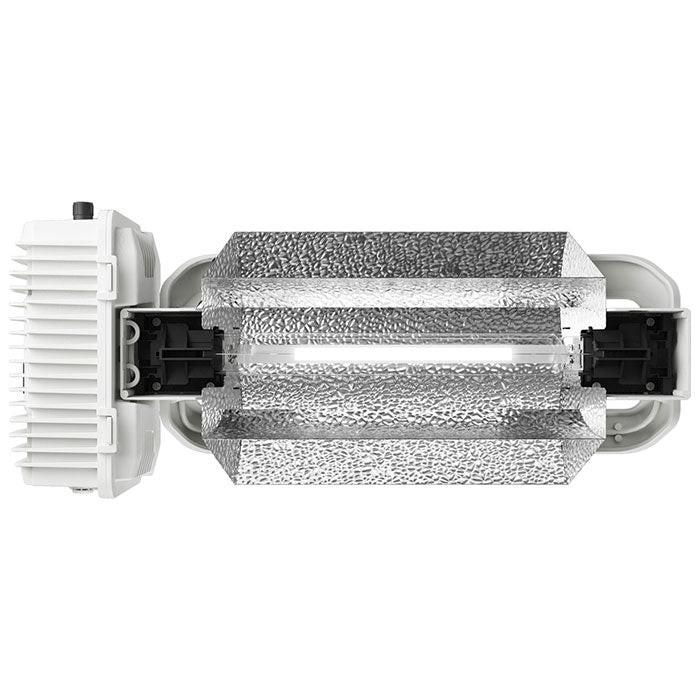

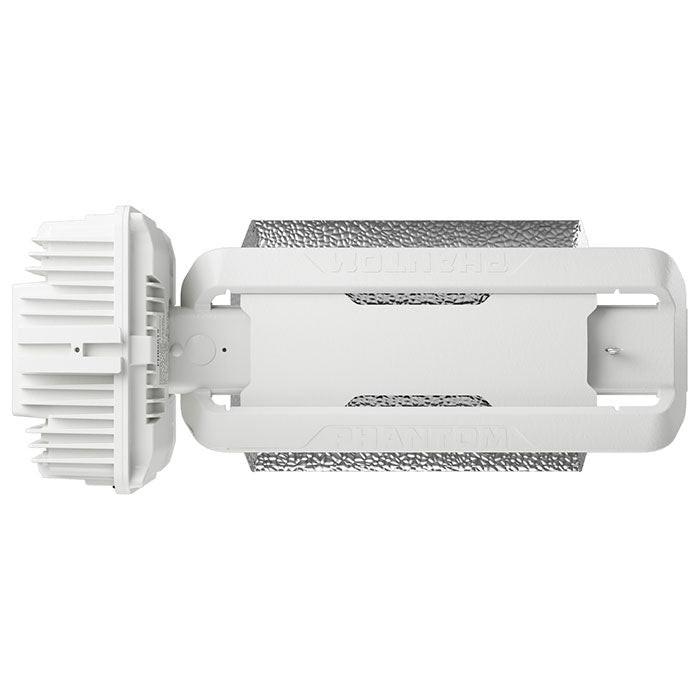

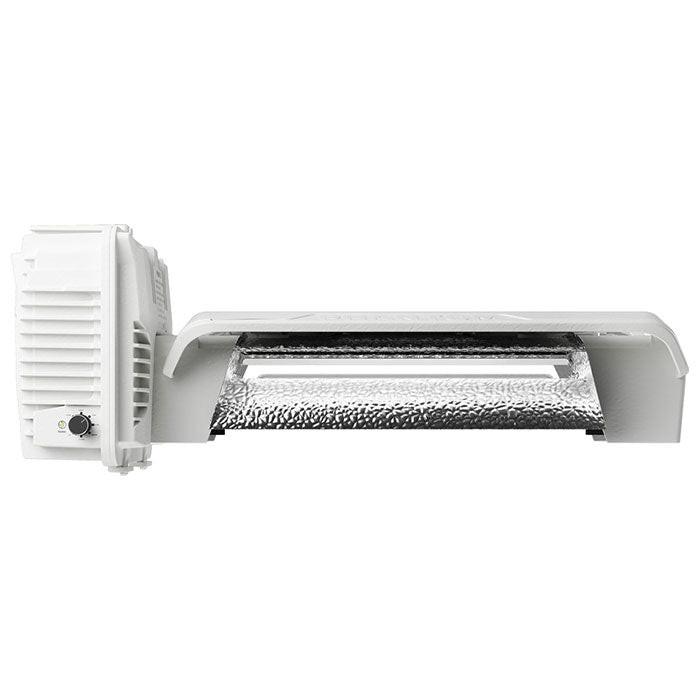

Phantom 60 Series 1000 Watt Double Ended Open HPS Lighting System InstuctionsThe 60 Series Commercial DE Open Lighting System is the newest generation of HID lighting from Phantom, the workhorse brand of reliable and trusted lighting solutions for professional growers worldwide. The 60 Series offers a compact and lightweight form factor with a modern design. The medium spread of the Open reflector provides remarkable uniformity with higher average PAR to the plant canopy. Proprietary ridge vent design maintains ideal lamp operating temperature, which maximizes lamp output and lifetime.

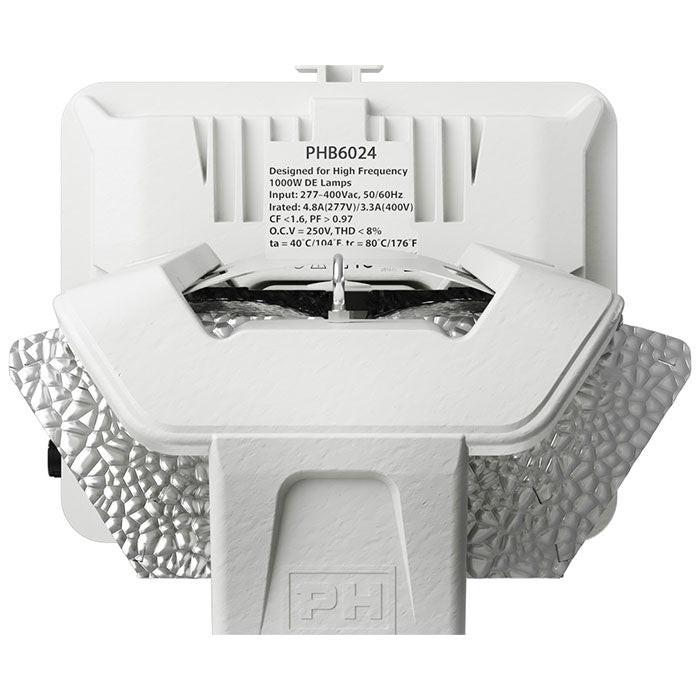

At the heart of the 60 Series System is the PHB6024 Phantom ballast, engineered to provide years of high-quality and reliable service. RJ12 0-11.5V dimming interface enables seamless connection to Autopilot PX2+ Series Advanced Lighting Controllers. Fully compatible with PHOTOBIO AC Power Distribution Tree cabling system to reduce electrical infrastructure costs and provide safer and simpler and plug & play installation.
Phantom 60 Series Commercial DE Open Lighting System Ballast features:
- RJ signal jack interface provides full compatibility with Autopilot PX2+ Series Digital Lighting Controller
- 0-11.5V DC dimming input/output, with onboard repeater buss (up to 500+ fixtures)
- High-precision microprocessor control
- Six-way wattage output control: 600W, 660W, 750W, 825W, 1000W and 1150W + PX control mode
- Robust commercial design
- Superior reliability
- LED status indicator
- Internal RF shielding
- End of lamp life signal
- Auto-restrike feature protects valuable lamps from damaging power interruptions
- Aluminum cooling fins for optimal heat dissipation
- Suitable for use in damp locations

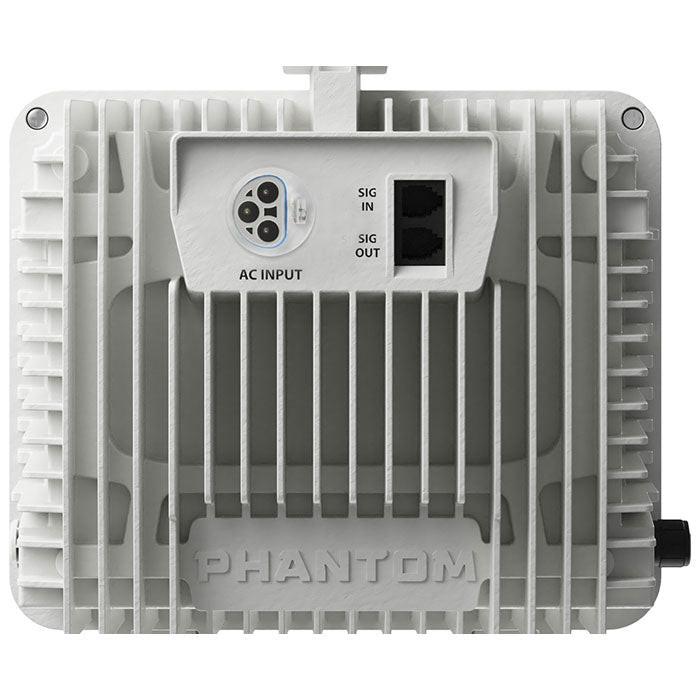

- Includes IP67 AC input connection and 277-400V 10' L7-20P cord
- Includes 10' RJ12 signal cable and RJ12 splitter
Phantom 60 Series Commercial DE Open Reflector Features:
- Double-ended system delivers higher PAR value with excellent uniformity
- Open design for maximum light output, optimum heat management, and longer lamp life
- Premium aluminum European hammertone material: 99.85% pure, 95% reflectivity
- Provides a broad, consistent light spread
- Compact design minimizes interference with sun in greenhouse applications
- The ideal reflector choice for lower mounting heights
- Highly efficient in overlapping multi-light configurations, requiring fewer reflectors to meet desired light levels
- K12 x 30s high temperature lamp holders
Phantom 60 Series Commercial Premium European DE lamp features:
- High proportions of red and blue light guarantee efficient photosynthesis
- Excellent PAR output (2100 µmol/s)
- Quartz glass outer jacket for superior optical quality
- Lamp design eliminates shadowing from arc tube support
- Designed for use with Phantom DE fixtures
NOTE: *Recommended consultation of a licensed electrician working with electrical engineer following applicable electrical code and inspections.
Autopilot PX2 Digital Lighting controller & PHOTOBIO Quantum PAR Reader
Centralized control of Phantom fixtures. Provides dual-zone photoperiod timing, photosynthetic photon flux scheduling, temperature-based auto-dimming, high temp shutdown, sunrise/sunset simulation, with built-in battery backup.
Two dedicated temperature sensors, one for each zone These sensors provide real-time data for automated temperature-based dimming, as well as a high-temperature shutdown feature that protects your garden.
The PX2 eliminates inrush current and replaces traditional lighting contactors, reducing infrastructure investment.
The Advanced Quantum PAR Meter provides accurate and cost-effective measurement for all light sources used to grow plants. The PHOTOBIO by Phantom Quantum PAR meter is designed to measure PAR (Photosynthetically Active Radiation) flux in wavelengths ranging from 400 to 700nm. There is a proportional relationship between the number of photons absorbed in 400-700nm band and the rate of photosynthesis, which is important for monitoring plant physiology.
The Advanced light meter comes complete with a remote sensor, two connection cables, the main unit, and easy to replace AAA batteries. The PAR meter can store up to 99 measurements for easy reference.
| Brand | Phantom |
|---|---|
| SKU | PHRO10002773 |
| Weight (lb.) | 17.5000 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Warranty | 3 Year Ballast - 1 Year Lamp/Reflector |
| Lead Time | This item ships in 1-2 Business Days |
| Hazardous Material | false |
| Shipping Restrictions | AK, HI |
| Lighting Type | HPS/MH - Double Ended |
| Coverage Area | Veg: 6' x 6'; Flower: 5' x 5' |
| Exact Watts | 1000 Watt |
| Bulb Lumens | 2,100K |
| Reflector Type | Open |
| Glass Included | No |
| Bulb(s) Included? | Yes |
| Bulb Type | Double Ended High Pressure Sodium |
| Est. Electricity Cost /mo | $43.20 |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | 277-400 Volt L7-15P Cord |
| Power Cord Length | 10 ft |
| Amps | 3.6A @277 Volt |
| Voltage | 277 Volts, 347 Volts, 400 Volts |
| ETL Listed | No |
| UL Listed | No |
