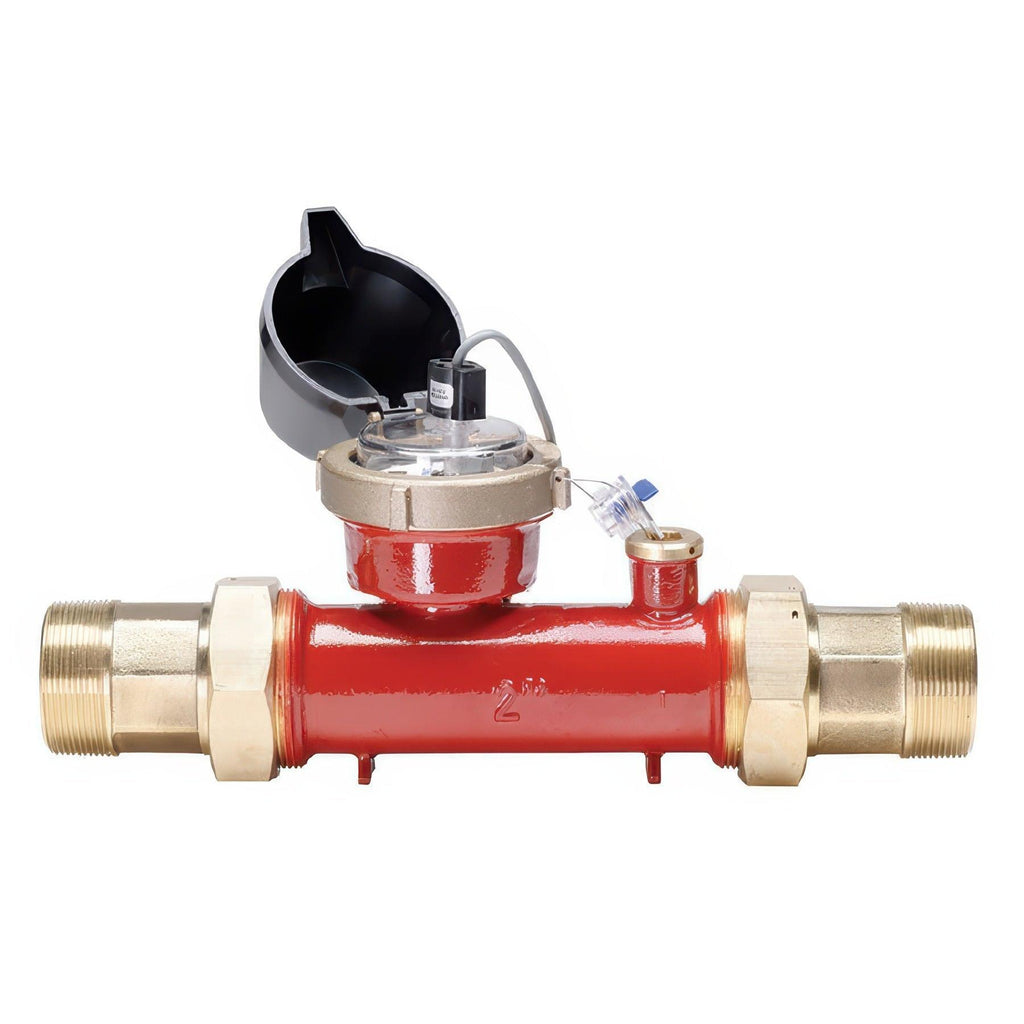

Netafim M & WMR Water Meter Spec SheetNetafim WMR Water Meters
WMR Water Meters are the industry’s smallest water meters. They offer the best cost, performance and long life. The WMR contains an in-line axial turbine which allows foreign matter to pass through the meter without clogging. Wide clearances in the measuring chamber and negligible area of contact between static and moving parts are the main reasons for the high reliability of this design even in hard water.
Product Advantages
- Industry’s smallest water meters provide ±2% accuracy over a wide range of flows.
- Magnetically driven sealed registers are stainless steel encapsulated and guaranteed not to accumulate moisture or fog.
- WMR Water Meters contain an in-line axial turbine which allows foreign matter to pass through the meter without clogging.
- Wide clearances in the measuring chamber provide full pipe flow measurements and high reliability.
Applications
- For main supply lines in agriculture and landscape applications
WMR Water Meter Specifications
- Size: 2"
- Maximum Working Pressure: 230 psi
- Maximum Liquid Temperature: 131°F
- Body Material: Cast Iron with Polyester Coating
- Connections: Male Pipe Thread
- Register Options: Reed Switch, Photo Diode or ER Digital
- Reed Switch Register Pulse Outputs: 10 or 3.26
- Photo Diode Register Pulse Outputs: 1.0 or 0.055
- ER Register Pulse Outputs: Gallons – .1, 1, 10, 100, 1000; Acre Feet – .0001, .001, .01, .1
- Straight Pipe Installation Requirement: 10 x D upstream and 5 x D downstream (D = meter size)
| Brand | Netafim |
|---|---|
| SKU | 70261-005060 |
| Weight (lb.) | 11.0000 |
| Prop 65 | false |
| Width (in.) | |
| Height (in.) | |
| Lead Time | 3-5 |
| Length (in.) | |
| Hazardous Material | false |
| UL Listed | No |
| ETL Listed | No |
| Irrigation Part Type | Water / Soil Meters |
What does Netafim WMR Water Meter do in an irrigation system?
Netafim WMR Water Meter is a water meter for main supply lines in agriculture and landscape applications. The meter helps track water flow in a compact in-line design.
What pipe size and connection type does Netafim WMR Water Meter use?
Netafim WMR Water Meter is a 2-inch meter with male pipe thread connections. That setup is made for in-line installation on matching threaded piping.
Which register comes with Netafim WMR Water Meter 36WMR2RG10?
Netafim WMR Water Meter 36WMR2RG10 comes with a reed switch register. The register outputs 10 gallons per pulse.
Can Netafim WMR Water Meter handle debris and hard water?
Netafim WMR Water Meter contains an in-line axial turbine that allows foreign matter to pass through without clogging. Wide clearances in the measuring chamber support high reliability, even in hard water.
How much straight pipe does Netafim WMR Water Meter need for installation?
Netafim WMR Water Meter requires 10 x D upstream and 5 x D downstream of straight pipe. D equals the meter size.
What pressure and liquid temperature can Netafim WMR Water Meter handle?
Netafim WMR Water Meter has a maximum working pressure of 230 psi and a maximum liquid temperature of 131°F. Those limits help match Netafim WMR Water Meter to the right irrigation setup.
