Quick and easy manual cleaning. Scan-Kleen Screen Filters offer quick and easy manual cleaning without flow interruption. To clean, just open the flush valve and turn the handle to rotate the dirt collector. The combination of rotation and linear movement scans and cleans the whole internal screen surface. Water flow is not interrupted during the cleaning process. A stainless steel screen provides strength and long life durability.
Quick And Easy Manual Cleaning
The stainless steel screen provides strength and long life durability and is ideal for use as a primary filter on well water with small amounts of sand or reservoir water with small amounts of algae. When cleaning the filter, there is no need to manually disassemble, clean the screen and reassemble the filter. Just open the flush valve and turn the handle to rotate the dirt collector. The combination of rotation and linear movement scans and cleans the while internal screen surface. Water flow is not interrupted during the cleaning process
Product Advantages
Corrosion-proof high density polypropylene will
not rust or corrode like metal filters.
Operates efficiently at varied flow rates.
Applications
Primary filter on well water with small
amounts of sand
Primary filter for center pivots
Reservoir water with small amounts
of algae
Back-up filter for:
Media filter batteries
Sand separators
Filtration Operation
Water enters the filter through the inlet and reaches the screen (1) which traps
the particles from the water. As more water flows through, debris builds up on
the screen. As debris accumulates on the screen, a pressure differential builds
up between the internal and external sections of the screen.
Flushing Operation
When the pressure differential reaches the determined value (7-10 psi), the filter should be
cleaned. Water continues to flow through the filter during the cleaning process.
Opening the flushing valve (4) allows water to flow out of the filter
Suction occurs through the nozzles (6) which vacuums the debris from the screen (1) and
out the drain port

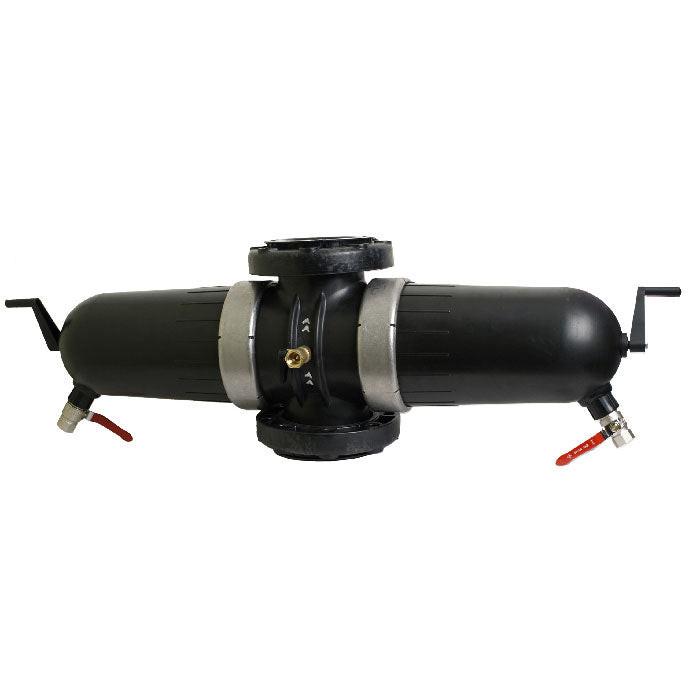

Turning the handle (3) slowly rotates the dirt collector (2) resulting in full scanning of the
screen by the nozzles. Slower rotation cleans the screen more efficiently.
This combination of rotation and linear movement cleans the whole internal screen surface.
The flushing cycle takes about 10 seconds.
Specifications
Screen Mesh Sizes: 40, 80, 120, 150 and 200
Screen: Stainless Steel
Maximum Operating Pressure: 120 ps
Required Minimum Pressure for Flushing:
20 psi (if less than 20 psi, install a manual
valve downstream of the filter)
Flushing Flow Rate: 50 GPM at 30 psi
End Connections: Flanged (for victaulic
connection, remove flanges, see manual for
instructions)
Showing details for 6 in - 150 Mesh. Choose another option above to see its specs.
We don't have a video for this product yet. Questions? Our grow experts are here to help: 888-815-9763.
What does the Netafim Twin Scan-Kleen Screen Filter do in an irrigation system?
Netafim Twin Scan-Kleen Screen Filter removes debris from irrigation water as a primary screen filter. The filter is suited for well water with small amounts of sand, reservoir water with small amounts of algae, and center pivot systems.
Can the Netafim Twin Scan-Kleen Screen Filter be cleaned without stopping water flow?
Netafim Twin Scan-Kleen Screen Filter cleans manually without flow interruption. Opening the flush valve and turning the handle rotates the dirt collector so the internal screen surface gets scanned and cleaned while water continues to flow.
What size setup does the Netafim Twin Scan-Kleen Screen Filter fit?
Netafim Twin Scan-Kleen Screen Filter uses a 6-inch hardware diameter with flanged end connections. That size works for irrigation setups that call for a 6-inch screen filter.
Which mesh version is this Netafim Twin Scan-Kleen Screen Filter?
Netafim Twin Scan-Kleen Screen Filter is the 120 mesh version. The 120 mesh screen is one of the available mesh sizes listed for the Scan-Kleen filter line.
What materials help the Netafim Twin Scan-Kleen Screen Filter hold up over time?
Netafim Twin Scan-Kleen Screen Filter uses a stainless steel screen for strength and long life durability. The filter body uses corrosion-proof high density polypropylene, which will not rust or corrode like metal filters.
