Netafim TechLock Fittings

SKU: 32500-080020
No reviews
Netafim Brand ProductMultiple Units? Click for Volume Pricing.

Availability: In stock

Lead time: This product ships in 5-7 days


Price:
Sale Price$47.81
$1.91 / each

Netafim Product Documents

Techlock Fittings Brochure

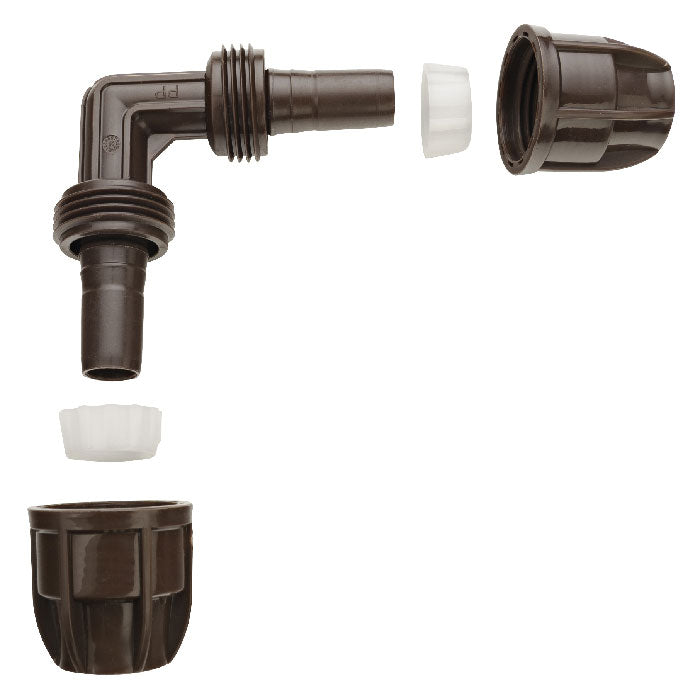

Netafim TechLock Fittings are compression-style connectors for 17mm Netafim dripline and UV polyethylene tubing. Unlike standard barbed insert fittings, TechLock uses a threaded cap and compression ring system to create a higher-pressure, reusable connection - rated to 100 PSI with 67 ft-lbs of pull-out resistance.

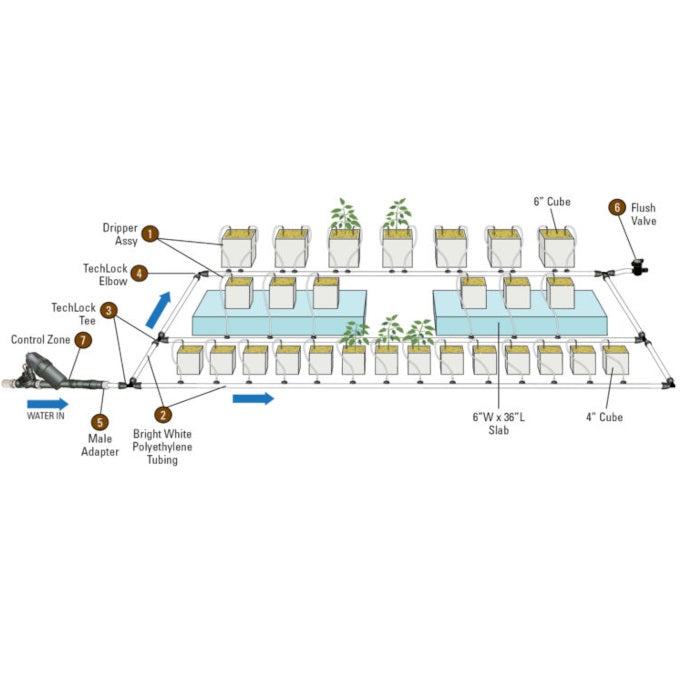

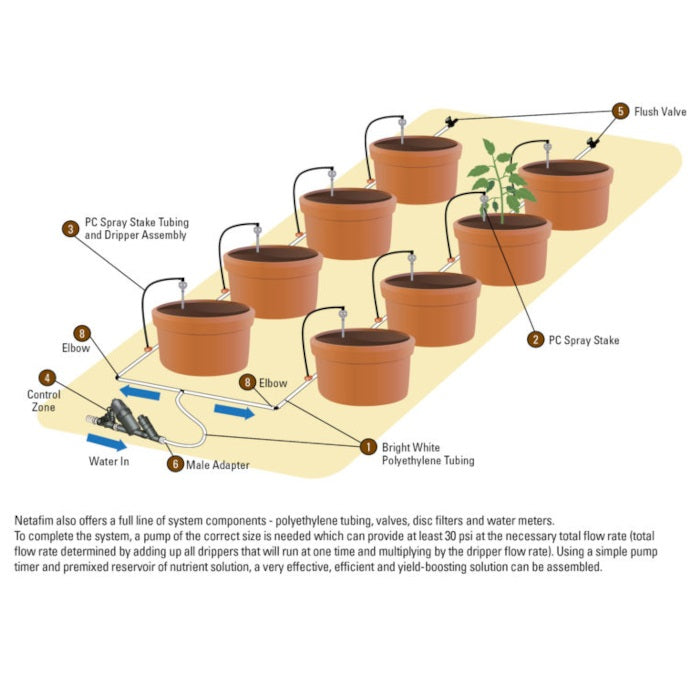

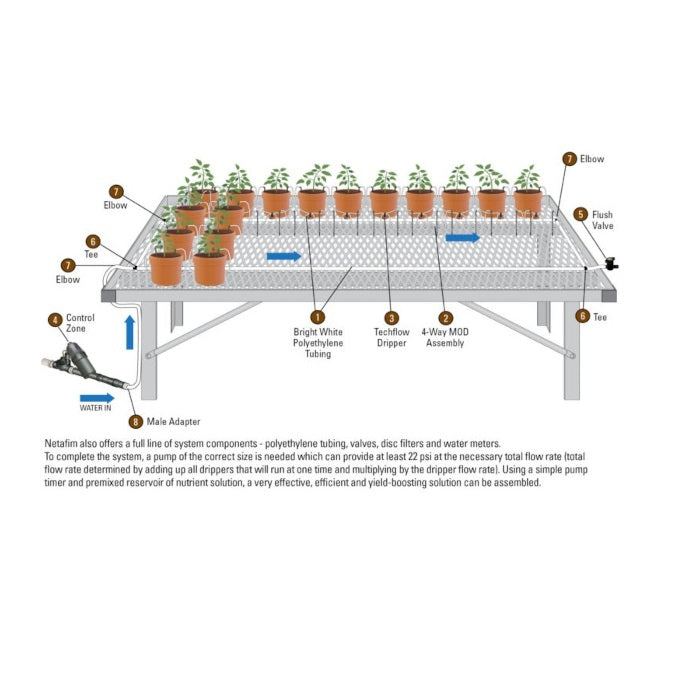

Available as tees, elbows, couplers, and 3/4" male adapters. Dark brown color blends with dripline and substrate. Use to build or repair any 17mm Netafim Techline system.

Specifications

  • Compatible tubing inside diameter: 0.530"-0.560"
  • Compatible tubing outside diameter: 0.600"-0.660"
  • Tubing wall thickness: 0.035"-0.050"
  • Operating pressure: 0-100 PSI
  • Pull-out resistance: 67 ft-lbs
  • Working temperature: 32 degrees F-140 degrees F
  • Warranty: 10 years (subsurface) / 5 years (surface)
  • Color: Dark brown

Compatible Driplines

  • Netafim Techline HCVXR, HCVXR-RW/RWP
  • Netafim Techline CV, DL, RW, RWP
  • Netafim 17mm Bright White UV polyethylene tubing

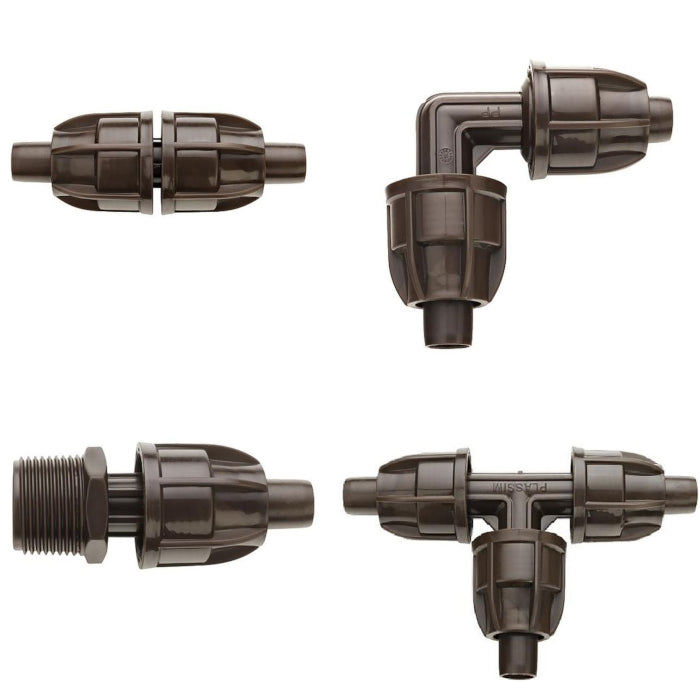

Available Fittings

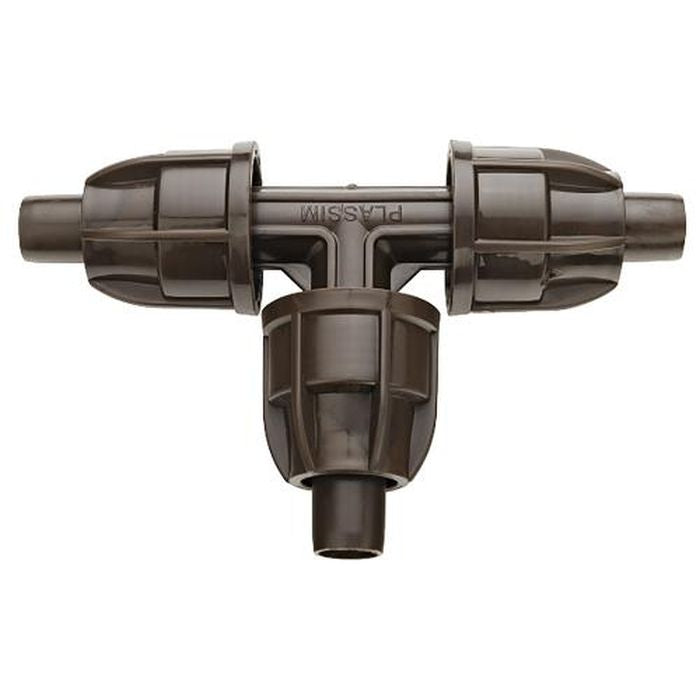

  • TechLock Tee - branches 17mm mainline into two runs

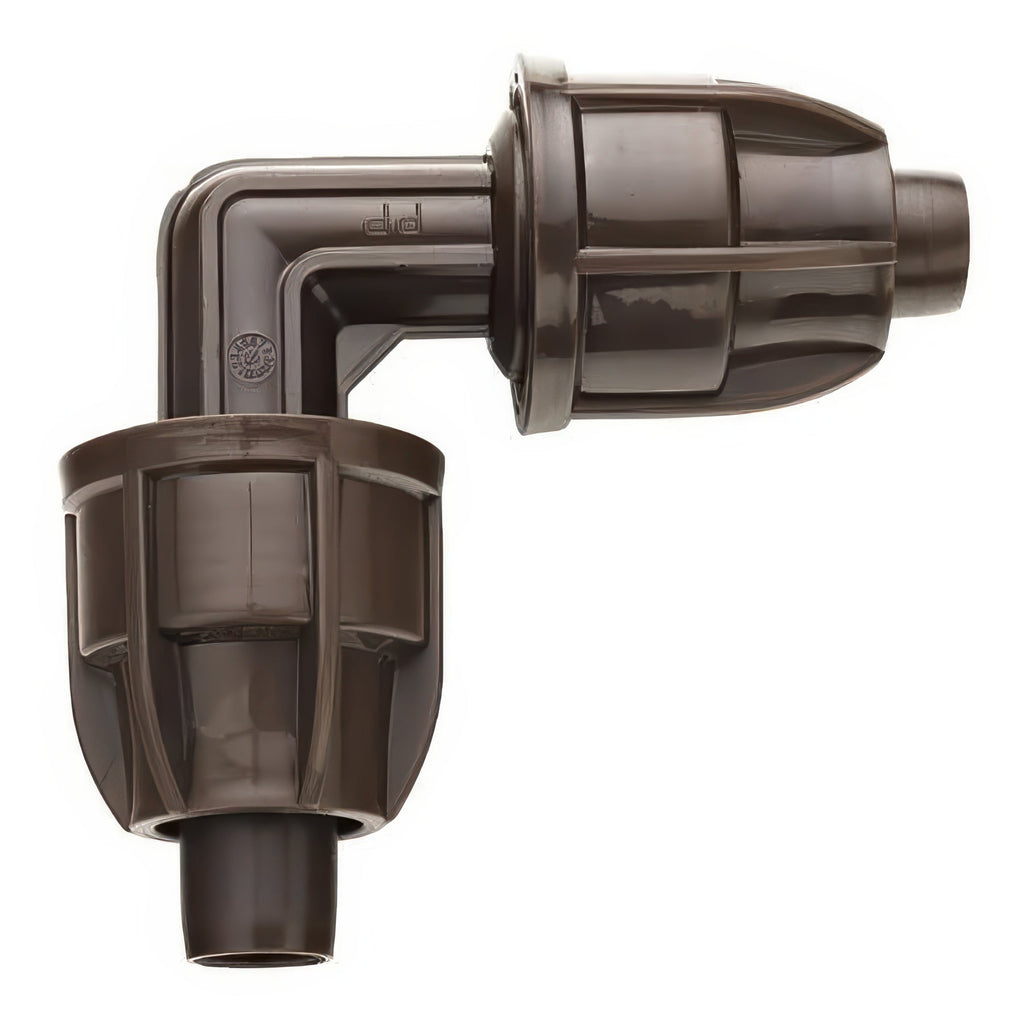

  • TechLock Elbow - 90 degrees direction change, prevents kinking

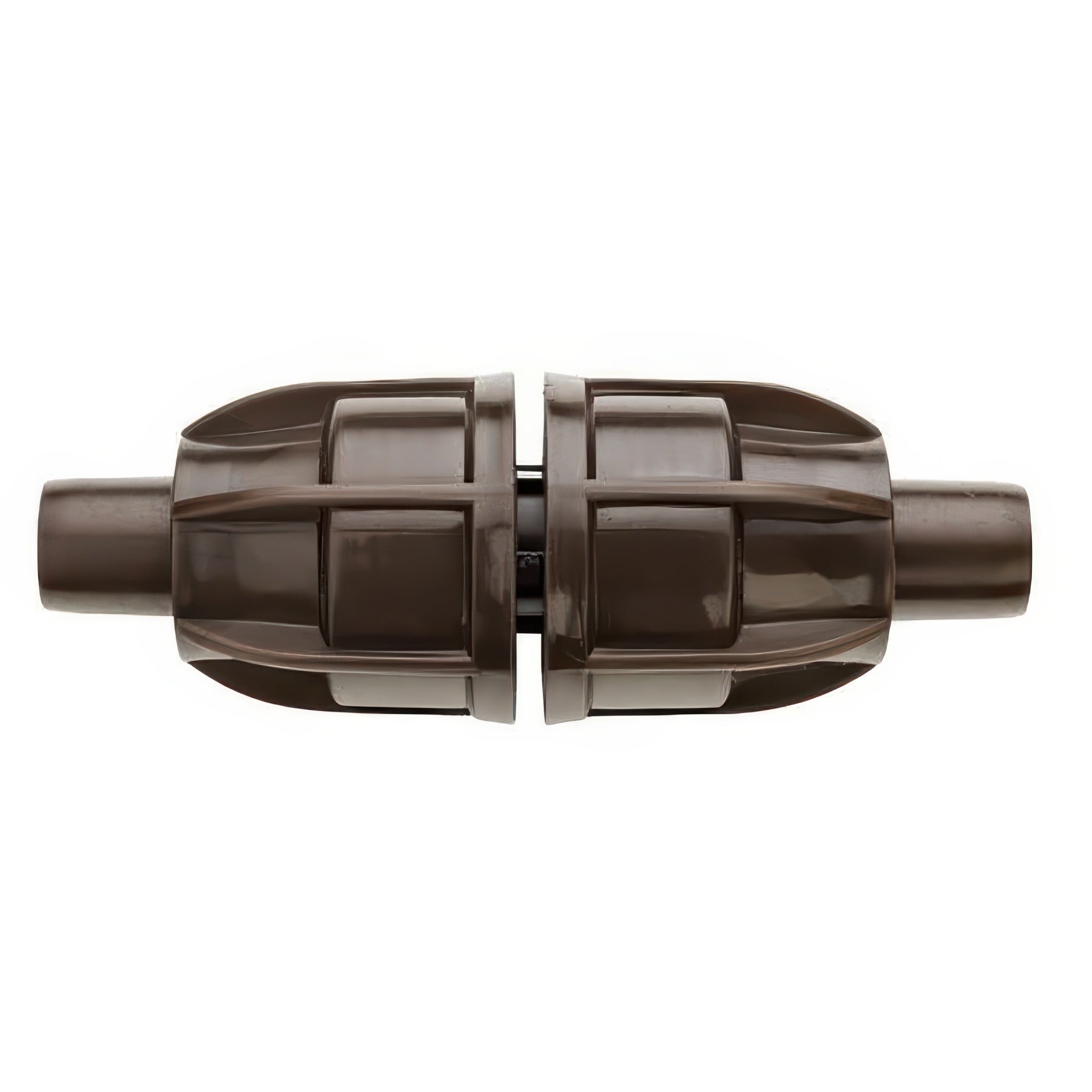

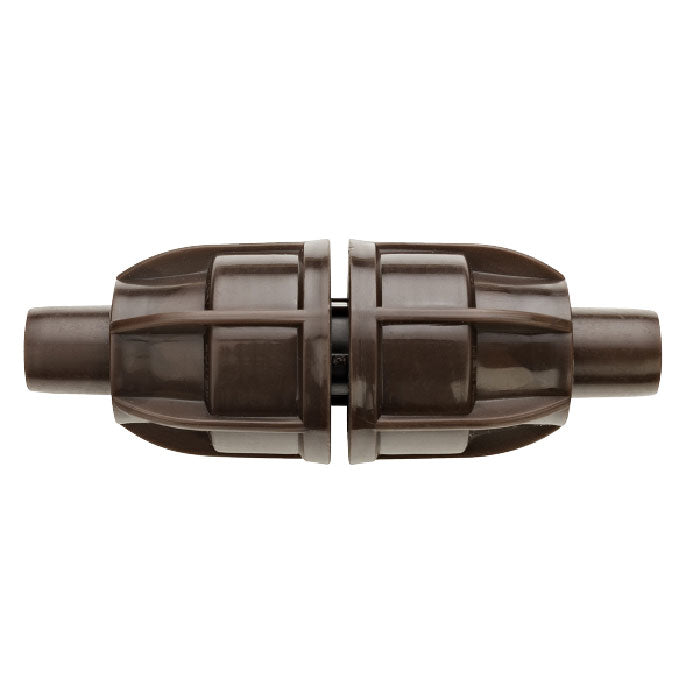

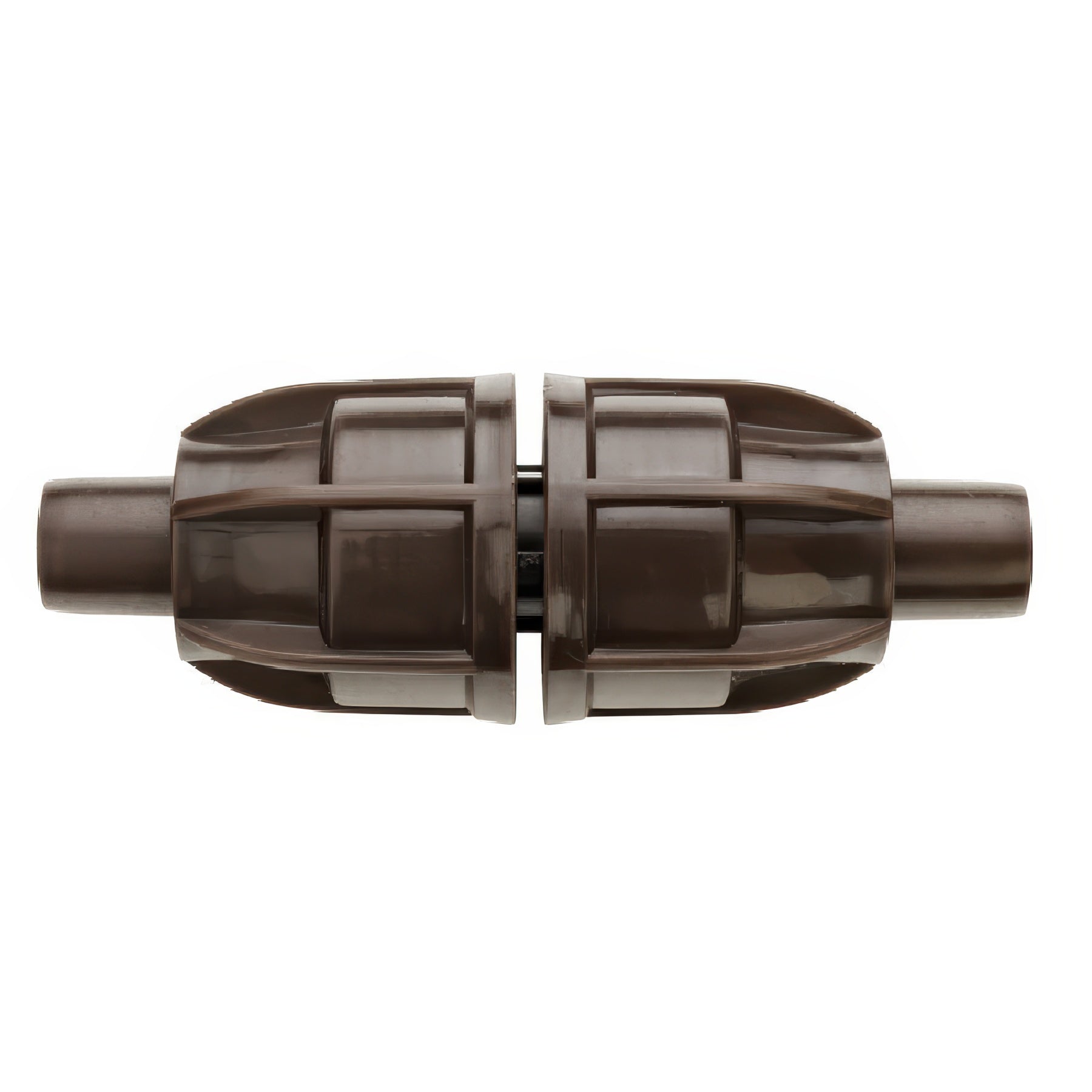

  • TechLock Compression Coupler - joins two sections of 17mm tubing

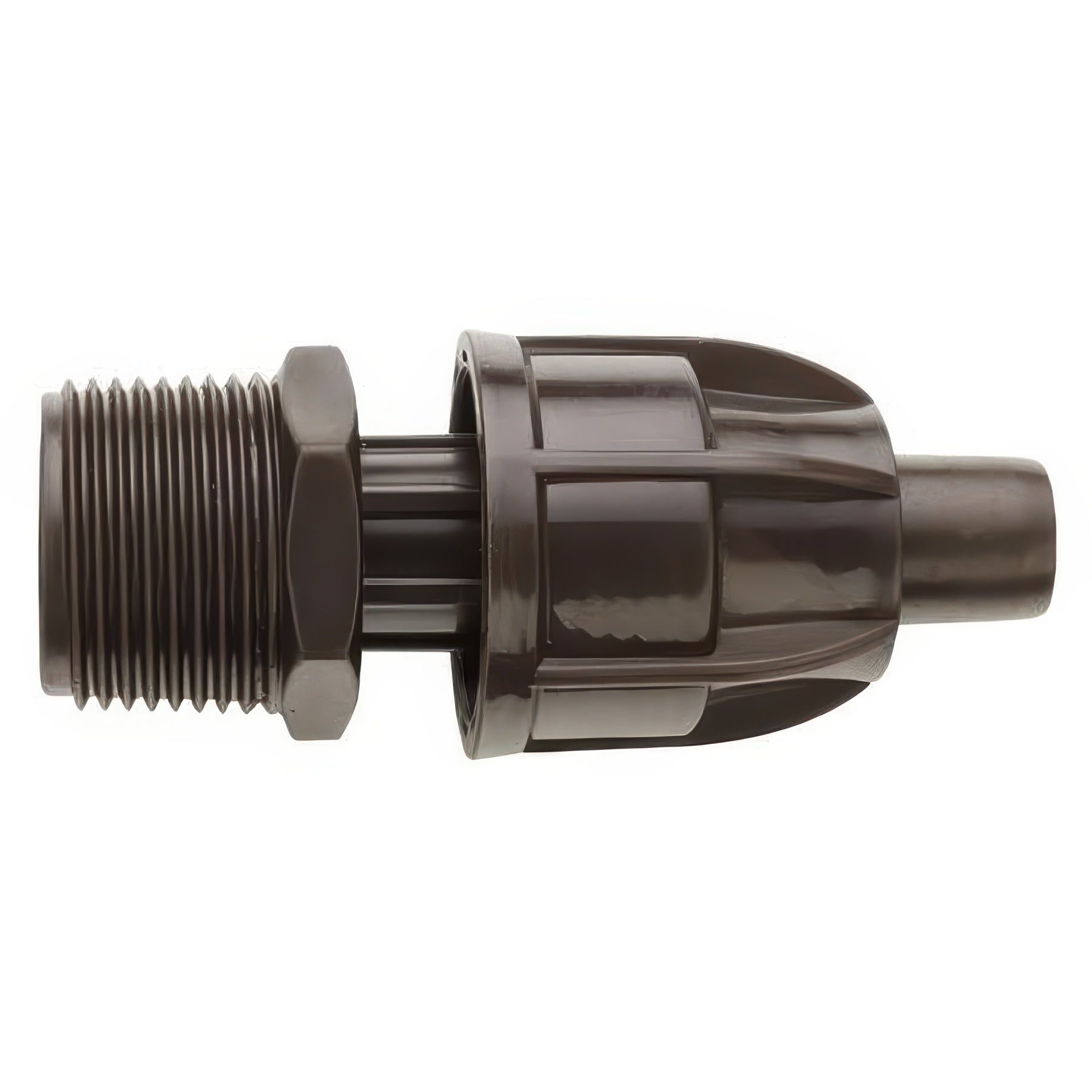

  • TechLock Male Adapter, 3/4" MPT - transitions 17mm dripline to 3/4" threaded connections
