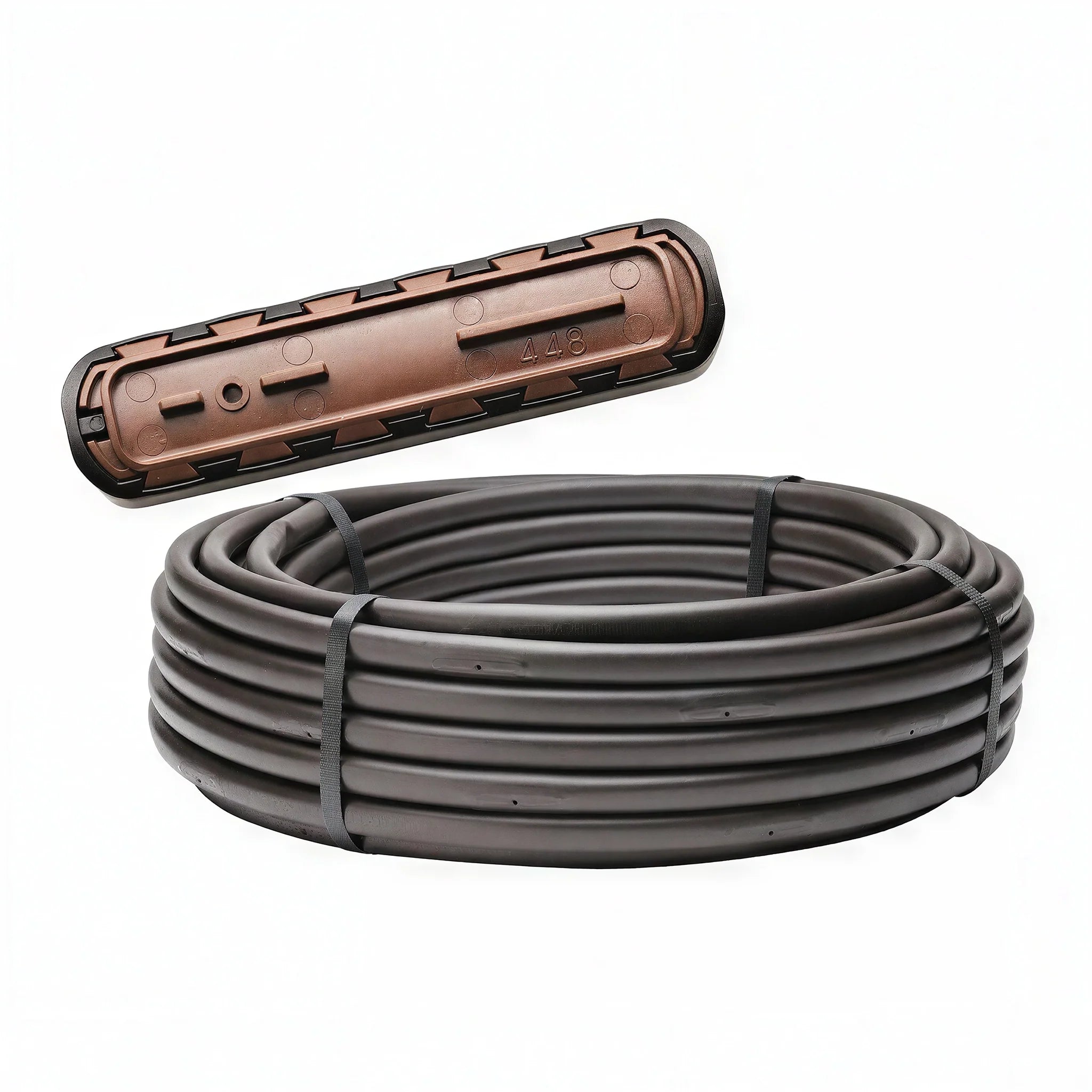

Designed for reclaimed water use, Techline™ HCVXR-RW and RWP combine superior root intrusion protection, an anti-siphon feature and high check valve. All the same features as Techline™ HCVXR dripline and easy to identify purple stripes designating its use with reclaimed (recycled) water. Techline™ HCVXR-RWP is a solid purple color.
HCVXR means High Check Valve
Why Techline™ HCVXR-RW and RWP?
Long Lasting Protection Throughout the Life Of The Dripline Cupron copper oxide will not wash off, wear off and does not leach out of the emitter providing superior root intrusion resistance.
Patented Emitter Design With Physical Root Barrier Offset flow path, extra large bath area and raised outlet prevent root intrusion.
High Check Valve In Each Emitter The high check valve is great on slopes because it holds back 8.5’ of water (elevation change) keeping the dripline charged for even distribution of water with no low emitter drainage.
Product Advantages
Emitter With Anti-Siphon Feature Emitter outlet is sealed at system shutdown blocking debris from entering the dripline after irrigation.
Pressure Compensating With Continuous Self-Flushing Delivers precise, equal amounts of water over wide pressure range while continuously flushing debris throughout operation.
New Color For Easy Identification The dripline has a new color for easy identification as Techline HCVXR-RW.
Four New Emitter Flow Rates Achieve maximum design flexibility with four new emitter flow rates – the most options offered in the industry.
Applications
Reclaimed (recycled) water use
For irrigation with non-potable reclaimed water and soil loading
Specifications
Emitter flows: 0.33, 0.53, 0.77, 1.16 GPH
Emitter spacings: 12” and 18”
Pressure compensation range: 21.8 to 58 psi
High Check Valve: holds back 8.5’ of water
Bending radius: 7”
Maximum recommended system pressure: 58 psi
Minimum pressure required: 21.8 psi
Tubing diameter: 0.66” OD; 0.56” ID, 0.050” wall
HCVXR-RW coil lengths: 500’ and 1,000’
HCVXR-RWP coil lengths: 500′
Recommended minimum filtration: 120 mesh
Diaphragm: molded silicon
ISO 9261 Standard Compliance
Showing details for 12 in. / 0.33 GPH - 1000 ft. Coil - Case of 16. Choose another option above to see its specs.
We don't have a video for this product yet. Questions? Our grow experts are here to help: 888-815-9763.
What is Netafim Techline HCVXR-RW dripline used for?
Netafim Techline HCVXR-RW dripline is designed for reclaimed water use, including non-potable reclaimed water and soil loading. Purple stripes help identify Netafim Techline HCVXR-RW dripline for recycled-water applications.
How does Netafim Techline HCVXR-RW dripline resist root intrusion and debris?
Netafim Techline HCVXR-RW dripline combines Cupron copper oxide, a physical root barrier, and a high check valve for long-lasting root intrusion protection. The emitter outlet also seals at system shutdown to block debris from entering the dripline.
What flow rate and emitter spacing does Netafim Techline HCVXR-RW dripline have?
Netafim Techline HCVXR-RW dripline in the 1,000-foot coil has 0.77 GPH emitter flow and 12-inch emitter spacing. Netafim Techline HCVXR-RW dripline also comes in 0.33, 0.53, and 1.16 GPH with 12-inch or 18-inch spacing.
What tubing size does Netafim Techline HCVXR-RW dripline use?
Netafim Techline HCVXR-RW dripline uses 0.56-inch ID x 0.66-inch OD tubing with a 0.050-inch wall.
Can Netafim Techline HCVXR-RW dripline handle pressure changes and slopes?
Netafim Techline HCVXR-RW dripline is pressure compensating across 21.8 to 58 psi and has a high check valve that holds back 8.5 feet of water. The high check valve helps keep the dripline charged on slopes for even water distribution.
