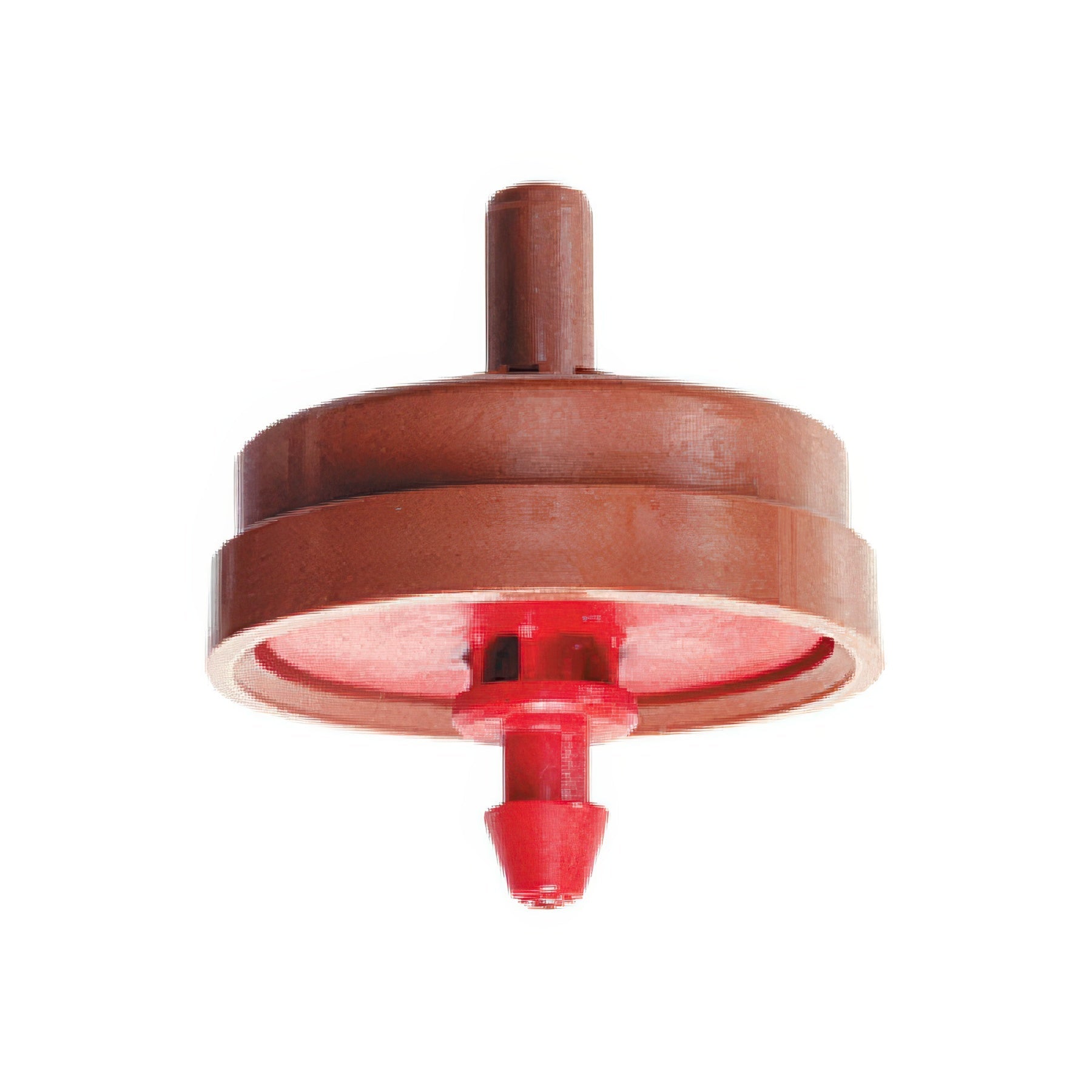

Netafim Techflow Pressure Compensating Emitter with Nipple Outlet

The Netafim Techflow is a compact, pressure-compensating on-line emitter with a nipple outlet for direct connection to micro-tubing or MOD manifold systems. Unlike the Woodpecker Junior which is designed primarily for container drip stake assemblies, the Techflow is optimized for use on driplines or blank poly tubing in applications where consistent delivery across variable topography is required. The internal 2.2 PSI check valve prevents line drainage at shutoff, and the anti-siphon design prevents backflow contamination into the emitter. Flow is uniform from 14.5 - 58 PSI.

Specifications

• Dripper type: Pressure-compensating with internal check valve

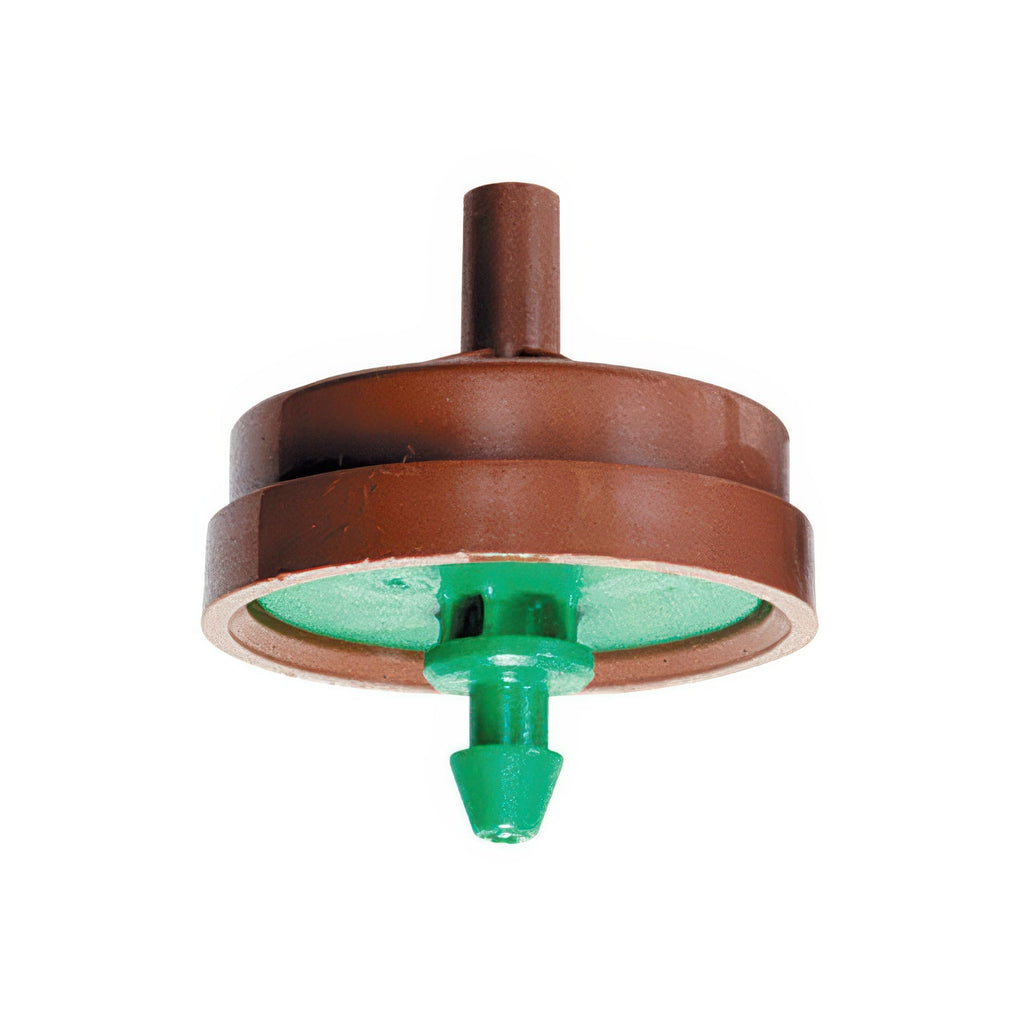

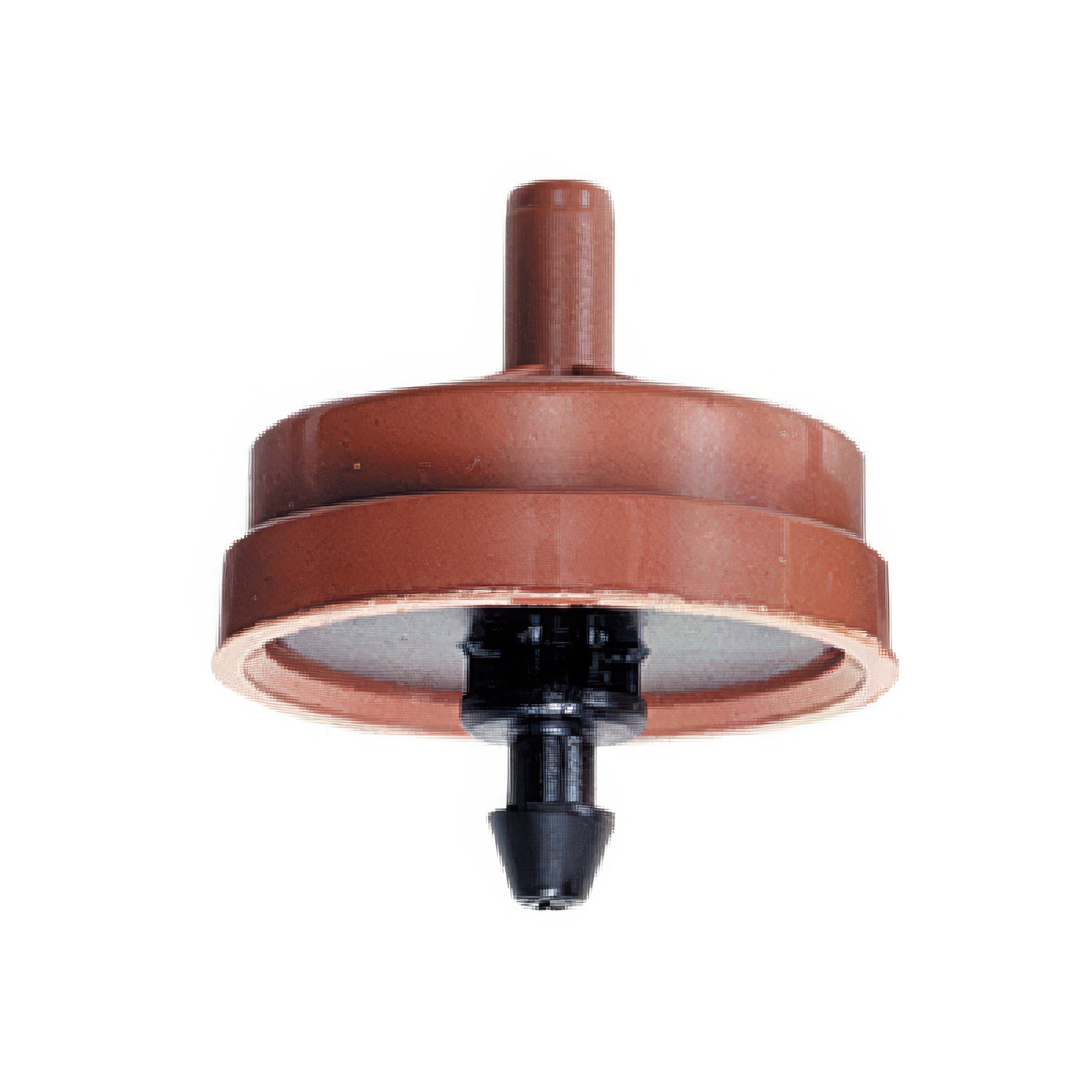

• Available flow rates: 0.53 GPH (Red), 1.06 GPH (Black), 2.0 GPH (Green)
• Operating pressure range: 14.5 - 58 PSI (uniform flow maintained)
• Internal check valve: 2.2 PSI - holds back up to 5 ft column of water
• Anti-siphon: Prevents contaminants from being drawn into emitter
• Outlet: Nipple - for micro-tubing connection or MOD manifold
• Continuous self-cleaning action during operation
• Pack sizes: 25 or 250 per bag

Compatible With

• Netafim 17mm Bright White PE Supply Tubing
• Netafim Arrow Drippers
