Sprinkler, Mister, and Fogger Design GuideSpinNet

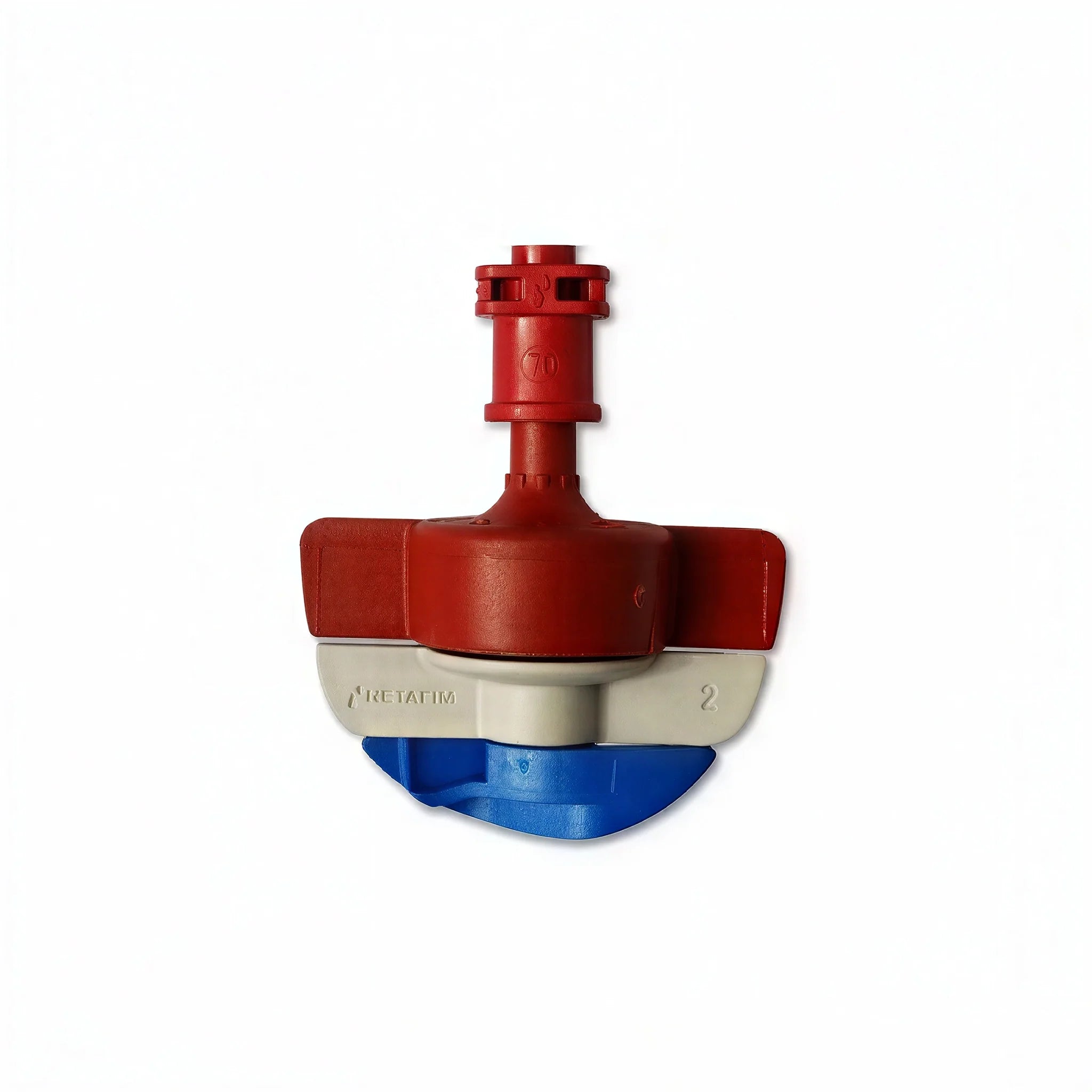

When irrigating upside-down in greenhouses or net-houses or tunnels, SpinNet™ bridgeless micro-sprinklers give you uniform water distribution and no drip-off, for perfectly uniform crop yields.
The Spin Net Head works with the Stabilizer Weight and Super Flex UV White™ PE Tubing.
Why SpinNet™
- HIGH UNIFORMITY AND GERMINATION RATES: The uniform droplets are perfectly sized and distributed to guarantee effective germination.
- AVOID PLANT DAMAGE: Bridge-less design ensures drip-less operation so that any plants located below are protected from water drip-off.
- SELF-CLANING: “Vibration” mechanism prevents build-up of mineral deposits in the nozzle – reducing need for maintenance and repairs.
- HARD-WEARING: Micro-emitters are made from materials resistant to abrasive agrochemicals and harsh weather conditions.
Product Advantages
- SpinNet™ micro-sprinklers are constructed without a "bridge" to retain the spinner, producing a drip-less operation. This means that plants located below the sprinklers are not damaged from water dripping off the sprinkler. SpinNet™ hangs below the supply pipe preventing wetting of the pipe and dripping onto the plants below.
- Interchangeable components. SpinNet™ micro-sprinklers can be disassembled by hand should they need cleaning - no tools are required.
- Acid resistant (AA) raw materials, thus allowing the application chemicals to pass through the system. The system can be cleaned by application of suitable acid treatments.
- Excellent uniformity distribution on a full coverage irrigation system.
- Strongly recommended to connect the SpinNet™ to the distribution pipe with a SSPE (super soft PE) micro-tube, a specifically designed stabilizer and AD valve (anti-drain) that will prevent distribution pipe drainage.
Applications
- Greenhouses, Nurseries, Net-houses.
Specifications
- Bridgeless design.
- Micro-sprinkler, 6 different flow rates: 50, 70, 90, 120, 160, 200 l/h. Nominal flow rates at 2.3 bar pressure.
- Recommended working pressure: 2.0 up to 3.0 bar.
- Recommended filtration : 130 micron / 120 mesh. Filtration method is to be selected based on the kind and concentration of the dirt particles existing in the water. Wherever sand exceeding 2 ppm exists in the water, a Hydro-cyclone filter is to be installed before the main filter. When sand/ silt/ clay solids exceed 100 ppm, pre treatment will be applied according to Netafim™ expert team's instructions.
- Inlet connector: Press fit.
- 3 different rotors: LR - High trajectory, colored Green FLT - Flat distributor, colored Gray SR - Low trajectory , colored Blue
- SpinNet™ micro-sprinklers meet ISO 8026 standards (SI 1406) with production certified by the Israel Standards Institute (SII).
| Brand | Netafim |
|---|---|
| SKU | 64200-032010 |
| Weight (lb.) | 2.0000 |
| Prop 65 | false |
| Lead Time | 3-5 |
| Hazardous Material | false |
| UL Listed | No |
| ETL Listed | No |
| Case/Pack/Pallet Amount | 25 |
| Irrigation Part Type | Sprinkler Head |
What does Netafim SpinNet Sprinkler Head do in a greenhouse irrigation setup?
Netafim SpinNet Sprinkler Head is a bridgeless micro-sprinkler that delivers uniform water distribution with no drip-off. The sprinkler head is designed for upside-down irrigation to support uniform crop yields.
Where can Netafim SpinNet Sprinkler Head be used?
Netafim SpinNet Sprinkler Head is intended for greenhouses, nurseries, net-houses, and tunnels.
What tubing and accessory parts work with Netafim SpinNet Sprinkler Head?
Netafim SpinNet Sprinkler Head works with the Stabilizer Weight and Super Flex UV White PE Tubing.
Can Netafim SpinNet Sprinkler Head be cleaned without tools?
Netafim SpinNet Sprinkler Head can be disassembled by hand for cleaning, and no tools are required. A vibration mechanism helps prevent mineral buildup in the nozzle.
What rotor options are available for Netafim SpinNet Sprinkler Head?
Netafim SpinNet Sprinkler Head has three rotor options, LR for high trajectory in green, FLT for flat distribution in gray, and SR for low trajectory in blue.
