Netafim Product Documents
Netafim Pressure Regulator BrochureNetafim Pressure Regulator
APPLICATIONS
- All irrigation systems
SPECIFICATIONS
- 3/4" Low Flow model: 0.25 to 4.4 GPM
- 3/4” High Flow model: 4.5 to 17.6 GPM
- 1 1/2“ model: 11 to 35 GPM
- Other models available up to 175 GPM
- Maximum operating pressure: 145 psi
FEATURES & BENEFITS
EASY INLINE ASSEMBLY
3/4” low flow model - female inlet/outlet. 3/4” high flow model - female inlet and male outlet.
SEALED REGULATING MODULE
Available on 3/4“ high flow and 1 1/2” pressure regulators
BUILT-IN INDICATOR ON ¾” HIGH FLOW AND LARGER MODELS
Indicates when proper outlet pressure is achieved.
| Brand | Netafim |
|---|---|
| SKU | 30540-000953 |
| Weight (lb.) | 0.2500 |
| Prop 65 | false |
| Lead Time | 5-7 |
| Hazardous Material | false |
| UL Listed | No |
| ETL Listed | No |
| Irrigation Part Type | Pressure Regulators |
| Hardware Diameter | 2 Inch |
What does Netafim Pressure Regulator do in an irrigation system?

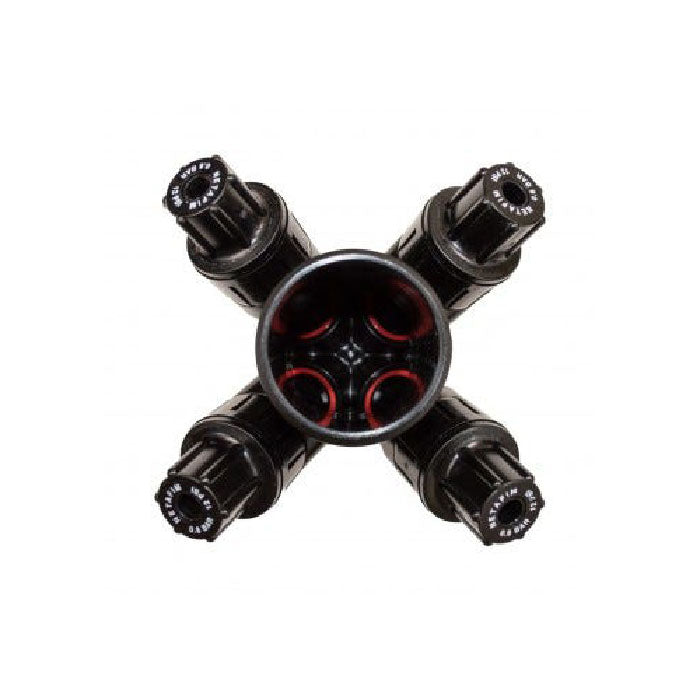

Netafim Pressure Regulator, 2 Inch, 4 springs - 20 psi, regulates pressure for irrigation systems. The product is listed for all irrigation systems.
What irrigation systems can Netafim Pressure Regulator be used with?
Netafim Pressure Regulator, 2 Inch, 4 springs - 20 psi, is listed for all irrigation systems.
Which size and pressure setting does this model use?
Netafim Pressure Regulator, 2 Inch, 4 springs - 20 psi, is a 2-inch pressure regulator with a 20 psi setting.
Which other Netafim pressure regulator versions are listed for different flow rates?
Netafim Pressure Regulator is also listed in a 3/4-inch low flow model for 0.25 to 4.4 GPM, a 3/4-inch high flow model for 4.5 to 17.6 GPM, a 1 1/2-inch model for 11 to 35 GPM, and other models up to 175 GPM.
What inlet and outlet connections are listed on the smaller inline models?
Netafim Pressure Regulator has easy inline assembly. The 3/4-inch low flow model has a female inlet and female outlet, and the 3/4-inch high flow model has a female inlet and male outlet.
