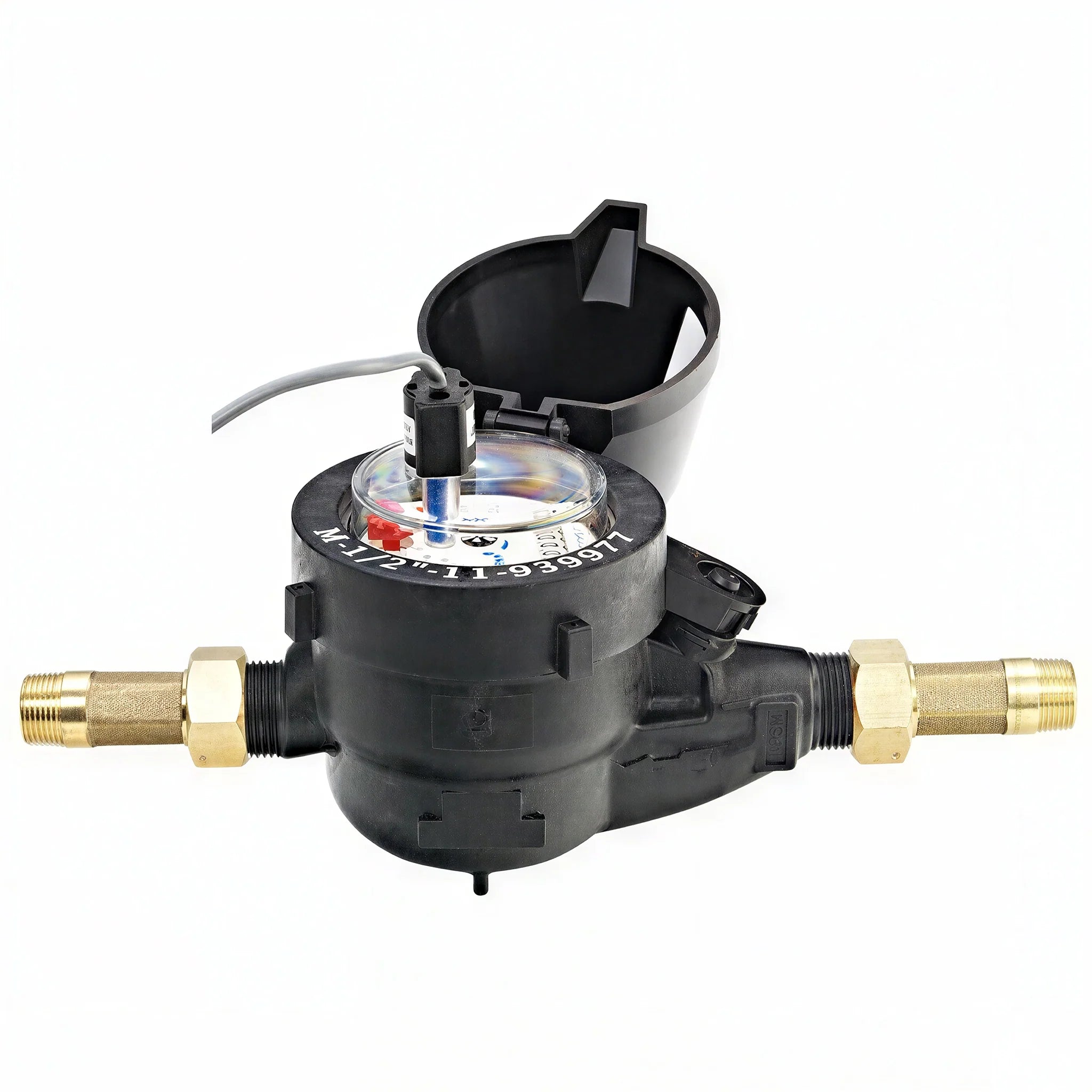

Netafim Plastic M Water Meter, 3/4 Inch, 1.0 Gallons Per Pulse, Reed Switch Register (WM-075-1.0-RS-P)

M Water Meters are the industry’s smallest water meters. They offer the best cost, performance and long life. The M utilizes the multi-jet principle assuring an equally distributed load on the impeller minimizing wear and maintaining accuracy. Wide clearances in the measuring chamber and negligible area of contact between static and moving parts are the main reasons for the high reliability of this design even in hard water. Available in 3/4", 1"

Features & Benefits

• Industry’s smallest water meters provide ±2% accuracy over a wide range of flows.
• Magnetically driven sealed registers are stainless steel encapsulated and guaranteed not to accumulate moisture or fog.
• 'M' Water Meters utilize the multi-jet principle assuring an equally distributed load on the impeller minimizing wear and maintaining accuracy.
• 'M' Water Meters have only one moving part, the impeller, is in contact with the water for minimum wear and the utmost reliability.

Applications

For main supply lines in agriculture and landscape applications

Specifications

• Plastic Body Sizes: 3/4" and 1"
• Maximum Working Pressure: 140 psi
• Maximum Liquid Temperature: 122°F
• Body Material: Polypropylene (plastic)
• Connections: Male Pipe Thread
• Register Options: Reed Switch, Photo Diode or ER Digital
• Reed Switch Register Pulse Outputs: 0.1 or 1.0
• Photo Diode Register Pulse Outputs: 0.0015, 0.0021 or 0.0074
• ER Register Pulse Outputs: Gallons – .1, 1, 10, 100, 1000; Acre Feet – .0001, .001, .01, .1
• Straight Pipe Installation Requirement: None
