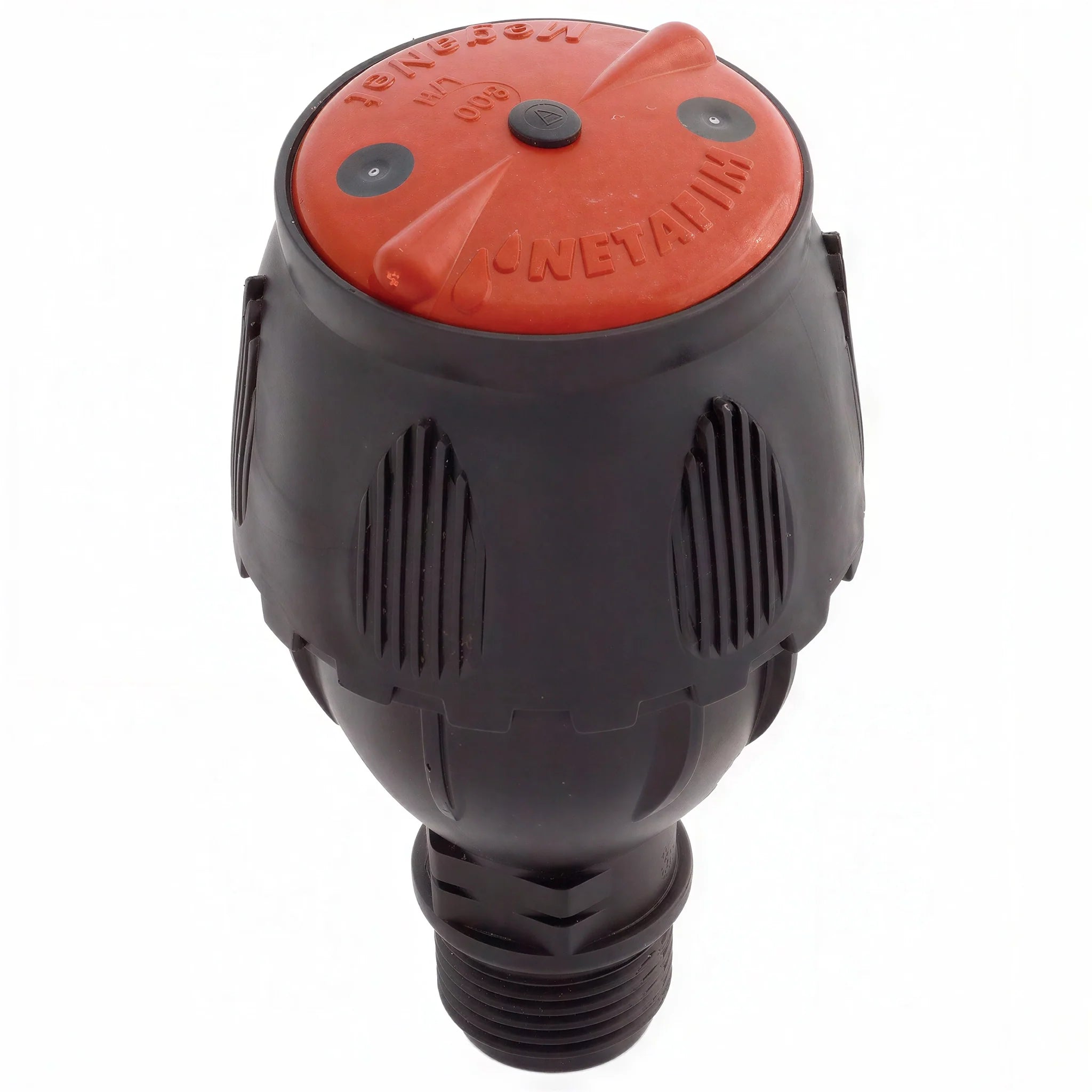

Netafim Meganet Sprinkler Spec. SheetMegaNet™ 15D/24D
Unique encapsulated and protected impact sprinkler with either a low or high water trajectory angle - 15 or 24 degrees, for field crops and under canopy irrigation or vegetable irrigation.
Benefits & Features
- Uniform wetting & higher yield
- Anti-Clogging
- Insect protected
- Increased germination percentage
- Reduced labor cost and reduced maintenance
Specifications & Recommendations
- Unique impact sprinkler with low trajectory angle for full coverage installation with spacing up to 10X12 meters
- 7 different flow rates: 200, 250, 350, 450, 550, 650, 750 L/H
- Nominal flow rate at: 2.3 bar
- Recommended pressure range: 2.0 - 3.0 b bar
- Water Trajectory angle: 15/24 Degrees
- Nozzle Protection:
- Integral filter at the inlet of the sprinkler
- Pop up mechanism: For insect penetration protection
- Water distribution using a special rotating turbine and two identical symmetrical nozzles
- 3 types of inlet connectors:
- 1 ⁄2” male threaded
- 20 MM ISO inlet connector (to be glued to PVC)
- 1⁄2" ASTM inlet connector (to be glued to PVC)
- 2 body types:
- Standard
- Anti Darin valve
- Color coded for easy identification:
- Cap is color coded according to the flow rate
- Locking pin for 15D model is white, for 24D locking pin is black
- Made of UV-protected materials, durable to all climate conditions and nutrients injected in agricultural applications
- MegaNet™ sprinklers meet ISO 8026 standards (SI 1406) with production certified by the Israel Standards Institute (SII)
- Recommended filtration*: 400 micron / 40 mesh
| Brand | Netafim |
|---|---|
| SKU | 63600-004950 |
| Weight (lb.) | 0.1250 |
| Prop 65 | false |
| Lead Time | This product ships in 3-4 weeks |
| Hazardous Material | false |
| UL Listed | No |
| ETL Listed | No |
| Irrigation Part Type | Sprinkler Head |
