Netafim LP- Disc-Kleen Filter Spec SheetLOW PRESSURE AUTOMATIC DISC-KLEEN FILTERS
Up to 15% Energy Saving

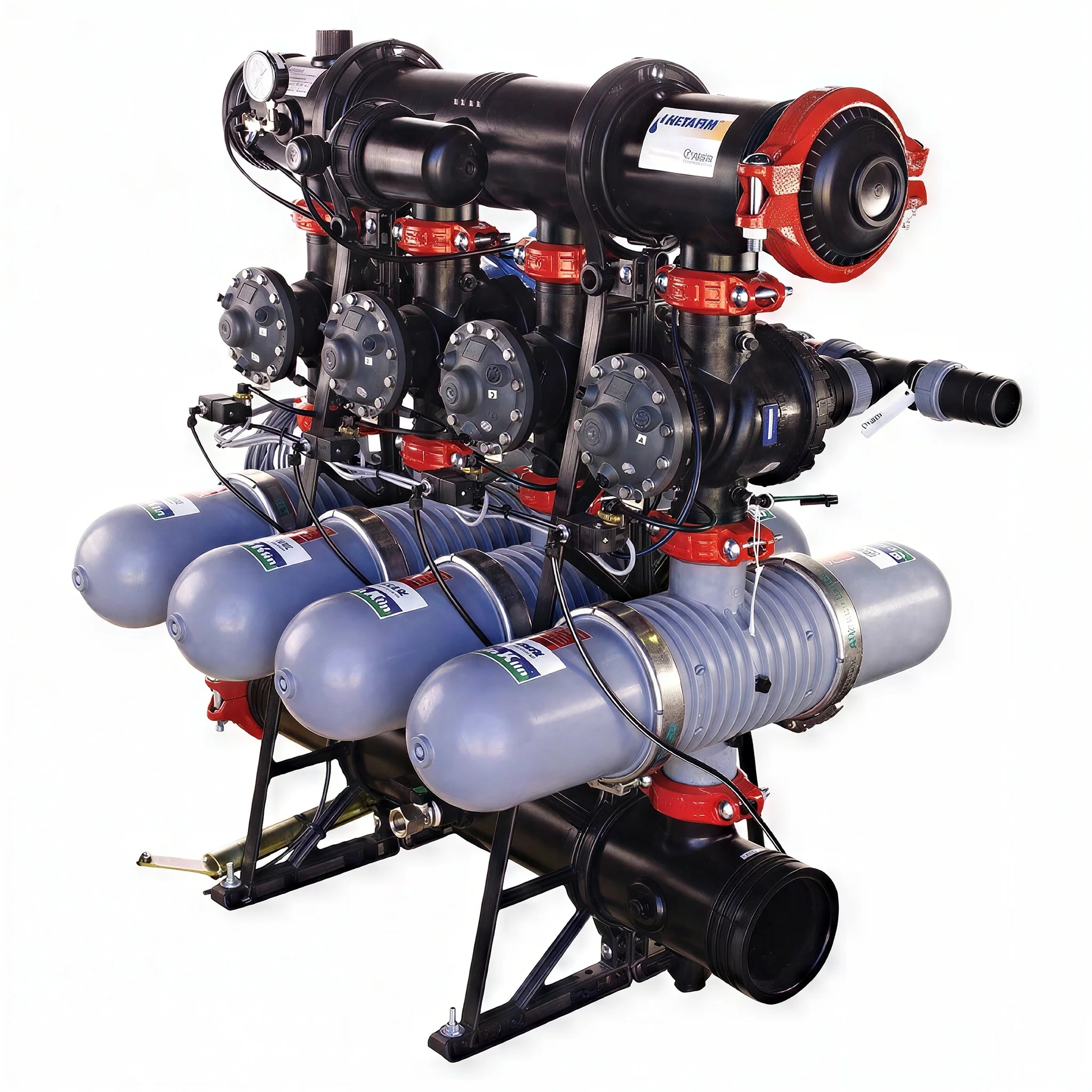

Netafim LP Disc-Kleen Filters are fully automatic filters. The newly redesigned filter spine allows flushing at lower pressure thus reducing energy costs, the need of an oversized the pump, and the need for a pressure sustaining valve. All this saves money. The filters now have a grey colored body and cover for easy identification. Netafim's proven depth filtration technology optimizes irrigation and saves water. The small footprint requires less space and units are factory assembled and tested making installation quick and easy. Applications include surface water containing algae and other organic materials such as reservoirs, canals, rivers and wastewater and well water containing light sand (<3 ppm) and other contaminants
LOW PRESSURE-SPINE ALLOWS FILTER FLUSHING AT 30 PSI
Netafim Automatic Disc-Kleens have been used successfully and reliably for many years. Our advanced disc filtration technology optimizes irrigation and saves water. With a redesigned filter spine, the Low Pressure (LP) Automatic Disc Filters can now flush at a lower pressure - 30 psi instead of 40 psi.
SAVE MONEY ON ENERGY COSTS
A lower flushing pressure reduces energy costs which can result in up to 15% energy savings.
SAVE MONEY BY REDUCING PUMP SIZE
A lower flushing pressure reduces the need to oversize the pump for adequate flushing and reduces the need for a Pressure Sustaining Valve - saving money
HIGHER CROP UNIFORMITY
A lower flushing pressure maintains water flow to the field during the flushing cycle ensuring higher crop uniformity.
PRODUCT ADVANTAGES
- Proven depth filtration filters through the entire depth of the disc ring, not just the surface.
- Non-corrosive, UV protected polypropylene materials resist rust and corrosion from chemicals and weather.
- Factory assembled and tested for a quick and easy water in/water out installation.
- Small footprint saves valuable space
- Less backflush time optimizes overall irrigation application of water.
FEATURES
- 3" LP Disc-Kleen Filter Inlet Manifold Located on Top and Outlet Manifold on Bottom of the Filter for Ease of Installation
- 3" Plastic Backflush Valve for 3" LP Disc-Kleen Filters with Lower Headloss
- Grey Colored Polypropylene Body and Filter Cover for Easy Identification
| Brand | Netafim |
|---|---|
| SKU | 70610-022100 |
| Weight (lb.) | 220.0000 |
| Prop 65 | false |
| Width (in.) | |
| Height (in.) | |
| Lead Time | This product ships in 1-2 weeks |
| Length (in.) | |
| Hazardous Material | false |
| UL Listed | No |
| ETL Listed | No |
| Shipping Restrictions | AK, HI |
| Irrigation Part Type | Disc Filter |
| Hardware Diameter | 2 Inch |
