Netafim Product Documents

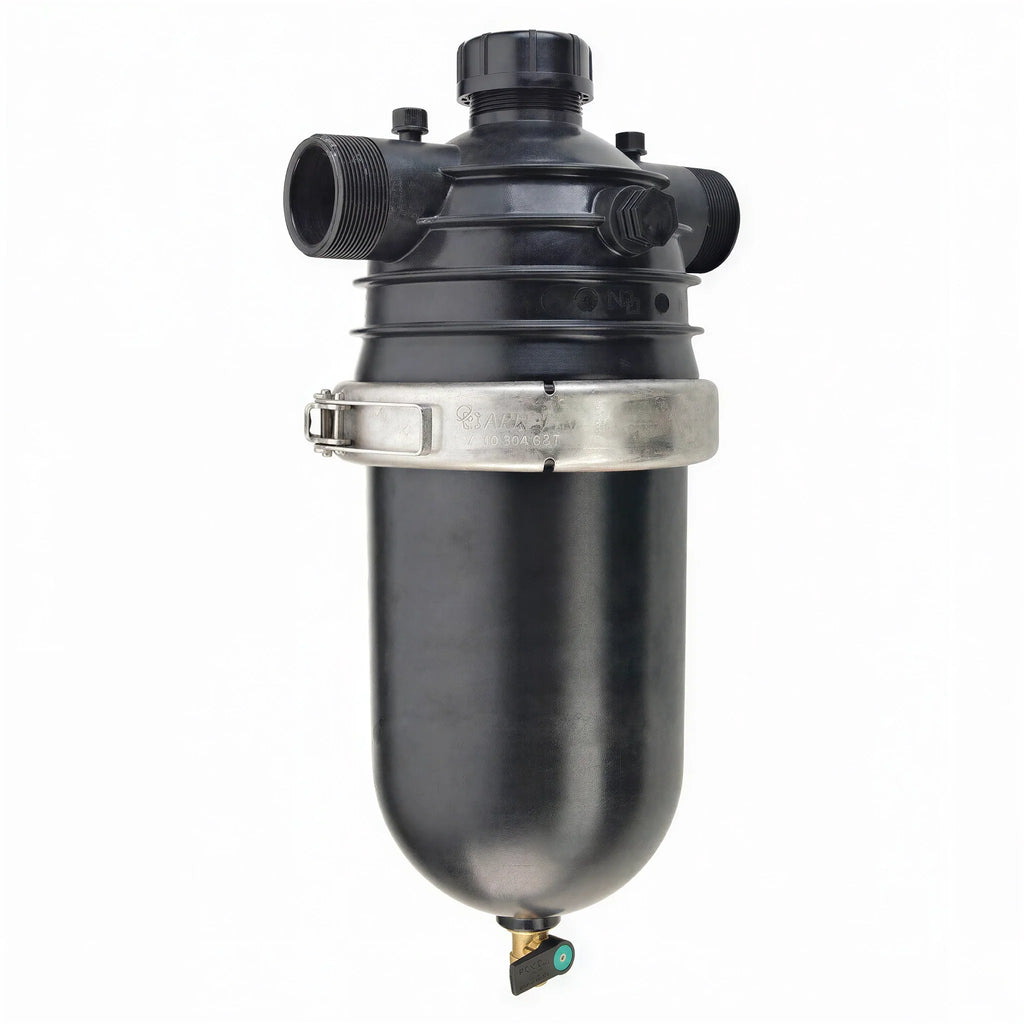

Netafim Landscape Manual Disc Filter Spec SheetA full selection of highly efficient manual disc filters to clean any water source. Netafim disc filters collect debris along the depth of the discs, not just at the surface like screen filters. The disc helps filtration with calcium buildup.
Plastic rings stack together creating a cylindrical filter element. During filtration, the rings are compressed together effectively filtering the water and protecting the system from clogging. Works well as a stand-alone unit or combined to form modular filter batteries.
Applications
- Residential
- Commercial
- Municipal
- Institutional
Features & Benefits
- 100% Thermoplastic Discs: Corrosion resistant. Disc screens prevent elements from collapsing.
- Replacement Filter Rings Available: Color-coded for easy mesh identification.
- Extra Large Filtration Capacity: Requires less cleaning.
Disc Filter Technology
Grooves in the disc rings crisscross to form a network that traps debris between and on the outside of the discs.
How It Works
As dirty water is pumped into the filter, and pressure increases, the water compresses the disc rings together tightly. The water is then forced to flow through the grooves of the disc rings, where debris is trapped, releasing only clean water to the irrigation system.
Specifications
-
Max Pressure:
- ¾", 1", 1½": 140 psi
- 2” Dual Lite: 115 psi
- 2” Dual HP: 174 psi
-
Flow Range:
- ¾" - 1 to 17 GPM
- 1" - 5 to 26 GPM
- 1½" - 10 to 35 GPM
- 1½" Long - 10 to 52 GPM
- 2” Dual Lite - 40 to 110 GPM
- 2” Dual HP - 40 to 120 GPM
-
Materials:
- Filter body and cover: reinforced polyamide
- Disc rings: polypropylene
- O-Rings: EPDM rubber
- Clamps: stainless steel
| Brand | Netafim |
|---|---|
| SKU | 00135-000220 |
| Weight (lb.) | 10.0000 |
| Prop 65 | false |
| Lead Time | 2-3 |
| Hazardous Material | false |
| UPC | 3661734841733 |
| UL Listed | No |
| ETL Listed | No |
| Irrigation Part Type | Disc Filter |
| Mesh | 200 Mesh |
What does Netafim Dual HP Manual Disc Filter do in an irrigation system?
Netafim Dual HP Manual Disc Filter, 2 Inch, 200 Mesh, removes debris from water before water reaches the irrigation system. Disc filtration traps debris along the depth of the discs and helps with calcium buildup.
What mesh rating does Netafim Dual HP Manual Disc Filter use?
Netafim Dual HP Manual Disc Filter uses a 200 mesh disc filter rating.
Can Netafim Dual HP Manual Disc Filter be used alone or in a modular battery setup?
Netafim Dual HP Manual Disc Filter works as a stand-alone unit or combined to form modular filter batteries.
Where can Netafim Dual HP Manual Disc Filter be used?
Netafim Dual HP Manual Disc Filter is designed to clean any water source and is listed for residential, commercial, municipal, and institutional applications.
What pressure and flow range fit Netafim Dual HP Manual Disc Filter, 2 Inch?
Netafim Dual HP Manual Disc Filter, 2 Inch Dual HP, has a maximum pressure of 174 psi and a flow range of 40 to 120 GPM.
What materials are used in Netafim Dual HP Manual Disc Filter?
Netafim Dual HP Manual Disc Filter uses a reinforced polyamide body and cover, polypropylene disc rings, EPDM rubber O-rings, and stainless steel clamps.
