Mobius Infeed & Outfeed Conveyor Spec SheetFlexible conveyor solutions for increased automation

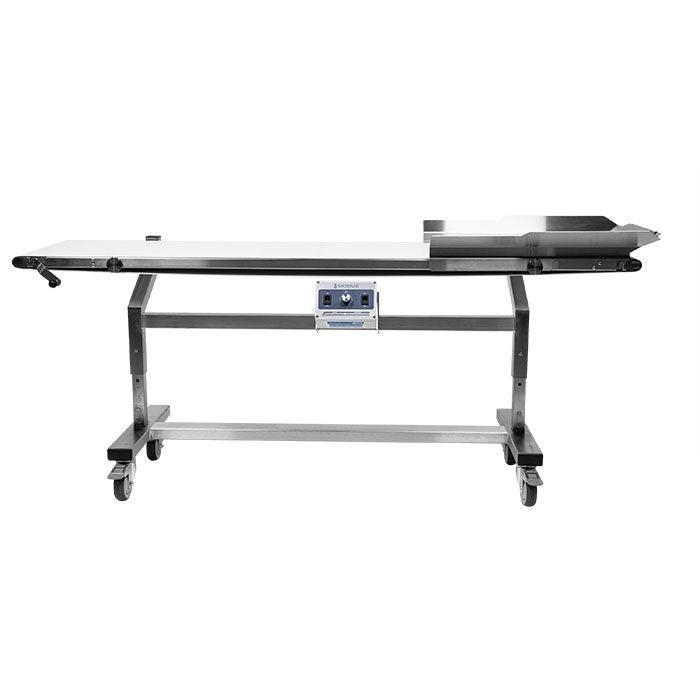

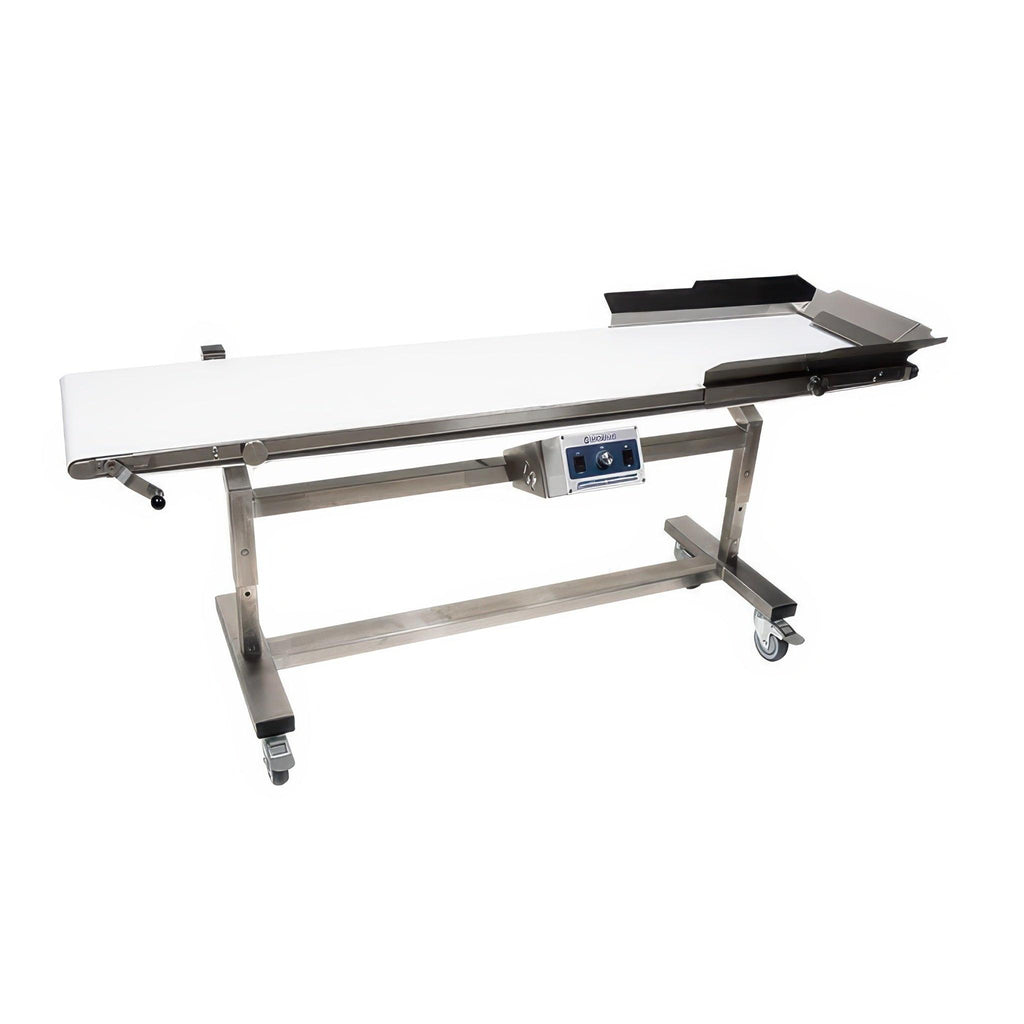

Mobius Outfeed Conveyor Package
Automation is the key to consistent, top-quality processed flower.
The best way to consistently feed your M108S Trimmer or seamlessly move plant material to the next stage of processing is our Mobius conveyor solutions.
Full automation means less people are required to processes your harvest, reducing processing costs, the potential for product contamination, and the uncertainty associated with seasonal or temporary workers.
Mobius has several flexible conveyor options to help you achieve full automation, including our M108S infeed conveyor equipped with our custom conveyor guide for a consistently filled trimmer, to both smooth or stepped trimming and bucking outfeed conveyors.
All Mobius conveyor solutions are customized to our equipment to ensure quick and easy set-up and cost-effective output.
Here is an exmaple of 2 Mobius Trimming Machines being used in tandem with both in Mobius Outfeed Converyor as well as the Mobius Infeed Conveyor . Both conveyors packages working together will provide the most efficient throughput possible.
Specifications for Mobius Outfeed Conveyor
| Wet / Dry Capable | Yes |
|---|---|
| Construction | 304 Stainless Steel and Delrin |
| Belt Material | Fully-encased Polyurethane |
| Speed Adjustments | 1-11 |
| Belt Length | 71" |
| Belt Width | 16" |
| Motor | 1/10 HP |
| Power Requirements | 120 V, 15 A |
|---|---|
| Tools | 1/2” wrench, 5/16” Allan key |
| Fits through 32” door? | Yes |
| Length | 79" |
| Height | 26" |
| Width | 23.5" |
| Weight | 126 lbs |
| Brand | Mobius |
|---|---|
| SKU | 14-00-004002U |
| Weight (lb.) | 205.0000 |
| Prop 65 | false |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 1 year |
| Lead Time | This product ships in 1-2 Business Days |
| Hazardous Material | false |
| ETL Listed | No |
| UL Listed | No |
