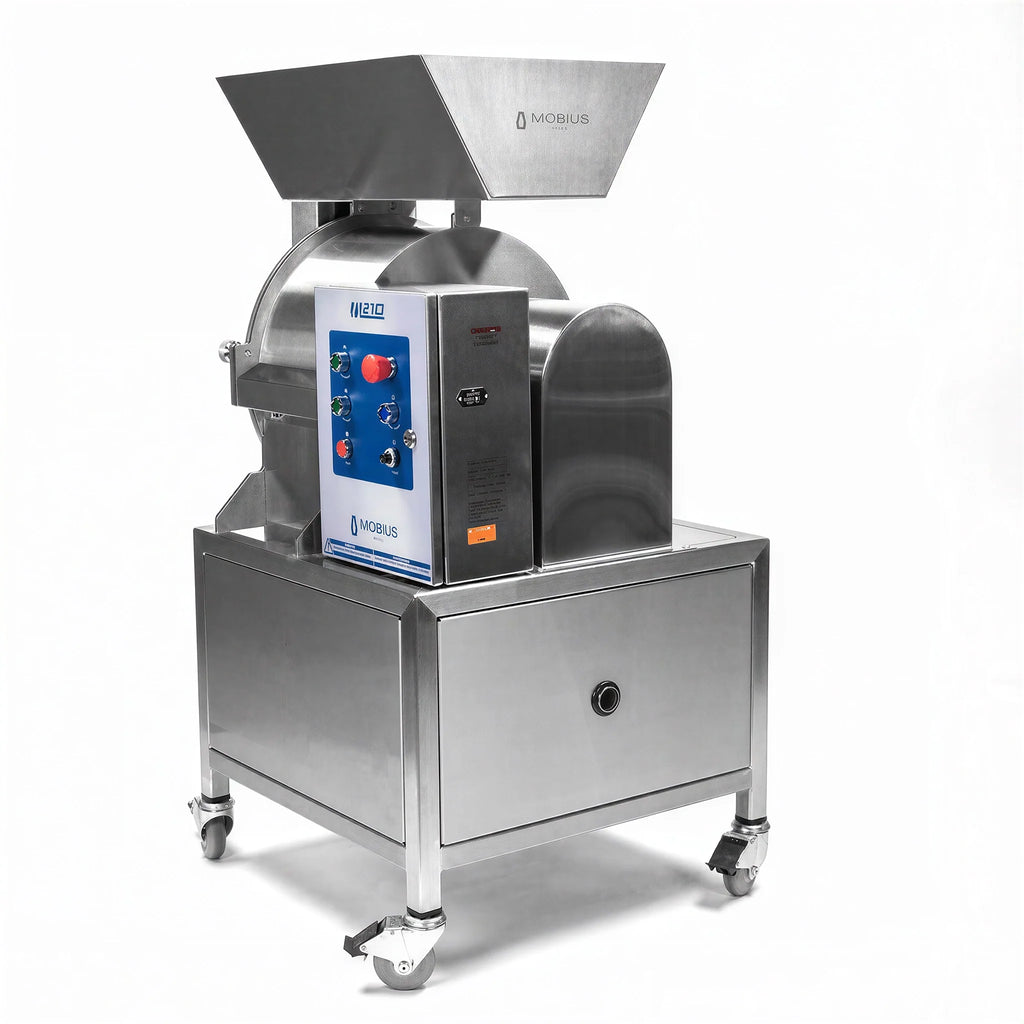

Precision Milled Flower for Extracts and Ground Product
It slices, it dices. The Mobius M210 is a continuous throughput mill that delivers fine and consistent plant material for cost effective oil extraction or beautiful ground product.
Add dry flower and trim of any size to the all-stainless steel construction and the M210 will produce a perfect, consistent grind with minimal powder. The unit has several screen options to customize output ranging from coarse-to-fine. The all stainless-steel construction is easy to clean and ready for GMP facilities. Milled plant material can be caught in the included tote or an optional conveyor for fully automated workflows.
Key Features
- 110 lbs per hour dry
- 5 screen options ranging from coarse to fine output
- Quality stainless construction
- Indoor non-marking castors for easy positioning
- GMP compliant
- Ergonomic design for perpetual operation
- Easy to clean
- Safety-first design
The Mobius M210 Mill is equipped from the factory with a dust collection port. Connect a vacuum or dust collection system to your milling machine to minimize the airborne dust generated. The dust collection port does not affect the machine operation or throughput
What comes in the box?
- Mobius M210 Mill
- Rotor
- 3 Milling Screens*
- Product Hopper
- Product Tote
The Mobius M210 is a continuous throughput mill with several screen options to customize output ranging from coarse to fine. There are 5 total screen options to choose from for the Mobius 210, 3 of which are included with each unit.
*Coarse blending screen (1/4"), medium milling screen (1/8"), and ultra-fine rasp screen (1/16") included
Features & Benefits of the Mobius 210 Mill
Perfect Extracts
& Ground Products
Supercritical Fluid Extraction produces the best product when the extraction vessel has an appropriately high packing density. Low packing density is typically the result of irregularly shaped plant material, resulting in slower and more costly extraction and inconsistent product quality. Milling plant material to a uniform size using the Mobius M210 makes extraction more efficient and leads to higher-quality oils. Product destined for ground consumption is consistently beautiful.
Safety-First Design
The glove-friendly control panel with emergency stop is conveniently positioned at the front of the device within easy reach of the operator. Controls include variable speed, reset, forward, and reverse. The M210 is CSA compliant for guarding and has a safety interlock on the access door.
Designed With Automation In Mind
The Mobius M210 Mill can easily accommodate fully-automated workflows. The input hopper was designed to be fed by hand or conveyor. Consistently trimmed output with minimal powder can be collected in the included trim tote or caught by conveyor for automated packaging.
Easy to Clean
& GMP Ready
The 304 stainless-steel construction with smooth internal surfaces and easy disassembly makes for fast cleaning and perfect integration with GMP certified facilities.
Good Manufacturing Practices, commonly referred to as GMP, are an internationally harmonized set of standards that ensure manufacturing facilities are clean, and produce products for human consumption that are both consistent and free from cross contamination.
5 Different Milling Screens
The Coarse Blending Screen 1/4", Medium Milling Screen 1/8", and Ultra Fine Rasp 1/16" are included with each Mobius M210 Mill. The following screens are also available.
The chart below outlines the specifications and intended use for each screen, though the Mill operates very differently depending on the strain and moisture. Some customers may use different screens on different stains for the same process.
Specifications for the Mobius 210 Mill
| Construction | 304 Stainless Steel |
|---|---|
| Speed Adjustment | 1-10 |
| Number of Screens | 5 |
| Feed Motor | 1/2 HP |
| Power Requirements | 120 Volts - 10 Amps |
| Tool-Less Disassembly | Yes |
| Fits through a 32" door | Yes |
| Number of Milling Blades | 6 |
|---|---|
| Width | 28" |
| Length | 28" |
| Height | 52" |
| Weight | 265 lbs. |
| Warranty | 1 Year |
| Certifications | ESA Certifuication |
| Brand | Mobius |
|---|---|
| SKU | MOBIUS-MILL-M210 |
| Weight (lb.) | 525.0000 |
| Prop 65 | false |
| Height (in.) | |
| Width (in.) | |
| Length (in.) | |
| Warranty | 1 Year |
| Lead Time | This product ships in 1-2 Business Days |
| Hazardous Material | false |
| Grinder Throughput | 35-200 lbs./hr. |
| Voltage | |
| GMP Compliant | Yes |
| UL Listed | Yes |
| ETL Listed | Yes |
