Mars Hydro FC Series User ManualFC Series LED Grow Lights with Samsung LM301H EVO Diodes
The FC 1000W is a 1000-watt smart LED grow light installed with Samsung LM301H EVO chips and APP remote control, built for high PPFD cultivation (such as highly concentrated CO2 grows). It provides the most powerful lighting energy with a whopping PPF of 2,885 umol/s and an average PPFD of 1,900 μmol/m²/s. It’s also scalable to be configured into a potent 4x4 LED grow light for enhancing flowering, or into a 4x6 ft grow light for 6-ft-wide rolling tables.
- Wattage -1000W±5%@AC240V, 900W±5%@AC120V
- Veg Coverage - 5x5 ft
- Flower Coverage - 4x4 ft
Features & Benefits of the FC1000W LED Grow Light
The FC Series LED grow lighting solutions feature horticulture-optimized Samsung LM301H EVO chips with a uniform layout and full spectrum lighting to provide equal and high PPFD across the canopy and energy-efficient performance, producing indoor plants of uniform and consistent quality for grow rooms and vertical farms to achieve year-round bountiful harvests.

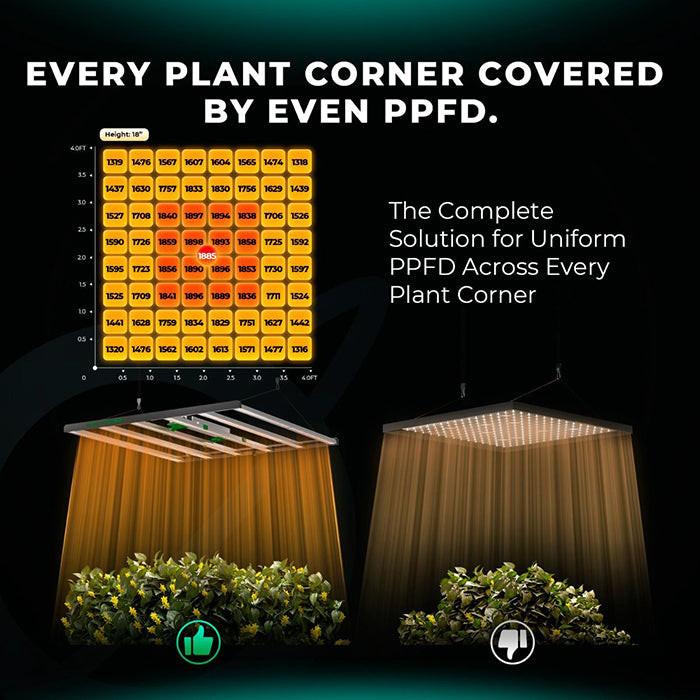

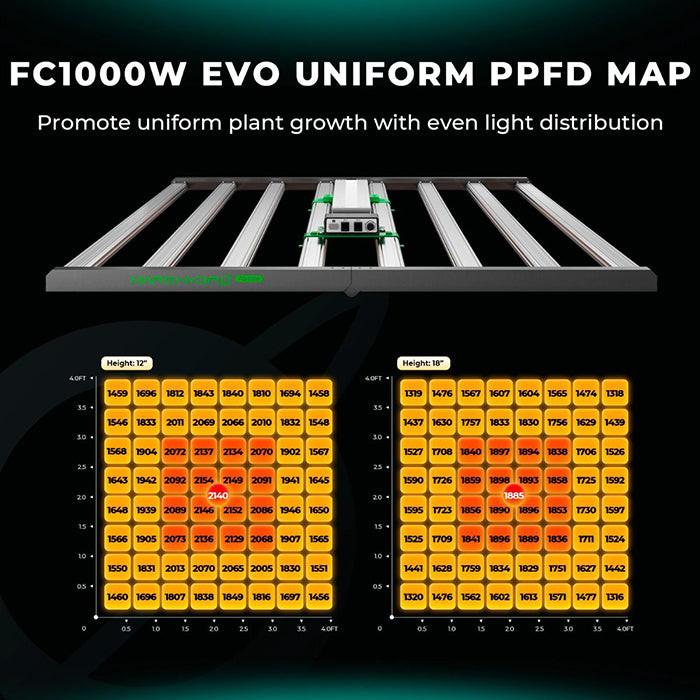

- Uniform PPFD
- Fast Heat Dissipation
- Efficient Samsung LM301H EVO Chips
- Daisy Chain Dimming Feature
Powered By Samsung LM301H EVO Diodes
The Mars Hydro FC 1000W 1000W LED Grow Light is built with high-performance Samsung LM301H EVO chips for scientifically precise light and quality-assured longevity, resulting in a high efficiency of 2.9 μmol/j in PPE, a high PPF of 2885 μmol/S, and a long-lasting color rendering capability that provides sufficient and consistent light energy to indoor plants.

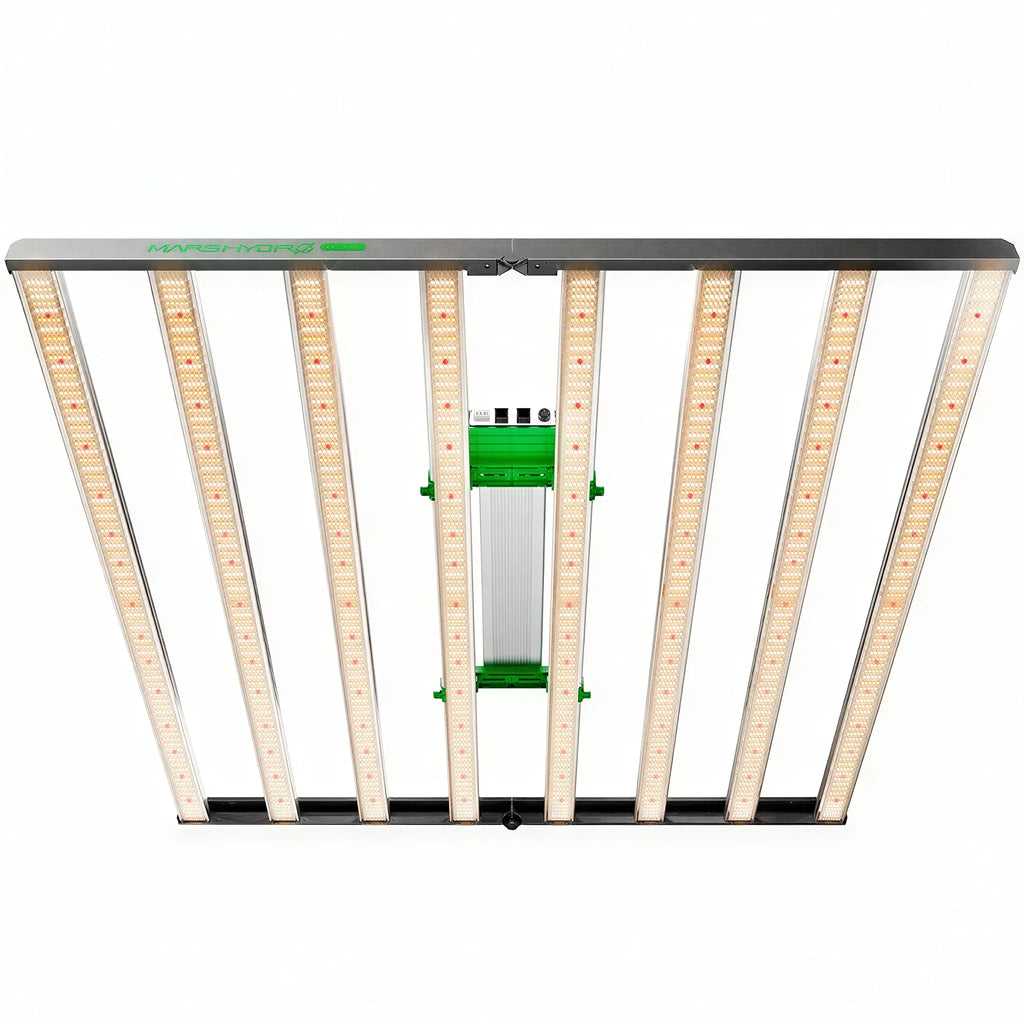

Potent 4x4 Flowering Light
In its general form, the FC 1000W has 10 light bars arranged on 2 support bars to provide excellent and powerful energy (1,500~1,900 μmol/m²/s PPFD) for a 4x4 ft area, ideal for cultivation during the blooming period or for cultivation supplemented by highly-concentrated CO2.
Scalable To 4x6 Ft Coverage
The scalable flexibility of FC 1000W allows for customization. 2 extended support bars (1.8' long) can be connected to the light to stretch the lighting coverage to 4x6 ft while still providing exceptional PPFD (1,000~1,300 μmol/m²/s PPFD), which is dedicated for commercial grow racks of 4-ft-wide or 6-ft-wide, and especially ideal for the 4x6 ft rolling benches.

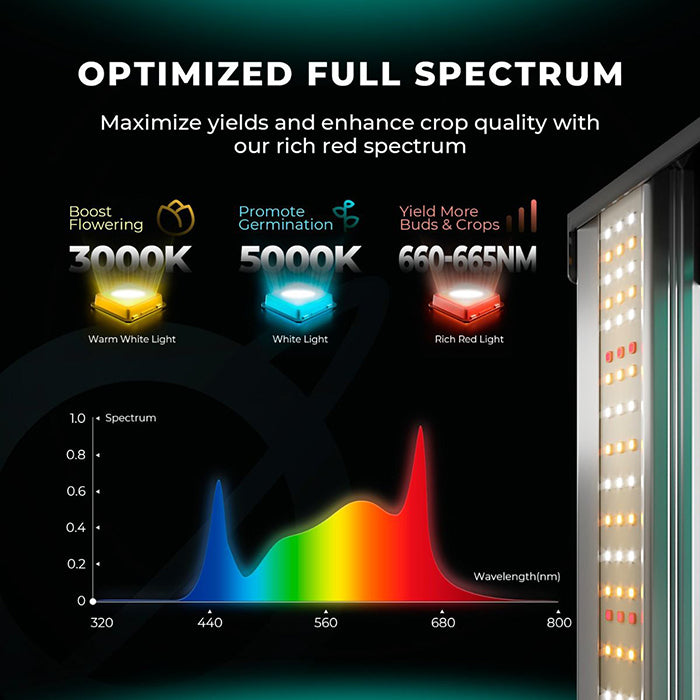

Professional Full Spectrum Lighting
The full spectrum of the FC 1000W is enhanced in the blue and red light bands. Blue light stimulates plant growth and promotes the accumulation of phytochemicals. Rich red light improves plant maturation and flower quality.
Smart & Remote Light Control
The FC 1000W is a smart LED that can be remotely controlled with your smartphone using the Mars Hydro APP. It allows remote control, timer, and automatic dimming with precise time settings to help you configure the LED to better fit your lighting schedule.

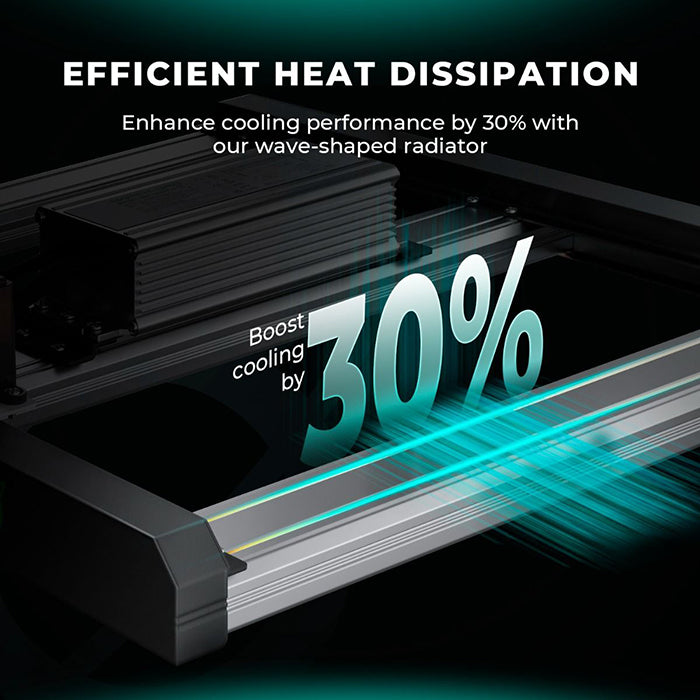

Heat Management Designs
The corrugated heat sink dissipates heat quickly, so the low-temperature operation of the LED lights does not disrupt the already controlled and stable environment. The multi-bar design also avoids hot-spot problems by reserving heat sink space between light bars. The detachable design allows for easy installation and storage.
DLC Qualified LED
DLC-certified LED Grow Lights are high quality and high efficiency, meeting the highest standards in the industry and capable of operating for at least 36,000 hours while maintaining 90% efficiency. In addition, Mars Hydro promises a 5-year warranty and local repair service to ensure that the LED grow lights work properly and perfectly throughout their lifespan.
Specifications for the FC1000W LED Grow Light
| Wattage | 1000W±5%@240V, 900W±5%@120V |
|---|---|
| Core Coverage | 4'x4' |
| Max Coverage | 4'x6' |
| PAR | 2.9 μmol/J |
| PPF | 2885 μmol/s |
| Chip Brand | Samsung LM301H EVO |
| Spectrum | 660-665nm,2800-3000K,4800-5000K |
| Voltage | AC120-277V |
|---|---|
| Amps | 8.07A@A20V 3.83A@240V 3.32A@277V |
| BTU | 3411 |
| Certificate | UKCA,RoHS, ETL, DLC, IP65 |
| Lifespan | 50,000 Hours |
| Warranty | 5 years |
| Dimensions | 67.2" x 45.3" x 3.7" |
| Brand | Mars Hydro |
|---|---|
| SKU | FC-1000W |
| Weight (lb.) | 40.9200 |
| Prop 65 | false |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Lead Time | This product ships in 1-2 weeks |
| Hazardous Material | false |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type | Multi-Bar |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| Est. Electricity Cost /mo | $43.20 |
| Exact Watts | 1000 Watts |
| Suggested Hanging Height | 12" Above Canopy |
| LED Diode Type | Samsung LM301H EVO |
| PAR Efficiency | 2.85 μmol/J |
| Total PPF Output | 2079 μmol/s |
| Daisy Chain | Yes |
| Voltage | 120 Volts |
| Amps | 8.074 A @ 120 Volts; 3.839 A @ 240 Volts; 3.325 A @ 277 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120 Volt |
| Power Cord Length | 6.5 ft. |
| Coverage Area | Veg: 5' x 5'; Flower: 4' x 4' |
| Grow Light Certifications | DLC Listed, ETL Listed |
| ETL Listed | Yes |
| UL Listed | No |
Mars Hydro Smart FC1000W-EVO Samsung LM301H CO2 1000 Watt LED Grow Light Videos
Mars Hydro Smart FC1000W-EVO Samsung LM301H CO2 1000 Watt LED Grow Light Questions & Answers
Q: Do the FC lights have IR and UV?
A: FC series led grow lights don’t have UV & IR. You can add Mars Hydro UR45 UV IR lights to your growing
Q: What's the diodes FC use?
A: FC Series use Samsung LM301B chips which are known for the high energy efficiency, converting a significant portion of electricity into usable light for plant growth. Also Samsung chips are capable of producing high-intensity light, which ensures that plants receive the light they need for optimal growth and yield.
