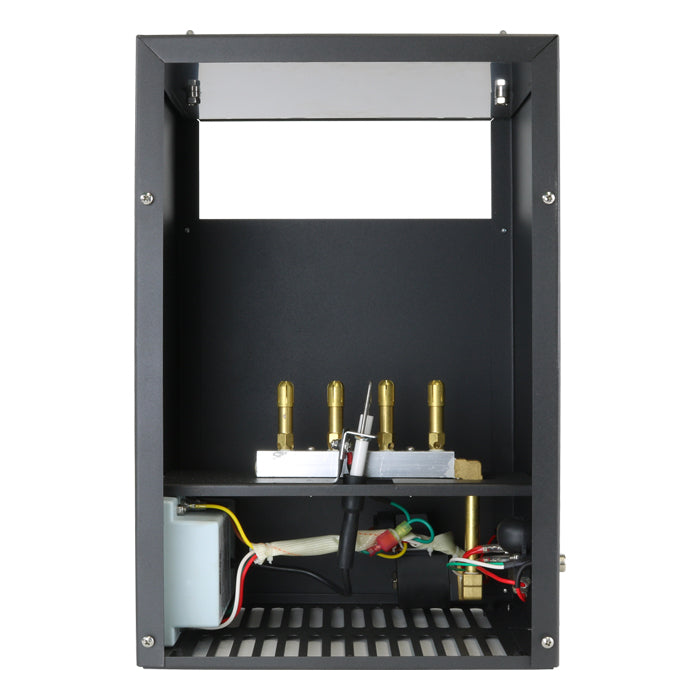

LTL Controls Product Documents
There are 2 distinct types of LTL Controls CO2 Generators available, those for Propane and those for Natural Gas. These are offered in either 8 or 10 burner configurations. You can then choose between High Altitude (above 5,000 ft) and Low Altitude (below 5,000 ft) models of each.
All generators come with the correct regulator and hose, along with pre-installed, clean-burning brass burners. All units are equipped with features like a safety tip-over switch, which automatically turns off the unit if it tips over or falls, an electronic ignition with dual redundant solenoid valves, which eliminates the open pilot flame and makes these generators twice as safe as others on the market.
LTL Controls CO2 Generators Features:
- Electronic Ignition
- LED Status Indicators
- Emergency Safety and Shutoff Sensors
- Includes All Necessary Hardware for Easy Installation
LTL Controls CO2 Generators Installation Diagrams:
LTL Control CO2 Generator Specs
| Model | Burner Count | Fuel Type | Operating Altitude | Max Area (cu ft) | Max CO2 (cu ft) | BTU Rating |
|---|---|---|---|---|---|---|
| 220405 | 4 | Natural Gas | <5000 ft. | 4000 | 11 | 9052 |
| 220410 | 4 | Propane | <5000 ft. | 4000 | 11 | 9052 |
| 220810 | 8 | Propane | <5000 ft. | 8000 | 22 | 18104 |
| 220894 | 8 | Propane | >5000 ft. | 8000 | 16.5 | 13578 |
| 220805 | 8 | Natrual Gas | <5000 ft. | 8000 | 22 | 21816 |
| 220874 | 8 | Natrual Gas | >5000 ft. | 8000 | 16.5 | 16362 |
| 221005 | 10 | Natural Gas | <5000 ft. | 10000 | 27 | 27670 |
| 221074 | 10 | Natural Gas | >5000 ft. | 10000 | 20.25 | 20752 |
| 221010 | 10 | Propane | <5000 ft. | 10000 | 27 | 22630 |
| 221094 | 10 | Propane | >5000 ft. | 10000 | 20.25 | 16970 |
NOTE: High Altitude Generators have a reduced BTU Rating and CO2 Output of approximately 25%
| Brand | LTL Controls |
|---|---|
| SKU | 220410 |
| Weight (lb.) | 28.0000 |
| Lead Time | This product ships in 3-5 business days |
| Length (in.) | |
| Width (in.) | |
| Height (in.) | |
| Prop 65 | false |
| Hazardous Material | false |
| UPC | 850017895430 |
| ETL Listed | No |
| UL Listed | No |
| CO2 Enrichment | CO2 Burners |
| Burners | 4 Burners |
| CO2 Coverage Area | 40' x 40' or Less |
| Power Cord(s) Included | Yes |
